CTEK LITHIUM XS Product Sheet

EFFECTIVE LiFePO
CHARGING AND MAINTENANCE

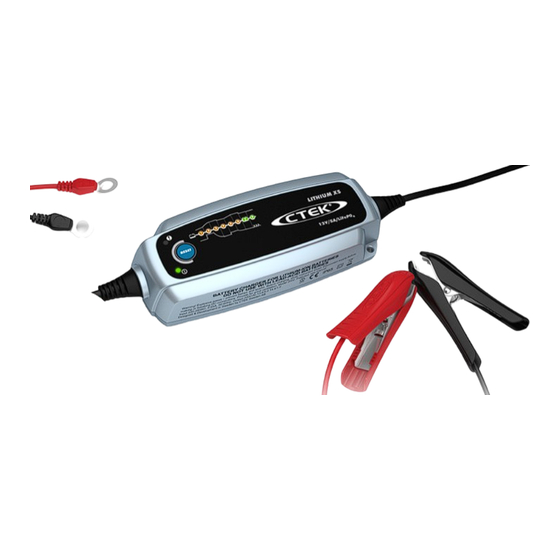

The LITHIUM XS is an advanced microprocessor controlled charger
specially designed to recharge and maintain Lithium-Ion Phosphate
(LiFePO ) batteries — maximising their performance and lifespan. With up
4
to 5A of charge current available the LITHIUM XS is extremely flexible and
will charge LiFePO batteries from 5Ah to 60Ah and maintain up to 120Ah.
4
Operation is simple and charging will commence upon connection. With
no need to disconnect the battery from the vehicle, at charge start the
LITHIUM XS will automatically reset any low voltage protection electronics
(Battery Management System) fitted. Charging can be restarted manually
at any time using the "Reset" button.
The LITHIUM XS is a fully automatic "connect and forget" charger with
8 charging steps including a testing sequence to show if the LiFePO
battery can take and retain charge, a unique maximisation step to restore
full capacity, and patented maintenance charging to ensure maximum
performance even after months of inactivity. Splash proof and dust proof
(IP65) the LITHIUM XS is easy and safe to use, protects vehicle electronics,
spark-free, reverse polarity protected and short circuit proof. The LITHIUM XS
features a 5-year warranty.
TECHNICAL DATA
CHARGING VOLTAGE 13.8/14.4 VDC
CHARGE CURRENT Max 5A
TYPE OF CHARGER 8 - step, fully automatic charging cycle
TYPE OF BATTERY
12V Lithium Ion Phosphate (LiFePO
BATTERY CAPACITY 5–60Ah, maintenance charging
up to 120Ah
PROTECTION RATING IP 65 (splash and dust proof)
BATTERY
4
3
Step 3 - Battery ready to use
7
Step 7 - Fully charged battery
8
Step 8 - Maintenance charging
AUTO
Fully automatic for optimal charging
4
For Lithium-Ion Phosphate
)
4
LITHIUM XS
LiFePO batteries
4
CTEK
12V/5A
