Summary of Contents for Kirk 4020

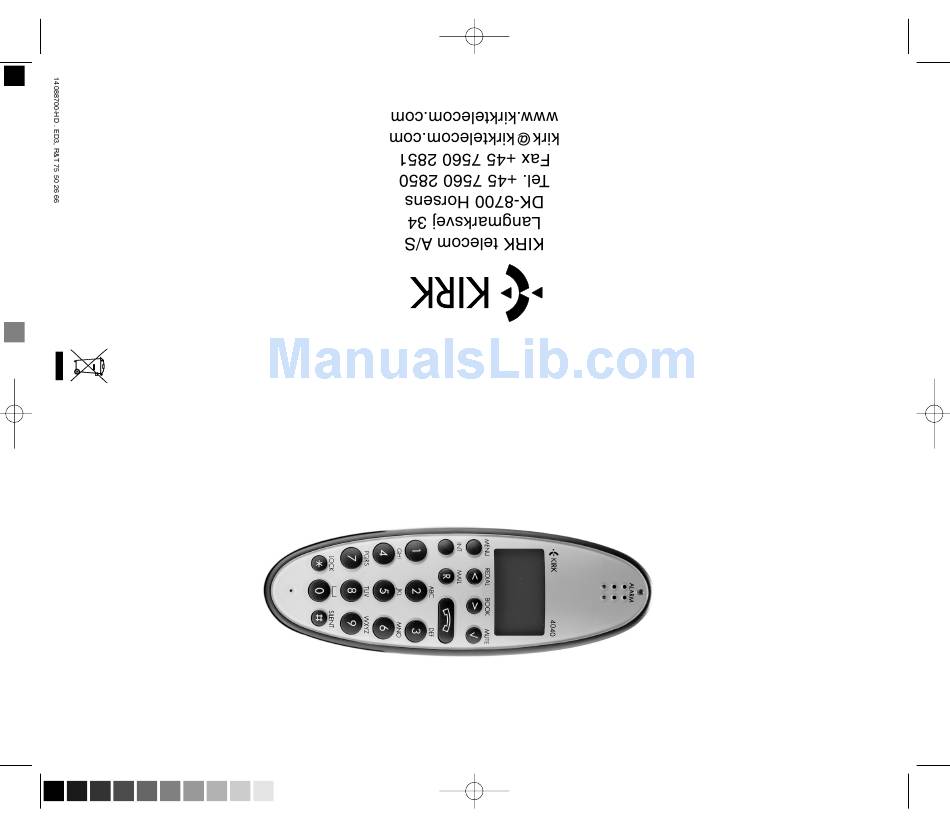

- Page 1 1408 8700 ed4.qxp 18/03/05 8:30 Side 1 (Sort/Process Black plade) KIRK 4020 and KIRK 4040 for KIRK Wireless Server 1500 and 500 User’s Guide...
-
Page 2: Table Of Contents
Side 2 (Sort/Process Black plade) Congratulations on your new KIRK handset Your new handset from KIRK telecom will provide you with the greatest possible degree of flexibility and mobility due to high battery capacity, low weight, practical size and design. Contents: 1. -
Page 3: Construction
1. Construction (only KIRK 4040) MENU key Left arrow key, Redial menu Key for internal calls from standby text (not used on KIRK Wireless Server 1500) Loud speaking (only KIRK 4040) Alarm key Keyboard LOCK (Menu*) Right arrow key, save number. -
Page 4: Charging
It is necessary to recharge the battery when the display shows “BATTERY LOW”, or if it can not be turned on. The LED flashes at a low frequency while charging and lights constantly when the charging is finished. The display KIRK telecom goes back to normal mode when fully charged. -
Page 5: Turning The Handset On/Off
- On hook/off hook and turn ON ” ” - * (Change from pulse to DTMF on KIRK Wireless Server), Long = pause (-), extra long: change from pulse to DTMF (a ”T” appears in the display, GAP standard) “0-9”... -
Page 6: Making A Call
CLIP or the name of the person who called and the LED is on Press the -key, the -icon will flash until the connection is established Using the handset in residential systems: (not in KIRK Wireless Server 1500 and 500) Internal call post-dial: Press the INT-key, the -icon in the display will flash... -
Page 7: Receiving Calls
1408 8700 ed4.qxp 18/03/05 8:30 Side 7 (Sort/Process Black plade) 6.1. Receiving calls If the phone rings, the call can be answered by pressing the -key. When ringing the LED flashes fast, and the display shows the CLIP (if presented). If it is an external call (or if no CLIP) the display shows “INCOMING CALL”. -
Page 8: Menu Structure
-key, jumps to a lower level in the menu. When the lowest menu level is reached, it will store the setting and jump to a higher level. It has to be used if a “YES” is wanted. KIRK telecom MENU... -
Page 9: The Key Functions
1408 8700 ed4.qxp 18/03/05 8:30 Side 9 (Sort/Process Black plade) 7.2 The key functions Capital letter Small letter ? ! 1 - + * / = & ( ) % ¿ ¡ ? ! 1 - + * / = & ( ) % ¿ ¡ A B C 2 Ä... -
Page 10: Profile Set Up
: Turn the volume up and down using the < and >. Confirm with ( ) EY CLICK : Can be turned on/off using the < and >. Confirm with ( ) (vibrator only works on KIRK 4040) IBRATOR : Can be turned on/off using the < and >. Confirm with ( ). When turned on, the telephone automatically ANSWER goes off hook when ringing. -
Page 11: Menu Subscription And Login
1408 8700 ed4.qxp 18/03/05 8:30 Side 11 (Sort/Process Black plade) SUBSCRIPTION 7.5 Menu subscription and login REMOVE MENU REMOVE? LOGIN Password is factory set 0000 PASSWORD _ _ _ _ _ MENU SUBSCRIPTION SUBSCRIPTION SUBSCRIPTION SELECT LOGIN CREATE REMOVE REMOVE LOGIN CREATE REMOVE... -
Page 12: Login
1408 8700 ed4.qxp 18/03/05 8:30 Side 12 (Sort/Process Black plade) 7.5.2 Login The handset can be subscribed to 10 different systems enabling you to use the same handset on 10 different systems. If you would like to change to another system, use the login menu to connect to another system number. The actual chosen system is shown with the red LED on. -
Page 13: Remove Subscription
7.5.5 Change startup text The startup text is predefined as e.g. ”KIRK telecom” as factory default. This can be changed by using the following procedure: Press , BOOK, ( ) and give in the new startup text by the keyboard followed by ( ). It is pos- **** sible to insert 24 characters. -
Page 14: Redial
It is possible to edit the CLIP or redial numbers. Find the number you wish to edit and press the digits you want to add to the number, e.g. prefix = O. The Redial and CLIP stack Menu (fig) KIRK telecom < BILL GATES... -
Page 15: Book
“>”- key followed by the “ ” key. The book can store up to 80 numbers with name. Typing of the name and a confirmation is required. After storing the telephone will go back to standby mode. If the display shows KIRK telecom “MEMORY FULL”, it is necessary to delete one or more numbers from the telephone book. -
Page 16: External Services
7.9 External services External services are facilities placed in the main system, and only available if the handset is subscribed to a KIRK solution. Under External services can be found; Clip stack, Delete clip stack and local Phone book. The Local Pho- ne book is a common Phone book for all handsets subscribed to the actual system, and all handsets subscribed to the system are listed in the Phone book. -
Page 17: Mail/Textmessages
1408 8700 ed4.qxp 18/03/05 8:30 Side 17 (Sort/Process Black plade) 7.11 Mail/Text Messages Available in systems configured with the possibility of sending text messages At the reception of a text message the envelope icon appears in the display. The envelope icon is indicating one or more unread messages. - Page 18 -key, type the number of the receiver and confirm with the -key. The messa- ge is sent. Note In case a sent message is not received, the sender will get a message in the display. KIRK telecom The Mail Menu (fig) MAIL N25-01 04.38 L26-01 14.32 N28-01 15.46...
-
Page 19: Menu Language
There are 6 predefined languages in the handset: English, German, French, Italian, Spanish and Dutch. Select the required language by pressing the -key. If a 7th language is present this will be shown as ”OPEN”. The ”OPEN” selection is a specific dealer language and is factory programmed. KIRK SET PROFILE PROFILE LANGUAGE... -
Page 20: Information
9.2 Error information Improper function of the handset might be related to the installation of the KIRK solution or failures related to the main system. Before declaring a handset for repair be sure that the main system is operating properly. -
Page 21: Technical Information
1408 8700 ed4.qxp 18/03/05 8:30 Side 21 (Sort/Process Black plade) 9.4. Technical information Approvals Acoustics: TBR 10 Electrical: TBR 6 (DECT RF) Access profile: TBR 22 (GAP) EMC: ETS 300 329 (CE labelling) Size and weight Size: 149 x 50 x 28 mm Weight: 123 g including battery ±...
