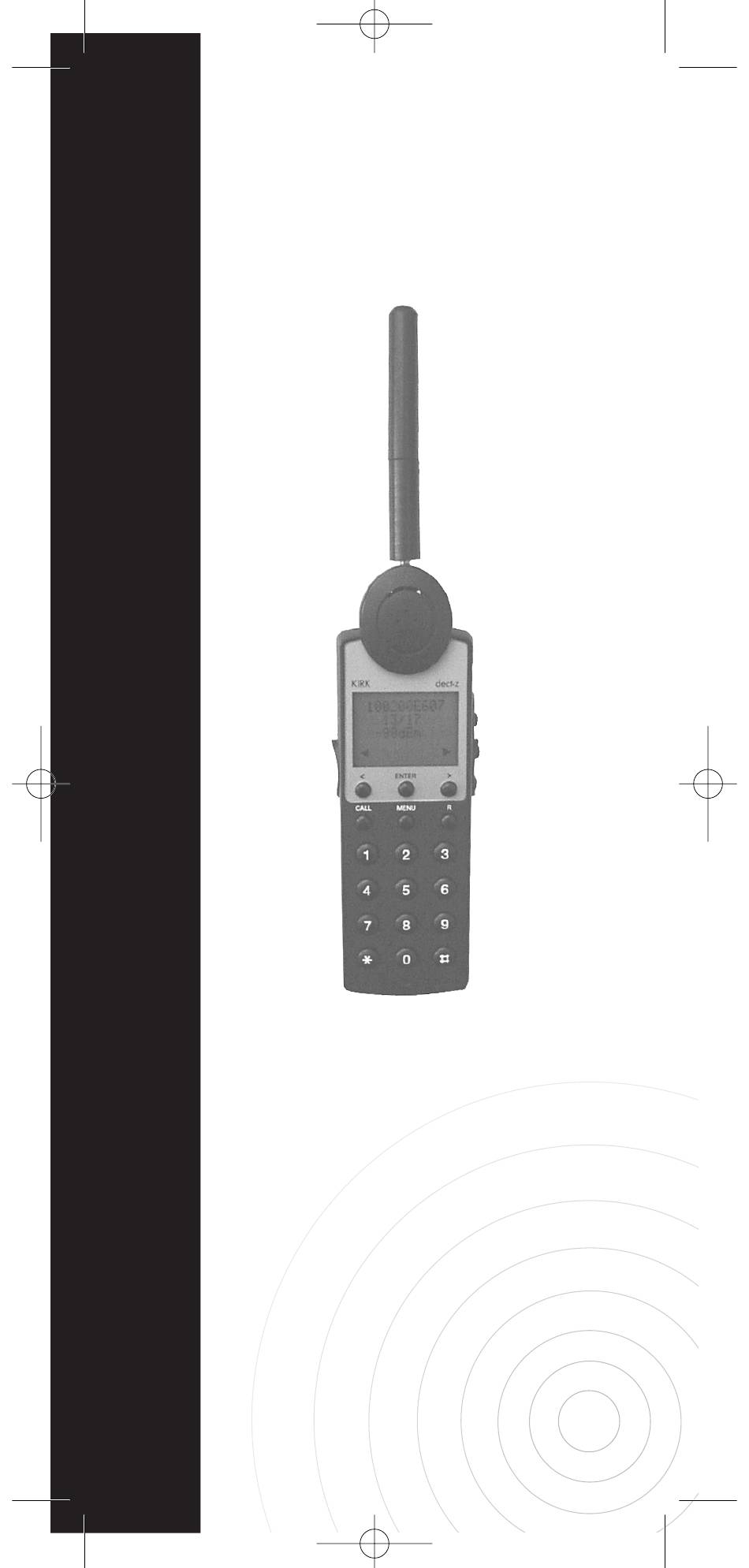

- Page 1 KIRK Brugervejl. 1403 6200 ED1 09/04/02 15:52 Page KIRK dect-z 1600 Handset Technical user’s guide...
-
Page 2: Table Of Contents
5.1 Best Base Stations......5 5.2 Cur. Base ........8 5.3 Free Chan........9 6 Possible Use of the Handset.....9 1. The KIRK dect-z 1600 handset – The professional diagnostic tool for fault finding and deployment of DECT systems Finding and correcting faults in a busi- ness DECT system is a demanding task. -
Page 3: Charger
KIRK Brugervejl. 1403 6200 ED1 09/04/02 15:52 Page 2. Charger The charger enables you to simultane- ously charge the handset incl. a battery. The two small indicators placed on the front of the charger show the status of charging. Connect the charger through the DC jack on the back of the charger and the AC/DC power supply to the mains. -
Page 4: Deployment
KIRK Brugervejl. 1403 6200 ED1 09/04/02 15:52 Page 3. Deployment The difficult part of installing a DECT system is the question of where to place the base stations. The placement of the base stations is made during deployment of the site. How to do this is described in the applications note on the Internet www.kirktelecom.dk... - Page 5 KIRK Brugervejl. 1403 6200 ED1 09/04/02 15:52 Page SUBSCRIBE CREATE Press ENTER SUBSCRIBE SEARCH ID: Press ENTER 10002000242 The handset is now searching for systems allowing subscription. Keep pressing the subscription button on the base station until the bib (the number of the base station will show up for 1 minute).
-
Page 6: Menu Structure
KIRK Brugervejl. 1403 6200 ED1 09/04/02 15:52 Page 5. Menu Structure. KIRK dect-z 1600 MENU MENU MENU BEST BASES FREE CHAN: CUR. BASE ENTER RFPI SCANNING /MASK: XXXX XXXXXX-YY SCANNING XXXXXXXXXX < -90 dBm XXXXXXXXXX YY/ZZ NXXX F S Q R... - Page 7 KIRK Brugervejl. 1403 6200 ED1 09/04/02 15:52 Page MENU EE CHAN: KIRK STANDARD MENU CANNING 90 dBm < -YY dBm < -60 dBm NXXX NXXX NXXX...
-
Page 8: Best Base Stations
KIRK Brugervejl. 1403 6200 ED1 09/04/02 15:52 Page 5.1. Best Base Stations In the “BEST BASES” menu it is possi- ble to see how many base stations there are in the air where the handset is pla- ced. The base stations are sorted after signal strength (RSSI). - Page 9 KIRK Brugervejl. 1403 6200 ED1 09/04/02 15:52 Page RFPI B PARI EIC FPN FPS RPN = 40 bits Class C is for DECT local loop: ARI C POC FPN FPS = 31 bits RFPI C PARI POC FPN FPS RPN...
- Page 10 POC: Public Operator Code GOP: GSM Operator Code FIL: Fill bits fixed 16-bit 0101... pattern The ARI Number in a KIRK DECT-z 1500 System The ARI number on the back of the CCFP is an octal number. • Divide the octal number by 4.
- Page 11 KIRK Brugervejl. 1403 6200 ED1 09/04/02 15:52 Page MASK MASK is shown in decimal and tells how many bits the handset has to consider in the RFPI number. i.e. RFPI = 100200E606h 0001 0000 0000 0010 0000 0000 1110 0110...
-
Page 12: Cur. Base
MHz steps. For each frequency there are 12 slots. This means that there are 120 channels available to the user if the system is a full slot system. The KIRK DECT-z 1500 system is a blind slot system, meaning that only the even slot is used. -
Page 13: Free Chan
KIRK Brugervejl. 1403 6200 ED1 09/04/02 15:52 Page frequency on which the call is can also change, but this only happens if the qua- lity is getting very bad. 5.3 Free Chan. With “Free Chan” it is possible to see... - Page 14 KIRK Brugervejl. 1403 6200 ED1 09/04/02 15:52 Page Note:...
- Page 15 KIRK Brugervejl. 1403 6200 ED1 09/04/02 15:52 Page...
- Page 16 KIRK Brugervejl. 1403 6200 ED1 09/04/02 15:52 Page KIRK telecom A/S, Langmarksvej 34, DK-8700 Horsens, Tel. +45 7560 2850, Fax +45 7560 2851, Kirk@kirktelecom.dk KIRK telecom A/S, 1403 6200-ED 1...
