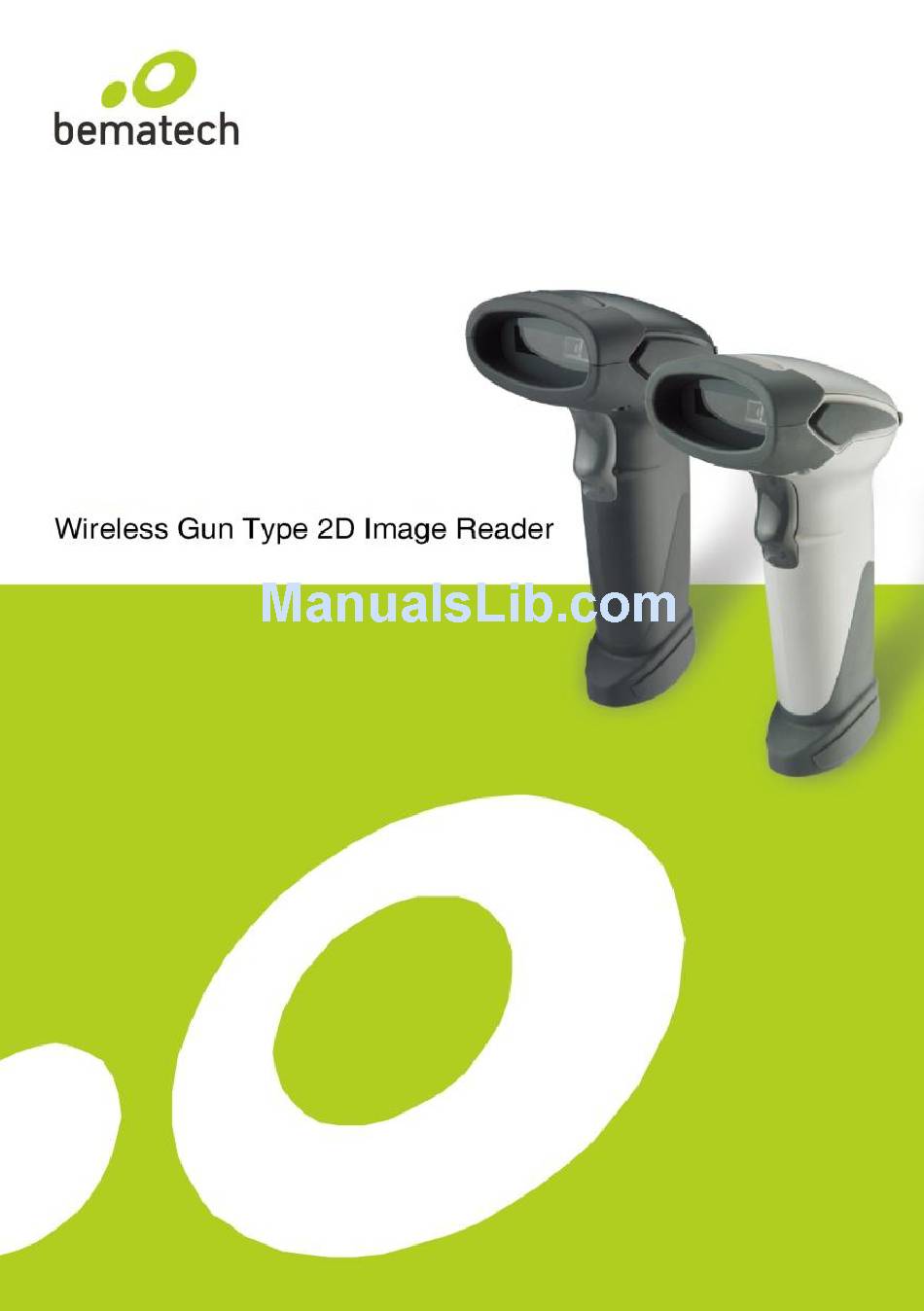

Bematech BR800BT User Manual

Wireless gun type 2d image reader

Advertisement

BR800BT
User Manual
1
Advanced Handheld High-Speed Laser Scanner

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BR800BT and is the answer not in the manual?

Questions and answers

Summary of Contents for Bematech BR800BT

  • Page 1 BR800BT User Manual Advanced Handheld High-Speed Laser Scanner...
  • Page 3: General Handling Precautions

    ANUAL Important Notice This User Manual is a description of the bar code scanners BR800BT and S-800BT, including information regarding installation and operation. No warranty of any kind is made in regard to this material, including, but not limited to, implied warranties of merchantability or fitness for any particular purpose.
  • Page 4: For Ce-Countries

    ANUAL Operation of this equipment in a residential area can cause interference to radio or television reception. This can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one or more of the following measures: - Reorient the receiving antenna.
  • Page 5: Wireless Communication

    ANUAL Wireless Communication  Wireless technology operates 100M / 75M with communication cradle. Maximum communication range may vary depending on obstacles (person, metal, wall, etc.) or electromagnetic environment.  The following conditions may affect the sensitivity of wireless communication.  There is an obstacle such as a person, metal, or wall between this unit and wireless device.
  • Page 6 ANUAL Bad host placement Good host placement At least 1 m 2. Move the access point (host/cradle) off the floor and away from walls and metal objects (such as metal file cabinets). Metal objects, walls, and floors will interfere with your wireless signals. The closer your access point is to these obstructions, the more severe the interference, and the weaker your connection will be.
  • Page 7: Table Of Contents

    ANUAL Table of Contents Important Notice ....................i General Handling Precautions ................i For CE-Countries ....................ii Power Supply ....................ii Wireless Communication ................iii Introduction ........................1 Product Overview ....................2 Scanner ......................2 Cradle (Optional) ..................... 2 Scanner and Accessories ..................3 Battery Installation ....................
  • Page 9: Introduction

    ANUAL Introduction This scanner is a gun type rugged wireless CCD/Laser barcode scanner with a state of the art scan engine. Featuring a superb scanning speed and able to withstand 1.5 meter drop, it is ideal for manufacturing and logistics sectors. The cradle, a dongle, or devices with wireless technology can be the host of this scanner.
  • Page 10: Product Overview

    ANUAL Product Overview Scanner LED Indicator Exit Window Buzzer Trigger Strap Hole Metal Charging Contacts Cable Connector Cradle (Optional) Charging Contacts Function Trigger/LED indicator Host Connector DC Power Connector Bluetooth Address Label Wireless Handheld Gun Type Scanner...
  • Page 11: Scanner And Accessories

    ANUAL Scanner and Accessories The scanner package contains: Wireless scanner with battery / Scanner cradle (optional) (without cradle) (with cradle) Li-ion battery pack Communication cable for cradle (optional) Mini USB B to mini USB A cable 5V USB Power adapter CD-ROM or handbook (Containing manual and programming guide) Cable clip...
  • Page 12: Battery Installation

    ANUAL Battery Installation Installing Batteries The rechargeable batteries are packed individually for shipping safety. Please follow the steps below to install the batteries. Always use the rechargeable batteries provided by the manufacturer to avoid any non-compatible danger or void the warranty. Unscrew the cap from the battery compartment at the bottom of the scanner and insert the battery.
  • Page 13: Installing Cable Clip

    ANUAL Installing Cable Clip Cable clip is used to hold the mini USB cable in USB Online Mode. With the cable clip, you can easily transform your wireless scanner into a wired one. Attaching Cable Clip Insert the cable clip to the strap hole as shown. Gently turn the cable clip counter-clockwise and push the cable clip all the way through the strap hole.
  • Page 14 ANUAL Removing Cable Clip Detach the cable from the clip and detach the bottom part of the cable clip from the scanner handle. Unhook the left part of the cable clip from the strap hole then turn it clockwise. While in turning motion, push the cable clip all the way through. Remove the cable clip from the strap hole.
  • Page 15: Connecting The Cradle

    ANUAL Connecting the Cradle The cradle host features wireless technology and is designed to support radio communication to the scanner. It can be used for both battery charging and radio communication. Take the desirable interface cable and insert the RJ-45 connector on the bottom of the cradle.
  • Page 16: Charging The Battery

    ANUAL Charging the Battery The scanner offers two different ways to charge the battery: USB Cable or Cradle. To charge the battery using the cradle: Connect the cradle. Please see Connecting the Cradle section for more details. Place the scanner on the cradle. You will hear a short beep sound from the scanner indicating scanner is in contact with the cradle.
  • Page 17: Power On The Scanner

    ANUAL Approx. charging time: 5~6 hours  The scanner will power on automatically when charging.  Batteries shipped may not be full charged and should be fully charged for maximum charge capacity.  Recommended charging environment is temperature in 0°C~35°C (32 °...
  • Page 18: How To Scan

    ANUAL How to Scan There are two ways to scan with this device.  Handheld scanning  Presentation scanning Handheld scanning Power on the scanner. Press the trigger and aim at the barcode as illustrated. When decoding is successful, the scanner beeps and the LED indicates blue. Presentation Scanning Put the scanner into the cradle for presentation scanning.
  • Page 19: Radio Communication Host Type

    ANUAL Radio Communication Host Type This scanner support three radio communication types:  Cradle Host mode  SPP master/slave mode  HID mode Cradle Host Mode The scanner communicates with the host through the cradle and the cradle communicates directly to the host via host interface cable connection. Typically, scanner and cradle in the same delivery box are paired in factory.
  • Page 20: Paging The Scanner

    ANUAL Paging the Scanner Ensure the cradle is properly connected to the host and LED indicator is showing steady blue. Press the function trigger on the cradle. You should hear the scanner make 3 beep sounds and blue LED flash 3 times if it is in range. Scanner USB online to Host The scanner provides other ways for you to connect to the host.
  • Page 21: Cradle

    ANUAL operational status of the scanner. Group 1 LED Status Indication Group_ 2 Group_1 Blue Flashing Waiting for radio connection (flash time 0.5s : 0.5s). Blue fast Flashing Radio connecting. Blue Slow Flashing Device connected (flash time 0.03s : 3s). 1 Blue Flashing A barcode was decoded successfully Blue Fast Flashing...
  • Page 22: Sound Indicators

    ANUAL Cradle is radio connected. But lost DC power from the Steady red and blue adaptor. Red and blue USB Interface communication failed. interchange Steady blue Cradle is radio connected. Blue flashing Cradle is radio disconnected. Sound Indicators When the scanner is in operation, it provides audible feedback. The beeps indicate the status of the scanner.
  • Page 23 ANUAL a) No ACK/NAK protocol: data Remote BT BT Scanner device b) ACK/NAK only data Remote BT BT scanner Resend device data Get a good beep c) Frame packing: Data format of packet Remote BT Acknowledge BT scanner device packet Get a good beep Wireless Handheld Gun Type Scanner...
  • Page 24: Scanner To Remote Application

    ANUAL Scanner to Remote Application Data Format of Packet To send a data (barcode) to the remote application, the BT scanner has to encapsulate it: Size of Data Barcode Reserved (Format Data (End of (Header) payload Type Byte Byte) Byte) 1 byte 1 byte 1 byte...
  • Page 25 ANUAL Barcode Type Table Code Value Code39 0x11 Codabar 0x01 Code128 0x03 Interleaved 2/5 0x02 Code93 0x06 UPC-E 0x14 UPC-A 0x24 EAN-8 0x34 EAN-13 0x44 Chinese Post Code 0x05 0x07 Wireless Handheld Gun Type Scanner...
  • Page 26: Pin-Out Configuration

    ANUAL Pin-out Configuration Scanner mini USB Pin-Out Configuration PIN 1. PIN 2. USB_D- PIN 3. USB_D+ PIN 4. PIN 5. Cradle Phone Jack Pin-Out Configuration RJ 1. RTS_EIA RJ 6. RX_ EIA RJ 2. KB Data / USB_D+ RJ 7. KB Clock RJ 3.
  • Page 27: Cable Pin-Out

    ANUAL Cable Pin-out Keyboard Wedge Cable (for PS/2) PIN-OUT CONFIGURATION MINI DIN (M) MINI DIN(F) FUNCTION FUNCTION PC Data KB Data N.C. N.C. PC Clock KB Clock N.C. N.C. RS-232 Cable (DTE pin out) PIN-OUT CONFIGURATION DB-9 (F) FUNCTION RS-232 Cable (DCE pin out) PIN-OUT CONFIGURATION DB-9 (F) FUNCTION...
  • Page 28: Programming Guide

    ANUAL Programming Guide Program Procedure Using Barcode Manual Power up the scanner. Scan the Start of Configuration barcode. Scan the barcode for the desired feature. Multiple features can be enabled/disabled before scanning the End of Configuration barcode. Scan the End of Configuration barcode and save the new configuration. To give up a configuration change, power off the scanner before scanning the End of Configuration barcode or scan the Abort barcode.
  • Page 29: Default Parameters

    ANUAL Default Parameters The factory default setting table gives the default settings of all the programmable parameters. The default settings will be restored whenever the "Reset" programming label is scanned and the scanner is in programming mode. Default values are highlighted in grey background in the settings.
  • Page 30 ANUAL EAN/UPC Enable CODE 39 Enable Code 32 Disable CODABAR Enable ITF 2 OF 5 Enable Disable Chinese post code Disable Code 93 Enable Code 128 Enable EAN-128 Disable Telepen Disable Code 11 Disable Standard 2 of 5 Disable Industrial 2 of 5 Disable GS1 DataBar Disable...
  • Page 31 ANUAL MSI identifier code Code 11 identifier code Standard 2 of 5 identifier code Industrial 2 of 5 identifier code GS1 DataBar identifier code GS1 DataBar Limited identifier code GS1 DataBar Expanded identifier code Default Data Transmit Format Code Message format EAN-13 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 EAN-8...
  • Page 32: Connecting To A Host

    ANUAL Connecting to a Host The scanner provides several data transmit methods to communicate with the host. User may select the method according to their preferences. Read this section to learn the setups for connecting to different hosts. Start Of Configuration USB Online Mode The scanner connects directly to a USB host to recharge and transmit data.
  • Page 33: Cradle Host Mode

    ANUAL Start Of Configuration Cradle Host Mode The scanner communicates with the host through the cradle. Typically, scanner and cradle in the same delivery box are paired and corresponded to host interface in factory. To check if the scanner is paired to the cradle, check the scanner LED group1 for slow blue flash and check the top cradle LED for steady blue light.
  • Page 34: Wireless Mode

    Next. The scanner should be on the list of discoverable devices. The default name of the scanner is “BR800BT”. Select “BR800BT” and click “Next”. Select “Let me choose my own passkey” and enter the pin code. The default pin code is “12345678.
  • Page 35 ANUAL Start Of Configuration SPP Master Mode In this mode, the scanner connects to the host /PC via wireless connection and performs like there’s a serial connection. In master mode, the scanner initiates the connection to the remote device. Power on of the remote device and have its address ready in hand and make it discoverable.
  • Page 36 The scanner should be on the list of discoverable devices. The default name of the scanner is “BR800BT”. You will be prompt to enter paring pin code. Select “BR800BT” and input the pin code that appears on your mobile device to connect scanner to the phone.
  • Page 37 ANUAL Start Of Configuration Setting Pin Code To change the pin code, use the “Set pin code” setting. Default is “12345678”. Use the ASCII table in Programming Guide to input the new code (must be at least 4 digits and not more than 8 numeric digits). Scan “Save Setting”...
  • Page 38 ANUAL Start Of Configuration Setting Name To change the name displayed when the scanner is discovered, scan the “Friendly device name set” label. Default name is “ZBBT”. Use the ASCII table in Programming Guide to input the name (Max.12 digits). Scan “Confirm Setting”...
  • Page 39: Data Transnit Method

    ANUAL Start Of Configuration Data Transnit Method The data transfer method includes three types: Normal (default), Out-of-Range Mode, and Batch Mode. Users may modify this setting according to their preferences. Normal When the scanner is within the connection range, the scanned data will be transferred to the host computer immediately.
  • Page 40 ANUAL Start Of Configuration Batch Mode Whether within the connection range or not, in batch mode, the scanner stores all scanned data that will be transferred to the host computer after scanning “Send Batch Data” label. Number of storable bar codes = 61,365 bytes of memory / (number of characters in the bar code +2) Note: Scanner LED indicator will not flash while waiting for connection in this mode.
  • Page 41 ANUAL Start Of Configuration Batch Transfer Use the settings in this section to setup batch transfer. Scanning this label automatically exits you from the Programming Mode. Press and hold the trigger for over Send Batch Data By 1 second to send the data. Scanning Label Data is ready to be transferred upon USB connection.
  • Page 42: System Function Settings

    ANUAL System Function Settings Default values are highlighted in grey background. Start Of Configuration Barcode Value Description Return scanner to factory defaults Return cradle host to factory defaults Return to USB default (Communication cradle link required) Return to wand emulation default (Communication cradle link required) Return to RS232 default (Communication cradle link required)
  • Page 43 ANUAL Start Of Configuration Barcode Value Description Display firmware version Abort (exit programming mode without any updates) Scan Mode Trigger mode The scanner becomes inactive as soon as the data is transmitted. It must be triggered to become active again. Auto scan mode The scanner is still active after the data is transmitted but the successive transmission of the same barcode is not...
  • Page 44 ANUAL Start Of Configuration Radio Communication Setting Cradle Host mode Cradle Host mode enable Enable cradle mode with this setup. Unlock pairing mode In this mode, the scanner can pair with another cradle when disconnected. Lock pairing mode. In this mode, the scanner can not pair with another cradle.
  • Page 45 ANUAL Start Of Configuration USB Online mode USB online scan disable USB online scan enable USB online scan, Ignore radio communication BT HID mode BT HID mode (Combo keyboard) For Apple mode (Must execute BT HID mode first) SPP Master/Slave mode Scanner SPP Master enable SPP Master (Connect wireless address “BxxxxxxxxxxxxT”...
  • Page 46 ANUAL Start Of Configuration Default Device name Friendly device name set Delete pin code Confirm Setting (for address, device name, and pin code setting required) Required Pair with slave (SPP Master) Discover enable Discover disable Encryption enable Encryption disable Data communication without protocol Data communication with ACK/NAK protocol Data communication with Packing protocol End Of Configuration...
  • Page 47 ANUAL Start Of Configuration Data Transmit Mode Data transmit normal Out of range buffer enable Batch mode Send Batch Data By Scanning Label Clear batch data after send Clear batch data by scanning “Delete batch data” label Delete batch data Send Batch Data on line USB cable contact.
  • Page 48 ANUAL Start Of Configuration Radio protocol communication parameter Radio protocol timeout= 3 sec Radio protocol timeout= 5 sec Radio protocol timeout =8 sec Radio protocol timeout= 10 sec Radio protocol timeout =13 sec Radio protocol timeout =16 sec Radio protocol timeout= 20 sec End Of Configuration Wireless Handheld Gun Type Scanner...
  • Page 49 ANUAL Start Of Configuration Power off timeout parameter Power off timeout=5 min Power off timeout=10 min Power off timeout=20 min Power off timeout=30 min Power off timeout=1 hr Power Off timeout : 2 hr Power Off timeout : 4 hr Power Off timeout : 6 hr Power Off timeout : 8 hr End Of Configuration...
  • Page 50 ANUAL Start Of Configuration Power Always On Power off by scanning this label Link beeper enable Link beeper disable Power-up beeper enable Power-up beeper disable Same Code Delay 50 msec 100 msec 200 msec 300 msec End Of Configuration Wireless Handheld Gun Type Scanner...
  • Page 51 ANUAL Start Of Configuration 400 msec 500 msec 600 msec 700 msec 800 msec 1000 msec Infinite End Of Configuration Wireless Handheld Gun Type Scanner...
  • Page 52 ANUAL Start Of Configuration Operation Function Setting Good Read Beeper Tone Selection Medium beeper tone High beeper tone Low beeper tone Speaker disable End Of Configuration Wireless Handheld Gun Type Scanner...
  • Page 53 ANUAL Start Of Configuration Beeper duration Selection Long Medium Short Ultra Short Ultra Long End Of Configuration Wireless Handheld Gun Type Scanner...
  • Page 54 ANUAL Start Of Configuration Vibration Parameter (Optional function, available only for customers of special request ) Good read vibrator enable. Good read vibrator disable Good read beeper and vibrator enable Vibration duration=100msec Vibration duration=200msec Vibration duration=300msec Vibration duration=400msec Vibration duration=500msec Vibration duration=1 second Vibration duration=2 second Vibration duration=3 second...
  • Page 55 ANUAL Start Of Configuration Inter Character Delay 0 ms 2 ms 5 ms 10 ms 20 ms 50 ms Inter Message Delay 0 ms 100 ms 500 ms 1000 ms End Of Configuration Wireless Handheld Gun Type Scanner...
  • Page 56 ANUAL Start Of Configuration Interface Settings RS-232C Interface Setting Baud Rate 115200 19200 9600 4800 2400 1200 Parity Bit Even parity Odd parity Mark parity Space parity None parity Stop Bit 1 stop bit 2 stop bit Data Bit 7 data bit 8 data bit End Of Configuration Wireless Handheld Gun Type Scanner...
  • Page 57 ANUAL Start Of Configuration Handshaking Protocol None handshaking ACK/NAK Xon/Xoff RTS/CTS Enable BEEPER ON<BEL> CHARACTER Ignore Beep on<BEL> character ACK/NAK response time 300ms ACK/NAK response time 2 sec ACK/NAK response time 500 ms ACK/NAK response time 3 sec ACK/NAK response time 1 sec ACK/NAK response time 5 sec ACK/NAK response time infinity End Of Configuration...
  • Page 58 ANUAL Start Of Configuration Message Terminator RS-232 message terminator—none RS-232 message terminator—CR/LF RS-232 message terminator—CR RS-232 message terminator—LF RS-232 message terminator—H tab RS-232 message terminator—STX/ETX RS-232 message terminator—EOT End Of Configuration Wireless Handheld Gun Type Scanner...
  • Page 59 ANUAL Start Of Configuration Keyboard Wedge Setting Keyboard Wedge Setting IBM PC/AT/PS/2 Keyboard emulation International Keyboard mode ( ALT method) Keyboard language support---USA Keyboard language support---UK send scan code Keyboard language support---GERMANY Keyboard language support---FRENCH send scan code Keyboard language support---SPANISH send scan code Keyboard language support---ITALIAN send scan code...
  • Page 60 ANUAL Start Of Configuration Message Terminator Keyboard terminator---none Keyboard terminator---Enter Keyboard terminator---H-TAB End Of Configuration Wireless Handheld Gun Type Scanner...
  • Page 61 ANUAL Start Of Configuration USB Interface Setting USB interface International Keyboard mode ( ALT method) Keyboard language support---USA Keyboard language support---GERMANY Keyboard language support---FRENCH send scan code Keyboard language support---SPANISH send scan code Keyboard language support---JAPANESE Keyboard language support---ITALIAN Message Terminator Keyboard terminator---none Keyboard terminator---Enter Keyboard terminator---H-TAB...
  • Page 62 ANUAL Start Of Configuration Wand Emulation Setting Wand emulation is not supported as standard, if needed, please contact your distributor. (Code128, Code93 not supported) Wand Emulation All barcode will be decoded and transmitted in that symbology Enable Wand output data format as CODE39 Wand emulation data output black=high Scan this bar code to set quiet zones and ...
  • Page 63 ANUAL Start Of Configuration Wand Emulation (Cont’d) Wand emulation speed-----Low This option allows the transmission of wand  emulation at 1ms narrow element width Wand emulation speed-----medium This option allows the transmission of wand  emulation at 600us narrow element width Wand emulation speed-----high This option allows the transmission of wand ...
  • Page 64 ANUAL Start Of Configuration Smart Phone Software Keypad Control Setting Smart Phone Software Keypad Control Multi-media keyboard mode This option enables Multi-media keyboard  mode Software keypad show/hide This option show or hide the Software keypad  To show/hide Software keyboard: Scan the Start Of Configuration barcode.
  • Page 65 ANUAL Start Of Configuration Show/Hide Software Keyboard with Trigger: Enable double-trigger software keyboard show/hide function Disable double-trigger software keyboard show/hide function To show/hide Software keyboard with double click of scanner trigger: Scan the Start Of Configuration barcode. Scan the Multi-media keyboard mode barcode. Scan the Enable double-trigger software keyboard show/hide function barcode.
  • Page 66 ANUAL Start Of Configuration The Symbologies Codabar Parameter Setting Barcode Barcode Label Description Value RC02 Codabar enable RD02 Codabar disable CB05 Codabar start/stop character transmission-none CB06 Codabar start/stop character transmission-A,B,C,D CB07 Codabar start/stop character transmission- DC1~DC4 CB08 Codabar start/stop character transmission- a/t,b/n,c/*,d/e CB09 Codabar maximum length setting...
  • Page 67 ANUAL Start Of Configuration Barcode Barcode Label Description Value CB13 No check character CB14 Validate modulo 16,but don’t transmit CB15 Validate modulo 16 and transmit DC50 Codabar data redundant check=off DC51 Codabar data redundant check=1 DC52 Codabar data redundant check=2 DC53 Codabar data redundant check=3 End Of Configuration...
  • Page 68 ANUAL Start Of Configuration Code 39 Parameter Setting Barcode Barcode Label Description Value RC01 Code 39 enable RD01 Code 39 disable RC13 Code 32 enable RD13 Code 32 disable DC00 Code 39 data redundant check=off DC01 Code 39 data redundant check=1 DC02 Code 39 data redundant check=2 DC03...
  • Page 69 ANUAL Start Of Configuration Barcode Barcode Label Description Value 3905 Code 39 check digit calculate and transmit 3906 Code 39 check digit calculate but without transmit 3907 No check character 3908 Code 39 maximum length setting 3909 Code 39 minimum length setting Confirm to save this setting (required for reading full ASCII table and length setting) 3912...
  • Page 70 ANUAL Start Of Configuration Code 93 Parameter Setting Barcode Barcode Label Description Value RC08 Code 93 enable RD08 Code 93 disable DC30 Code 93 data redundant check=off DC31 Code 93 data redundant check=1 DC32 Code 93 data redundant check=2 DC33 Code 93 data redundant check=3 9301 Code 93 maximum length setting...
  • Page 71 ANUAL Start Of Configuration Code 128 Parameter Setting Barcode Barcode Label Description Value RC06 Code 128 enable RD06 Code 128 disable RC10 EAN-128 enable RD10 EAN-128 disable DC40 Code 128 data redundant check=off DC41 Code 128 data redundant check=1 DC42 Code 128 data redundant check=2 DC43 Code 128 data redundant check=3...
  • Page 72 ANUAL Start Of Configuration Chinese Post Code Parameter Setting Barcode Barcode Label Description Value RC05 Chinese post code enable RD05 Chinese post code disable DC60 Chinese post code data redundant check=off DC61 Chinese post code data redundant check=1 DC62 Chinese post code data redundant check=2 DC63 Chinese post code data redundant check=3 SZ01...
  • Page 73 ANUAL Start Of Configuration MSI/Plessy Parameter Setting Barcode Barcode Label Description Value RC14 MSI enable RD14 MSI disable DC70 MSI data redundant check= off DC71 MSI data redundant check=1 DC72 MSI data redundant check=2 DC73 MSI data redundant check=3 MS01 MSI/Plessy maximum length setting MS02 MSI/Plessy minimum length setting...
  • Page 74 ANUAL Start Of Configuration Code 11 Interface Setting Barcode Barcode Label Description Value RC07 Code 11 enable RD07 Code 11 disable 1101 Code 11 maximum length setting 1102 Code 11 minimum length setting Confirm to save this setting (required for reading full ASCII table and length setting) 1103 Code 11 one check digit verification...
  • Page 75 ANUAL Start Of Configuration ITF 2 of 5 Parameter Setting Barcode Barcode Label Description Value RC04 ITF 2 of 5 enable RD04 ITF 2 of 5 disable RC09 IATA code enable RD09 IATA disable DC80 ITF 25 data redundant check=off DC81 ITF25 data redundant check=1 DC82...
  • Page 76 ANUAL Start Of Configuration Barcode Barcode Label Description Value IT01 ITF 2 of 5 code maximum length setting IT02 ITF 2 of 5 code minimum length setting IT06 ITF 2 of 5 one fixed length setting IT07 ITF 2 of 5 two fixed length setting Confirm to save this setting (required for reading full ASCII table and length setting) IT08...
  • Page 77 ANUAL Start Of Configuration Standard 2 of 5 Parameter Setting Barcode Barcode Label Description Value RC22 Standard 2 of 5 code enable RD22 Standard 2 of 5 code disable D051 Standard 2 of 5 code maximum length setting D052 Standard 2 of 5 code minimum length setting Confirm to save this setting (required for reading full ASCII table and length setting) D053...
  • Page 78 ANUAL Start Of Configuration Industrial 2 of 5 Parameter Setting Barcode Barcode Label Description Value RC21 Industrial 2 of 5 code enable RD21 Industrial 2 of 5 code disable D251 Industrial 2 of 5 code maximum length setting D252 Industrial 2 of 5 code minimum length setting Confirm to save this setting (required for reading full ASCII table and length setting) D253...
  • Page 79 ANUAL Start Of Configuration UPC/EAN/JAN Parameter Setting Barcode Barcode Label Description Value RC11 EAN convert to ISSN/ISBN enable RD11 EAN convert to ISSN/ISBN disable RC03 UPC/EAN/JAN enable RD03 UPC/EAN/JAN disable UE01 UPC/EAN/JAN all enable UE02 EAN-8 or EAN-13 enable UE03 UPC-A and EAN-13 enable UE04 UPC-A and UPC-E enable...
  • Page 80 ANUAL Start Of Configuration Barcode Barcode Label Description Value UE10 Add on 5 only UE11 Add on 2 only UE12 Add on 2 or 5 UE13 Force UPC-E to UPC-A format enable UE14 Force UPC-E to UPC-A format disable UE15 Force UPC-A to EAN-13 format enable UE16 Force UPC-A to EAN-13 format disable...
  • Page 81 ANUAL Start Of Configuration Barcode Barcode Label Description Value UE23 Transmit EAN-8 check digit enable UE24 Transmit EAN-8 check digit disable UE25 Transmit EAN-13 check digit enable UE26 Transmit EAN-13 check digit disable UE27 Transmit UPC-A leading character enable UE28 Transmit UPC-A leading character disable UE30 Add-on format with separator...
  • Page 82 ANUAL Start Of Configuration Barcode Barcode Label Description Value DC12 UPC-A data redundant check=2 DC13 UPC-A data redundant check=3 DC14 UPC-E data redundant check=off DC15 UPC-E data redundant check=1 DC16 UPC-E data redundant check=2 DC17 UPC-E data redundant check=3 DC20 EAN-13 data redundant check=off DC21 EAN-13 data redundant check=1...
  • Page 83 ANUAL Start Of Configuration UE35 EAN/UPC +add-on mandatory for 978/977 bookland (Supplement requirement, not sent for other) UE38 EAN/UPC +addon mandatory for 978/977 bookland (Supplement requirement, optional for other) UE42 EAN/UPC +addon mandatory for 491 Japanese bookland (Supplement requirement, not sent for other) UE43 EAN/UPC +addon mandatory 491 Japanese bookland (Supplement requirement, optional for other)
  • Page 84 ANUAL Start Of Configuration Telepen Parameter Setting Barcode Barcode Label Description Value RC25 Telepen enable RD25 Telepen disable TE03 Telepen numeric mode enable TE04 AIM Telepen enable End Of Configuration Wireless Handheld Gun Type Scanner...
  • Page 85 ANUAL Start Of Configuration Matrix 2 of 5 Parameter Setting Barcode Barcode Label Description Value RC12 Matrix 2 of 5 enable RD12 Matrix 2 of 5 disable D151 Matrix 2 of 5 maximum length setting D152 Matrix 2 of 5 minimum length setting Confirm to save this setting (required for reading full ASCII table and length setting) D153...
  • Page 86 ANUAL Start Of Configuration GS1 DataBar Parameter Setting There are 7 kinds of barcodes in the GS1 DataBar family and they are categorized into three groups. Barcode types in the same group use the same barcodes for setting. Group Representative Contents Group 1 GS1 DataBar Omnidirectional...
  • Page 87 ANUAL Start Of Configuration GS1 DataBar Limited (Formally RSS Limited) Barcode Barcode Label Description Value RC16 GS1 DataBar Limited enable RD16 GS1 DataBar Limited disable SS10 Transmit GS1 DataBar Limited check digit SS11 Don’t transmit GS1 DataBar Limited check digit SS12 Transmit GS1 DataBar limited application ID (01) SS13...
  • Page 88 ANUAL Start Of Configuration GS1 DataBar Expanded (Formally RSS Expanded) Barcode Barcode Label Description Value RC17 GS1 DataBar Expanded enable RD17 GS1 DataBar Expanded disable SS07 GS1 DataBar Expanded/EAN-128 emulation enable SS06 GS1 DataBar Expanded/EAN-128 emulation disable SS08 GS1 DataBar Expanded check digital enable SS09 GS1 DataBar Expanded check digital disable SS16...
  • Page 89: Data Editing

    ANUAL Start Of Configuration Data Editing Identifier Code Barcode Barcode Label Description Value IS00 Disable identifier code IS01 Enable identifier code table as factory standard IS03 Enable identifier code table as AIM standard. CI01 Code 39 identifier code setting CI02 ITF 2 of 5 identifier code setting CI03 Chinese Post Code identifier code setting...
  • Page 90 ANUAL Start Of Configuration Barcode Barcode Label Description Value CI08 Codabar identifier code setting CI09 Code 128 identifier code setting CI10 Code 93 identifier code setting CI11 MSI identifier code setting CI12 GS1 DataBar Omnidirectional identifier code setting CI13 GS1 DataBar Limited identifier code setting CI14 GS1 DataBar expanded identifier code setting CI15...
  • Page 91 ANUAL Start Of Configuration Header and Trailer Barcode Barcode Label Description Value CP11 Add code length as header enable (2 digits) Add code length as header disable (2 digits) CP12 Header (Preamble) HT01 Trailer (Postamble) HT02 Truncate header character HT03 Truncate trailer character HT04 Confirm to save this setting (required for reading full...
  • Page 92: Full Ascii Code 39 Table

    ANUAL Start Of Configuration Full ASCII Code 39 Table Hexa Hexa- Code 39 ASCII Code 39 ASCII code code Full ASCII ---NUL Full ASCII ---SI Function key----- “Shift” Full ASCII ---SOH Full ASCII ---DLE Function key-----“Ins” Function key----- “5(num)” Full ASCII ---STX Full ASCII ---DC1 Function key-----“Del”...
  • Page 93 ANUAL Start Of Configuration Full ASCII Code 39 Table (continued) Hexa- Hexa- Code 39 ASCII Code 39 ASCII code code Full ASCII ---RS Full ASCII ---- Function key-----“CTL(L)” Full ASCII ---US Full ASCII ---. Function key-----“ALT(L)” Full ASCII ---SP Full ASCII ---/ Full ASCII ---! Full ASCII ---0 Full ASCII ---“...
  • Page 94 ANUAL Start Of Configuration Full ASCII Code 39 Table (continued) Hexa- Hexa- Code 39 ASCII Code 39 ASCII code code Full ASCII ---< Full ASCII ---K Full ASCII ---= Full ASCII ---L Full ASCII ---> Full ASCII ---M Full ASCII ---? Full ASCII ---N Full ASCII ---@ Full ASCII ---O...
  • Page 95 ANUAL Start Of Configuration Full ASCII Code 39 Table (continued) Hexa- Hexa- Code 39 ASCII Code 39 ASCII code code Full ASCII ---Z Full ASCII ---i Full ASCII ---[ Full ASCII ---j Full ASCII ---\ Full ASCII ---k Full ASCII ---] Full ASCII ---l Full ASCII ---^ Full ASCII ---m...
  • Page 96 ANUAL Start Of Configuration Full ASCII Code 39 Table (continued) Hexa- Hexa- Code 39 ASCII Code 39 ASCII code code Full ASCII ---x Full ASCII ---| Full ASCII ---y Full ASCII ---} Full ASCII ---z Full ASCII ---~ Full ASCII ---{ Full ASCII ---DEL End Of Configuration Wireless Handheld Gun Type Scanner...
  • Page 97: Appendix 1: Usb Virtual Com Driver Installation

    ANUAL Appendix 1: USB Virtual COM Driver Installation Contact your distributor to get the driver and follow the steps below to enable USB virtual COM port. Connect the handheld scanner and the host (e.g. a PC) with a USB interface cable. Enable USB virtual COM port with programming barcode on page 32.
  • Page 98: Appendix 2: Barcode Length Setting

    ANUAL Appendix 2: Barcode Length Setting Introduction The length of a barcode is the number of characters it contains, including check digits. As listed in the Default Parameters section, each barcode type has different default length. You may change the setting by the following procedure. To set up barcode length, the paramours to be determined are barcode type and the desired barcode length.
