Page 1: Programming Guide

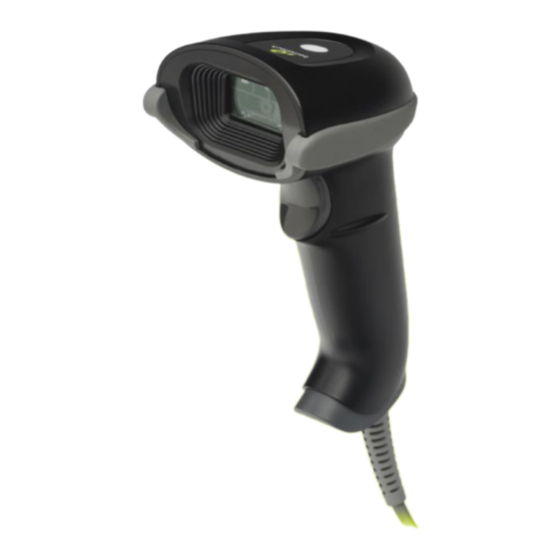

S303D 2D Imaging Barcode Scanner Programming Guide Advanced Handheld High-Speed Laser Scanner... -
Page 3: General Handling Precautions
When the barcodes are to be printed out for programming, the use of a high-resolution laser printer is strongly suggested for the best scan result. Firmware Notice To use all functions in this guide please update to the latest firmware. Copyright © 2017. All rights reserved. S303D 2D Imaging Barcode Scanner... -
Page 4: Table Of Contents
ROGRAMMING UIDE Table of Contents Important Notice ................... i General Handling Precautions .................... i Guidance for Printing......................i Firmware Notice ......................... i Using the Scanner ................. 1 LED Indication ........................1 Beeper Indication ......................1 Settings and Programming ..............2 Programming operation steps ................... - Page 5 Plessey Prefix ........................86 MSI Prefix ........................87 Interleaved 2 of 5 Prefix ....................88 IATA 2 of 5 Prefix ......................89 Matrix 2 of 5 Prefix ......................90 Straight 2 of 5 Prefix ......................91 S303D 2D Imaging Barcode Scanner...
- Page 6 ROGRAMMING UIDE RSS 14 Prefix ........................92 RSS Expanded Prefix ......................93 RSS Limited Prefix ......................94 Component CC-A Prefix ....................95 Component CC-B Prefix ....................96 Component CC-C Prefix ....................97 PDF 417 Prefix ......................... 98 Micro PDF 417 Prefix ....................... 99 Data Matrix Prefix ......................
- Page 7 Set Lengths for Matrix 2 of 5 ..................145 Code Identifiers ......................146 Code Identifiers Table ....................147 Keyboard Caps Lock State ....................148 Function Key Mapping ....................149 ASCII Code ........................150 Advanced Programming ..............171 S303D 2D Imaging Barcode Scanner...
-
Page 9: Using The Scanner
The scanner has entered program mode 2 short beeps 1 long beep A setting has been programmed 3 beeps in a series from low to high pitch The scanner has exited program mode 3 short beeps Error setting the scanner S303D 2D Imaging Barcode Scanner... -
Page 10: Settings And Programming
ROGRAMMING UIDE Settings and Programming Scan selected barcodes in this manual to affect setup and programming of the handheld imaging barcode scanner. Decoding options and interface protocols can be tailored to a specific application. Setup parameters are stored in non-volatile memory in the scanner and are retained even when power is off. -
Page 11: User Preferences
ROGRAMMING UIDE User Preferences Show Version Scan this barcode to display firmware version. Read device information System Settings Scan this barcode to return all parameters to the default values. Factory default settings S303D 2D Imaging Barcode Scanner... -
Page 12: Customer's Factory Default
ROGRAMMING UIDE Customer's Factory Default Scan barcodes below to set or delete customer’s factory default. Save customer's factory default Delete customer's factory default Advanced 2D Image Scanner... -
Page 13: Scan Mode
Presentation Mode: Also called auto trigger mode. The scanner is inactive but will automatically detect barcodes presented in the scan zone and become active. Continue Scan Mode: scans periodically non-stop (ex. Scans once a second). Trigger Mode (default) Presentation Mode Continue Scan Mode S303D 2D Imaging Barcode Scanner... -
Page 14: Standby Time For Continue Scan Mode
ROGRAMMING UIDE Standby Time for Continue Scan Mode Use the barcodes below to set the standby time for Continue Scan Mode. 5 minutes (Default) 10 minutes 15 minutes Advanced 2D Image Scanner... - Page 15 ROGRAMMING UIDE 20 minutes 25 minutes 30 minutes Never S303D 2D Imaging Barcode Scanner...
-
Page 16: Same Code Delay Time For Continue Scan Mode
ROGRAMMING UIDE Same Code Delay Time for Continue Scan Mode Scan a barcode below to select the duration of the delay time for Continue Scan Mode. 500 msec (Default) 1 sec 1.5 sec 2 sec Advanced 2D Image Scanner... -
Page 17: Interface Switch
Your 2D Imager supports interfaces USB HID and USB virtual COM. To switch the interface, simply select the appropriate cable and configure the proper interface by following interface selection. USB Keyboard (Default) USB Virtual COM Port *Driver required S303D 2D Imaging Barcode Scanner... -
Page 18: Good Read Beep Length
ROGRAMMING UIDE Good Read Beep Length Scan a barcode below to select the duration of the beep signal after a good decode. 50 msec (Default) 100 msec 150 msec 200 msec Advanced 2D Image Scanner... -
Page 19: Good Read Beep Frequency
ROGRAMMING UIDE Good Read Beep Frequency Scan a barcode below to select the beep tone of the beep signal after a good decode. Medium (Default) High S303D 2D Imaging Barcode Scanner... -
Page 20: Aiming Pattern
ROGRAMMING UIDE Aiming Pattern Aiming pattern works as an aiming system to aid in barcode reading. Use the following settings to enable or disable this function. This function is for supporting models only. Auto (Default) Always On Always Off Advanced 2D Image Scanner... -
Page 21: Illumination
ROGRAMMING UIDE Illumination Set Illumination to aid in barcode reading. Use the following settings to configure this function. On (Default) Always On S303D 2D Imaging Barcode Scanner... -
Page 22: Terminal Character
ROGRAMMING UIDE Terminal Character None CR/LF (Default) Advanced 2D Image Scanner... -
Page 23: Rs232 Baud Rate
Baud rate is the number of bits of data transmitted per second. Set the imager's baud rate to match the baud rate setting of the host device. Otherwise, data may not reach the host device or may reach it in distorted form. 9600 19200 38400 57600 S303D 2D Imaging Barcode Scanner... - Page 24 ROGRAMMING UIDE 115200 (Default) Advanced 2D Image Scanner...
-
Page 25: Usb Speed
ROGRAMMING UIDE USB Speed Scan a barcode below to set USB speed. USB 2.0 (Default) USB 1.1 S303D 2D Imaging Barcode Scanner... -
Page 26: Country Code
ROGRAMMING UIDE Country Code Scann the following settings to change the country code. US (Default) Belgium Britain Denmark Advanced 2D Image Scanner... - Page 27 ROGRAMMING UIDE France Germany Italy Norway S303D 2D Imaging Barcode Scanner...
- Page 28 ROGRAMMING UIDE Portugal Spain Sweden Switzerland Advanced 2D Image Scanner...
- Page 29 ROGRAMMING UIDE Japan Hungary Czech Republic Slovakia S303D 2D Imaging Barcode Scanner...
- Page 30 ROGRAMMING UIDE Romania Croatia Poland Advanced 2D Image Scanner...
-
Page 31: Readable Symbologies
ROGRAMMING UIDE Readable Symbologies This section provides the programming barcodes for enabling and disabling readable symbologies. If the default values suit requirements, programming is not necessary. All Symbologies Enable All Default S303D 2D Imaging Barcode Scanner... -
Page 32: Upc-A
ROGRAMMING UIDE UPC-A Enable UPC-A (Default) Disable UPC-A Advanced 2D Image Scanner... -
Page 33: Upc-E
ROGRAMMING UIDE UPC-E Enable UPC-E (Default) Disable UPC-E S303D 2D Imaging Barcode Scanner... -
Page 34: Ean-8
ROGRAMMING UIDE EAN-8 Enable EAN 8 (Default) Disable EAN 8 Advanced 2D Image Scanner... -
Page 35: Ean 13
ROGRAMMING UIDE EAN 13 Enable EAN 13 (Default) Disable EAN 13 S303D 2D Imaging Barcode Scanner... -
Page 36: Code 128
ROGRAMMING UIDE Code 128 Enable Code 128 (Default) Disable Code 128 Advanced 2D Image Scanner... -
Page 37: Code 39
ROGRAMMING UIDE Code 39 Enable Code 39 (Default) Disable Code 39 S303D 2D Imaging Barcode Scanner... -
Page 38: Code 93
ROGRAMMING UIDE Code 93 Enable Code 93 (Default) Disable Code 93 Advanced 2D Image Scanner... -
Page 39: Code 32
ROGRAMMING UIDE Code 32 Enable Code 32 Disable Code 32 (Default) S303D 2D Imaging Barcode Scanner... -
Page 40: Code 11
ROGRAMMING UIDE Code 11 Enable Code 11 Disable Code 11 (Default) Advanced 2D Image Scanner... -
Page 41: Codabar
ROGRAMMING UIDE Codabar Enable Codabar (Default) Disable Codabar S303D 2D Imaging Barcode Scanner... -
Page 42: Plessey
ROGRAMMING UIDE Plessey Enable Plessey Disable Plessey (Default) Advanced 2D Image Scanner... -
Page 43: Msi/Plessey
ROGRAMMING UIDE MSI/Plessey Enable MSI/Plessey Disable MSI/Plessey (Default) S303D 2D Imaging Barcode Scanner... -
Page 44: Interleaved 2 Of 5
ROGRAMMING UIDE Interleaved 2 of 5 Enable Interleaved 2 of 5 (Default) Disable Interleaved 2 of 5 Advanced 2D Image Scanner... -
Page 45: Iata 2 Of 5
ROGRAMMING UIDE IATA 2 of 5 Enable IATA 2 of 5 Disable IATA 2 of 5 (Default) S303D 2D Imaging Barcode Scanner... -
Page 46: Matrix 2 Of 5
ROGRAMMING UIDE Matrix 2 of 5 Enable Matrix 2 of 5 Disable Matrix 2 of 5 (Default) Advanced 2D Image Scanner... -
Page 47: Straight 2 Of 5
ROGRAMMING UIDE Straight 2 of 5 Enable Straight 2 of 5 Disable Straight 2 of 5 (Default) S303D 2D Imaging Barcode Scanner... -
Page 48: Rss 14
ROGRAMMING UIDE RSS 14 Enable RSS 14 (Default) Disable RSS 14 Advanced 2D Image Scanner... -
Page 49: Rss Expanded
ROGRAMMING UIDE RSS Expanded Enable RSS Expanded (Default) Disable RSS Expanded S303D 2D Imaging Barcode Scanner... -
Page 50: Rss Limited
ROGRAMMING UIDE RSS Limited Enable RSS Limited (Default) Disable RSS Limited Advanced 2D Image Scanner... -
Page 51: Component Cc-A
ROGRAMMING UIDE Component CC-A Enable Component CC-A Disable Component CC-A (Default) S303D 2D Imaging Barcode Scanner... -
Page 52: Component Cc-B
ROGRAMMING UIDE Component CC-B Enable Component CC-B Disable Component CC-B (Default) Advanced 2D Image Scanner... -
Page 53: Component Cc-C
ROGRAMMING UIDE Component CC-C Enable Component CC-C Disable Component CC-C (Default) S303D 2D Imaging Barcode Scanner... -
Page 54: Pdf417
ROGRAMMING UIDE PDF417 Enable PDF417 (Default) Disable PDF417 Advanced 2D Image Scanner... -
Page 55: Micro Pdf417
ROGRAMMING UIDE Micro PDF417 Enable Micro PDF417 (Default) Disable Micro PDF417 S303D 2D Imaging Barcode Scanner... -
Page 56: Data Matrix
ROGRAMMING UIDE Data Matrix Enable Data Matrix (Default) Disable Data Matrix Advanced 2D Image Scanner... -
Page 57: Qr Code
ROGRAMMING UIDE QR Code Enable QR Code (Default) Disable QR Code S303D 2D Imaging Barcode Scanner... -
Page 58: Micro Qr Code
ROGRAMMING UIDE Micro QR Code Enable Micro QR Code (Default) Disable Micro QR Code Advanced 2D Image Scanner... -
Page 59: Aztec
ROGRAMMING UIDE Aztec Enable Aztec Disable Aztec (Default) S303D 2D Imaging Barcode Scanner... -
Page 60: Maxicode
ROGRAMMING UIDE MaxiCode Enable MaxiCode Disable MaxiCode (Default) Advanced 2D Image Scanner... -
Page 61: Symbology Features
This section provides the programming barcodes for selecting features available to different symbologies. UPC / EAN Enable decoding of 2/5-digit supplemental code for UPC-A, UPC-E, EAN-13, and EAN-8 Disable decoding of 2/5-digit supplemental code for UPC-A, UPC-E, EAN-13, and EAN-8 (Default) S303D 2D Imaging Barcode Scanner... -
Page 62: Upc-A
ROGRAMMING UIDE UPC-A Enable UPC-A Number System digit (Default) Disable UPC-A Number System digit Enable UPC-A check digit (Default) Disable UPC-A check digit Advanced 2D Image Scanner... - Page 63 ROGRAMMING UIDE Enable conversion of UPC-A to EAN13 Disable conversion of UPC-A to EAN13 (Default) S303D 2D Imaging Barcode Scanner...
-
Page 64: Upc-E
ROGRAMMING UIDE UPC-E Enable UPC-E Number System digit (Default) Disable UPC-E Number System digit Enable UPC-E check digit (Default) Disable UPC-E check digit Advanced 2D Image Scanner... - Page 65 ROGRAMMING UIDE Enable conversion of UPC-E to UPC-A Disable conversion of UPC-E to UPC-A (Default) S303D 2D Imaging Barcode Scanner...
-
Page 66: Ean 8
ROGRAMMING UIDE EAN 8 Enable EAN 8 check digit (Default) Disable EAN 8 check digit Enable conversion of EAN 8 to EAN 13 Disable conversion of EAN 8 to EAN 13 (Default) Advanced 2D Image Scanner... - Page 67 ROGRAMMING UIDE EAN 13 Enable EAN 13 check digit (Default) Disable EAN 13 check digit Enable conversion of EAN 13 to ISBN Disable conversion of EAN 13 to ISBN (Default) S303D 2D Imaging Barcode Scanner...
- Page 68 ROGRAMMING UIDE Enable conversion of EAN 13 to ISSN Disable conversion of EAN 13 to ISSN (Default) Advanced 2D Image Scanner...
-
Page 69: Code 39
ROGRAMMING UIDE Code 39 Enable Code 39 full ASCII mode Disable Code 39 full ASCII mode (Default) Enable Start and Stop characters Disable Start and Stop characters (Default) S303D 2D Imaging Barcode Scanner... - Page 70 ROGRAMMING UIDE Disable Checksum (Default) Enable checksum and send check character Enable checksum and strip check character Advanced 2D Image Scanner...
-
Page 71: Codabar
ROGRAMMING UIDE Codabar Disable Checksum (Default) Enable checksum and send check character Enable checksum and strip check character S303D 2D Imaging Barcode Scanner... - Page 72 ROGRAMMING UIDE Enable stripping Start and Stop characters Disable stripping Start and Stop characters (Default) Advanced 2D Image Scanner...
-
Page 73: Interleaved 2 Of 5
ROGRAMMING UIDE Interleaved 2 of 5 Disable Checksum (Default) Enable checksum and send check character Enable checksum and strip check character S303D 2D Imaging Barcode Scanner... - Page 74 ROGRAMMING UIDE Default quiet zone checking No length checking performed (Default) Smaller quiet zone allowed Advanced 2D Image Scanner...
-
Page 75: Msi / Plessey
ROGRAMMING UIDE MSI / Plessey Disable MSI Plessey checksum Mod 10 checksum (Default) Mod 10/10 checksum Mod 11/10 checksum S303D 2D Imaging Barcode Scanner... - Page 76 ROGRAMMING UIDE Output checksum character(s) (Default) Strip checksum character(s) Advanced 2D Image Scanner...
-
Page 77: Code 11
ROGRAMMING UIDE Code 11 Output checksum character(s) Strip checksum character(s) (Default) S303D 2D Imaging Barcode Scanner... - Page 78 ROGRAMMING UIDE Disable checksum checking Enable 1-digit checksum checking Enable 2-digit checksum checking (Default) Advanced 2D Image Scanner...
-
Page 79: Data Matrix
ROGRAMMING UIDE Data Matrix Enable mirror decoding (Default) Disable mirror decoding S303D 2D Imaging Barcode Scanner... - Page 80 ROGRAMMING UIDE Enable rectangular Data Matrix decoding Disable rectangular Data Matrix decoding (Default) Advanced 2D Image Scanner...
-
Page 81: Qr / Micro Qr
ROGRAMMING UIDE QR / Micro QR Enable mirror decoding (Default) Disable mirror decoding S303D 2D Imaging Barcode Scanner... - Page 82 ROGRAMMING UIDE UTF8 conversion for word only Universal UTF8 conversion (Default) Note: Please install QR_UTF8_Conversion executable file before using this function. Advanced 2D Image Scanner...
-
Page 83: Aztec
ROGRAMMING UIDE Aztec Enable mirror decoding (Default) Disable mirror decoding S303D 2D Imaging Barcode Scanner... -
Page 84: Data Editing (Prefix)
ROGRAMMING UIDE Data Editing (Prefix) Prefix is additional characters that can be sent before the scanned data. Please scan the barcodes in the selection below to set your prefix. Prefix Set Up Flow Scan Set. Enable barcode type. Scan prefix you would like to add characters within ASCII Table. Up to 4 digits can be added. -
Page 85: All Prefix
ROGRAMMING UIDE All Prefix Enable/disable prefix for all barcodes. Enable All Disable All (Default) S303D 2D Imaging Barcode Scanner... -
Page 86: Upc / Ean Prefix
ROGRAMMING UIDE UPC / EAN Prefix Enable UPC-A Disable UPC-A Enable UPC-E Disable UPC-E Advanced 2D Image Scanner... - Page 87 ROGRAMMING UIDE Enable EAN 8 Disable EAN 8 Enable EAN 13 Disable EAN 13 S303D 2D Imaging Barcode Scanner...
-
Page 88: Code 128 Prefix
ROGRAMMING UIDE Code 128 Prefix Enable Code 128 Disable Code 128 Advanced 2D Image Scanner... -
Page 89: Code 39 Prefix
ROGRAMMING UIDE Code 39 Prefix Enable Code 39 Disable Code 39 S303D 2D Imaging Barcode Scanner... -
Page 90: Code 93 Prefix
ROGRAMMING UIDE Code 93 Prefix Enable Code 93 Disable Code 93 Advanced 2D Image Scanner... -
Page 91: Code 32 Prefix
ROGRAMMING UIDE Code 32 Prefix Enable Code 32 Disable Code 32 S303D 2D Imaging Barcode Scanner... -
Page 92: Code 11 Prefix
ROGRAMMING UIDE Code 11 Prefix Enable Code 11 Disable Code 11 Advanced 2D Image Scanner... -
Page 93: Codabar Prefix
ROGRAMMING UIDE Codabar Prefix Enable Codabar Disable Codabar S303D 2D Imaging Barcode Scanner... -
Page 94: Plessey Prefix
ROGRAMMING UIDE Plessey Prefix Enable Plessey Disable Plessey Advanced 2D Image Scanner... -
Page 95: Msi Prefix
ROGRAMMING UIDE MSI Prefix Enable MSI Disable MSI S303D 2D Imaging Barcode Scanner... -
Page 96: Interleaved 2 Of 5 Prefix
ROGRAMMING UIDE Interleaved 2 of 5 Prefix Enable Interleaved 2 of 5 Disable Interleaved 2 of 5 Advanced 2D Image Scanner... -
Page 97: Iata 2 Of 5 Prefix
ROGRAMMING UIDE IATA 2 of 5 Prefix Enable IATA 2 of 5 Disable IATA 2 of 5 S303D 2D Imaging Barcode Scanner... -
Page 98: Matrix 2 Of 5 Prefix
ROGRAMMING UIDE Matrix 2 of 5 Prefix Enable Matrix 2 of 5 Disable Matrix 2 of 5 Advanced 2D Image Scanner... -
Page 99: Straight 2 Of 5 Prefix
ROGRAMMING UIDE Straight 2 of 5 Prefix Enable Straight 2 of 5 Disable Straight 2 of 5 S303D 2D Imaging Barcode Scanner... -
Page 100: Rss 14 Prefix
ROGRAMMING UIDE RSS 14 Prefix Enable RSS 14 Disable RSS 14 Advanced 2D Image Scanner... -
Page 101: Rss Expanded Prefix
ROGRAMMING UIDE RSS Expanded Prefix Enable RSS Expanded Disable RSS Expanded S303D 2D Imaging Barcode Scanner... -
Page 102: Rss Limited Prefix
ROGRAMMING UIDE RSS Limited Prefix Enable RSS Limited Disable RSS Limited Advanced 2D Image Scanner... -
Page 103: Component Cc-A Prefix
ROGRAMMING UIDE Component CC-A Prefix Enable Component CC-A Disable Component CC-A S303D 2D Imaging Barcode Scanner... -
Page 104: Component Cc-B Prefix
ROGRAMMING UIDE Component CC-B Prefix Enable Component CC-B Disable Component CC-B Advanced 2D Image Scanner... -
Page 105: Component Cc-C Prefix
ROGRAMMING UIDE Component CC-C Prefix Enable Component CC-C Disable Component CC-C S303D 2D Imaging Barcode Scanner... -
Page 106: Pdf 417 Prefix
ROGRAMMING UIDE PDF 417 Prefix Enable PDF 417 Disable PDF 417 Advanced 2D Image Scanner... -
Page 107: Micro Pdf 417 Prefix
ROGRAMMING UIDE Micro PDF 417 Prefix Enable Micro PDF 417 Disable Micro PDF 417 S303D 2D Imaging Barcode Scanner... -
Page 108: Data Matrix Prefix
ROGRAMMING UIDE Data Matrix Prefix Enable Data Matrix Disable Data Matrix Advanced 2D Image Scanner... -
Page 109: Qr Prefix
ROGRAMMING UIDE QR Prefix Enable QR Code Disable QR Code S303D 2D Imaging Barcode Scanner... -
Page 110: Micro Qr Prefix
ROGRAMMING UIDE Micro QR Prefix Enable Micro QR Disable Micro QR Advanced 2D Image Scanner... -
Page 111: Aztec Prefix
ROGRAMMING UIDE Aztec Prefix Enable Aztec Disable Aztec S303D 2D Imaging Barcode Scanner... -
Page 112: Maxicode Prefix
ROGRAMMING UIDE MaxiCode Prefix Enable MaxiCode Disable MaxiCode Advanced 2D Image Scanner... -
Page 113: Data Editing (Suffix)
Ex. If we wish to add “36” as suffix for all barcode type, then follow procedure as below. Scan [Set] to enter setup. Then we select barcode by scanning [Enable All], then we scan [3] as 3 of ASCII HEX and [6] as 6. S303D 2D Imaging Barcode Scanner... -
Page 114: All Suffix
ROGRAMMING UIDE All Suffix Enable/disable suffix for all barcodes. Enable All Disable All (Default) Advanced 2D Image Scanner... -
Page 115: Upc-A Suffix
ROGRAMMING UIDE UPC-A Suffix Enable UPC-A Disable UPC-A S303D 2D Imaging Barcode Scanner... -
Page 116: Upc-E Suffix
ROGRAMMING UIDE UPC-E Suffix Enable UPC-E Disable UPC-E Advanced 2D Image Scanner... -
Page 117: Ean 8 Suffix
ROGRAMMING UIDE EAN 8 Suffix Enable EAN 8 Disable EAN 8 S303D 2D Imaging Barcode Scanner... -
Page 118: Ean 13 Suffix
ROGRAMMING UIDE EAN 13 Suffix Enable EAN 13 Disable EAN 13 Advanced 2D Image Scanner... -
Page 119: Code 128 Suffix
ROGRAMMING UIDE Code 128 Suffix Enable Code 128 Disable Code 128 S303D 2D Imaging Barcode Scanner... -
Page 120: Code 39 Suffix
ROGRAMMING UIDE Code 39 Suffix Enable Code 39 Disable Code 39 Advanced 2D Image Scanner... -
Page 121: Code 93 Suffix
ROGRAMMING UIDE Code 93 Suffix Enable Code 93 Disable Code 93 S303D 2D Imaging Barcode Scanner... -
Page 122: Code 32 Suffix
ROGRAMMING UIDE Code 32 Suffix Enable Code 32 Disable Code 32 Advanced 2D Image Scanner... -
Page 123: Code 11 Suffix
ROGRAMMING UIDE Code 11 Suffix Enable Code 11 Disable Code 11 S303D 2D Imaging Barcode Scanner... -
Page 124: Codabar Suffix
ROGRAMMING UIDE Codabar Suffix Enable Codabar Disable Codabar Advanced 2D Image Scanner... -
Page 125: Plessey Suffix
ROGRAMMING UIDE Plessey Suffix Enable Plessey Disable Plessey S303D 2D Imaging Barcode Scanner... -
Page 126: Msi Suffix
ROGRAMMING UIDE MSI Suffix Enable MSI Disable MSI Advanced 2D Image Scanner... -
Page 127: Interleaved 2 Of 5 Suffix
ROGRAMMING UIDE Interleaved 2 of 5 Suffix Enable Interleaved 2 of 5 Disable Interleaved 2 of 5 S303D 2D Imaging Barcode Scanner... -
Page 128: Iata 2 Of 5 Suffix
ROGRAMMING UIDE IATA 2 of 5 Suffix Enable IATA 2 of 5 Disable IATA 2 of 5 Advanced 2D Image Scanner... -
Page 129: Matrix 2 Of 5 Suffix
ROGRAMMING UIDE Matrix 2 of 5 Suffix Enable Matrix 2 of 5 Disable Matrix 2 of 5 S303D 2D Imaging Barcode Scanner... -
Page 130: Straight 2 Of 5 Suffix
ROGRAMMING UIDE Straight 2 of 5 Suffix Enable Straight 2 of 5 Disable Straight 2 of 5 Advanced 2D Image Scanner... -
Page 131: Rss 14 Suffix
ROGRAMMING UIDE RSS 14 Suffix Enable RSS 14 Disable RSS 14 S303D 2D Imaging Barcode Scanner... -
Page 132: Rss Expanded Suffix
ROGRAMMING UIDE RSS Expanded Suffix Enable RSS Expanded Disable RSS Expanded Advanced 2D Image Scanner... -
Page 133: Rss Limited Suffix
ROGRAMMING UIDE RSS Limited Suffix Enable RSS Limited Disable RSS Limited S303D 2D Imaging Barcode Scanner... -
Page 134: Component Cc-A Suffix
ROGRAMMING UIDE Component CC-A Suffix Enable Component CC-A Disable Component CC-A Advanced 2D Image Scanner... -
Page 135: Component Cc-B Suffix
ROGRAMMING UIDE Component CC-B Suffix Enable Component CC-B Disable Component CC-B S303D 2D Imaging Barcode Scanner... -
Page 136: Component Cc-C Suffix
ROGRAMMING UIDE Component CC-C Suffix Enable Component CC-C Disable Component CC-C Advanced 2D Image Scanner... -
Page 137: Pdf-417 Suffix
ROGRAMMING UIDE PDF-417 Suffix Enable PDF417 Disable PDF417 S303D 2D Imaging Barcode Scanner... -
Page 138: Micro Pdf-417 Suffix
ROGRAMMING UIDE Micro PDF-417 Suffix Enable Micro PDF417 Disable Micro PDF417 Advanced 2D Image Scanner... -
Page 139: Data Matrix Suffix
ROGRAMMING UIDE Data Matrix Suffix Data Matrix Enable Data Matrix Disable S303D 2D Imaging Barcode Scanner... -
Page 140: Qr Code Suffix
ROGRAMMING UIDE QR Code Suffix QR Code Enable QR Code Disable Advanced 2D Image Scanner... -
Page 141: Micro Qr Suffix
ROGRAMMING UIDE Micro QR Suffix Micro QR Enable Micro QR Disable S303D 2D Imaging Barcode Scanner... -
Page 142: Aztec Suffix
ROGRAMMING UIDE Aztec Suffix Aztec Enable Aztec Disable Advanced 2D Image Scanner... -
Page 143: Maxicode Suffix
ROGRAMMING UIDE MaxiCode Suffix MaxiCode Enable MaxiCode Disable S303D 2D Imaging Barcode Scanner... -
Page 144: Code Settings
ROGRAMMING UIDE Code Settings Set Lengths for Codes One Discrete Length Select this option to decode the symbol containing a selected length. Select the length using the numeric bar codes in ASCII Code Table. Example 1: To decode Interleaved 2 of 5 symbols with 8 characters: a. - Page 145 Select this option to decode the symbol containing any number of characters within the digital scanner’s capability. Example: a. scan Set to set up b. scan Matrix 2 of 5 Any Length c. scan End to confirm the setup S303D 2D Imaging Barcode Scanner...
-
Page 146: Set Lengths For Code 128
ROGRAMMING UIDE Set Lengths for Code 128 One Discrete Length Two Discrete Lengths Length Within Range Any Length (Default) Advanced 2D Image Scanner... -
Page 147: Set Lengths For Code 39
ROGRAMMING UIDE Set Lengths for Code 39 One Discrete Length Two Discrete Lengths Length Within Range Any Length (Default) S303D 2D Imaging Barcode Scanner... -
Page 148: Set Lengths For Code 93
ROGRAMMING UIDE Set Lengths for Code 93 One Discrete Length Two Discrete Lengths Length Within Range Any Length (Default) Advanced 2D Image Scanner... -
Page 149: Set Lengths For Codabar
ROGRAMMING UIDE Set Lengths for Codabar One Discrete Length Two Discrete Lengths Length Within Range Any Length (Default) S303D 2D Imaging Barcode Scanner... -
Page 150: Set Lengths For Interleaved 2 Of 5
ROGRAMMING UIDE Set Lengths for Interleaved 2 of 5 One Discrete Length Two Discrete Lengths Length Within Range Any Length (Default) Advanced 2D Image Scanner... -
Page 151: Set Lengths For Code 11
ROGRAMMING UIDE Set Lengths for Code 11 One Discrete Length Two Discrete Lengths Length Within Range Any Length (Default) S303D 2D Imaging Barcode Scanner... -
Page 152: Set Lengths For Msi
ROGRAMMING UIDE Set Lengths for MSI One Discrete Length Two Discrete Lengths Length Within Range Any Length (Default) Advanced 2D Image Scanner... -
Page 153: Set Lengths For Matrix 2 Of 5
ROGRAMMING UIDE Set Lengths for Matrix 2 of 5 One Discrete Length Two Discrete Lengths Length Within Range Any Length (Default) S303D 2D Imaging Barcode Scanner... -
Page 154: Code Identifiers
ROGRAMMING UIDE Code Identifiers Scan the following barcodes to set symbology Identifiers. Disable Code ID (Default) Enable factory standard ID Enable AIM ID Advanced 2D Image Scanner... -
Page 155: Code Identifiers Table
Interleaved 2 of 5 IATA 2 of 5 Matrix 2 of 5 Straight 2 of 5 Pharmacode RSS 14 RSS Expanded RSS Limited Component CC-A Component CC-B Component CC-C PDF417 Micro PDF417 Data Matrix Micro QR Aztec MaxiCode S303D 2D Imaging Barcode Scanner... -
Page 156: Keyboard Caps Lock State
ROGRAMMING UIDE Keyboard Caps Lock State Scan a barcode below to turn Caps on or off. Caps Lock Off (Default) Caps Lock On Advanced 2D Image Scanner... -
Page 157: Function Key Mapping
ROGRAMMING UIDE Function Key Mapping Scan the following barcodes to enable or disable Function Key Mapping for Prefix and Suffix characters of A to Z. Disable Function Key Mapping (Default) Enable Function Key Mapping S303D 2D Imaging Barcode Scanner... -
Page 158: Ascii Code
ROGRAMMING UIDE ASCII Code For parameters requiring specific numeric values, scan the appropriately numbered barcode(s). Space " Advanced 2D Image Scanner... - Page 159 ROGRAMMING UIDE & S303D 2D Imaging Barcode Scanner...
- Page 160 ROGRAMMING UIDE Advanced 2D Image Scanner...
- Page 161 ROGRAMMING UIDE < > S303D 2D Imaging Barcode Scanner...
- Page 162 ROGRAMMING UIDE Advanced 2D Image Scanner...
- Page 163 ROGRAMMING UIDE (Function Key Mapping: Ctrl+a) (Function Key Mapping: Ctrl+b) S303D 2D Imaging Barcode Scanner...
- Page 164 ROGRAMMING UIDE (Function Key Mapping: Ctrl+c) (Function Key Mapping: Ctrl+d) (Function Key Mapping: Ctrl+e) (Function Key Mapping: Ctrl+f) (Function Key Mapping: Ctrl+g) Advanced 2D Image Scanner...
- Page 165 ROGRAMMING UIDE (Function Key Mapping: Ctrl+h) (Function Key Mapping: Ctrl+i) (Function Key Mapping: Ctrl+j) (Function Key Mapping: Ctrl+k) (Function Key Mapping: Ctrl+l) S303D 2D Imaging Barcode Scanner...
- Page 166 ROGRAMMING UIDE (Function Key Mapping: Ctrl+m) (Function Key Mapping: Ctrl+n) (Function Key Mapping: Ctrl+o) (Function Key Mapping: Ctrl+p) (Function Key Mapping: Ctrl+q) Advanced 2D Image Scanner...
- Page 167 ROGRAMMING UIDE (Function Key Mapping: Ctrl+r) (Function Key Mapping: Ctrl+s) (Function Key Mapping: Ctrl+t) (Function Key Mapping: Ctrl+u) (Function Key Mapping: Ctrl+v) S303D 2D Imaging Barcode Scanner...
- Page 168 ROGRAMMING UIDE (Function Key Mapping: Ctrl+w) (Function Key Mapping: Ctrl+x) (Function Key Mapping: Ctrl+y) (Function Key Mapping: Ctrl+z) Advanced 2D Image Scanner...
- Page 169 ROGRAMMING UIDE S303D 2D Imaging Barcode Scanner...
- Page 170 ROGRAMMING UIDE Advanced 2D Image Scanner...
- Page 171 ROGRAMMING UIDE S303D 2D Imaging Barcode Scanner...
- Page 172 ROGRAMMING UIDE Advanced 2D Image Scanner...
- Page 173 ROGRAMMING UIDE S303D 2D Imaging Barcode Scanner...
- Page 174 ROGRAMMING UIDE Insert Delete Home Up arrow Down arrow Advanced 2D Image Scanner...
- Page 175 ROGRAMMING UIDE Left arrow Right arrow Backspace Shift S303D 2D Imaging Barcode Scanner...
- Page 176 ROGRAMMING UIDE Page up Page down Advanced 2D Image Scanner...
- Page 177 ROGRAMMING UIDE S303D 2D Imaging Barcode Scanner...
- Page 178 ROGRAMMING UIDE Advanced 2D Image Scanner...
-
Page 179: Advanced Programming
This used in Windows to represent special key codes with Alt + numeric keypad combinations. For example, code 29 can be emulated as [Alt] + [2] + [9] where [2] and [9] are output with numeric keypad. S303D 2D Imaging Barcode Scanner...
Need help?
Do you have a question about the S303D and is the answer not in the manual?
Questions and answers
