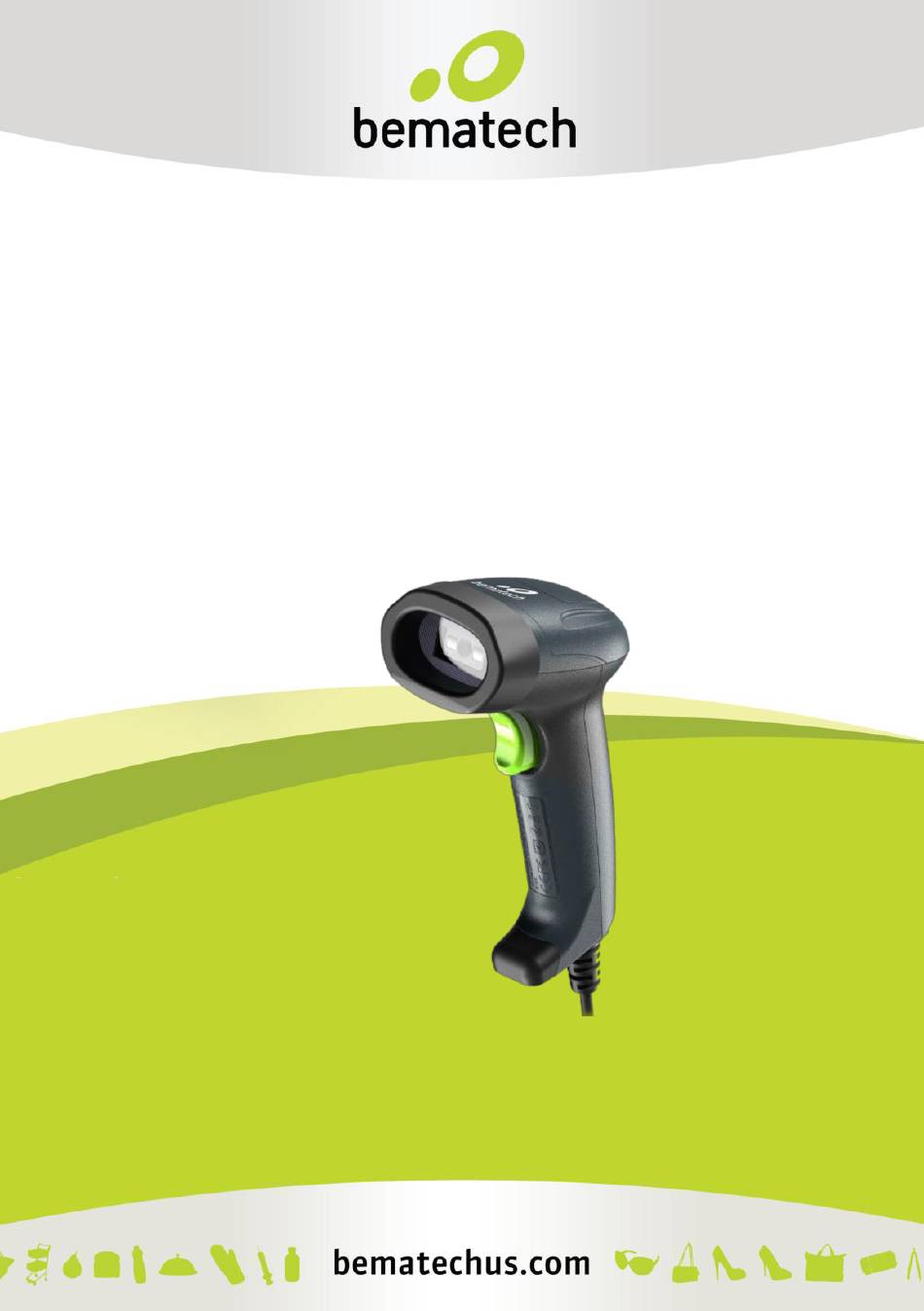

- Page 1 I-150 Linear Imaging Barcode Scanner Programming Guide Advanced Handheld High-Speed Laser Scanner...
-
Page 2: General Handling Precautions
This manual is in A5 size. Please double check your printer setting before printing it out. When the barcodes are to be printed out for programming, the use of a high-resolution laser printer is strongly suggested for the best scan result. Copyright © 2018. All rights reserved. I-150 Imaging Barcode Scanner... -
Page 3: Table Of Contents
Interleaved 2 of 5 ....................11 3.10 Industrial 2 of 5 ....................12 3.11 Matrix 2 of 5 ...................... 12 3.12 MSI / Plessey ..................... 12 3.13 Code 32 ......................13 3.14 Code 11 ......................13 I-150 Imaging Barcode Scanner... -
Page 4: Using The Scanner
I-150 P ROGRAMMING UIDE Start Configuration Using the Scanner Ensure that the scanner is connected to the host computer correctly. 2. Hold down the trigger button to activate the red aiming line and the white illumination pattern. The illumination pattern is used to illuminate the barcode. The aiming line is used to aim at the barcode and help to find the best reading distance. -
Page 5: Settings And Programming
I-150 P ROGRAMMING UIDE Start Configuration Settings and Programming Scan selected barcodes in this manual to perform setup and programming of the handheld imaging barcode scanner. Decoding options and interface protocols can be tailored to a specific application. Setup parameters are stored in non-volatile memory in the scanner and are retained even when power is off. -
Page 6: System Settings
I-150 P ROGRAMMING UIDE Start Configuration 1. System Settings Show Version Scan this barcode to display firmware version. Read device firmware version Set Factory Default Scan this barcode to return all parameters to the factory default values. Factory default settings... -
Page 7: System Configurations
I-150 P ROGRAMMING UIDE Start Configuration 2. System Configurations Interface Selection <USB Keyboard> USB_COM End Configuration... -
Page 8: Keyboard Language
I-150 P ROGRAMMING UIDE Start Configuration Keyboard Language <U.S.A> Italian Spanish French Germany Turkey Portugal Brazil Hungary Global Mode End Configuration... -
Page 9: Message Terminator
I-150 P ROGRAMMING UIDE Start Configuration Message Terminator None <CR> End Configuration... -
Page 10: Scanner Operation Mode
I-150 P ROGRAMMING UIDE Start Configuration Scanner Operation Mode <Trigger On/Off> Trigger On/Good read off Continuous/Trigger Off Presentation Mode End Configuration... -
Page 11: Buzzer Setup
I-150 P ROGRAMMING UIDE Start Configuration Buzzer Setup Power On Tone <ON> End Configuration... -
Page 12: Barcode Symbologies Configuration
I-150 P ROGRAMMING UIDE Start Configuration 3. Barcode Symbologies Configuration UPC-A Reading <ON> UPC-A convert to EAN-13 <OFF> UPC-E Reading <ON> UPC-E Convert to UPC-A <OFF> End Configuration... -
Page 13: Ean-13
I-150 P ROGRAMMING UIDE Start Configuration EAN-13 Reading <ON> EAN-8 Reading <ON> Code 39 Reading <ON> Format <Standard Code39> Full ASCII Code39 Transfer Start / End Character <OFF> End Configuration... -
Page 14: Codabar
I-150 P ROGRAMMING UIDE Start Configuration Codabar Reading <ON> Code 93 Reading <ON> Code 128 Reading <ON> Interleaved 2 of 5 Reading <ON> End Configuration... -
Page 15: Industrial 2 Of 5
I-150 P ROGRAMMING UIDE Start Configuration 3.10 Industrial 2 of 5 Reading <OFF> 3.11 Matrix 2 of 5 Reading <OFF> Transmit Check Character <OFF> 3.12 MSI / Plessey Reading <OFF> End Configuration... -
Page 16: Code 32
I-150 P ROGRAMMING UIDE Start Configuration 3.13 Code 32 Reading <OFF> 3.14 Code 11 Reading <OFF> End Configuration...
