Bematech I-500 Programming Manual

2d imaging barcode scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

I-500
2D Imaging
Barcode Scanner
Programming Guide
1
Advanced Handheld High-Speed Laser Scanner

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I-500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bematech I-500

Summary of Contents for Bematech I-500

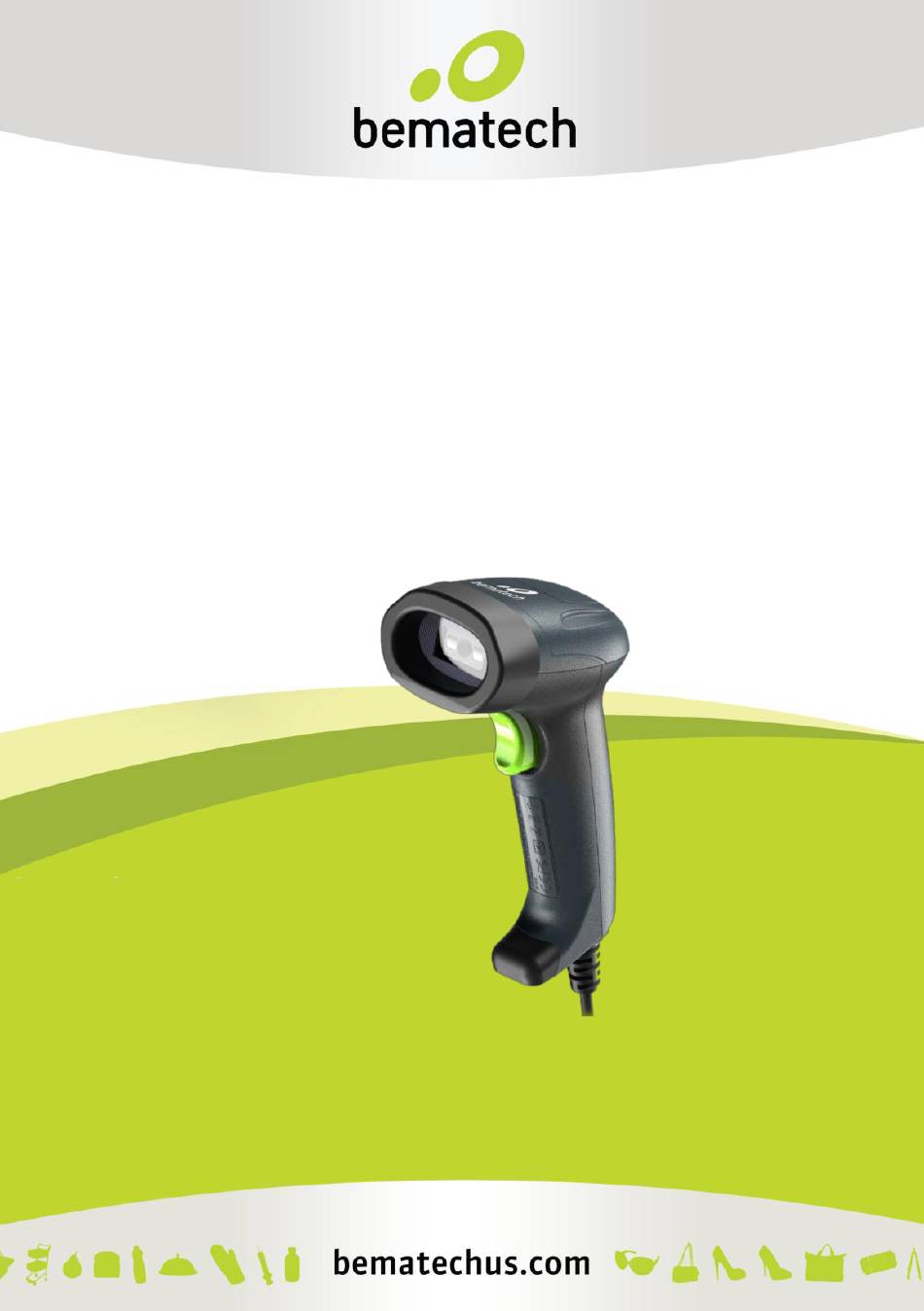

  • Page 1 I-500 2D Imaging Barcode Scanner Programming Guide Advanced Handheld High-Speed Laser Scanner...

  • Page 3: General Handling Precautions

    This manual is in A5 size. Please double check your printer setting before printing it out. When the barcodes are to be printed out for programming, the use of a high-resolution laser printer is strongly suggested for the best scan result. Copyright © 2018. All rights reserved. I-500 Imaging Barcode Scanner...

  • Page 4: Table Of Contents

    Code 11 ........................... 20 Codabar ........................... 20 Interleaved 2 of 5 ......................21 Matrix 2 of 5 ........................21 Industrial 2 of 5........................ 22 PDF417 ..........................22 Micro PDF417 ........................23 Data Matrix ........................23 QR Code ........................... 24 I-500 Imaging Barcode Scanner...
  • Page 5 Data Terminator Character ....................34 Data segment extraction ....................34 Read Fail Message ......................37 Appendix ......................38 Appendix A: ASCII Code Table ..................38 Appendix B: Data Codes ....................42 Appendix C: Data Code Editing ..................44 I-500 Imaging Barcode Scanner...

  • Page 7: Using The Scanner

    The scanner then transmits barcode message to the host computer. NOTE: After scanning the same barcode a few times, it will be able to find a certain scanning distance range with higher successful reading rate. This range is the optimum reading distance. I-500 Imaging Barcode Scanner...

  • Page 8: Settings And Programming

    Enabling and Disabling Programming Operation Programming operation can be enabled or disabled by scanning the following barcodes. Factory default is to have programming enabled. Enable programming Disable programming I-500 Imaging Barcode Scanner...

  • Page 9: User Preferences

    ROGRAMMING UIDE User Preferences Show Version Scan this barcode to display firmware version. Read device firmware version System Settings Scan this barcode to return all parameters to the factory default values. Factory default settings I-500 Imaging Barcode Scanner...

  • Page 10: User Default Settings

    By scanning "Restore user default settings", the reader module can be restored to user default settings last saved. Scan barcodes below to set or delete customer’s factory default. Save current settings as user default Restore user default settings I-500 Imaging Barcode Scanner...

  • Page 11: Scan Mode

    Scanning can also be started by pressing the trigger. Continuous Scan Mode: Scans periodically non-stop at preset intervals. User can press the trigger to pause the scanning and press the trigger again to resume scanning. Trigger Mode (default) Presentation Mode Continue Scan Mode I-500 Imaging Barcode Scanner...

  • Page 12: Scan Timeout

    In the Presentation Mode and Continuous Scan Mode, scan the following barcodes to select the timeout for unsuccessful scans. At timeout, the scanner will stop scanning, and depending on mode selection, scan again when new barcode is presented or wait until next scanning interval. 1000ms 3000ms *5000ms Infinite I-500 Imaging Barcode Scanner...

  • Page 13: Scan Interval

    Scan Interval In Presentation mode and Continous Scan mode, scan the following barcodes to select the interval between two adjacent scan operations (regardless of whether the reading is successful or not). No delay 500ms *1000ms 1500ms 2000ms I-500 Imaging Barcode Scanner...

  • Page 14: Same Code Delay Time Mode

    * Same code scan delay enabled Same code scan delay disabled Same Code Delay Time Selection (effective only when Same Code Scan Delay is enabled) 700ms 500ms 3000ms 1000ms 5000ms Unlimited I-500 Imaging Barcode Scanner...

  • Page 15: Interface Switch

    * USB Keyboard USB Virtual COM Port (Driver installation required) Access Period of USB Keyboard The period that the PC accesses the USB keyboard for data can be selected by scanning the following barcodes. *10ms I-500 Imaging Barcode Scanner...

  • Page 16: Speed Of Usb Hid Keyboard Data

    ROGRAMMING UIDE Speed of USB HID Keyboard Data High speed Normal speed Good Read Beep Setting Scan a barcode below to enable/disable the beep signal after a good decode. *Enable beep Disable beep I-500 Imaging Barcode Scanner...

  • Page 17: Good Read Beep Frequency

    Scan a barcode below to select the beep tone of the beep signal after a good decode. *Medium High Good Read Beep Length Scan a barcode below to select the duration of the beep signal after a good decode. 30ms *60ms 90ms 120ms I-500 Imaging Barcode Scanner...

  • Page 18: Aiming Pattern

    This function is for supporting models only. *Auto Always On Always Off Flashing Illumination Set Illumination to aid in barcode reading. Use the following settings to configure this function. *Auto Always On Always Off I-500 Imaging Barcode Scanner...

  • Page 19: Country Code

    ROGRAMMING UIDE Country Code Scan the following settings to change the keyboard country code. *USA Czech France Germany Hungary Italy Spain Turkey I-500 Imaging Barcode Scanner...
  • Page 20 ROGRAMMING UIDE Portugal Sweden Netherlands Norway Brazil Russia I-500 Imaging Barcode Scanner...

  • Page 21: Readable Barcode Symbologies

    This section provides the programming barcodes for enabling and disabling readable symbologies. If the default values suit requirements, programming is not necessary. If all symbologies are disabled, only settings barcodes are readable. Barcode symbologies can then be enabled individually. All Symbologies Enable All Disable All Default I-500 Imaging Barcode Scanner...

  • Page 22: Ean/Upc

    EAN/UPC Disable EAN/UPC * Enable EAN/UPC *Disable EAN/UPC 2/5-digit Enable EAN/UPC 2/5-digit supplemental code supplemental code Enable UPC-E to *Disable UPC-E to EAN13 conversion EAN13 conversion Enable UPC-E to *Disable UPC-E to UPC-A conversion UPC-A conversion I-500 Imaging Barcode Scanner...
  • Page 23 ROGRAMMING UIDE *Disable UPC-E leading 0 digit Enable UPC-E leading 0 digit Enable EAN to *Disable EAN to ISBN conversion ISBN conversion Enable EAN GS1 Prefix *Disable EAN GS1 Prefix I-500 Imaging Barcode Scanner...

  • Page 24: Code 128

    ROGRAMMING UIDE Code 128 * Enable Code 128 Disable Code 128 Code 39 * Enable Code 39 Disable Code 39 Enable [*] * Disable [*] Character Output Character Output I-500 Imaging Barcode Scanner...

  • Page 25: Code 93

    ROGRAMMING UIDE Code 93 * Enable Code 93 Disable Code 93 Code 32 Enable Code 32 * Disable Code 32 I-500 Imaging Barcode Scanner...

  • Page 26: Code 11

    ROGRAMMING UIDE Code 11 * Enable Code 11 Disable Code 11 Codabar * Enable Codabar Disable Codabar * Enable Output of Disable Output of Start & Stop Symbols Start & Stop Symbols I-500 Imaging Barcode Scanner...

  • Page 27: Interleaved 2 Of 5

    ROGRAMMING UIDE Interleaved 2 of 5 * Enable Interleaved 2 of 5 Disable Interleaved 2 of 5 Matrix 2 of 5 * Enable Matrix 2 of 5 Disable Matrix 2 of 5 I-500 Imaging Barcode Scanner...

  • Page 28: Industrial 2 Of 5

    ROGRAMMING UIDE Industrial 2 of 5 * Enable Industrial 2 of 5 Disable Industrial 2 of 5 PDF417 * Enable PDF417 Disable PDF417 I-500 Imaging Barcode Scanner...

  • Page 29: Micro Pdf417

    ROGRAMMING UIDE Micro PDF417 * Enable Micro PDF Disable Micro PDF Data Matrix * Enable Data Matrix Disable Data Matrix I-500 Imaging Barcode Scanner...

  • Page 30: Qr Code

    ROGRAMMING UIDE QR Code * Enable QR Code Disable QR Code GS1-DataBar * Enable GS1-DataBar Disable GS1-DataBar I-500 Imaging Barcode Scanner...

  • Page 31: Aztec

    ROGRAMMING UIDE Aztec * Enable Aztec Disable Aztec Codablock F * Enable Codablock F Disable Codablock F I-500 Imaging Barcode Scanner...

  • Page 32: Data Editing

    [Prefix] [CodeID] [Data] [Suffix] [Terminator] Prefix Prefix is a character string output from scanner before sending out decoded barcode information. It can be added by scanning the "Enable Prefix" setting code. Enable Prefix Output * Disable Prefix Output I-500 Imaging Barcode Scanner...
  • Page 33 2. Confirm that programming of scanner is enabled. 3. Scan "Modify Prefix" barcode. 4. Scan the 8 data setting bardcodes in Appendix B, "4", "4", "4", "1", "5", "4", "4", "1". 5. Scan the "Save Settings" barcode. I-500 Imaging Barcode Scanner...

  • Page 34: Suffix

    Programming” setup barcode on page 2. 3. Scan "Modify Suffix" barcode. 4. Scan the data setting bardcodes in Appendix B for the hexadecimal data codes of the Prefix (2 hexadecimal digits per character). 5. Scan the "Save Settings" barcode. I-500 Imaging Barcode Scanner...

  • Page 35: Code Identifiers

    The single character code identifier Code ID corresponding to each barcode type can be modified according to application requirements. Enable Code ID Output * Disable Code ID Output Save Settings Restore all Code ID to default I-500 Imaging Barcode Scanner...
  • Page 36 Codabar Interleaved 2 of 5 Industrial 2 of 5 Matrix 2 of 5 MSI-Plessey GS1 Databar (RSS-14) GS1 Databar Limited (RSS) GS1 Databar Expanded (RSS) QR Code Data Matrix PDF 417 Aztec Micro PDF417 CodaBlock F I-500 Imaging Barcode Scanner...
  • Page 37 3. Scan "CODE 128 Code ID" barcode. 4. Scan the 2 data setting bardcodes "4" and "1" in Appendix B. 5. Scan the "Save Settings" barcode. EAN 13 Code ID EAN 8 Code ID UPCA Code ID UPCE0 Code ID I-500 Imaging Barcode Scanner...
  • Page 38 UPCE1 Code ID CODE 128 Code ID CODE 39 Code ID CODE 93 Code ID Codabar Code ID Interleaved 2 of 5 Code ID Industrial 2 of 5 Code ID Matrix 2 of 5 Code ID I-500 Imaging Barcode Scanner...
  • Page 39 UIDE CODE 11 Code ID MSI Code ID GS1 Databar GS1 Databar RSS Code ID Limited RSS Code ID GS1 Databar QR CODE Code ID Expanded RSS Code ID Data Matrix Code ID PDF417 Code ID I-500 Imaging Barcode Scanner...

  • Page 40: Data Terminator Character

    [Start] [Center] [End] The character string lengths of the Start and End data sections can be set up by scanning the setting barcodes. The user can then choose the required data sections by scanning the following setting barcodes. I-500 Imaging Barcode Scanner...
  • Page 41 (Table in Appendix A can be used to look up the data conversion). Modify length of Start section Modify length of End section Abort Setting Save Settings I-500 Imaging Barcode Scanner...
  • Page 42 5. Scan the "Save Settings" barcode. 6. Scan "Modify length of End section" barcode. 7. Scan the 2 data setting bardcodes "0" and "7" in Appendix B. 8. Scan the "Save Settings" barcode. 9. Scan the "Transmit Center section only" barcode. I-500 Imaging Barcode Scanner...

  • Page 43: Read Fail Message

    2. Confirm that programming of scanner is enabled. 3. Scan the "Modify Read Fail Message" barcode. 4. Scan the data setting bardcodes "4", "6", "4", "1", "4", "9", "4", "C" in order. 5. Scan the "Save Settings" barcode. I-500 Imaging Barcode Scanner...

  • Page 44: Appendix

    ROGRAMMING UIDE Appendix Appendix A: ASCII Code Table Decimal Character Hexadecimal I-500 Imaging Barcode Scanner...
  • Page 45 ROGRAMMING UIDE Decimal Character Hexadecimal " & < > I-500 Imaging Barcode Scanner...
  • Page 46 ROGRAMMING UIDE Decimal Character Hexadecimal I-500 Imaging Barcode Scanner...
  • Page 47 ROGRAMMING UIDE Decimal Character Hexadecimal I-500 Imaging Barcode Scanner...

  • Page 48: Appendix B: Data Codes

    ROGRAMMING UIDE Appendix B: Data Codes I-500 Imaging Barcode Scanner...
  • Page 49 ROGRAMMING UIDE I-500 Imaging Barcode Scanner...

  • Page 50: Appendix C: Data Code Editing

    If "Cancel String" is scanned, the whole string "AB12" will be erased, leaving empty string. Next scan of data codes will start as new string. If "Abort Setting" is scanned, the data code setting operation will be aborted. Save Settings Erase Last Data Cancel String Abort Setting I-500 Imaging Barcode Scanner...
