73-1936-251
2/03

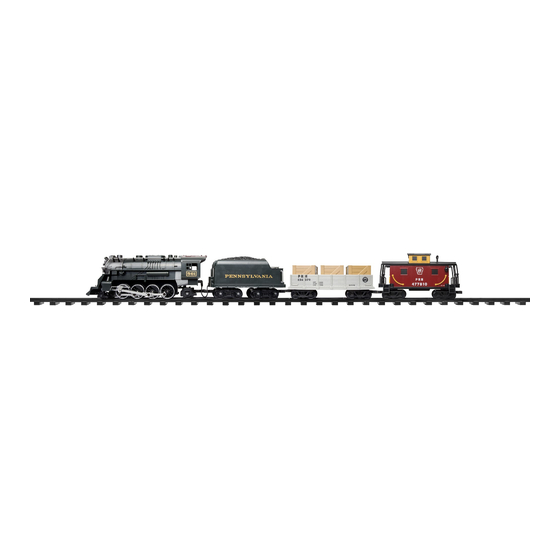

Pennsylvania Flyer
Ready-to-Run Set
Owner's Manual
CAUTI O N—ELECTRI C TOY
NOT RECOMMENDED FOR CHILDREN UNDER EIGHT YEARS OF AGE. AS WITH
ALL ELECTRIC PRODUCTS, PRECAUTIONS SHOULD BE OBSERVED DURING
HANDLI N G AND USE TO REDUCE THE RI S K OF ELECTRI C SHOCK.
TRANSFORMER RATINGS—I N PUT:120 VAC; 60 HZ ONLY.
AC OUTPUT:18 V; 80 VA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lionel Pennsylvania Flyer Ready-to-Run Set
Summary of Contents for Lionel Pennsylvania Flyer Ready-to-Run Set
- Page 1 73-1936-251 2/03 Pennsylvania Flyer Ready-to-Run Set Owner’s Manual CAUTI O N—ELECTRI C TOY NOT RECOMMENDED FOR CHILDREN UNDER EIGHT YEARS OF AGE. AS WITH ALL ELECTRIC PRODUCTS, PRECAUTIONS SHOULD BE OBSERVED DURING HANDLI N G AND USE TO REDUCE THE RI S K OF ELECTRI C SHOCK. TRANSFORMER RATINGS—I N PUT:120 VAC;...
- Page 2 In the event that such conditions exist, the transformer should not be used until properly repaired. The following Lionel marks may be used throughout this instruction manual and are protected under law. All rights reserved. Lionel ®...
-
Page 3: Table Of Contents
Experiencing the features of the CW-80 Transformer 9-10 Setting the accessory output Powering your layout with the CW-80 Transformer Troubleshooting Train operations Running your locomotive with a Lionel transformer Reverse unit procedure Tire-Traction Coupling Maintaining and servicing your set Lubricating your 4-4-2 locomotive Adding smoke fluid to your 4-4-2 locomotive’s smoke generator... -
Page 4: Track Layout
Track layout Building your Lionel layout our set comes with eight curved, three straight, and one power section of track. Figure 1 provides some examples of layouts that you can build with these track sections. By adding more FasTrack track sections, you can create an endless number of exciting track arrangements for more fun, action, and variety. -
Page 5: Joining The Fastrack Track Sections
Track layout Joining the FasTrack track sections asTrack track sections join together easily. With interlocking roadbed sections and large rail, the track fits together securely so you always get good electrical contact. Take a look at Figure 2 to show you how to join the track sections. 1. -
Page 6: Controller Operations
• Parents should periodically inspect this product for potential hazards and, if necessary, have them repaired by an authorized Lionel Service Center. In the event that such a condi- tion exists, the transformer should not be used until it has been properly repaired. -
Page 7: Wiring Your Cw-80 Transformer
Controller operations Wiring your CW-80 Transformer or best performance on large layouts, it is recommended that you use 16-gauge wire to con- nect your CW-80 Transformer to the track. Connect the spade connectors on the wires from the FasTrack terminal section. On larger layouts where several track connections are required, the use of separate junctions/terminal strips (available at your local electronics store) is recommended to prevent voltage drops. -
Page 8: Operating Your Trains With The Cw-80 Transformer
Controller operations Operating your trains with the CW-80 Transformer ou’re clear for departure! Move the throttle control handle forward to increase power to the track. The farther forward you push the handle, the faster your train will go. You will notice that the power increases and decreases at a set rate. For example, Note! quickly throwing the throttle all the way forward will not result in an instant increase to full power. -
Page 9: Experiencing The Features Of The Cw-80 Transformer
To correct this problem, simply turn off the CW-80 Transformer, then turn it back on. The CW-80 Transformer may cause random whistles in the Lionel Mighty Sounds of Note! Steam tenders with a three-pin connector. - Page 10 CW-80 is on. Whistle/Horn Activates the whistle or horn sound Throttle effect in your Lionel locomotives. Controls your locomotive’s speed. Throw the throttle for- Press WHISTLE/HORN to begin the ward to increase locomotive speed, backward to slow it sound; release the button to end it.
-
Page 11: Setting The Accessory Output
Controller operations Setting the accessory output ake control of your Lionel empire with your CW-80 Transformer! You choose how much power your accessories need. Your CW-80 Transformer features a programmable accessory output. The ability to control the voltage allows you to set the speed of your accessory motors and the intensity of your lights. -
Page 12: Powering Your Layout With The Cw-80 Transformer
Controller operations Powering your layout with the CW-80 Transformer our CW-80 Transformer provides a total output of five amps. The track outputs will deliver all of this power to the track when no accessories are connected to the Transformer. Keep in mind that connected accessories borrow some of this power. -
Page 13: Troubleshooting
Controller operations Troubleshooting No lights or operation Be sure CW-80 Transformer is plugged in. Train runs, but WHISTLE/HORN, BELL, and DIRECTION buttons do not work Check track connections. The track must be connected to the “A” and “U” terminals on the Transformer. -
Page 14: Running Your Locomotive With A Lionel Transformer
Locomotive operation Running your locomotive with a Lionel transformer Place your locomotive on Lionel or Lionel-compatible track. (O-27 minimum radius) With track power OFF, connect the drawbar between the locomotive and tender. See Figure 5. Caution! If the smoke unit switch is in the ON position, add smoke fluid to your locomotive’s stack to prevent damage to the smoke unit. -
Page 15: Reverse Unit Procedure
Reverse unit procedure he electronic reverse unit inside your locked in the next mode of operation in the Lionel locomotive acts like the transmis- sequence. For instance, if the locomotive is sion in your car. When you apply power to... -
Page 16: Tire-Traction
Traction at higher speeds. Replacement Traction Tires Tire to enhance tractive effort so your loco- are available at your authorized Lionel Service motive can pull many cars at once. Center. Coupling... -
Page 17: Maintaining And Servicing Your Set
You’ll know your locomotive requires We recommend that you purchase a Lionel lubrication when visual inspection reveals Lubrication and Maintenance Kit dryness on the parts indicated in Figure 9. -
Page 18: Adding Smoke Fluid To Your 4-4-2 Locomotive's Smoke Generator
When smoke production wanes, add more The smoke generator requires the periodic fluid (4 to 8 drops). An idle locomotive will addition of Lionel smoke fluid in order to not smoke. function. Pierce the smoke fluid tube end Smoke production is greater at higher volt-... -
Page 19: Replacing Your 4-4-2 Locomotive's Headlamp
Lionel part no. 600-0161-300, screws. Tighten the screws firmly, but do available from your nearest Lionel not over tighten them. Authorized Service Center or from Lionel Smoke unit Lionel part no. 600-0161-300 Linkage rods... -
Page 20: Limited Warranty/Lionel Service
Center, together with proof of original purchase above instructions carefully before returning any will, at the option of Lionel L.L.C., be repaired or merchandise for service. You may choose to have replaced, without charge for parts or labor. In the...
