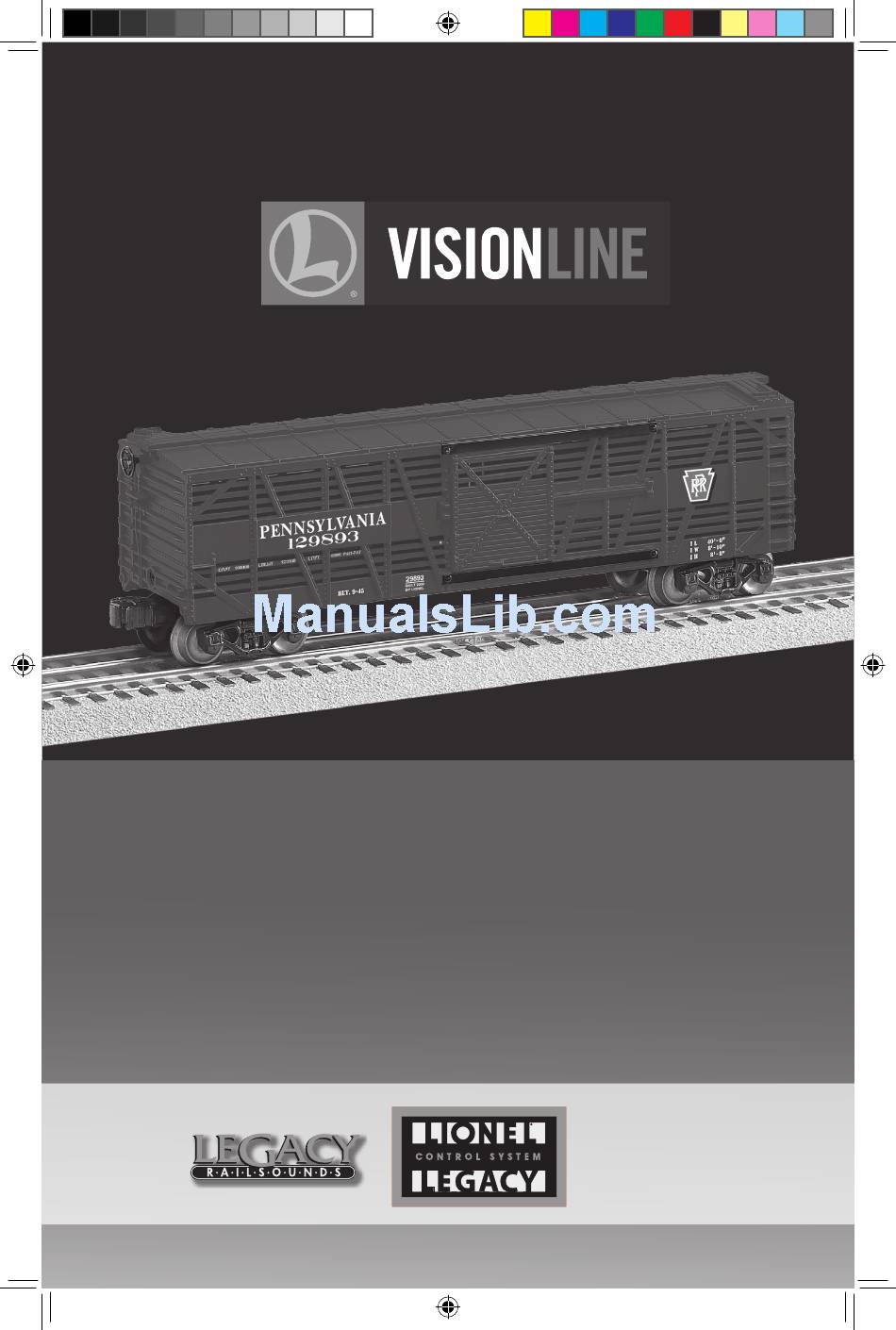

- Page 1 72-9893-250 10/26 Lionel Lionel Pennsylvania Pennsylvania Operating Stock Car Operating Stock Car Owner’s Manual Owner’s Manual Featuring 72-9893-250_Vision_Cattle_Car_#2.indd 1 11/3/09 12:54 PM...
- Page 2 VISION Line™ Operating Stock Car! On the outside, this car has all the classic Lionel details of our traditional stock car. Inside the body, the stock car is equipped with the latest technology to bring you realistic cow sounds, voices of the Cowboy crew, and true-to-life freight car sounds.
-
Page 3: Table Of Contents
Cattle and Cowboy Sounds Freight Sounds Flat Wheel Sounds Train Brake Sounds The Moo Game TrainMaster Command Control operations The CAB-1 Remote Controller Switch Function Overview Mode Switch EOT Light Switch Sound Set Volume Pot Limited Warranty/Lionel Service 72-9893-250_Vision_Cattle_Car_#2.indd 3 11/3/09 12:54 PM... -
Page 4: Quick Start
LEGACY Control System. To operate in LEGACY mode, you need a LEGACY Command Base and LEGACY CAB-2 Remote Controller. Both products are offered together in the LEGACY Command Set (available separately, 6-14295). 1. Turn off track power and plug in the LEGACY Base. 2. Place your operating stock car on any Lionel or Lionel-compatible track and connect to your train consist led by a command control locomotive. 3. Increase track power voltage to full power (no more than 19 volts AC). 4. Press ENG and 1 to address your operating stock car with your LEGACY CAB-2 Remote Controller. -
Page 5: Transformer Operations
Pressing the horn button on your transformer will activate the sound of cow mooing. Additionally, a “short horn” blow when stopped can be used to activate the loading and unloading sound features. 1. Place your operating stock car on any Lionel or Lionel-compatible track and connect to your train consist led by any locomotive. 2. Power your locomotive at 12-18 volts with your alternating current (AC) transformer. -
Page 6: Legacy Control System Operations
LEGACY Control System operations This section is a brief overview of the LEGACY Control System. For a more in depth Note! explanation of the LEGACY Control System features, please see your LEGACY Control System Operations Manual. Get Ready to Run Address your cattle car First, you must address the cattle car. -
Page 7: The Legacy Cab-2 Controller Version 1.2 Software
LEGACY Control System operations The LEGACY CAB-2 Remote Controller Version 1.2 software Select Button "controller" Select Button Flat wheel sounds ON Volume Up. (while running). Select Button Select Button "arrow up" Volume Down. Cowboy Loading Cows announcement while stopped. Select Button Select Button "arrow down"... -
Page 8: Cattle And Cowboy Sounds
Sounds See Figure 2 on page 7 for reference. Cattle and Cowboy Sounds As you run your cattle car around the track, you will often hear the sounds of the cattle as they moo and shuffle in the stock car. The cattle respond in part to the actual movements of the stock car on your layout . -
Page 9: The Moo Game
Sounds continued The Moo Game Here’s a fun game you can play with your new operating stock car! To win the game, try to keep your load of cows calm and relaxed by giving them a smooth ride. 1. Select button "Tower Com" to start the game. 2. -
Page 10: The Legacy Cab-2 Controller Version 1.3 Software
LEGACY Control System operations The LEGACY CAB-2 Remote Controller Version 1.3 software Select Button Select Button "controller" Volume Up. Flat wheel sounds ON (while running). Select Button Select Button "arrow down" Volume Down. Cowboy Loading Cows announcement while stopped. Select Button "tower com"... -
Page 11: Trainmaster Command Control Operations
TrainMaster Command Control operations The CAB-1 Remote Controller commands Select Button <AUX> <2> Flat wheel sounds ON (while running). Select Button <AUX> <3> Select Button <1> Cowboy Loading Cows Volume Up. announcement while stopped. Select Whistle Select Button <2> Cow sounds announcement. Volume Down. -
Page 12: Switch Function Overview
Switch Function Overview SOUND SETS END OF TRAIN DEVICE SOUND SETS VOLUME PROG VOLUME MODE Bottom view of stock car Figure 5 Mode Switch Your cattle car is automatically assigned an ID#1 when you first receive it. To assign a new ID # to the cattle car in LEGACY and Command operation follow these steps: 1. -
Page 13: Sound Set
Switch function overview EOT Light Switch Your cattle car comes equipped with an End-of-Train (EOT) device box. This box on the end of your cattle car comes equipped with an illuminated light. Like real freight cars on the railroad, it is appropriate to have the EOT light on when it is the designated last car in your consist, but feel free to keep the light on no matter where you place the cattle car in your consist. - Page 14 The MOO Game Lost Time Time Time Time Time 72-9893-250_Vision_Cattle_Car_#2.indd 14 11/3/09 12:55 PM...
- Page 15 NOTES 72-9893-250_Vision_Cattle_Car_#2.indd 15 11/3/09 12:55 PM...
-
Page 16: Limited Warranty/Lionel Service
Lionel Limited Warranty Policy & Service his Lionel product, including all mechanical and electrical components, moving parts, motors and structural components, with the exception of LIGHT BULBS, LED’s & TRACTION TIRES are warranted to the original owner- purchaser for a period of one year from the original date of purchase against original defects in materials or work- manship when purchased through a Lionel Authorized Retailer*. This warranty does NOT cover the following: • Normal wear and tear • Light bulbs or LED’s • Defects appearing in the course of commercial use • Damage resulting from abuse/misuse of the product Transfer of this product by the original owner-purchaser to another person voids this warranty in its entirety. Modification of this product in any way; visually mechanically or electronically, voids the warranty in its entirety. Any warranted product which is defective in original materials or workmanship and is delivered by the original owner-purchaser (this warranty is non-transferrable) to Lionel LLC or any Lionel Authorized Service Station MUST be accompanied by the original receipt for purchase (or copy) from an Authorized Lionel Retailer*, will at the discretion of Lionel LLC, be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a suitable replacement is not available, Lionel will offer to replace the product with a comparable model (determined by Lionel LLC), if available. In the event a comparable model is not available the customer will be refunded the original purchase price (requires proof of purchase from the Authorized Lionel Retailer* it was origi- nally purchased). Any products on which warranty service is sought must be sent freight or postage prepaid (Lionel will refuse any package when postage is due). Transportation and shipping charges are not covered as part of this warranty. NOTE: Products that require service that do not have a receipt from an LIONEL AUTHORIZED RETAILER* will be required to pay for all parts required to repair the product (labor will not incur a charge) providing the product is not older than 3 years from date of manufacture and is within 1 year from date of purchase. A copy of the original sales receipt is required. In no event shall Lionel LLC be held liable for incidental or consequential damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary from state to state. Instructions for Obtaining Service If service for this Lionel LLC product is required; bring the item, along with your DATED sales receipt and complet- ed warranty information (at the bottom of this page) to the nearest Lionel Authorized Service Station. Your nearest Lionel Service Station can be found by calling 1-800-4-LIONEL or by accessing the website at www.lionel.com. If you prefer to send your Lionel product directly to Lionel, for repair you must FIRST call 586-949-4100 extension 9105 or FAX Lionel at 586-949-5429 or write to Customer Service, 26750 Twenty Three Mile Road, Chesterfield, MI 48051-2493. Please have the 6-digit Lionel product number, the date of original purchase, the dealer where the item...
