Summary of Contents for Lionel Pennsylvania ALCo A-A Set

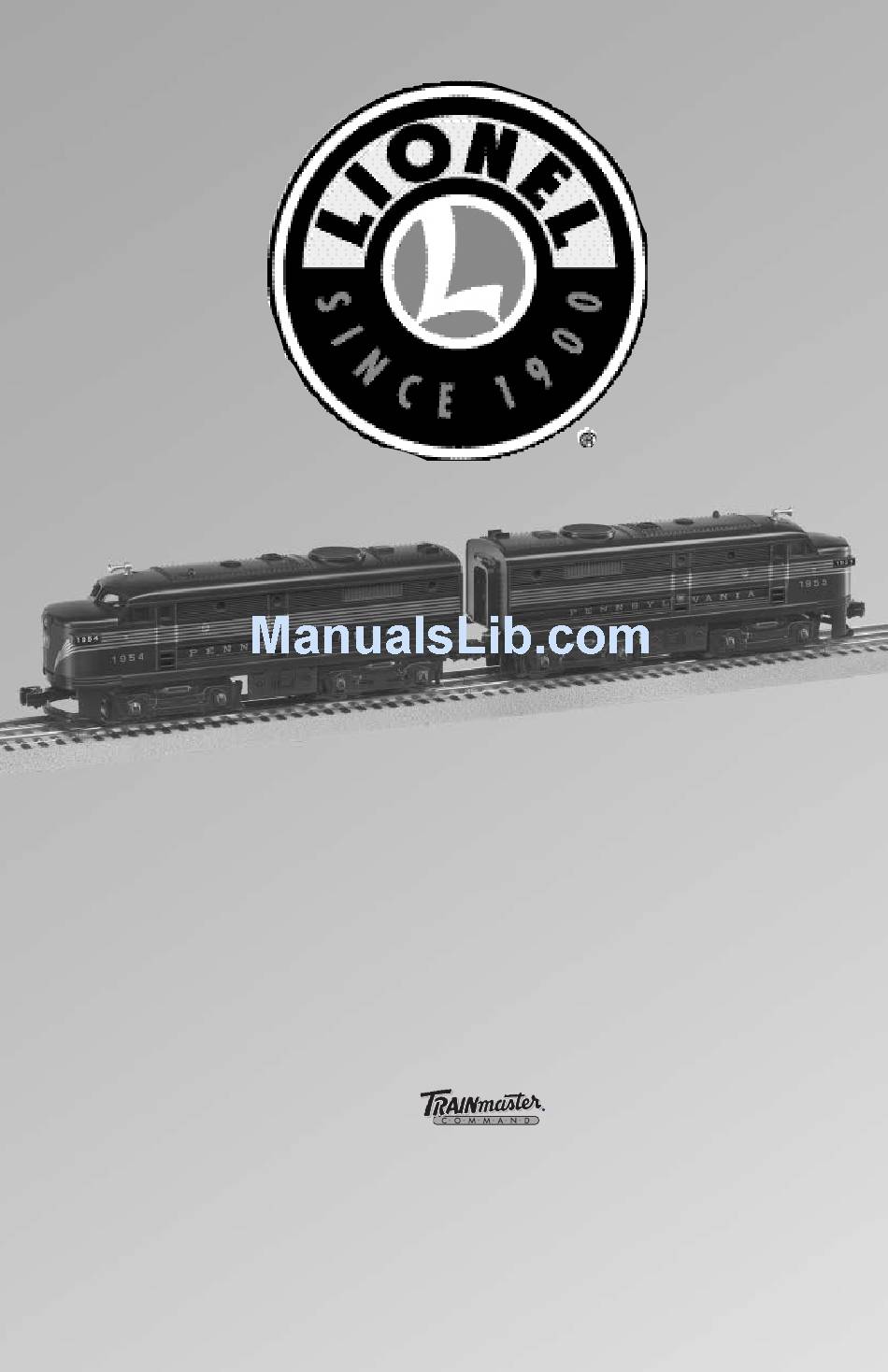

- Page 1 73-8210-250 6/10 Lionel Pennsylvania ALCo A-A Set Owner’s Manual featuring...
-
Page 2: Table Of Contents
Congratulations! Table of contents Quick Start ongratulations on your purchase of the Lionel Pennsylvania ALCo A-A Set! This classic set Transformer operations is updated with TrainMaster Command Control and the Electronic Bell and Horn. TrainMaster Command Control operations SET INCLUDES Conventional transformer operations •... -
Page 3: Controller 300
In the conventional environment, your locomotive cycles through a repeating pattern of 1. Place your train set on Lionel or Lionel-compatible O-27 or larger track. operations: forward, neutral, reverse, neutral, and so on. To advance to the next operation, press the 2. -
Page 4: Operating Your Train Set In The Conventional Environment
To “lock” your locomotive into a single direction (for example, to operate in forward only), you can deactivate the Command reverse unit’s sequencing function. Refer to Figure 1 1. With your transformer turned off, place your train set on Lionel or Lionel- for the location of the Command reverse unit switch. -
Page 5: Trainsounds Horn And Bell Operations
Installing a Lionel Sound Activation Button for conventional operation f your transformer lacks "Horn/Whistle" and "Bell" buttons, you will need to install Lionel no. 610-5906-001 Sound Activation Buttons (available separately) to activate the locomotive’s whistle and bell sounds. -
Page 6: Trainmaster Command Control Operations
2. Place your train set on Lionel or Lionel-compatible O-27 or larger track. Increases the locomotive’s speed while the button is 3. Increase track voltage to full power (no more than 19 volts AC). On pressed. -
Page 7: Reprogramming Your Locomotive To Restore Features
TrainMaster Command Control operations TrainMaster Command Control operations Reprogramming your locomotive to restore features Tuning your locomotive’s performance Momentum f your locomotive is unresponsive to your commands in the TrainMaster Command Control The TrainMaster Command Control momentum feature simulates the labored performance of a environment, we recommend that you follow this procedure to reset your locomotive. -
Page 8: Operating And Servicing Your Train Set
Adjusting the locomotive’s wire brush shunts on the motor Lubricating your locomotive elp your Lionel locomotive lead a long and productive life on your railroad by maintaining f your locomotive begins to run intermittently or suddenly stops operating, the wire shunts it properly. -
Page 9: Replacing The Lamp In Your Powered Alco A-Unit
2. To remove the lamp, gently push the lamp down and turn counter clockwise to disengage the lamp from the socket. Refer to Figure 4. 3. Replace the expired lamp with Lionel part no. 600-0363-300, available from your local Lionel Authorized Service Center or Lionel Service. (For more information, see Lionel Service on page 16.)
