Summary of Contents for CHIEF PAC-Y3

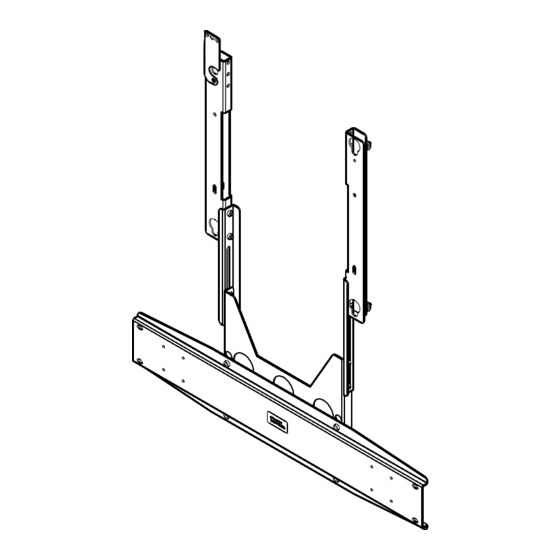

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Yamaha Speaker Adapter Accessory PAC-Y3...
- Page 2 Reinforce the structure as required before installing the Chief® is a registered trademark of Milestone AV Technologies. component. All rights reserved. WARNING:...
- Page 3 Installation Instructions PAC-Y3 LEGEND Phillips Screwdriver Tighten Fastener Destornillador Phillips Apretar elemento de fijación Kreuzschlitzschraubendreher Befestigungsteil festziehen Chave de fendas Phillips Apertar fixador Cacciavite a stella Serrare il fissaggio Kruiskopschroevendraaier Bevestiging vastdraaien Tournevis à pointe cruciforme Serrez les fixations Open-Ended Wrench...
- Page 4 PAC-Y3 Installation Instructions MOUNT ASSEMBLY Center Speaker Mounting Bracket Assembly Assemble left bottom speaker bracket (E) to center speaker bracket (F) using two 1/4-20 x 1/2" button head cap screws (L). (See Figure 1) Assemble right bottom speaker bracket (D) to center speaker bracket (F) using two 1/4-20 x 1/2"...
- Page 5 Installation Instructions PAC-Y3 (Q) x 4 (G) x 2 (G - 2 places) (Assembled to speaker) (P) x 4 (YSP-4000 shown) (YSP-4000 speaker shown) Figure 6 Figure 4 Partially install two 1/4-20 x 1/2" button head cap screws (L) into top back of speaker mount adapter (A). (See Figure 7) Slide threaded studs located on two speaker adapters (G) through four mounting holes in speaker mount adapter (A).
- Page 6 PAC-Y3 Installation Instructions Latching Flag Assembly to Speaker Adapter (H) x 4 (Q) x 4 Assemble one Phillips machine screw (RB) through latching flag (RA) and spacer (RC). (See Figure 8) Secure latching flag to left speaker mounting support (B) using one Nylock nut (RD).
- Page 7 Installation Instructions PAC-Y3 Install PACY3 onto mount following the instructions Slide mounting buttons on display into teardrop holes in provided with the mount. (See Figure 10) right and left speaker mounting supports (B and C), and lower display until recessed area of mounting buttons is seated in lower area of teadrop mounting holes.
- Page 8 F 877.894.6918 / 952.894.6918 Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands P +31 (0)40 2668620 Chief Manufacturing, a products divi- F +31 (0)40 2668615 sion of Milestone AV Technologies Asia Pacific A Office No. 1 on 12/F, Shatin Galleria...
