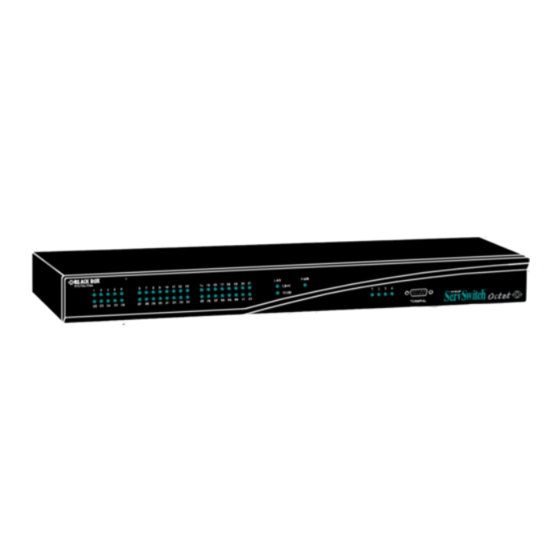

Black Box KV1700A/E User Manual
  1. Manuals
  2. Brands
  3. Black Box Manuals
  4. Switch
  5. KV1700A/E
  6. User manual

Black Box KV1700A/E User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

APRIL 2007
KV1700A/E
KV1701A/E
KV1702A/E
KV1703A/E
KV1711A/E
KV1711A/E-R2
KV1712A/E
KV1712A/E-R2
KV1713A/E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KV1700A/E and is the answer not in the manual?

Questions and answers

Related Manuals for Black Box KV1700A/E

Summary of Contents for Black Box KV1700A/E

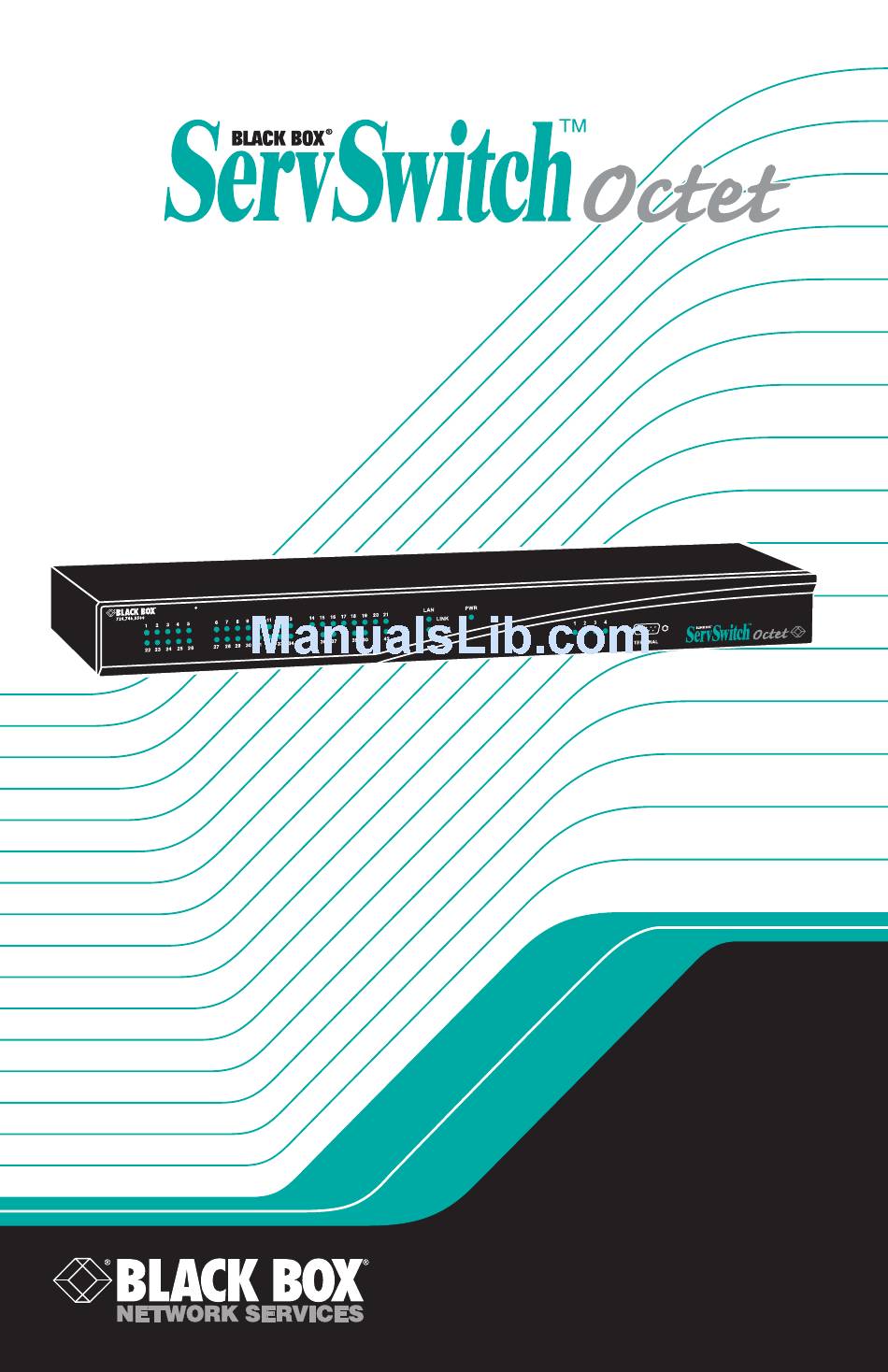

  • Page 1 APRIL 2007 KV1700A/E KV1701A/E KV1702A/E KV1703A/E KV1711A/E KV1711A/E-R2 KV1712A/E KV1712A/E-R2 KV1713A/E...
  • Page 3 ™ The ServSwitch family from BLACK BOX—the one-stop answer for all your KVM switching needs! This manual will tell you all about your new ServSwitch Octet, including how to install, operate, and troubleshoot it. For an introduction to the ServSwitch Octet, see Chapter 2.
  • Page 4 SERVSWITCH OCTET INSTALLER/USER GUIDE FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA RADIO-FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio-frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a...
  • Page 5 Canada (cUL, ICES-003) European Union (CE) TRADEMARKS USED IN THIS MANUAL BLACK BOX® and the logo are registered trademarks, and ServSwitch, ServSelect, and ServSelect IP are trademarks of BLACK BOX Corporation. Apple, Mac, and Macintosh are registered trademarks of Apple Computer, Inc.
  • Page 6 SERVSWITCH OCTET INSTALLER/USER GUIDE Normas Oficiales Mexicanas (NOM) Electrical Safety Statement INSTRUCCIONES DE SEGURIDAD Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
  • Page 7 NOM STATEMENT El aparato ha sido expuesto a la lluvia; o D: El aparato parece no operar normalmente o muestra un cambio en su desempeño; o El aparato ha sido tirado o su cubierta ha sido dañada.
  • Page 8 SERVSWITCH OCTET INSTALLER/USER GUIDE...

  • Page 9: Table Of Contents

    SERVSWITCH FAMILY CONTENTS Specifications.......................9 Product Overview....................19 Features and Benefits......................19 Glossary ..........................21 Component Overview ......................21 Safety Precautions......................23 Installation ......................25 Octet Switching Systems ....................25 Getting Started ........................25 Rack Mounting an Octet Switch ..................28 Installing an Octet Switch....................29 Connecting Target Devices to the Octet Switch ..............31 Connecting Users to the Octet Switching System .............33 Connecting a Local Server to the Octet Switching System ..........34 Connecting a User Station for Switch Redundancy............35...
  • Page 10 SERVSWITCH OCTET INSTALLER/USER GUIDE Pod Switch Mode ....................97 Introduction........................97 Requirements ........................97 Configuration ........................97 Enabling Pod Switch Mode ....................98 Performing a Pod Switch ....................99 Troubleshooting .........................99 Troubleshooting....................101 Troubleshooting Tips .......................101 Calling Black Box......................102 Shipping and Packaging....................103...

  • Page 11: Specifications

    CHAPTER 1: SPECIFICATIONS 1. Specifications During the course of this product’s lifetime, modifications might be made to its hardware or firmware that could cause these specifications to change without notice. Octet KV1700 Product Specifications Agency Approvals UL, FCC, cUL, ICES-003, CE, VCCI, C-Tick Mechanical Height: 1U Width: 17”...
  • Page 12 SERVSWITCH™ OCTET INSTALLER/USER GUIDE Octet KV1701 Product Specifications Agency Approvals UL, FCC, cUL, ICES-003, CE, VCCI, C-Tick Mechanical Height: 1U Width: 17” (432 mm) Depth: 11” (281 mm) Weight: 8 lb (3.7 kg) Environmental/Power Power consumption: 75 W AC input power: max 75 W Heat dissipation: 270 Kj Humidity: 10-95% non-condensing Operating temperature: 32°...
  • Page 13 CHAPTER 1: SPECIFICATIONS Octet KV1702 Product Specifications Agency Approvals UL, FCC, cUL, ICES-003, CE, VCCI, C-Tick Mechanical Height: 2 U Width: 17” (432 mm) Depth: 11” (281 mm) Weight: 16 lb (7.27 kg) Environmental/Power Power consumption: 150 W AC input power: max 150 W Heat dissipation: 610 Kj Humidity: 10-95% non-condensing Operating temperature: 32°...
  • Page 14 SERVSWITCH™ OCTET INSTALLER/USER GUIDE Octet KV1703 Product Specifications Agency Approvals UL, FCC, cUL, ICES-003, CE, VCCI, C-Tick Mechanical Height: 1 U Width: 17” (432 mm) Depth: 13.8” (351 mm) Weight: 8 lb (3.7 kg) Environmental/Power Power consumption: 75 W AC input power: max 75 W Heat dissipation: 270 Kj Humidity: 10-90% non-condensing Operating temperature: 32°...
  • Page 15 CHAPTER 1: SPECIFICATIONS Octet (KV1711, KV1711-R2, KV1712, KV1712-R2, KV1713) User Station Product Specifications Agency Approvals UL, FCC, cUL, ICES-003, CE, VCCI, C-Tick Mechanical Height: 1U Width: 10.98” (27.9 cm) Depth: 11.5” (29.2 cm) Weight: 4.41 lb (2 kg) Environmental/Power Power consumption: 25 W AC input power: max 25 W Heat dissipation: 90 Kj AC input current rating: 1A...
  • Page 16 SERVSWITCH™ OCTET INSTALLER/USER GUIDE Octet (KV1711, KV1711-R2, KV1712, KV1712-R2, KV1713) User Station Product Specifications (Continued) KV1711 and KV1712 Peripherals: PS/2 keyboard and mouse, Sun keyboard and mouse KV1711-R2 and KV1712-R2 Peripherals: PS/2 keyboard and mouse, USB keyboard and mouse KV1713 Peripherals: PS/2 keyboard and mouse, USB keyboard and mouse Video resolution: 1024 x 768 (1280 x 1024 KV1712 and KV1713 only) with 1,000 feet of UTP from server to user,...
  • Page 17 CHAPTER 1: SPECIFICATIONS Octet SAM (KV1720, KV1721) Product Specifications (Continued) Input ports for KV1721A: 1 USB keyboard and mouse (supports Intel, Sun, Macintosh), 1 15HDD male, VGA video Output ports: 1 RJ45 Octet interconnect Additional Information Sync types: Separate horizontal and vertical, Sync on Green (as used on SGI and HP9000);...
  • Page 18 SERVSWITCH™ OCTET INSTALLER/USER GUIDE Octet Serial SAM (KV1724) Product Specifications (Continued) Type: DCE Emulation: VT100 Baud Rate: 115200, 57600, 38400, 19200, 9600, 2400,1200, 300 bits per second Parity: Even, Odd, None Flow Control: None, CTS/RTS or XOn/XOff Server Ports Number: 1 Type: DCE Connectors: 9-pin D-sub female User Ports...
  • Page 19 CHAPTER 1: SPECIFICATIONS Octet SAMDM (KV1725, KV1726, KV1727) Product Specifications Ports Input ports for KV1725A: 1 6-pin miniDIN, PS/2 keyboard, 1 6-pin miniDIN, PS/2 mouse;; 1 15HDD male, VGA Video, 1 RJ45 Octet interconnect, 1 DB9 RS232 serial, 1 3.5mm speaker and 1 3.5mm microphone Input ports for KV1726A: 1 USB keyboard and mouse (supports Intel, Sun, Macintosh), 1 15HDD male, VGA video, 1 DB9 RS232 serial, 1 3.5mm speaker and 1...
  • Page 20 SERVSWITCH™ OCTET INSTALLER/USER GUIDE...

  • Page 21: Product Overview

    Octet server access modules. Up to three tiers of Octet switches can be cascaded to provide seamless access to a large number of target devices. Other KVM switches, including Black Box and non-Black Box branded, may also be attached in a cascaded system but do not provide seamless cascading.
  • Page 22 OSD, as if all the target devices were connected to one switch. You can also cascade non-Black Box KVM switches, but to access the attached target devices you must first select the non-Black Box switch from the OSD target list, and then connect to the target device using the methods provided by the non- Black Box KVM switch.

  • Page 23: Glossary

    One or more Octet switches. • One or more Black Box Octet matrix user stations. • One or more Black Box Octet server access modules, available in several different types including the SAM, SAMDM and Serial SAM modules. • Unshielded Twisted Pair (UTP) cables.
  • Page 24 SERVSWITCH™ OCTET INSTALLER/USER GUIDE itch Octet Sw UTP Cables 64 Servers Octet Server Access Module Octet User Station 16 Users Figure 2-1. Typical Octet Switching System Configuration The Octet switch The Octet switch provides the framework for the Octet switching system and is available in a variety of matrix sizes.

  • Page 25: Utp Cables

    To avoid potentially fatal shock hazard and possible damage to equipment, please observe the following precautions: • Do not use a 2-wire extension cord in any Black Box product configuration. • Test AC outlets at the server and monitor for proper polarity and grounding.
  • Page 26 SERVSWITCH™ OCTET INSTALLER/USER GUIDE Rack mount safety considerations • Elevated Ambient Temperature: If installed in a closed rack assembly, the operation temperature of the rack environment may be greater than room ambient. Use care not to exceed the rated maximum ambient temperature of the unit. •...

  • Page 27: Installation

    CHAPTER 3: INSTALLATION 3. Installation 3.1 Octet Switching Systems Octet switching systems consist of an Octet switch or switches, user stations, target devices, Octet server access modules and peripheral devices. See Figure 3.1 on page 26 and Figure 3-2 on page 27 for examples of switching system configurations. 3.2 Getting Started Before installing your Octet switching system, make sure you have access to the following items:...
  • Page 28 SERVSWITCH™ OCTET INSTALLER/USER GUIDE Figure 3.1 illustrates one possible switching system configuration using SAM and Serial SAM modules. Server with Octoware Software Octet Switch (KV1701A/E Switch Shown) Serial SAM Target Devices Local PC (PS/2 Shown) Serial Device Octet User Station (KV1713 User Station Shown) USB Keyboard Serial Port...
  • Page 29 CHAPTER 3: INSTALLATION Figure 3-2 illustrates another possible switching system configuration using SAMDM modules, specialized Octet server access modules with dual port connectivity and audio and serial connections. Server with Octoware Software Octet Switch (KV1701A/E Switch Shown) Target Devices SAMDM (PS/2 Shown) Octet User Station Local Server...

  • Page 30: Rack Mounting An Octet Switch

    SERVSWITCH™ OCTET INSTALLER/USER GUIDE SAMDM modules. By utilizing this connection method, you may benefit from switch redundancy in the event of a single switch failover. Figure 3-3. Octet Switching System Configuration with Redundancy 3.3 Rack Mounting an Octet Switch A rack mounting kit is supplied with each Octet switch. You may either place the Octet switch on the rack shelf or mount the switch directly into an Electronic Industries Alliance (EIA) standard rack.

  • Page 31: Installing An Octet Switch

    Server Ports Port Ports Figure 3-5. Example of an Octet Switch Back Panel (KV1700A/E Switch Shown) CAUTION: To reduce the risk of electric shock or damage to your equipment - - Do not disable the power cord grounding plug. The grounding plug is an important safety feature.
  • Page 32 SERVSWITCH™ OCTET INSTALLER/USER GUIDE - Disconnect the power from the unit by unplugging the power cord from either the electrical outlet or the unit. To connect power sources: Attach one end of the supplied power cord into the back panel of the Octet switch and attach the other end to an AC power source.

  • Page 33: Connecting Target Devices To The Octet Switch

    CHAPTER 3: INSTALLATION cannot be reset or recovered if lost or forgotten. Should you lose your password, please contact Black Box Technical Support for assistance. Type 0 to exit the Octet switching system Console menu. You can configure other switch settings using the Terminal Applications menu. Refer to Chapter 5 beginning on page 85 for more details.
  • Page 34 SERVSWITCH™ OCTET INSTALLER/USER GUIDE Octet Switch (KV1701A/E Switch Shown) Server Ports UTP Cable Target Devices (PS/2 Shown) Target Device Figure 3-6. Connecting Target Devices to an Octet Switch (KV1701A/E Switch Shown) For future reference, note the unique identifier (UID) on the back of the Octet server access module and the target device to which it is attached.

  • Page 35: Connecting Users To The Octet Switching System

    CHAPTER 3: INSTALLATION 3.6 Connecting Users to the Octet Switching System Once all target devices are attached, add users by attaching user stations and peripheral devices to the Octet switching system. Figure 3-7 illustrates how to connect users to the switching system.

  • Page 36: Connecting A Local Server To The Octet Switching System

    SERVSWITCH™ OCTET INSTALLER/USER GUIDE symbols as shown in Figure 3-7. If an appropriate port is available, the keyboard or mouse type is supported by the user station. Specialized keyboards such as Pinnacle FAK, Chyron Duet (supported on KV1712, KV1712-R2 and KV1713 user stations) and Devlin Vizrt keyboards (supported on KV1711-R2, KV1712-R2 and KV1713 user stations) are connected through the PS/2 port.

  • Page 37: Connecting A User Station For Switch Redundancy

    CHAPTER 3: INSTALLATION other users in the switching system. For illustrations of switching systems with a local server, see Figure 3-2 on page 27. To connect a local server to the Octet switch: Choose an appropriate Octet server access module and insert the connectors into the corresponding ports on the back of the server.

  • Page 38: Connecting An Samdm Module For Dual Port Output
