Summary of Contents for Chauvet Intimidator Wave IRC

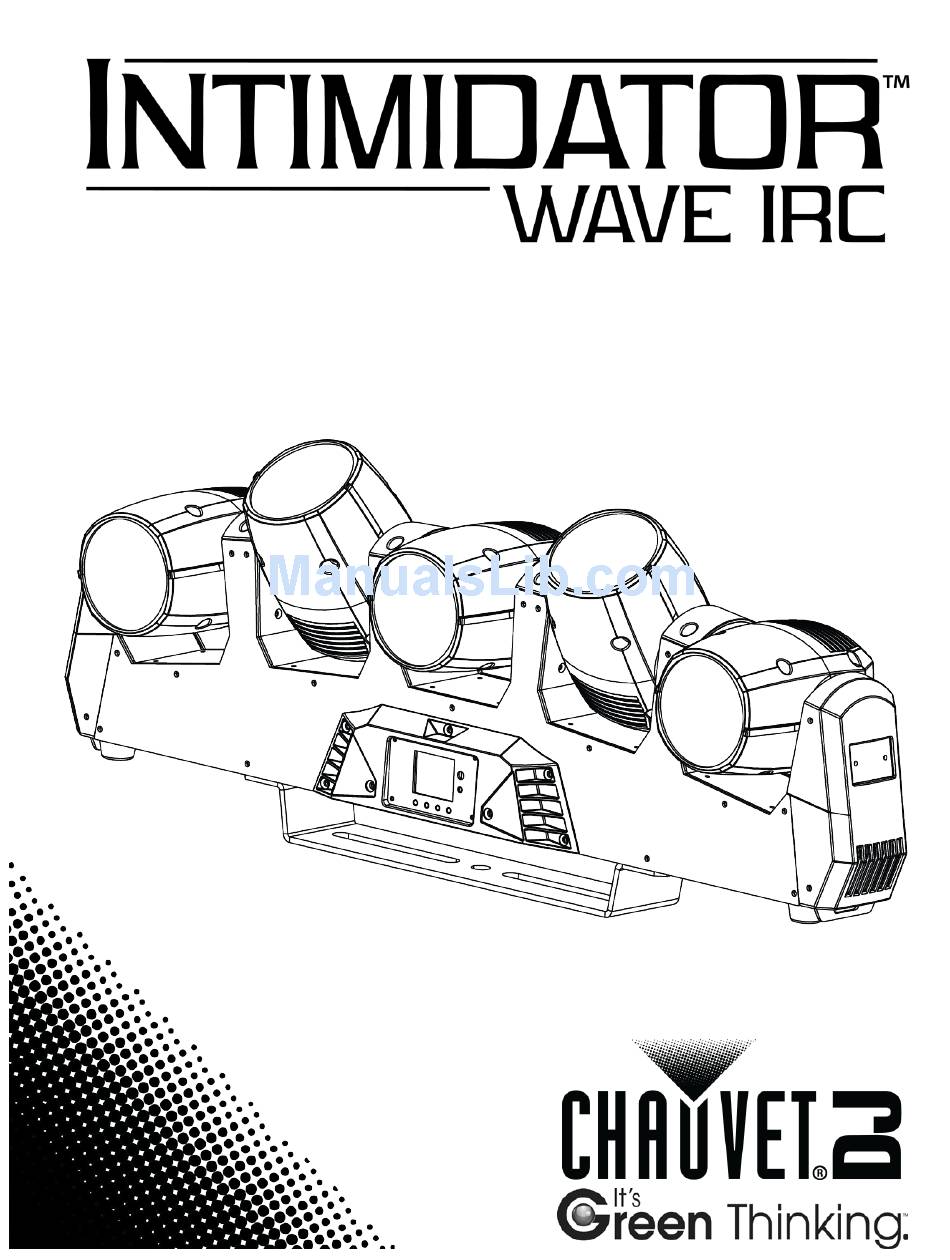

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    ABLE OF ONTENTS 1. Before You Begin ......................4 What Is Included ..........................4 Unpacking Instructions ........................4 Claims ............................... 4 Text Conventions ..........................4 Symbols ............................4 Disclaimer ............................4 Product at a Glance .......................... 5 Safety Notes ............................. 5 2.
  • Page 3 14CH .............................. 22 DMX Assignments (Cont.) ....................23 14CH .............................. 23 DMX Assignments (Cont.) ....................24 14CH .............................. 24 DMX Assignments (Cont.) ....................25 14CH .............................. 25 DMX Assignments (Cont.) ....................26 14CH .............................. 26 Configuration (Standalone) ......................27 Sound-Active Mode ..........................27 Automatic Mode ............................27 Manual Reverse Tilt Operation ........................

  • Page 4: Before You Begin

    Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with Chauvet within 7 days of delivery. Text Convention Meaning 1–512...

  • Page 5: Product At A Glance

    Product at a Use on Dimmer Auto Programs Outdoor Use Auto-ranging Power Supply Glance Sound-Activated Replaceable Fuse User-Serviceable Master/Slave Safety Notes These notes include important information about the mounting, usage, and maintenance of this product; read before using the product. ·...

  • Page 6: Introduction

    2. I NTRODUCTION Overview Front Panel View Head Head Head Head Head Display Control Buttons Back Panel View Power Out Power In DMX Out Fuse Holder DMX In Page 6 of 32 Intimidator™ Wave IRC User Manual Rev. 1...

  • Page 7: Dimensions

    Dimensions 28 in 712 mm 9.6 in 243 mm 4.4 in 113 mm Intimidator™ Wave IRC User Manual Rev. 1 Page 7 of 32...

  • Page 8: Setup

    3. S ETUP AC Power The Intimidator™ Wave IRC has an auto-ranging power supply and it can work with an input voltage range of 100–240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.

  • Page 9: Power Linking

    The power linking diagram shown above corresponds to the North American version of the product ONLY! If using the product in other markets, you must consult with the local Chauvet distributor as power linking connectors and requirements may differ in your country or region.

  • Page 10: Mounting

    Specifications). · When mounting the product overhead, always use a safety cable (such as CH-05 from Chauvet). Mount the product securely to a rigging point, such as an elevated platform or a truss. · When rigging the product onto a truss, you should use mounting clamps (such as CLP-15 from Chauvet) of appropriate weight capacity.

  • Page 11: Operation

    4. O PERATION Control Panel To access the control panel functions, use the four buttons located underneath the display. Operation Button Function <MENU> Selects an operation mode or backs out of the current menu option <UP> Scrolls up the list of options or selects a higher value <DOWN>...

  • Page 12: Dmx Personalities

    The Intimidator™ Wave IRC has two DMX personalities, a 34-channel personality and a 14-channel personality. Personalities To choose which DMX personality to use, follow the steps below: Press <MENU>. Use <UP> or <DOWN> to select Run Mode. Press <ENTER>. Use <UP> or <DOWN> to select DMX. Press <ENTER>.

  • Page 13: Master Auto

    Master Auto The Master Auto 2-Head program allows a single Intimidator™ Wave IRC to control the actions of another Intimidator™ Wave IRC. The master unit will be set to operate in the M-2 program, 2-Head while the slave unit will be set to operate in either Slave S-1 or Slave S-2 mode. Program Configure the units as indicated below.

  • Page 14: Dmx Assignments

    DMX A SSIGNMENTS Channel Function Value Percent/Setting 34CH Head 1 Tilt 000ó255 0–270° Head 2 Tilt 000ó255 0–270° Head 3 Tilt 000ó255 0–270° Head 4 Tilt 000ó255 0–270° Head 5 Tilt 000ó255 0–270° 000ó047 No function 048ó055 Program 1 056ó063 Program 2 064ó071 Program 3 072ó079 Program 4 080ó087 Program 5...

  • Page 15: Dmx Assignments (Cont.)

    DMX A SSIGNMENTS Channel Function Value Percent/Setting 34CH Head 1 Blue 000ó255 0–100% Dimmer Head 1 White 000ó255 0–100% Dimmer Head 2 Red 000ó255 0–100% Dimmer Head 2 Green 000ó055 0–100% Dimmer Head 2 Blue 000ó255 0–100% Dimmer Head 2 White 000ó255 0–100% Dimmer Head 3 Red...

  • Page 16: Dmx Assignments (Cont.)

    DMX A SSIGNMENTS Channel Function Value Percent/Setting 34CH 000ó007 No function 008ó015 Color 1 016ó023 Color 2 024ó031 Color 3 032ó039 Color 4 040ó047 Color 5 048ó055 Color 6 056ó063 Color 7 064ó071 Color 8 072ó079 Color 9 080ó087 Color 10 088ó095 Color 11 Colors 096ó103 Color 12...

  • Page 17: Dmx Assignments (Cont.)

    DMX A SSIGNMENTS Channel Function Value Percent/Setting 34CH 000ó007 ●●●●● 008ó015 ●●●●○ 016ó023 ●●●○○ 024ó031 ●●○○○ 032ó039 ●○○○○ 040ó047 ○○○○○ 048ó055 ○○○○● 056ó063 ○○○●● 064ó071 ○○●●● 072ó079 ○●●●● 080ó087 ●●●●● 088ó095 ○○○○● 096ó103 ○○○●○ 104ó111 ○○●○○ 112ó119 ○●○○○ 120ó127 ●○○○○ Heads On/Off 128ó135 ○○○●●...

  • Page 18: Dmx Assignments (Cont.)

    DMX A SSIGNMENTS Channel Function Value Percent/Setting 34CH 000ó015 No function 016ó020 Program 1 021ó025 Program 2 026ó030 Program 3 031ó035 Program 4 036ó040 Program 5 041ó045 Program 6 046ó050 Program 7 051ó055 Program 8 056ó060 Program 9 061ó065 Program 10 066ó070 Program 11 071ó075 Program 12 076ó080 Program 13...

  • Page 19: Dmx Assignments (Cont.)

    DMX A SSIGNMENTS Channel Function Value Percent/Setting 34CH 196ó200 Program 37 201ó205 Program 38 206ó210 Program 39 211ó215 Program 40 216ó220 Program 41 221ó225 Program 42 Auto Programs (Cont.) 226ó230 Program 43 231ó235 Program 44 236ó240 Program 45 241ó245 Program 46 246ó250 Program 47 251ó255 Program 48 (built-in for all) Program Speed...

  • Page 20: Dmx Assignments (Cont.)

    DMX A SSIGNMENTS Channel Function Value Percent/Setting 34CH 000ó009 No function 010ó014 Move-in-black 015ó019 Cancel move-in-black Independent macros – cancels macro product 020ó024 combinations below Macros used when linking 2 products together: This is 025ó029 the value for first product Macros used when linking 2 products together: 030ó034 This is the value for second product...

  • Page 21: Dmx Assignments (Cont.)

    DMX A SSIGNMENTS Channel Function Value Percent/Setting 14CH Head 1 Tilt 000ó255 0–270° Head 2 Tilt 000ó255 0–270° Head 3 Tilt 000ó255 0–270° Head 4 Tilt 000ó255 0–270° Head 5 Tilt 000ó255 0–270° 000ó047 No function 048ó055 Program 1 056ó063 Program 2 064ó071 Program 3 072ó079 Program 4 080ó087 Program 5...

  • Page 22: Dmx Assignments (Cont.)

    DMX A SSIGNMENTS Channel Function Value Percent/Setting 14CH 000ó007 No function 008ó015 Color 1 016ó023 Color 2 024ó031 Color 3 032ó039 Color 4 040ó047 Color 5 048ó055 Color 6 056ó063 Color 7 064ó071 Color 8 072ó079 Color 9 080ó087 Color 10 088ó095 Color 11 Colors 096ó103 Color 12...

  • Page 23: Dmx Assignments (Cont.)

    DMX A SSIGNMENTS Channel Function Value Percent/Setting 14CH 000ó007 ●●●●● 008ó015 ●●●●○ 016ó023 ●●●○○ 024ó031 ●●○○○ 032ó039 ●○○○○ 040ó047 ○○○○○ 048ó055 ○○○○● 056ó063 ○○○●● 064ó071 ○○●●● 072ó079 ○●●●● 080ó087 ●●●●● 088ó095 ○○○○● 096ó103 ○○○●○ 104ó111 ○○●○○ 112ó119 ○●○○○ 120ó127 ●○○○○ Heads On/Off 128ó135 ○○○●●...

  • Page 24: Dmx Assignments (Cont.)

    DMX A SSIGNMENTS Channel Function Value Percent/Setting 14CH 000ó015 No function 016ó020 Program 1 021ó025 Program 2 026ó030 Program 3 031ó035 Program 4 036ó040 Program 5 041ó045 Program 6 046ó050 Program 7 051ó055 Program 8 056ó060 Program 9 061ó065 Program 10 066ó070 Program 11 071ó075 Program 12 076ó080 Program 13...

  • Page 25: Dmx Assignments (Cont.)

    DMX A SSIGNMENTS Channel Function Value Percent/Setting 14CH 176ó180 Program 33 181ó185 Program 34 186ó190 Program 35 191ó195 Program 36 196ó200 Program 37 201ó205 Program 38 206ó210 Program 39 211ó215 Program 40 Auto Programs (Cont.) 216ó220 Program 41 221ó225 Program 42 226ó230 Program 43 231ó235 Program 44 236ó240 Program 45...

  • Page 26: Dmx Assignments (Cont.)

    DMX A SSIGNMENTS Channel Function Value Percent/Setting 14CH 000ó009 No function 010ó014 Move-in-black 015ó019 Cancel move-in-black Independent macros – cancels macro product combinations 020ó024 below Macros used when linking 2 products together: This is the value 025ó029 for first product Macros used when linking 2 products together: 030ó034 This is the value for second product...

  • Page 27: Configuration (Standalone)

    Configuration Set the product in one of the standalone modes to control it without a DMX controller. Connect the product to a suitable power outlet. (Standalone) Never connect a product that is operating in any standalone mode (Static, Automatic, or Sound-Active) to a DMX string connected to a DMX controller. Products in standalone mode may transmit DMX signals that could interfere with the DMX signals from the controller.

  • Page 28: Display Blackout And Reverse

    Display Blackout You can flip the LED display for easy readability in any mounting situation or blackout the display entirely. and Reverse To select your display angle: Press <MENU> and use the <UP> or <DOWN> buttons to select Setup. Press <ENTER>. Use <UP>...

  • Page 29: Technical Information

    5. T ECHNICAL NFORMATION Product Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and mechanical wear. To maintain optimum Maintenance performance and minimize wear, clean the product at least twice a month. However, usage and environmental conditions contribute to increased cleaning frequency.

  • Page 30: Technical Specifications

    6. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight 28 in (712 mm) 4.4 in (113 mm) 9.6 in (243 mm) 17.2 lb (7.8 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Supply Type Range Voltage Selection Power...

  • Page 31: Returns

    U.S., United Kingdom, Ireland, or Mexico. If you live outside the U.S., United Kingdom, Ireland, or Mexico, contact your distributor of record and follow their instructions on how to return Chauvet products to them. Visit our website for contact details.

  • Page 32: Contact Us

    (954) 577-4455 Email: tech@chauvetlighting.com Fax: (954) 929-5560 Toll free: (800) 762-1084 World Wide Web www.chauvetlighting.com UNITED KINGDOM AND IRELAND - Chauvet Europe Ltd. General Information Technical Support Address:Unit 1C Email: uktech@chauvetlighting.com Brookhill Road Industrial Estate Pinxton, Nottingham, UK World Wide Web www.chauvetlighting.co.uk...
