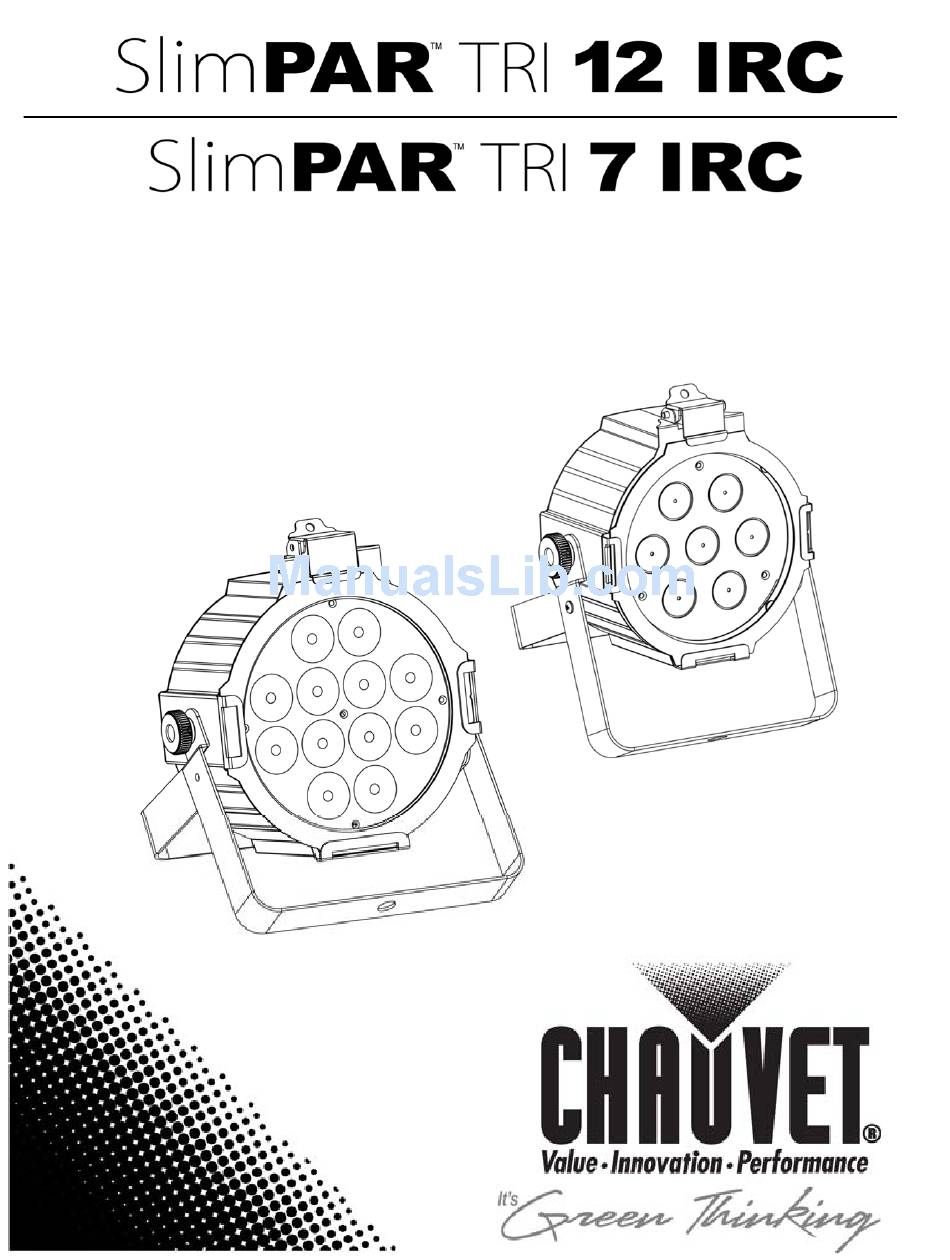

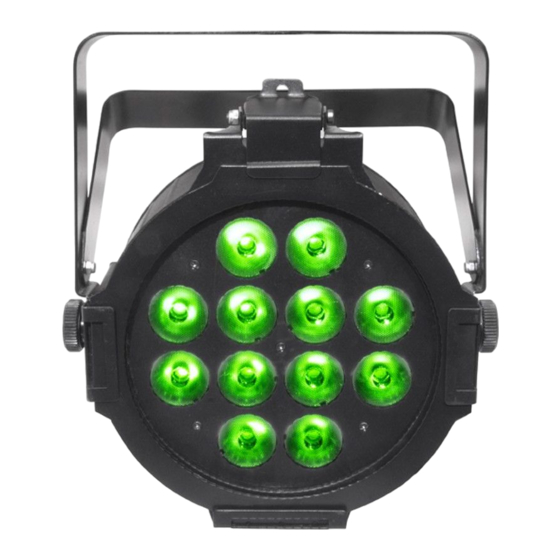

- Page 1 User Manual...
-
Page 2: Table Of Contents
General Troubleshooting ................19 Contact Procedure ..................20 CHAUVET® Contact Information ..............20 Returning Products to CHAUVET® ..............20 DMX Primer .................... 21 Introduction ..................... 21 The Physical Medium ....................21 The Signals ......................21 ... - Page 3 DMX Connectivity .................... 22 Fixture Location ......................22 Number of Fixtures ....................23 DMX Data Cabling ....................23 Making Your Own DMX Cable ................. 23 DMX Cable Characteristics ..................23 DMX Cable Connectors ................... 23 ...
-
Page 4: Before You Begin
CHAUVET®, upon receipt. Failure to do so in a timely manner may invalidate your claim with the carrier. In addition, keep the container and all the packing material for inspection. -
Page 5: Product At A Glance
Product at a Use on Dimmer Auto Programs Outdoor Use Auto-ranging Power Supply Glance Sound Activated Replaceable Fuse User Serviceable Master/Slave Duty Cycle Safety Notes Please read the following Safety Notes carefully before working with the product. The Notes include important safety information about installation, usage, and maintenance. -
Page 6: Introduction
2. I NTRODUCTION Product Overview (SlimPAR™ Tri 12 IRC) LED Display DMX Out Power In Bracket Adjustment Knob Fuse Holder Safety Loop Power Out DMX In Page 6 of 25 SlimPAR™ Tri IRC series User Manual (Rev. 04) -
Page 7: Product Overview (Slimpar™ Tri 7 Irc)
Product Overview (SlimPAR™ Tri 7 IRC) LED Display DMX Out Fuse Holder Bracket Adjustment Knob Power In Safety Loop Power Out DMX In SlimPAR™ Tri IRC series User Manual (Rev. 04) Page 7 of 25... -
Page 8: Product Dimensions (Slimpar™ Tri 12 Irc)
Product Dimensions (SlimPAR™ Tri 12 IRC) Page 8 of 25 SlimPAR™ Tri IRC series User Manual (Rev. 04) -
Page 9: Product Dimensions (Slimpar™ Tri 7 Irc)
Product Dimensions (SlimPAR™ Tri 7 IRC) SlimPAR™ Tri IRC series User Manual (Rev. 04) Page 9 of 25... -
Page 10: Setup
3. S ETUP AC Power The SlimPAR™ Tri IRC series has an auto-ranging power supply and it can work with an input voltage range of 100~240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 11: Power Linking
The power linking diagram shown above corresponds to the North American version of the product ONLY! If using the product in other markets, you must consult with the local CHAUVET® distributor as power linking connectors and requirements may differ in your country or region. -
Page 12: Mounting
Mounting Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes section (page 2 of this manual). Orientation The SlimPAR™ Tri IRC series may be mounted in any position; however, make sure adequate ventilation is provided around the product. ... -
Page 13: Operation
4. O PERATION Control Panel To access the control panel functions, use the four buttons located underneath the display. Please refer to the Product Overview to see the button locations on the control Operation panel. Button Function Press to find an operation mode or to back out of the current menu <MENU>... -
Page 14: Configuration (Dmx)
Configuration Set the product in DMX mode to control with a DMX controller. Connect the product to a suitable power outlet. (DMX) Turn the product on. Connect a DMX cable from the DMX output of the DMX controller to the DMX input socket on the product. -
Page 15: Master/Slave Mode
Do not connect more than 31 slave units to the master unit. Infrared Control The SlimPAR™ Tri IRC series is fully compatible with the IRC Infrared Remote Control from CHAUVET®. To enable usage with the IRC, follow the instructions below: Press <MENU> repeatedly until SEr shows on the display. Press <ENTER>. -
Page 16: Irc (Infrared Remote Control) Operation
IRC (Infrared Remote Control) Operation Automatic Mode Automatic Mode will enable you to run the automatic programs on the product. To turn on Automatic Mode: Press AUTO on the IRC. Press + or – to choose between the different auto programs. To adjust the speed of the automatic program: Press SPEED on the IRC. -
Page 17: Dmx Channel Assignments And Values
DMX Channel Assignments and Values Channel Function Value Setting 7-CH 000 255 0~100% 000 255 0~100% Green 000 255 0~100% Blue 000 015 No function Color Macros (overrides CH. 1-3) 016 255 Color Macros Speed 000 ... -
Page 18: Technical Information
5. T ECHNICAL NFORMATION Product Dust build up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life. To maintain optimum performance and Maintenance minimize wear, you should clean your lighting products at least twice a month. However, be aware that usage and environmental conditions could be contributing factors to increase the cleaning frequency. -
Page 19: General Troubleshooting
Terminator not connected Install a terminator, as indicated in the DMX Primer section. If you still experience problems after trying the above solutions, contact CHAUVET® Technical Support. SlimPAR™ Tri IRC series User Manual (Rev. 04) Page 19 of 25... -
Page 20: Contact Procedure
If you live in the UK or Ireland, contact CHAUVET® Europe Ltd.(see below). If you live in any other country, DO NOT contact CHAUVET®. Instead, contact your distributor of record. Refer to our Web site for contact details of distributors outside the US, United Kingdom, or Ireland. -
Page 21: Dmx Primer
DMX P RIMER Introduction The DMX protocol (USITT DMX512-A) is a networking protocol that enables a universal DMX controller device to control the features of multiple DMX compatible fixtures, whether PAR cans, wash lights, moving heads, followspots, foggers, or proprietary fixture controllers, etc. As any other networking protocol, the USITT DMX512-A describes the physical medium, the signals, and the functions they control. -
Page 22: Dmx Configuration
DMX Configuration The DMX fixture configuration consists in determining how many channels each fixture will need as well as assigning the corresponding DMX channels to each fixture in order to size correctly the DMX controller. Personalities A DMX personality describes what channel or channels control which fixture parameters. -
Page 23: Number Of Fixtures
DMX Data Cabling You must use DMX compliant data cables to link two or more DMX compatible fixtures. You may purchase CHAUVET® certified DMX cables directly from a dealer/distributor or construct your own cable. USITT recommends limiting the total length of the DMX cable (from the first fixture/controller to the last fixture) to 300~455 m (985~1,500 ft). -
Page 24: 3-Pin To 5-Pin Conversion Chart
(DMX Connectivity cont.) Test all DMX cables with an ohmmeter to verify their correct polarity and to make sure that there are no short-circuits between any of the pins, or between any pin and ground. If the common wire (shield) touches the chassis ground, a ground loop could form, which may cause the fixture to perform erratically. -
Page 25: Technical Specifications
6. T ECHNICAL PECIFICATIONS Dimensions and Length (Tri 12) Width (Tri 12) Height (Tri 12) Weight (Tri 12) Weight 9.5 in (235 mm) 4.6 in (115 mm) 11.5 in (292 mm) 5.7 lbs (2.6 kg) Length (Tri 7) Width (Tri 7) Height (Tri 7) Weight (Tri 7) 7.7 in (195 mm)
