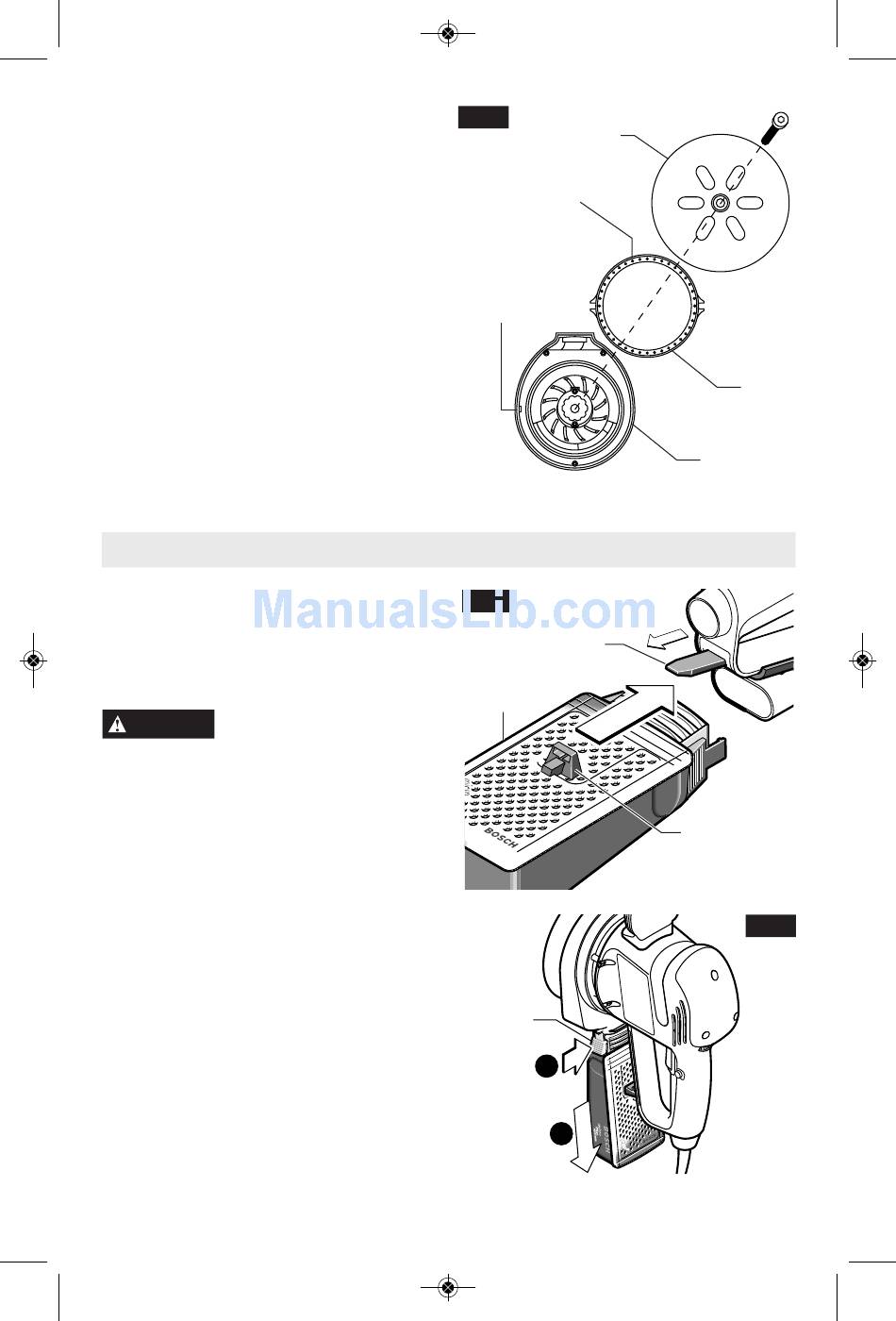

BACKING PAD DAMPER
Your tool is equipped with an integrated backing
pad damper ring. This damper reduces the
no-load speed, which helps prevent swirl
marks on the workpiece surface and provides
uniform finishing.
NOTE: If you notice steadily increasing no-load
speed, this indicates that the damper ring is
worn and needs to be replaced.
To replace damper ring, remove backing pad
as described in "Backing Pad Installation" and
remove worn damper ring by pulling firmly out
of locating groove. Align notch on damper ring
with locating tab on shroud and depress ring
with thumbs until shroud seats into groove
completely around ring (Fig. 4).
Re-attach backing pad as described in
"Backing Pad Installation"
IMPORTANT: Ring should not have bends or
ripples when correctly seated.
MICROFILTER DUST CANISTER
The integral dust extraction system collects
sanding dust in canister supplied with your
sander. For maximum efficiency, the dust
canister should be emptied frequently during
operation.
Your tool is equipped with
WARNING
a dust canister, empty it
frequently, after completion of sanding and
before storing the sander. Be extremely
careful of dust disposal, materials in fine
particle form may be explosive. Do not throw
sanding dust on an open fire. Combustion from
mixture of varnishes, lacquers, polyurethane,
oil or water with dust particles can occur if
there is a static discharge, spark introduced in
the box, or excessive heat.
REMOVING AND INSTALLING
DUST CANISTER
To attach dust canister, slide canister support
in direction of arrow (A) until it stops. Insert
mounting clip into the pocket provided on
canister. Then slide canister support through
mounting clip in direction of arrow (B) and push
onto the dust port (Fig. 5).
To remove dust canister, squeeze release
tabs on both sides of canister and simply pull
away from the tool (Fig. 6).
FIG. 4
LOCATING
TAB

Dust Collection

FIG. 5
DUST
CANISTER
RELEASE
TABS
-9-
BACKING
PAD
NOTCH
SHROUD
A
CANISTER
SUPPORT
B
MOUNTING
CLIP
1
2
DAMPER
RING
FIG. 6
