ALI-NVR3004P, ALI-NVR3008P Embedded Network Video Recorder Quick Setup Guide
This quick setup guide provides instructions to initially setup and use your new network video recorder. For additional information on the
extensive capabilities of your NVR, refer to the ALI-NVR3004P, ALI-NVR3008P Embedded Network Video Recorder User Manual
provided on CD with your system.

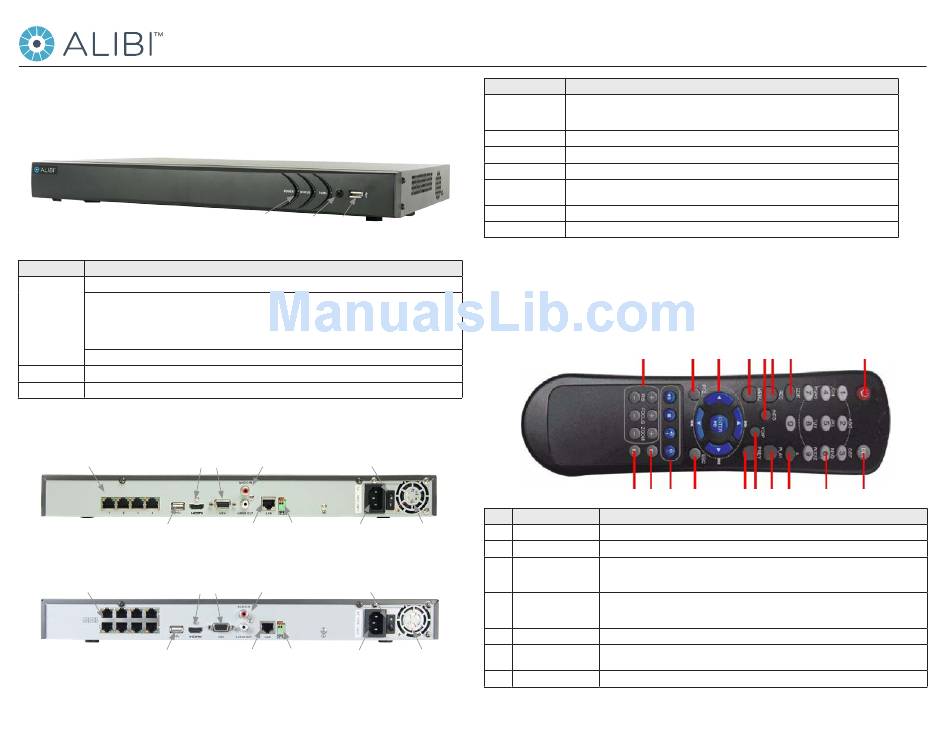

NVR Front Panel
ALI-NVR3000P series NVR front panel
Item
Usage
LED indicators
Power: The POWER indicator turns green when NVR is powered on.
Status:
1. The light is green when the IR remote control is enabled
2. The light is red when the function of the composite keys (SHIFT) are used
3. The light is out when none of the above condition is met
Tx/Rx: TX/RX indicator flickers green when the network connection is functioning normally.
IR Receiver
Sensor for the remote control.
USB Interface
This port can be used for a USB mouse or USB flash memory devices.
NVR Backpanels
Camera (CH1 - CH4)
Monitor Out (HDMI, VGA)
USB
Camera (CH1 - CH4)
Monitor Out (HDMI, VGA)
USB
1
LED Indicators|
IR Sensor
USB port
Audio IN / OUT
ON / OFF switch
LAN
RS-485
Power connector
ALI-NVR3004P backpanel
Audio IN / OUT
ON / OFF switch
LAN
RS-485
Power connector
ALI-NVR3008P backpanel
Item
Description
Camera (CH1 - CH4)
Network interface for IP cameras solely dedicated to the NVR. These cameras can only be accessed through the NVR. Each port
provides Power over Ethernet (PoE) power to the device connected to it. NOTE: Only the Observint line of 3SVision cameras can
be attached to these channels.
Monitor Out (HDMI, VGA)
HDMI and VGA connectors for a monitor.
AUDIO IN / OUT
Not functional. Included for future expansion.
ON / OFF switch
Switch for powering the NVR on and off
USB
This port can be used for a portable mobile HDD, flash drive, DVD burner, or mouse. An additional USB port is located on the
front panel.
RS-485 terminations
Not functional. Included for future expansion.
Power connector
Connector for standard 3-prong power cable.
Remote Control
The enter key on the remote control or the front panel has the same function as a mouse left click. The IR Range of the remote control is 10
meters. The buttons on the remote control correspond with the buttons on the front panel.
Item
Name
Fan outlet
1
POWER
2
DEV
3
Alphanumeric Buttons
4
EDIT Button
5
A Button
6
REC Button
Fan outlet
7
PLAY Button
17
13
12
10
8
6
18 16
15
14
11
9
7
5
Function
Power on/off the device.
Enables/Disables Remote Control.
Switching to the corresponding channel in Live view or PTZ Control mode.
Inputting numbers and characters in Edit mode.
Switching between different channels in All-day Playback mode.
Editing text fields. When editing text fields, it will also function as a Backspace button to delete the character in front of the
cursor. On checkbox fields, pressing the EDIT button will tick the checkbox.
In Playback mode, it can be used to generate video clips for backup.
Switching between input methods (upper and lowercase alphabet, symbols and numeric input).
Entering the Manual Record settings menu.
In PTZ control settings, press the REC button and then you can call a PTZ preset by pressing Numeric button.
Playback, for direct access to playback interface.
4
1
3
2
ALI-NVR30xxP_SQ
9/22/14
