ALIBI ALI-NVR3304P Quick Setup Manual

ALI-NVR3304P, ALI-NVR3308P Embedded Network Video Recorders Quick Setup Guide

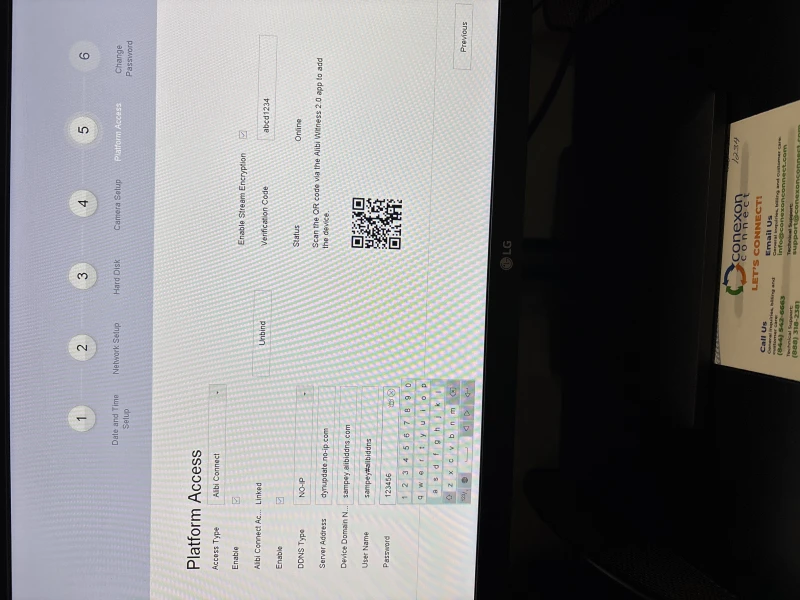

This quick setup guide provides instructions to initially setup and use the ALI-NVR3304P and ALI-NVR3308P network video recorders (NVRs).
For information about using your NVR and its extensive capabilities, refer to the Alibi Embedded Network Video Recorder Firmware
V3.4.6 User Manual provided at www.alibisecurity.com/resources.
For more information, refer to these documents - available from your equipment vendor:
ALIBI™ Tools Utility Installation and User Manual
•
ALIBI™ Witness and ALIBI™ Witness HD Apps - Quick Start Guide
•

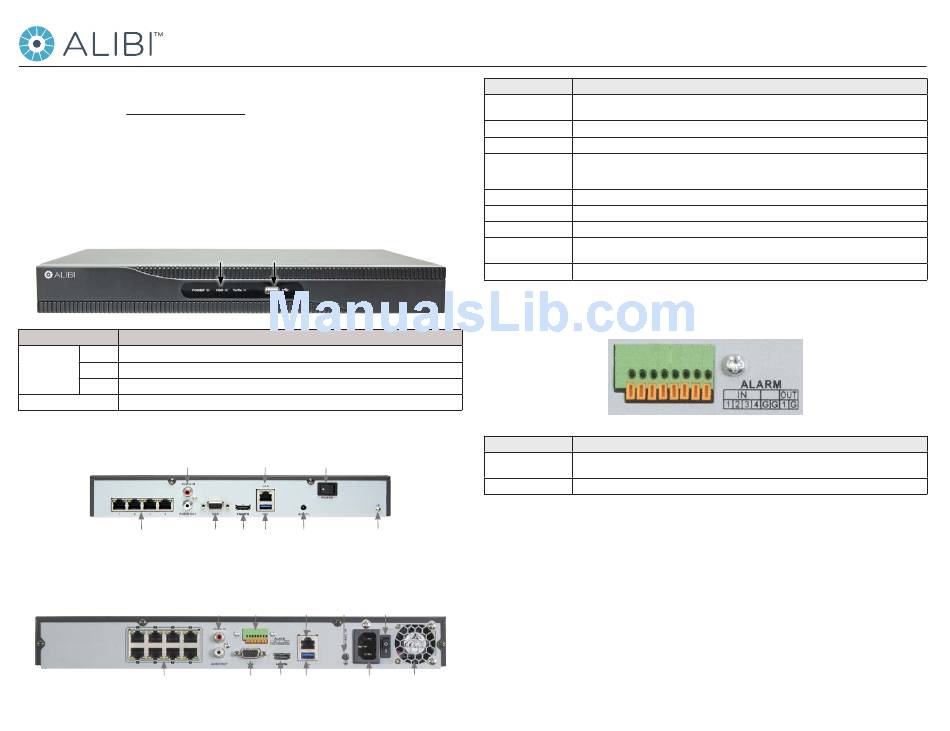

Controls and Indicators
Front panel (ALI-NVR3304P, ALI-NVR3308P
Status indicators USB port
Item Function / Description
POWER Indicator is green when the unit is powered on. When the unit is off, the LED is red if power is available.
Status Indicators HDD HDD indicator blinks red when data is being read from or written to an HDD.
TX/RX Blinks green when the network connection is functioning normally.
USB Interfaces Universal Serial Bus (USB) 2.0 port for additional USB devices such as a mouse or Hard Disk Drive (HDD).
ALI-NVR3304P
Backpanel
Audio IN/OUT
Internal Ethernet switch
ports with PoE (4)
ALI-NVR3308P
Backpanel
Internal Ethernet switch
ports with PoE (8)
1
LAN Power switch
Video Out Power Adapter Ground
USB
(VGA, HDMI) connector terminal
Audio Alarm Ground Power
IN/OUT IN/OUT LAN terminal switch
Video Out USB Power cord
(VGA, HDMI) connector
Item Description
1 channel (HDMI/VGA), resolution: 1920 × 1080P / 60 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz,
VIDEO OUT (VGA, HDMI)
1024 × 768 / 60 Hz. HDMI also supports 4K video output resolution.
Audio IN / OUT RCA connectors for audio line input and line output
Alarm IN / OUT Terminations are provided for 4 alarm inputs (N.O. or N.C.) and 1 alarm output. See below. (ALI-NVR3308P only)
ALI-NVR3304P: Connect the 48 Vdc power adapter provided with the recorder to this port, and to a standard 100 ~ 240 Vac power
Power connector source using the power cord provided.
ALI-NVR3308P: Connect the power cord provided with the recorder to this port and to a standard 100 ~ 240 Vac power source.
ON / OFF Switch Switch for powering the recorder on or off.
GROUND Terminal for ground. Connect to earth ground before powering on the NVR.
LAN 10/100BASE-T (ALI-NVR3304P) or 10/100/1000BASE-T (ALI-NVR3308P) Ethernet network interface
Universal Serial Bus (USB) port for additional devices such as USB mouse and USB Hard Disk Drive (HDD). USB 3.0 port in ALI-NVR3308P
USB interface
only.
Internal Ethernet switch ports 4 (ALI-NVR3304P) or 8 (ALI-NVR3308P) 10/100 Mbps ports for IP cameras. These ports provide Power over Ethernet (PoE).
Alarm IN / OUT Terminals (ALI-NVR3308P only)
Item Description
ALARM IN (1 through 4 and
Alarm inputs 1 - 4. Alarm input is tied to ground at G or G terminals through the alarm sensor (N.O. or N.C.).
G, G (ground))
ALARM OUT (1 and G) Alarm outputs 1 with ground termination.
Mouse control
A standard 3-button (left / right / scroll-wheel) USB mouse can also be used with this NVR. To use a USB mouse:
1. Plug the USB mouse into the either the front panel or back panel USB connector of the NVR.
2. The mouse will be automatically detected. If the mouse is not detected, the mouse may not be compatible with the NVR. Please refer
to the recommended device list from your provider.
Fan
outlet
