ALI-NVR5100P Series Embedded Network Video Recorder Quick Setup Guide
This quick setup guide provides instructions to initially setup and use the ALI-NVR5116P and ALI-NVR5132P network video recorders (NVRs).
For additional information on the extensive capabilities of your NVR, refer to the ALI-NVR5100P Series Embedded Network Video
Recorder User Manual provided electronically with your system.

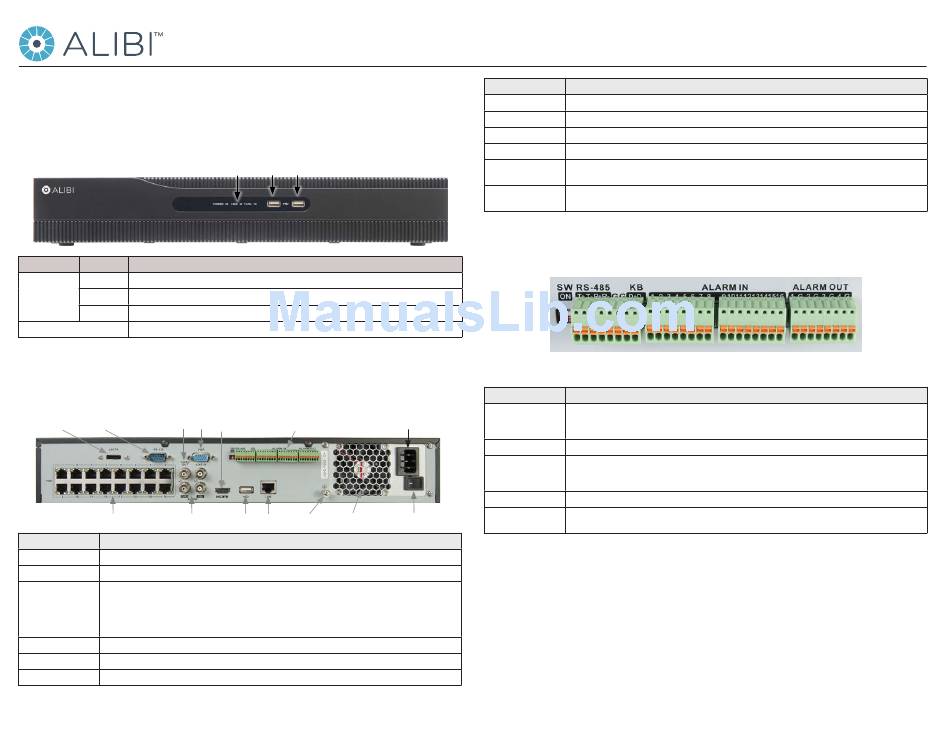

NVR Front Panel
Item Function / Description
POWER Indicator is green when the unit is powered on. When the unit is off, the LED is red if power is available.
Status Indicators HDD HDD indicator blinks red when data is being read from or written to an HDD.
TX/RX Blinks green when the network connection is functioning normally.
USB Interfaces Universal Serial Bus (USB) ports for additional USB devices such as a mouse or Hard Disk Drive (HDD).
NVR Backpanel
eSata RS-232 Monitor Out (HDMI, VGA, CVBS)
Camera Channels (POE) Audio OUT
Item Description
eSATA Connects external SATA HDD, CD/DVD-RW.
RS-232 Interface DB9 (male) connector for RS-232 devices
CVBS - BNC connector for video output
VGA - DB15 connector for VGA compatible monitor. Supports 1920 × 1080p @ 60 Hz, 1600 × 1200 @ 60 Hz,
VIDEO OUT
1280 × 1024 @ 60 Hz, 1280 × 720 @ 60 Hz/, 1024 × 768 @ 60 Hz
(CVBS, VGA, HDMI)
HDMI - HDMI connector for an HDMI compatible monitor. Supports 1920 × 1080p @ 60 Hz, 1600 × 1200 @ 60 Hz,
1280 × 1024 @ 60 Hz, 1280 × 720 @ 60 Hz/, 1024 × 768 @ 60 Hz
LINE IN BNC connector for audio input.
RS-485, ALARMS IN/OUT See below.
AC 100V ~ 240V AC 100 V ~ 240 V power supply.
1
Status
indicators USB ports (2)
RS-485, Alarms IN / OUT
Power connector
USB LAN Ground Fan outlet ON / OFF switch
Item Description
ON / OFF Switch Switch for powering the device on or off.
GROUND Terminal for ground. Connect to earth ground before powering on the NVR.
LAN Interface 10/100/1000BASE-T Ethernet network interface
USB interface Universal Serial Bus (USB) ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD).
CVBS AUDIO OUT - BNC connector for audio output. This connector is synchronized with CVBS video output
AUDIO OUT
VGA AUDIO OUT - BNC connector for audio output. This connector is synchronized with VGA video output
Internal Ethernet switch
16 ports for IP cameras. These ports provide Power over Ethernet (PoE) to the cameras.
ports
RS-485, ALARMS IN/OUT
RS-485, Alarm IN / OUT terminations
Item Description
RS-485 termination switch:
SW ON Up position is not terminated.
Down position is terminated with 120 Ω resister.
RS-485 (T+, T-, R+. R-) T+ and T- pins connect to R+ and R- pins of PTZ receiver respectively.
Controller port:
KB D+, D- pin connects to Ta, Tb pin of controller.
For cascading devices, the first NVR's D+, D- pin should be connected with the D+, D- pin of the next NVR
ALARM IN (1 through 16) Alarm inputs 1 - 16. Alarm input is tied to ground through the alarm sensor.
ALARM OUT
Alarm outputs 1 - 4 with ground terminations.
(1-G through 4-G)
Mouse Control
A standard 3-button (left/right/scroll-wheel) USB mouse can also be used with this NVR. To use a USB mouse:
1. Plug USB mouse into the either the front panel or backpanel USB connector of the NVR.
2. The mouse will be automatically detected. If the mouse is not detected, the mouse may not be compatible with the NVR. Please refer
to the recommended device list from your provider.
