ALIBI ALI-NVR3104P Quick Setup Manual

ALI-NVR3104P, ALI-NVR3108P Embedded Network Video Recorders Quick Setup Guide
This quick setup guide provides instructions to initially setup and use the ALI-NVR3104P and ALI-NVR3108P network video recorders (NVRs).
For additional information on the extensive capabilities of your NVR, including detailed setup and configuration instructions, please refer to
the ALIBI Embedded Network Video Recorder Firmware V3.3.4 User Manual available for download from your vendor.
CONTENTS
Part 1. Controls and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Part 2. Soft Keyboards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Part 3. Installing the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Part 4. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Part 5. HDD Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

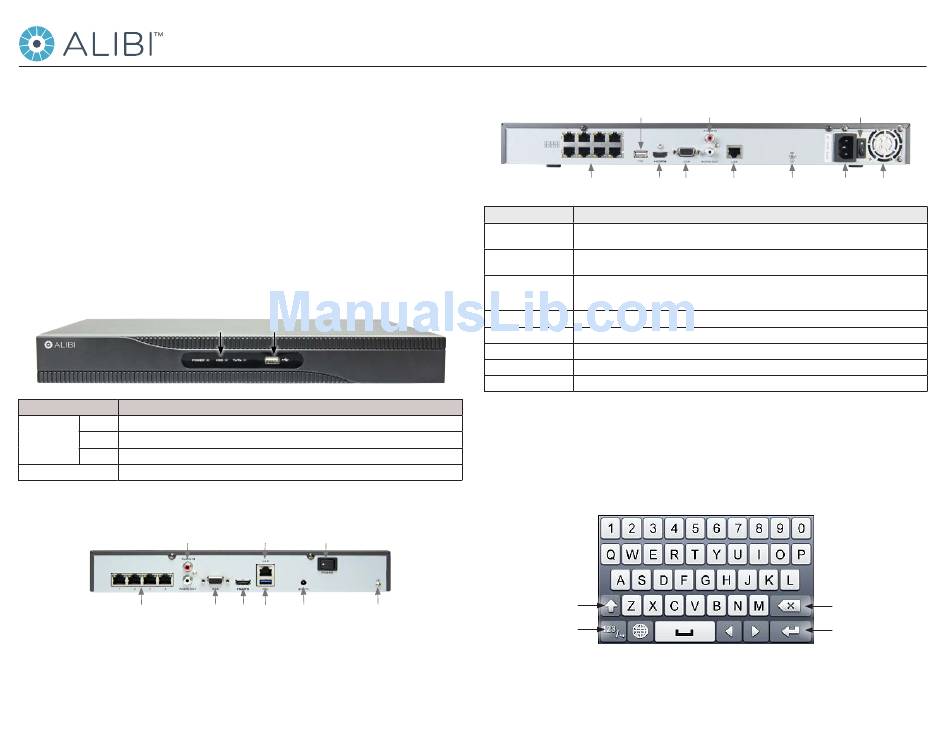

Controls and Indicators
PART 1.
Front panel (ALI-NVR3104P, ALI-NVR3108P_
Status indicators USB port
Item Function / Description
POWER Indicator is green when the unit is powered on. When the unit is off, the LED is red if power is available.
Status Indicators HDD HDD indicator blinks red when data is being read from or written to an HDD.
TX/RX Blinks green when the network connection is functioning normally.
USB Interfaces Universal Serial Bus (USB) 2.0 port for additional USB devices such as a mouse or Hard Disk Drive (HDD).
ALI-NVR3104P
Backpanel
Audio IN/OUT
Internal Ethernet switch
ports with PoE (4)
1
LAN Power switch
Video Out Power Adapter Ground
USB
(VGA, HDMI) connector terminal
ALI-NVR3108P
Backpanel
USB
Internal Ethernet switch Video Out
ports with PoE (8) (HDMI, VGA)
Item Description
1 channel (HDMI/VGA), resolution: 1920 × 1080P / 60 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz,
VIDEO OUT (VGA, HDMI)
1024 × 768 / 60 Hz
RCA connector for audio line input.
AUDIO IN / OUT
RCA connector for audio line output. .
ALI-NVR3104P: Connect the 48 Vdc power adapter provided with the recorder to this port, and to a standard 100 ~ 240 Vac power
Power connector source using the power cord provided.
ALI-NVR3108P: Connect the power cord provided with the recorder to this port and to a standard 100 ~ 240 Vac power source.
ON / OFF Switch Switch for powering the recorder on or off.
GROUND Terminal for ground. Connect to earth ground before powering on the NVR.
LAN Interface 10/100/1000BASE-T Ethernet network interface
USB interface Universal Serial Bus (USB) 3.0 port for additional devices such as USB mouse and USB Hard Disk Drive (HDD).
Internal Ethernet switch ports 4 (ALI-NVR3104P) or 8 (ALI-NVR3108P) 10/100 Mbps ports for IP cameras. These ports provide Power over Ethernet (PoE).
Soft Keyboards
PART 2.
Soft keyboards open in the firmware when clicking on an entry field for a password, name or numerical value. Three keyboards are available:
alphanumeric, numeric and symbols. You can switch to a different keyboard by clicking the button in the lower left corner. To make an entry,
click the soft buttons on the keyboard to type a character string, and then click the Enter key in the lower right corner to finalize the entry
and close the keyboard.
Uppercase /
Lowercase
Switch to
numeric
Soft keyboard - alphanumeric
Audio IN/OUT Power switch
LAN Ground Power cord
terminal connector
Backspace
Enter
ALI-NVR3104-08P_SQ
Fan outlet
