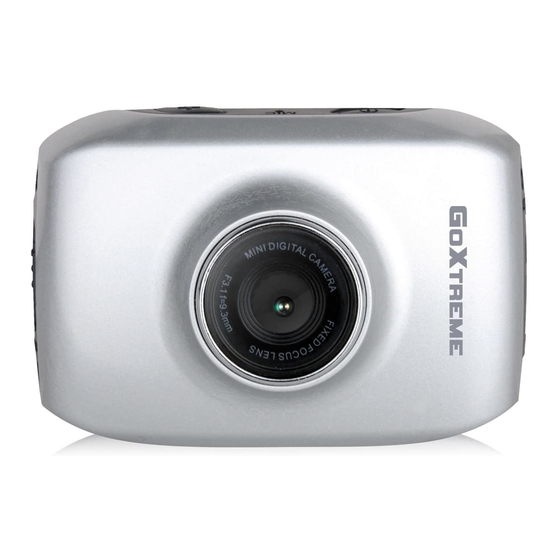

ACTION CAMCORDER
Functions
Functions
This user's manual has referred to the latest information we had when this user's manual was made. The screen
display and illustrations are used in this user's manual for the purpose of introducing details of this digital camera
in a more specific and direct way. Difference may arise between these displays and illustrations and the digital
camera actually available for you due to difference in technological development and production batch, under
which case, the actual functions of this video camera shall prevail.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the goxtreme race mini and is the answer not in the manual?

Questions and answers

Related Manuals for Easypix goxtreme race mini

Summary of Contents for Easypix goxtreme race mini

  • Page 1 ACTION CAMCORDER Functions Functions This user's manual has referred to the latest information we had when this user’s manual was made. The screen display and illustrations are used in this user's manual for the purpose of introducing details of this digital camera in a more specific and direct way.
  • Page 2 Announcements Announcements Please read the Announcements carefully before using this video camera for proper and safe operation, so as to bring its optimum performance into play and extend its service life. u Do not expose the video camera to sunshine directly, nor point its lens to sunlight. Otherwise, the image sensor of the video camera may be damaged.
  • Page 3 Please use the cleaning agent of video camera for wiping if necessary. Do not use organic solvent to clean the video camera. u Do not touch the lens surface with fingers. u Please back up the data if the memory card inside this video camera is used for the first time. u...

  • Page 4: Waterproof Case Using Notice

    Waterproof Case Using Notice Waterproof Case Using Notice u Before sealing the waterproof case, keep the camera housing’s rubber seal clean, a single hair or grain of sand can cause a leak. You can test by closing the case without inserting the camera. Submerse the case completely in water for about a minute.

  • Page 5: System Requirements

    System Requirements System Requirements System Requirements Operating System Microsoft Windows2000, XP, Vista, 7 Intel Pentium III of more than 800MHz or other CPU with equivalent performance Internal Memory Larger than 512MB Sound Card and The sound card and display card shall support DirectX8 or higher Display Card version.
  • Page 6 Appearance and key introduction Appearance and key introduction Mode switch: -Photograph Lens -Video -Replay Power On/Off Shutter Charging indicator Operation indicator Up key LCD TFT OK key Down key...
  • Page 7 Key/Indicator Function Power the camera on or off. When opening the menu, switch over between normal Power On/Off (effect parameters and replay of image, video) and setup menu. In recording video mode, it is used to start/stop recording. In capture mode, it is used Shutter as a shutter.
  • Page 8 Usage Usage 1. Charge the built-in lithium battery Charger indicator lights USB Cable Connect the video camera with computer for charging in the shutdown state. The indicator light for charging is on at this time and will be off after charging. In general, it can be fully charged after 2-4 hours.
  • Page 9 Use of Memory Card Push the memory card into the card slot according to the concave lettering beside the slot of memory card till it is completely inserted. To take out the memory card, gently press the end of the memory card inward and it will pop up. Note: No built-in memory is available in this video camera.
  • Page 10 Startup/Shutdown 3.1 Startup: Press the POWER button for 3 seconds, the screen is displayed and the camera is on. 3.2. Shutdown: Press the POWER Key, and the camera will be shut down. . Automatic shutdown: when the idle time of the video camera reaches the time for automatic shutdown, it will be shut down automatically to save power.
  • Page 11 Conversion between Function Modes Three modes are available for this video camera, i.e. picture taking mode, video recording mode and vehicle-mounted mode. Conversion is available via the mode switch after startup. Picture taking mode: pictures can be taken; Video recording mode: video can be recorded; Vehicle-mounted mode: videotape can be recorded.

  • Page 12: Indicator Light

    Indicator light Busy light: when the camera is busy (such as, recording a film, taking photos, automatic off-screen), the busy light will be on. Charging light: when the light is on for a long time, it prompts the user that the camera is charging. Video recording mode When the mode switch is turned to video recording mode, press the shutter button once or click the LCD center once to begin recording under previewing state;...

  • Page 13: Video Menu

    movie size: indicates the current movie size is 720P. means that the memory card is inserted at present. magnification of digital zoom: press Up and down key to adjust zoom among 1x-4x. battery icon, represents the power status of the battery. white balance icon: indicates the current white balance mode is automatic.
  • Page 14 Video menu options Main menu Sub-menu Description 1280x720 High resolution format. Video format 640X480 Medium resolution format. Power-off driving record. 1min Set driving record to 1 minute as a repeating phase. Set driving record to 3 minutes as a repeating Recording int 3min phase.
  • Page 15 Cloudy Suitable for cloudy environment. Fluorescent light Suitable for fluorescent light source environment. Tungsten light Suitable for tungsten light source environment. Normal Normal effect. White and black White and black effect. Sepia Sepia effect. Special effect Negative film Negative film effect. Reddish effect.
  • Page 16 7 Driving video recording: Push Mode switch to Video mode, open the menu, press Down key to select “REC interval” menu, press Shutter key to enter sub-menu, “1min, 3min, 5min” recording loop mode are for free selection. After pressing OK key for confirmation, press OK key again to exit from the menu.
  • Page 17 Note: After selecting OFF in “REC interval” menu, the camera turns to normal video recording. Normal recording is beyond the limit of time, and it will not stop until the memory card is full. Picture taking mode: Switch the mode switch into the Picture taking mode, press the shutter button or click the LCD center once under the previewing state to take a photo: 1 9999: Counter, indicating current number of photos taken already /number of photos to be taken.

  • Page 18: Capture Menu

    Capture menu setup In capture mode, press OK key to open menu, and then press Up and Down key to select menu. When selecting menu, background of the selected item will be highlighted. Press Shutter to enter sub-menu. In sub-menu, press Up and Down key for selection, press Shutter for confirmation and back to main menu. In the main menu, press OK key to exit from the menu.
  • Page 19 Capture menu options Main menu Sub-menu Description 2592x1944 5 megapixel resolution. Image size 2048X1536 3 megapixel resolution. 1280X1024 1 megapixel resolution. Excellent Best quality image. Image quality Good Good image quality. Normal General quality image. Central metering Metering subject to the central area. Metering mode megapixel resolution Metering subject to multi-points.
  • Page 20 Use Left and Right key to adjust exposure Exposure compensation. Use general single shot mode. Use 2sec. delay self-timer mode. Capture mode Use 10sec. delay self-timer mode. Continuous shooting` Use continuous shooting. Normal Normal effect. White and black White and black effect. Sepia Sepia effect.

  • Page 21: Playback Mode

    During capturing/recording video, print date and Date / time time on right bottom corner of the file. 9 Playback mode: 9.1 After power-on, push Mode switch back to Playback mode: mode icon: indicates it is currently the mode of playback. Indicates that there is one file in current folder/totally one folder.

  • Page 22: Playback Menu

    Playback menu setup In playback mode, press OK key to open menu, and then press Up and Down key to select menu. When selecting menu, background of the selected item will be highlighted. Press Shutter to enter sub-menu. In sub-menu, press Up and Down key for selection, press Shutter for confirmation and back to main menu. In the main menu, press OK key to exit from the menu.
  • Page 23 Playback menu options Main menu Sub-menu Description Lock/unlock this file Lock/unlock this file. Lock Lock all Lock all files. Unlock all Unlock al files. Delete this file Delete the current file. Delete Delete all Delete all files. Start Start playing slide show. Slide Show Interval 1sec.~10sec.

  • Page 24: Delete File

    9.4 Delete file: After selecting the file to be deleted, open the menu, press Up and Down key to select “Delete”. Press Shutter key to enter, after selecting “One”, press Shutter key for confirmation). “All” means to delete all files.)
  • Page 25 After selecting “Yes”, press Shutter key to delete the file. When the file is deleted, press OK key to exit from the menu. 10 System setup menu: In capture, video recording or playback mode, press OK key to open menu, and then press Power key to switch over to setup menu.
  • Page 26 System setup menu options Main menu Sub-menu Description No playback performed after capture. Automatic 1 second Playback performed 1 second later after capture. playback 3 seconds Playback performed 3 seconds later after capture. 50Hz Set to 50Hz light source frequency. Power frequency 60Hz Set to 60Hz Playback performed 1 second later after capture.
  • Page 27 Setting date and time: Press OK key to open the menu, and then press Power key to enter setup menu. Press Down key to select “Date&Time” item, and press Shutter key to enter setup window. In setup window, press Power key to select the item to be adjusted (Date, time). The selected item will be highlighted in yellow.
  • Page 28 Apply on the personal computer Connect to personal computer The camera is provided with the plug and play function. Connect the device to the computer with USB line under turning-on state, then it will be switched into the movable hard disk mode. Icon of movable disk will appear on the window of “my computer”.

  • Page 29: Technical Parameters

    Technical parameters Image sensor 1.3 million pixel (CMOS) Function mode Video, capture, car mode, portable disk, PC cam Camera lens F3.1 f=9.3mm Digital zooming Shutter Electronic shutter LCD display 1.77” (4.5cm) Image resolution 5M (2592×1944), 3M (2048×1536), 1M(1280×960) Video resolution VGA: 640x480 (60 frames/second), 720P: 1280x720 (30 frames/second) White balance Automatic / Sunny / Cloudy / Fluorescent light / Tungsten light...
  • Page 30 This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries.
  • Page 31 NOTE: Please use microSD cards up to 32GB, minimum Class6 (not included). Recording times are depending on resolution. Battery life time - depending on settings and outdoor temperature - up to 90 min. under optimal conditions. Before using your camera in the water please verify that all lids and locks are tightly closed and sealed on the camera and the underwater case.
  • Page 32 DECLARATION OF CONFORMITY easypix herebly declares that the product GoXtreme Race Mini is in conformity to all the essential requirements of Directive 1999/5/EC. The declaration of conformity can be downloaded here: http://www.easypix.info/download/pdf/doc_goxtreme_race_mini.pdf For technical help please visit our support area on www.easypix.eu.
