Summary of Contents for Easypix aquapix WDV1080 FULL HD Lagoon

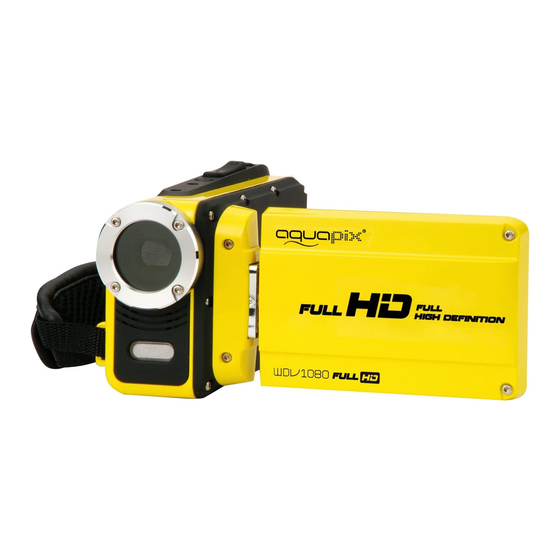

- Page 2 Introduction Of The Video Camera 1: LCD screen 2: Left/Mode button 3: Up/Playback button 4: Right/Self-timer button 5: OK/MENU button 6: Down/Delete button 7: Charging LED 8: Wrist strap eyelet 9: Shutter button 10: Power button 11: T button (zoom in) 12: W button (zoom out) 13: LED flash light On/Off button 14: AV out jack...
- Page 3 18: Jacks cover lock 19: Built-in speaker 20: Lens 21: Built-in microphone 22: LED flash light 23: Tripod socket 24: Battery cover 25: Battery cover lock...
-
Page 4: Installing The Battery
Preparation 1. Installing the battery (a) Push the battery cover lock to the right to open the battery cover. (b) Insert the battery into the battery compartment. Please have the metal contacts aligned with the metal contacts in the compartment. (c) After the battery is properly installed, close the battery cover until the click sound is heard (if no click sound is heard, it shall mean that the cover has not been properly closed). -
Page 5: Inserting/Removing The Memory Card
Note: It is normal that the temperature of the video camera body rises during charging. 3. Inserting/removing the memory card The camera accepts SD/SDHC card from 2GB to 32 GB. It is suggested to use the memory cards with capacity more than 4GB and the speeds faster than Class 4 to have the best performance for the 1080p video recording. - Page 6 Note: In order to save the battery power, the video camera will automatically switch off after the video camera is being idle for a certain period of time according to the user’s setting (please refer to the “Setup menu” 2. Switching between working modes There are three modes as in the following chart.
-
Page 7: Video Recording
1. Video Recording (a) Switch on the video camera and the video camera will enter the video recording mode ( (b) Use the T or W button to adjust the zooming. (c) Press the LED flash light On/Off button on the top side of the video camera to activate or de-activate the LED flash light. -
Page 8: Recording Audio
(e) Hold the video camera steady and press the shutter button to take the photo. 3. Recording audio (a) Switch on the video camera. (b) Press the LEFT/MODE button to switch to the Audio Recording Mode (c) Press the shutter button to start the recording. (d) Press the OK/MENU button to pause/resume the recording. -
Page 9: Technical Specifications
Technical Specifications Sensor CMOS Display 1.77" TFT Color LCD Focus range Standard: 150cm ~ infinity Aperture F/2.8, f=5.3mm Shutter Electronic Shutter: 1/2 ~ 1/2000sec. Resolution Still Image: [12M]: 4000x3000; [10M]: 3648X2736; [9M]: 3456X2592; [8M]: 3264x2448; [7M]: 3072X2304; [5M]: 2592x1944; [3M]: 2048x1536; [2M]: 1600x1200; [VGA]: 640x480 Video: 1080P:1920x1080;... - Page 10 TV system NTSC / PAL Digital zoom Power Supply Li-Ion Battery Ambient Operating: 0° C ~ 40° C temperature Storage: -20° ~ 60° C Microphone Built-in Speaker Built-in Dimension 116.5x67x48mm Weight Approx. 215g excluding battery Specifications are subject to change without prior notice. Before using your camera in the water please verify that all lids and locks are tightly closed and sealed.
- Page 11 DECLARATION OF CONFORMITY easypix herebly declares that the product WDV1080 is in conformity to all the essential requirements of Directive 1999/5/EC. The declaration of conformity can be downloaded here: http://www.easypix.info/download/pdf/doc_wdv1080.pdf Only EU...
