EBOX-3100-VGA
User Manual
EBOX-3100-VGA
User's Guide
DMP Electronics Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EBOX-3100-VGA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DMP Electronics EBOX-3100-VGA

Summary of Contents for DMP Electronics EBOX-3100-VGA

  • Page 1 EBOX-3100-VGA User Manual EBOX-3100-VGA User’s Guide DMP Electronics Inc.
  • Page 2 Copyright 2018 DMP Electronics Inc. Special Notice to Users DMP Electronics Inc. provides no warranty with regard to this manual, the software, or other information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness for any particular purpose with regard to this manual, the software, or such other information.
  • Page 3 EBOX-3100-VGA User Manual Trademarks Acknowledgment is the registered trademarks of DMP Electronics Inc. Other brand names, product names or trade names appearing in this document are the properties and registered trademarks of their respective owners. All names mentioned herewith are served for identification purpose only.
  • Page 4 Do not use the modem or a telephone to report a gas leak in the vicinity of the leak.  USB connectors are supplied with Limited Power Sources. O NOT ATTEMPT TO OPEN OR TO DISASSEMBLE THE CHASSIS NCASING OF THIS PRODUCT LEASE CONTACT YOUR NEAREST DEALER FOR SERVICING FROM QUALIFIED TECHNICIAN DMP Electronics Inc.
  • Page 5 DMP Electronics Inc.
  • Page 6 DMP and Users in pursuant of trading. Product Description: With this product, herewith also known as EBOX-3100-VGA, which is a simplified & an economical design of an embedded device for Special Purpose Personal Computing. The basic specification of this product is comprised of the x86 technology, design, and with onboard 512 MB DDR3 memory, VGA display, USB, COM ports and LAN Interfaces.

  • Page 7: Table Of Contents

    EBOX-3100-VGA User Manual Contents Chapter 1 02 Unpacking your EBOX Mini PC Chapter 2 05 EBOX-3100-VGA Overview 06 System Specifications 07 Peripherals Connecting Chapter 3 09 BIOS Reconfiguring 09 Linux Installation Guide Chapter 4 17 Technical Specifications Chapter 5 19 Onboard Connectors Summary...
  • Page 8 EBOX-3100-VGA User Manual Chapter DMP Electronics Inc.
  • Page 9 EBOX-3100-VGA User Manual Unpacking Your EBOX-3100-VGA Mini PC Congratulation! You have just acquired EBOX-3100-VGA, please check the following item: Packing List: Q’ty Item No. Description EBOX-3100-VGA Mini PC Note: The accessories are subject to change without immediate notice. Check Before Use 1.
  • Page 10 The EBOX-3100-VGA is a revolutionary device which is especially designed for limited physical space and temperature concerns. No matter you are in a jammed office, a crowded place, or public transportation, it can be easily integrated with a VESA LCD to bring you EBOX-3100-VGA access at any time.
  • Page 11 EBOX-3100-VGA User Manual Chapter DMP Electronics Inc.

  • Page 12: Ebox-3100-Vga Overview

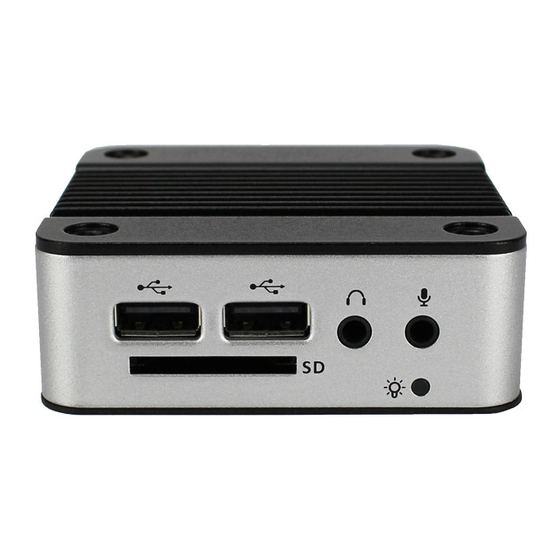

    EBOX-3100-VGA User Manual EBOX-3100-VGA Overview Front Panel A: Power LED The power LED lights up when the system is turned on. B: Audio Line Out Audio output to speaker. C: Audio Mic In For Microphone input. D: USB 2.0 port Connection for external USB devices.

  • Page 13: System Specifications

    12. Fedora 10 13. WattOS warp30 (Ubuntu 8.10 base) Power consumption 14. CentOS 5.5 DC +5V@0.57A ※ CentOS 5.5: Please use regular PC to install the OS into SD card, then, remove the SD card onto the EBOX units. DMP Electronics Inc.

  • Page 14: Peripherals Connecting

    (Not included in EBOX console bundles) to the 15-pin D-Sub VGA port. Connecting the USB EBOX-3100-VGA provides 2 external USB ports ( two at the front ). C: USB 2.0 port Connection for external USB devices. D: Microphone/ Earphone The EBOX-3100-VGA supports Microphone Input and Speaker Output.
  • Page 15 EBOX-3100-VGA User Manual Chapter DMP Electronics Inc.

  • Page 16: Bios Reconfiguring

    EBOX-3100-VGA User Manual BIOS Reconfiguring SeaBIOS is used in the EBOX-3100-VGA. To reconfigure the EBOX-3100-VGA, press or hit the <F12> key to enter your BIOS setup main menu as below. (SeaBIOS Setup menu) Linux installation For Debian7.0/ Ubuntu10.04 Regarding the system installation of Debian7.0/ Ubuntu10.04, please follow the steps and suggestions to complete the system installation on the EBOX-3100-VGA platform.
  • Page 17 Then the system would inform you that multiple network interfaces were detected on the EBOX-3100-VGA, and the user to choose the one as primary network interface, both of them all could be chosen. And the Ethernet cable must be plugged in this period.
  • Page 18 MBR area? Answer YES and wait system to complete the installation as last procedure.  When it's completed, the disc tray will eject and inform you, then press continue to restart and be ready to enjoy the new system! The Debian7.0 The Ubuntu10.04 DMP Electronics Inc.
  • Page 19 GRUB boot loader was loaded. You can keep pressing the key “Shift” when the system from booting, then the boot loader would show the option of kernel for you. Then find the “Ubuntu, With Linux 2.6.32-21-vortex86” to execute. DMP Electronics Inc.
  • Page 20 User Manual  Or you can remove the default kernel 2.6.32-??-generic that be arranged as a higher priority than the kernel we installed for the EBOX-3100-VGA platform, with the instruction below through the terminal.  First, check what version be installed as default in the system: # grep –w linux-image-2.6.32 /var/log/dpkg.log...
  • Page 21  Reboot and make sure all the display is normal then set the resolution as requested. The supported resolutions: 1024x768 (4:3) 800x600 (4:3) 640x480 (4:3) DMP Electronics Inc.
  • Page 22 Set the Log in as “user account” automatically. Disable the power saving mode when system idle, System / Preference / Screensaver Unmarked the option “Active the screensaver when computer is idle”. Now, it is a workable Linux system for your EBOX-3100-VGA unit. DMP Electronics Inc.
  • Page 23 EBOX-3100-VGA User Manual Chapter DMP Electronics Inc.

  • Page 24: Technical Specifications

    DC +5V@2A Dimensions 78 x 78 x 28mm Unit Net Weight 208g Operation Temp. 5 ~ 50℃ Certifications CE, FCC, VCCI Optional Internal SD Card slot Note: SD Card Slot x 1 (Bootable but hot-swappable not support). DMP Electronics Inc.
  • Page 25 EBOX-3100-VGA User Manual Chapter DMP Electronics Inc.

  • Page 26: Onboard Connectors Summary

     Front Connectors Outline A: Power LED B: Line out C: Mic in D: USB 2.0 E: SD Card Slot EBOX-3100-VGA FRONT LOOK  Rear Connectors Outline G: VGA H: RJ-45 LAN I: Power switch J: Micro 5pin USB DC Power Jack EBOX-3100-VGA REAR LOOK DMP Electronics Inc.

  • Page 27: Pin Assignments

    Flashes J7: LAN: RJ-45 connector Pin # Signal Name Pin # Signal Name FTXD+ FTXD- FRXIN+ FRXIN- J3: VGA – 15-pin D-Sub connector Pin # Signal Name Pin # Signal Name Pin # Signal Name HYSYNC VSYNC DMP Electronics Inc.
  • Page 28 EBOX-3100-VGA User Manual Chapter DMP Electronics Inc.

  • Page 29: Taking Care Your Ebox Vesa Pc

    TV reception causing interference or poor signal display. When this happens, relocate the EBOX-3100-VGA by a suitable distance away from it. Do not drop the EBOX-3100-VGA from working table nor place heavy objects on top of it. DMP Electronics Inc.
  • Page 30 When a solid object falls or a liquid spills onto the EBOX, turn off the EBOX immediately and unplug the LAN and power cables. Contact a qualified person or your dealer to check the EBOX before you use it again. Always disconnect the power cord from the power source before cleaning the EBOX. DMP Electronics Inc.

  • Page 31: Troubleshooting

    Check if your power control button does not function, by removing the AC adaptor. Wait for one minute, and then reattach all power connection before pressing the power button. Condensation may cause the EBOX-3100-VGA to malfunction for a while. If this happens, do not use the EBOX-3100-VGA for at least one hour.
  • Page 32 EBOX-3100-VGA User Manual Chapter DMP Electronics Inc.

  • Page 33: Terms And Condition

    The Purchaser must pre-pay shipping for any defective system or parts returned under the warranty. DMP Electronics Inc. shall not be liable for risk of loss or damage during shipment of your returned system or parts if you fail to insure the shipment.
