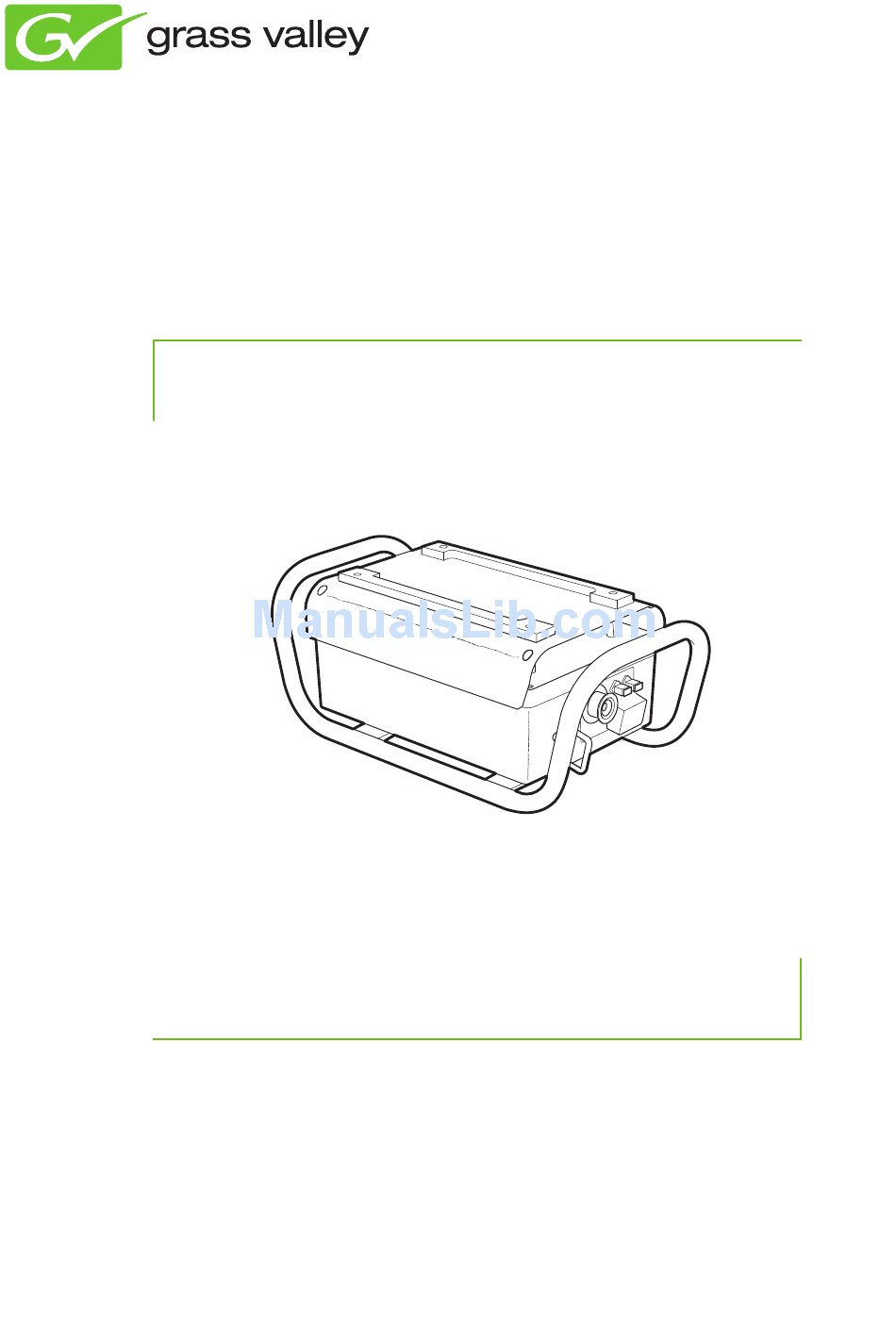

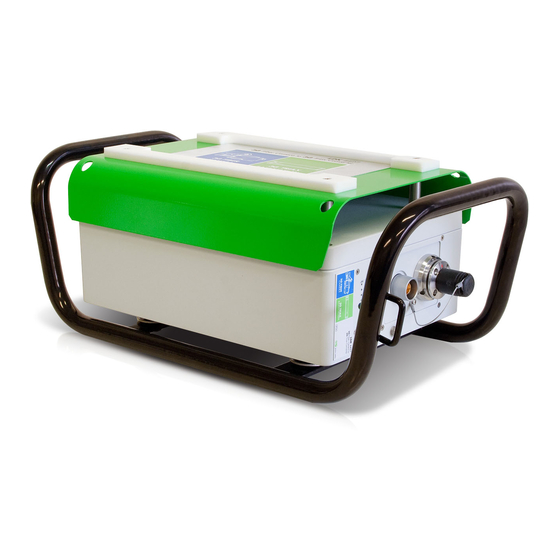

- Page 1 User’s Guide 3922 496 31851 October 2011 v1.0 LDK 4425 3G Fiber Power Converter...
-
Page 2: Declaration Of Conformity
Liable to technical alterations in the course of further development. Trademarks Grass Valley is a trademark of Grass Valley, Inc. All other tradenames referenced are service marks, trademarks, or registered trademarks of their respective companies. -
Page 3: Table Of Contents
Dark Fiber connectors (2x)..... . 21 3.2.3 Hybrid Fiber connector ......21 LDK 4425 3G Fiber Power Converter User’s Guide (v1.0) - Page 4 For further information on the Grass Valley product take back system please contact Grass Valley at + 800 80 80 20 20 or +33 1 48 25 20 20 from most other countries. In the US and Canada please call 800-547-8949 or 530-478-4148. Ask to be connected to the EH&S Department.
- Page 5 If the shipping container shows signs of damage or stress, notify the carrier as well. If the unit is being returned to Grass Valley for servicing, try to use the containers and materials of the original packaging. Attach a tag indicating the type of service required, return address, model number, full serial number and the return number which will be supplied by your Grass Valley service centre.
-
Page 6: Safety Summary
Mount equipment so that power lead can be accessed to disconnect power; • There are no user serviceable parts inside. Refer servicing to qualified personnel only or contact your local Grass Valley representative; LDK 4425 3G Fiber Power Converter User’s Guide (v1.0) - Page 7 Do not expose the unit to extremes of temperature; • To prevent risk of overheating, ventilate the product correctly: do not cover the unit with a rain cover as this may obstruct proper ventilation of the unit. LDK 4425 3G Fiber Power Converter User’s Guide (v1.0)
- Page 8 • Always unplug the mains plug before a wet or moist plug is disconnected from the unit. • When not in use, always protect connectors with their dust/protection caps LDK 4425 3G Fiber Power Converter User’s Guide (v1.0)
- Page 9 Insert connectors straight and fully into their corresponding sockets. – In fiber-optic cable systems always put the dust caps on cable and panel connectors immediately after disconnecting a cable. Keep the dust caps clean. LDK 4425 3G Fiber Power Converter User’s Guide (v1.0)
- Page 10 Air can be used to remove lint or loose dust from the port of a transmitter or receiver to be mated with the connector. Never insert any liquid into the ports. LDK 4425 3G Fiber Power Converter User’s Guide (v1.0)
- Page 11 The wire colored BLUE must be connected to the terminal marked with the letter N or colored BLACK. Ensure that your equipment is connected correctly - if you are in any doubt consult a qualified electrician. LDK 4425 3G Fiber Power Converter User’s Guide (v1.0)
- Page 12 LDK 4425 3G Fiber Power Converter User’s Guide (v1.0)
-
Page 13: Chapter 1 - Installation
LDK 4420 3G Twin Base Station to Hybrid Fiber signals and adds power. 1.2 Versions The following versions of the 3G Fiber Power Converter are available: Hybrid Fiber Version Fiber (Base Station) (Camera) LDK 4425/00 Fischer LDK 4425/05 Lemo LDK 4425/10 Lemo LDK 4425 3G Fiber Power Converter User’s Guide (v1.0) -
Page 14: Location Of Connectors And Indicators
Chapter 1 - Installation 1.3 Location of connectors and indicators Dark Fiber connectors Hybrid Fiber (multiple options available) Connector Indicator Earth Mains panel connector LDK 4425 3G Fiber Power Converter User’s Guide (v1.0) -
Page 15: Chapter 2 - Operation
Chapter 2 Operation 2.1 Indicator panel The indicator panel gives an overview of power and connection information: Local Power indicator Camera Test indicator Camera connected indicator Base station power indicator LDK 4425 3G Fiber Power Converter User’s Guide (v1.0) -
Page 16: Power And Connection
Camera power is connected to camera and switched off by a control camera is powered. panel or from a menu. CAM TST red flashing: CAM TST orange: Transmission cable open. Selftests are running LDK 4425 3G Fiber Power Converter User’s Guide (v1.0) -
Page 17: Base Station Power Indicator
This green indicator lights when base station power is used to power the camera. Indicators Condition Indicators Condition BS PWR green: BS PWR off: Base Station power is in Base Station power is in use. not in use. LDK 4425 3G Fiber Power Converter User’s Guide (v1.0) - Page 18 Chapter 2 - Operation LDK 4425 3G Fiber Power Converter User’s Guide (v1.0)
-
Page 19: Chapter 3 - Specifications
100 to 240 VAC, 47 to 63 Hz Power consumption (max.) 400 W Power connection IEC type, 3-pin male Fiber connector (multiple options) Fiber cable length Depending on connectors and optical budget LDK 4425 3G Fiber Power Converter User’s Guide (v1.0) -
Page 20: Dimensions
Chapter 3 - Specifications 3.1.2 Dimensions 480 mm 250 mm 3.2 Connectors 3.2.1 Mains power connector Pin Description Neutral Line Earth Fuses (2x): 8AT / 250 VAC IEC style 3-pin male LDK 4425 3G Fiber Power Converter User’s Guide (v1.0) -
Page 21: Dark Fiber Connectors (2X)
Various types available 3.2.3 Hybrid Fiber connector Pin Description Optic fiber channel A Power supply return Optic fiber channel B Power supply Various types available Lemo hybrid fiber connector compliant with SMPTE 304M. LDK 4425 3G Fiber Power Converter User’s Guide (v1.0) - Page 22 Chapter 3 - Specifications LDK 4425 3G Fiber Power Converter User’s Guide (v1.0)
- Page 23 LDK 4425 3G Fiber Power Converter User’s Guide (v1.0)
- Page 24 Printed in The Netherlands Copyright Grass Valley Nederland B.V. 2011...
