All-Power APGG10000 Owner's Manual
  1. Manuals
  2. Brands
  3. All-Power Manuals
  4. Portable Generator
  5. APGG10000
  6. Owner's manual

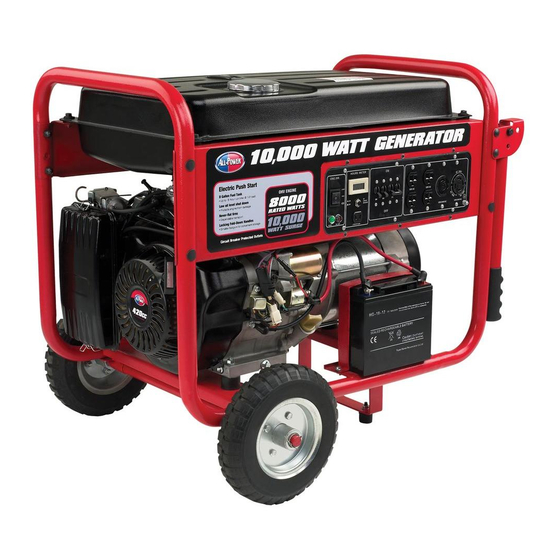

All-Power APGG10000 Owner's Manual

10000 watt
Hide thumbs Also See for APGG10000:

Advertisement

Quick Links

See also: Owner's Manual
10000W Generator
Topic
i L
m
i
e t
d
W
r a
a r
n
y t
S
a
e f
y t
G
u
d i
e
n i l
e
s
G
e
n
r e
l a
P
e r
c
a
t u
o i
n
s
Spark Plug Service
Compliance
Speci fications
G
e
n
r e
l a
P
r a
s t
L
t s i
n i
g
WARNING! READ AND UNDERSTAND ALL SAFETY PRECAUTIONS
IN THIS MANUAL BEFORE OPERATING. FAILURE TO COMPLY WITH
INSTRUCTIONS IN THIS MANUAL COULD RESULT IN PERSONAL
INJURY, PROPERTY DAMAGE, AND/ OR VOIDING OF YOUR
WARRANTY. ALL-POWER WILL NOT BE LIABLE FOR ANY DAMAGE
BECAUSE OF FAILURE TO FOLLOW THESE INSTRUCTIONS.
10000W Generator
Page
3
5
6
15
16
17
22
23
29
31
32
3
3
2

Advertisement

loading
Need help?

Need help?

Do you have a question about the APGG10000 and is the answer not in the manual?

Questions and answers

Jack
February 8, 2025

There is a little valve on top of the gas tank and connected with two 1/8 inch hoses don’t see it in the picture

0
1 comments:
Mr. Anderson
February 11, 2025

The valve on top of the gas tank for the All-Power APGG10000 is the fuel valve (APGG10000-P-10-JD). Its purpose is to control the flow of fuel from the gas tank to the engine. It allows the user to start or stop the fuel supply, which helps in maintenance, transportation, and preventing fuel leaks when the generator is not in use.

This answer is automatically generated

0

Related Manuals for All-Power APGG10000

Summary of Contents for All-Power APGG10000

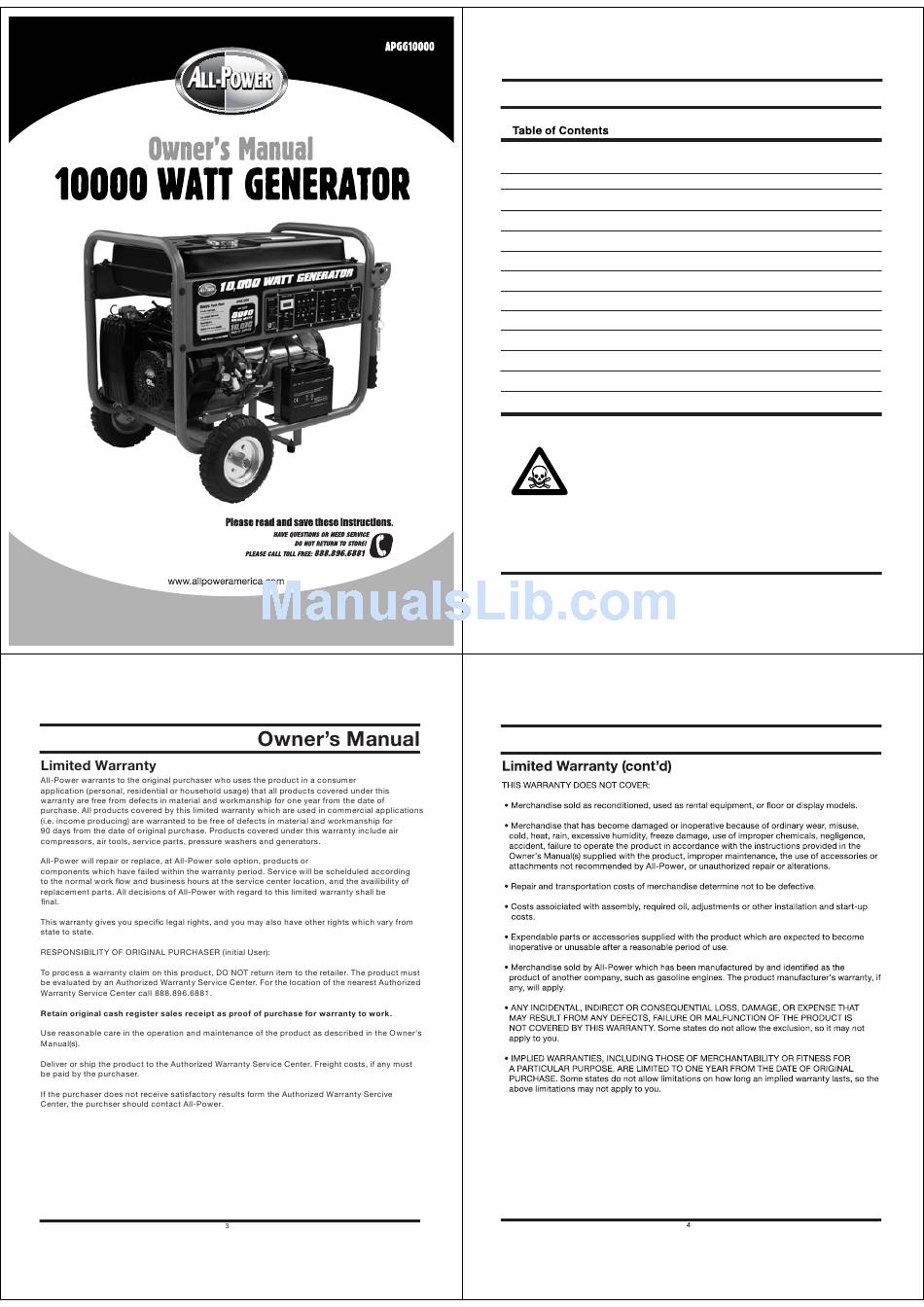

  • Page 1: Table Of Contents

    IN THIS MANUAL BEFORE OPERATING. FAILURE TO COMPLY WITH INSTRUCTIONS IN THIS MANUAL COULD RESULT IN PERSONAL INJURY, PROPERTY DAMAGE, AND/ OR VOIDING OF YOUR WARRANTY. ALL-POWER WILL NOT BE LIABLE FOR ANY DAMAGE BECAUSE OF FAILURE TO FOLLOW THESE INSTRUCTIONS. 10000W Generator...
  • Page 2 Owner’s Manual Safety Guidelines - Definitions This manual contains important information that you need to know and understand in order to protect YOUR SAFETY and to PREVENT EQUIPMENT PROBLEMS. The following symbols help you recognize this information. Please read the manual and pay attention to these sections. Save These Important Safety Instructions! Read and understand all of these safety instructions.
  • Page 3 Owner’s Manual General Precautions (cont’d) Electrical Safety (cont’d) • All connections and conduits from the generator to the load must only be installed by trained and licensed electricians, and in compliance with all relevant local, state, and federal electrical codes and standards, and other regulations where applicable. •...

  • Page 4: Battery

    Owner’s Manual General Precautions (cont’d) Mechanical (cont’d) • Do not operate the generator with safety guards removed. While the generator is running, do not attempt to reach around the safety guard for maintenance or any other reason. • Keep hands, arms, long hair, loose clothing, and jewelry away from moving parts. Be aware that when engine parts are moving fast they cannot be seen clearly.

  • Page 5: Operation

    Owner’s Manual Operation Control Panel Choke lever Handle Battery Oil plug Air filter Recoil Start NOTE: THE PARTS LISTED ABOVE ARE HELPFUL FOR LOCATING THE CONTROLS MENTIONED BELOW. CAUTION: PRIOR TO FIRST USING THE GENERATOR, THE ENGINE MUST BE FILLED WITH OIL OF A HIGH QUALITY SAE 10W-30 GRADE ENGINE OIL. TO DO SO, UNSCREW AND REMOVE THE ENGINE’S OIL DIPSTICK LOCATED AT THE BOTTOM OF THE ENGINE CRANKCASE.

  • Page 6: Inspection, Cleaning, Maintenance And Storage

    Owner’s Manual Operation (cont’d) Powering 12 Volt DC tools and Equipment: 1. Prior to powering tools and equipment, make sure the generator’s rated voltage, and amperage capacity (12V DC) is adequate to supply all electrical loads that the unit will power. If powering exceeds the generator’s capacity, it may be necessary to group one or more of the tools and/or equipment for connection to a separate generator.
  • Page 7 Owner’s Manual Maintenance Guide Periodic maintenance and adjustment is necessary to keep the generator in good operating condition. WARNING! Exhaust gas contains poisonous carbon monoxide. Shut off the engine before performing any maintenance. If the engine must be run, make sure the areas is well ventilated. •...

  • Page 8: Installation

    Owner’s Manual Installation NOTE: PRIOR TO POWERING TOOLS AND EQUIPMENT MAKE SURE THE GENERATOR’S RATED VOLTAGE, WATTAGE AND AMPERAGE CAPACITY IS ADEQUATE TO SUPPLY ALL ELECTRICAL LOADS THAT THE UNIT WILL POWER. IF POWERING EXCEEDS THE GENERATOR’S CAPACITY, IT MAY BE NECESSARY TO GROUP ONE OR MORE OF THE TOOLS AND/OR EQUIPMENT FOR CONNECTION TO A SEPARATE GENERATOR.

  • Page 9: Parts Listing

    10000W Generator Cylinder head system assy. PARTS LISTING APA Part No. Description ( 1 × 1 10000W Generator 10000W Generator Crankcase cover system assy. Cylinder barrel APA Part No. Description APA Part No. Description APG3090-B-01-JD FLANGE BOLT APG3090-C-01-JD DUCT COVER APG3090-B-02-JD OIL LEVEL SWITCH ASSY APG3090-C-02-JD...
  • Page 10 RETURN SPRING APG3090-F-06-JD ROD PUSH APG3090-G-07-JD RECOIL STARTER REEL APG3090-F-07-JD VALVE LIFTER APG3090-G-08-JD RECOIL STARTER SPRING APG3090-F-08-JD CAMSHAFT APGG10000-G-09-JD RECOIL STARTER CASE COMP APG3090-F-09-JD VALVE ROTATOR APG3090-G-10-JD RECOIL STARTER ROPE APG3090-F-10-JD EX. VALVE SPRING RETAINER APG3090-G-11-JD STARTER KNOB APG3090-F-11-JD VALVE SPRING...
  • Page 11 APA Part No. APA Part No. APG3090-I-01-JD TUBE CLIP APG3090-H-01-JD SHROUD APG3090-H-02-JD FLANGE BOLT (M6 X 14) APG3090-I-02-JD TUBE A APGG10000-H-03-JD FAN COVER COMP APG3090-I-03-JD TUBE B APG3090-H-04-JD WIRE HARNESS CLIP APG3090-I-04-JD WIPE HARNESS CLIP APG3090-I-05-JD DASHPOT CHECK VALVE APG3090-I-06-JD...

  • Page 12: Air Cleaner

    10000W Generator 10000W Generator Starter motor System assy. Control System Assy. APA Part No. Description Description APA Part No. APG3090-01-JD STARTER MOTOR APG3090-M-01-JD CONTROL ASSY APG3090-02-JD SOLENOID APG3090-M-02-JD CONTROL BASE COMP APG3090-03-JD FLANGE BOLT (M8×35) APG3090-M-03-JD CONTROL ADJUSTING APG3090-M-04-JD PAN SCREW (M5 X 34) APG3090-M-05-JD FLANGE BOLT (M6 X 14) APG3090-M-06-JD...

  • Page 13: Control Box Assy

    10000W Generator 10000W Generator Fuel tank system assy. Control box assy. Description APA Part No. APGG10000-P-01-JD FUEL FILLER CAP COMP APGG10000-P-02-JD FUEL FILTER APGG10000-P-03-JD FUEL TANK COMP Description APA Part No. APGG10000-P-04-JD FUEL METER ASSY APGG10000-Q-01-JD CONTROL PANEL COMP APGG10000-P-05-JD...
  • Page 14 APG3090-S-17-JD VOLT CHANGE TERMINAL BR-AC-W APG3090-S-18-JD PLAIN WASHER (5mm) APG3090-S-19-JD HEX. NUT (M5) APG3090-S-20-JD SPRING WASHER (5mm) 10 11 Description APA Part No. APGG10000-T-01-JD PIN SPLIT APGG10000-T-02-JD WSHER PLAIN APGG10000-T-03-JD WHEEL APGG10000-T-04-JD BAFFLE APGG10000-T-05-JD SHAFT APGG10000-T-06-JD FLANGE BOLT (M6X 35)
Save PDF
