SD Data Card to PC Data Transfer
1.
Complete a datalogging session as detailed in above in the previous sections. Hint: For the
first test, simply record a small amount of test data. This is to ensure that the datalogging
process is well understood before committing to critical datalogging.
2.
With the meter switched OFF, remove the SD Card.
3.
Plug the SD Card directly into a PC SD card reader. If the PC does not have an SD card slot,
use an SD card adaptor (available at most outlets where computer accessories are sold).
4.
Power the PC and run a spreadsheet software program. Open the saved documents in the
spreadsheet software program (see example spreadsheet data screens below).
netzerotools.com

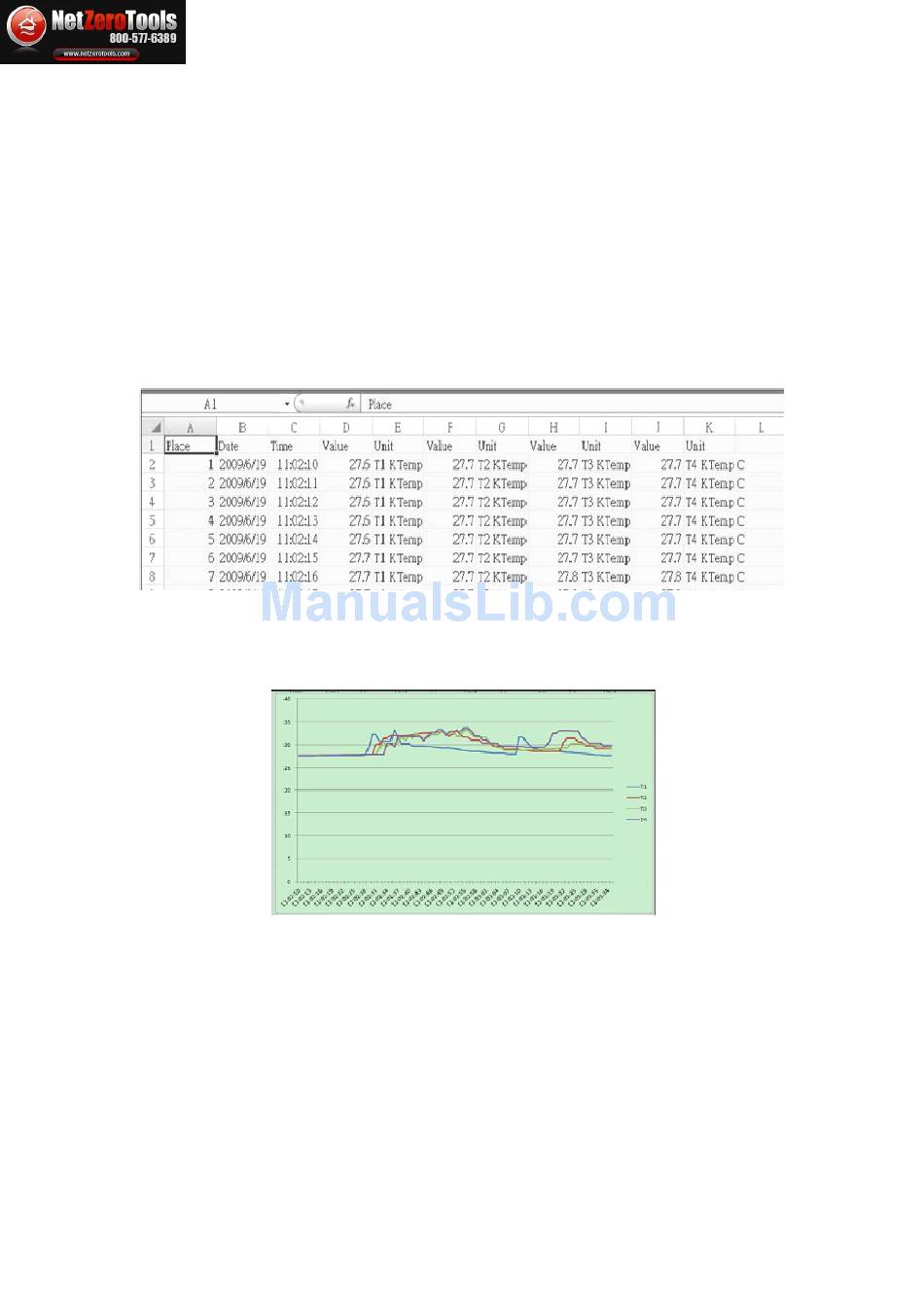

Spreadsheet data example
Spreadsheet example (Plotting the data)
11
