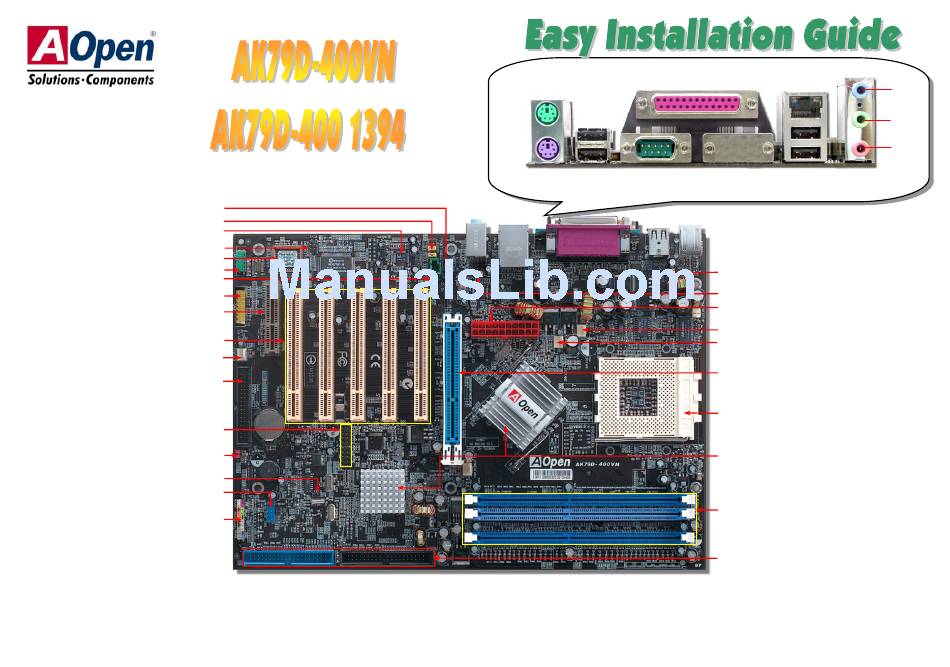

CD-IN Connector
Front Audio Connector
Onboard AC97 CODEC
IrDA Connector
4Mbit Phoenix Award Flash ROM
COM2 Connector
AUX-IN Connector
Game Port Connector
CNR Expansion Slot
32-bit PCI Expansion Slot x5
SYSFAN3 Connector
FDD Connector
IEEE1394 Connectors x 2
(for AK79D-400 1394)
JP14 CMOS Data Clear Jumper
Case Open Connector
nd
2
USB2.0 Connector
Front Panel Connector
AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without notice.
PS/2 Mouse
SPP/EPP/ECP Parallel Port
Connector
USB2.0
Ports
PS/2 Keyboard
COM 1 Port
Connector
RJ45 10/100
LAN Jack
Line-In
Speaker
Out
MIC-In
USB2.0 Ports
JP28 KB/Mouse Wakeup Jumper
JP27 USBLAN KB/Mouse Wakeup Jumper
ATX Power Connector
CPUFAN1 Connector
SYSFAN2 Connector
AGP 8x Expansion Slot
(for 1.5V AGP card)
TM
462-pin CPU Socket that supports AMD
TM
TM
Athlon
and Athlon
XP (with CPU
TM
Overheat Protection circuit to Athlon
XP
CPU only)
nForce2 Ultra 400/MCP Chipsets (AK79D-400VN)
nForce2 Ultra 400/MCP-T Chipsets (AK79D-400 1394)
184-pin DIMMx3 supports 128bit dual channel
DDR400/333/266 Max. to 3GB
IDE Connector x2
(ATA/66/100/133 supported)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AK79D-400VN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AOpen AK79D-400VN

Summary of Contents for AOpen AK79D-400VN

  • Page 1 184-pin DIMMx3 supports 128bit dual channel DDR400/333/266 Max. to 3GB Front Panel Connector IDE Connector x2 (ATA/66/100/133 supported) AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without notice.

  • Page 2: Jp27/28 Keyboard/Mouse Wakeup Jumpers

    1. JP14 Clear CMOS You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below. 1. Turn off the system and unplug the AC power. Everything you need to boot this 2. Remove ATX power cable from connector PWR2. motherboard is included in this 3.

  • Page 3: Installing Cpu & Housing Fan

    (Primary) Tip: If your system hangs or fails to boot because of overclocking, simply use <Home> key to restore the default setting or you can wait the AOpen “Watch Dog IDE 2 ABS” reset the system in five seconds and system will auto-detect hardware again.
  • Page 4 6. Memory & AGP Voltage Adjustment 8. Memory Module (128-Bit DDR Dual Channel) With our considerate design, you can adjust memory and AGP voltage in BIOS. The In the past, we used to have 64-bit memory bandwidth for memory access. No matter how memory voltage range is from 2.5V to 2.65V and the AGP voltage is from 1.5V to 1.6V.

  • Page 5: Com2 Connector

    12. COM2 Connector 10. Connecting Front Panel Connector This motherboard provides two serial ports. One of them is on the back panel, and the other is on the upper left of the board. With proper cable, you can connect it to the back panel of Power Switch chassis.

  • Page 6: Case Open Connector

    BIOS Setup, press <Del> during POST (Power On Self Test). Choose upgrading. "Load Setup Defaults" for recommended optimal performance. Download the new version of BIOS package zip file from AOpen official web site. (ex: http://english.aopen.com.tw) Unzip the download BIOS package (ex: WAK79D4001394102.ZIP) with WinZip (http://www.winzip.com) in Windows environment.

  • Page 7: Part Number And Serial Number

    It is very possible that your keyboard press Del to see if the is defective. system reboots. AK79D-400 1394 R1.02 Sep. 01. 2003 AOpen Inc. During system rebooting, press Del to enter BIOS Setup. Choose “Load Setup Default". Award Plug and Play BIOS Extension v1.0A Copyright ©...
  • Page 8 Online Manual: To download manual, please log on and then select your preferred language. Under “Type” directory, choose “Manuals” to go to our manual database. You can also find the manual and EIG in AOpen Bonus Pack. http://download.aopen.com.tw/downloads Dear Customer, Thanks for choosing AOpen products.

This manual is also suitable for:

Ak79d-400 1394
