Summary of Contents for Billion BiPAC 8800AXL

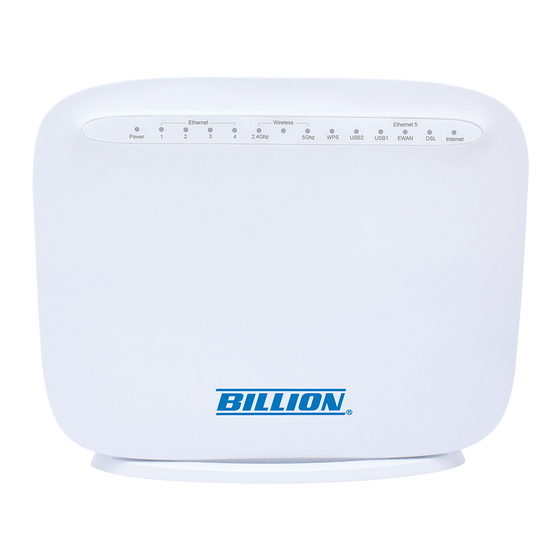

- Page 1 BiPAC 8800AXL Dual-band Wireless-AC 1300Mbps ADSL2+ 3G/4G LTE Router Quick Start Guide...
- Page 2 Billion BiPAC 8800AXL Dual-band Wireless-AC 1300Mbps ADSL2+ 3G/4G LTE Router PLEASE READ THE QUICK START GUIDE AND FOLLOW THE STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE. IF YOU NEED MORE INFORMATION ON THIS SOFTWARE CONFIGURATION, PLEASE REFER TO THE USER MANUAL ON CD-ROM.
- Page 3 Quick Start Guide Lit Green when successfully connected to a DSLAM (Line Lit green when Wireless Lit Green when Blinking green when sync.) Blinking when DSL connection established. USB activate on WPS configuration synchronizing or waiting for Blinking when data being modem.
- Page 4 Billion BiPAC 8800AXL Dual-band Wireless-AC 1300Mbps ADSL2+ 3G/4G LTE Router Press WLAN button more than 2 seconds to switch on /off the whole wireless connectivity, Push WPS button to including wireless 2.4G and trigger Wi-Fi Protected wireless 5G. Please Note that Setup function.
- Page 5 Quick Start Guide...
-
Page 6: Hardware Installation
Billion BiPAC 8800AXL Dual-band Wireless-AC 1300Mbps ADSL2+ 3G/4G LTE Router Hardware Installation 1. Power Connection Plug the supplied power adapter in to the wall jack and the other side to the router. Please note that the plug type may differ according to country. - Page 7 Quick Start Guide 2. LAN Connection Connect the supplied RJ-45 Ethernet cable to one of the Gigabit Ethernet ports, and the other side to the PC’s Ethernet interface. 3. ADSL Connection Connect the supplied RJ-11 phone cable to the router’s ADSL port, and the other side to the phone jack on the wall.
- Page 8 Billion BiPAC 8800AXL Dual-band Wireless-AC 1300Mbps ADSL2+ 3G/4G LTE Router 5. USB Connection 1) Print server and storage service through USB 2.0 port：FTP server and DLAN media server supported. 2) The USB 2.0 ports support 3G/4G LTE modem connectivity ： Users can conveniently access Internet via 3G/4G LTE, eliminating the limitations of the wired network.
- Page 9 Quick Start Guide b) Micro-filter connection If the installation has several telephones or other analog devices, then an internal micro-filter can be employed at each analog device. Make sure that device is powered on, Ethernet cable is connected to your PC and ADSL line is in sync.
- Page 10 Billion BiPAC 8800AXL Dual-band Wireless-AC 1300Mbps ADSL2+ 3G/4G LTE Router 3. Frequent loss of ADSL line sync (disconnections). Ensure that all other devices connected to the same telephone line as your router (e.g. telephones, fax machines, analogue modems) have a line filter connected between them and...
