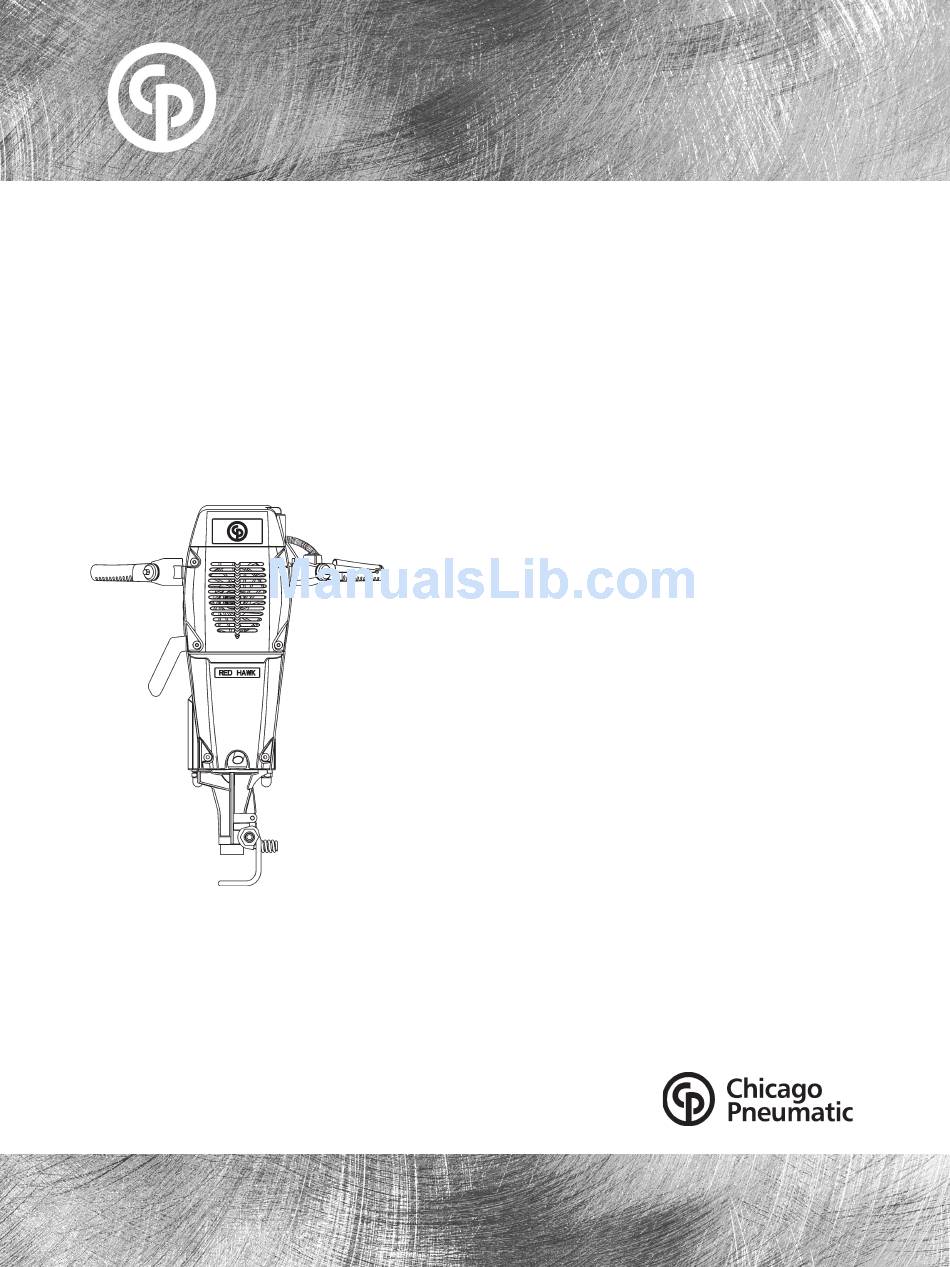

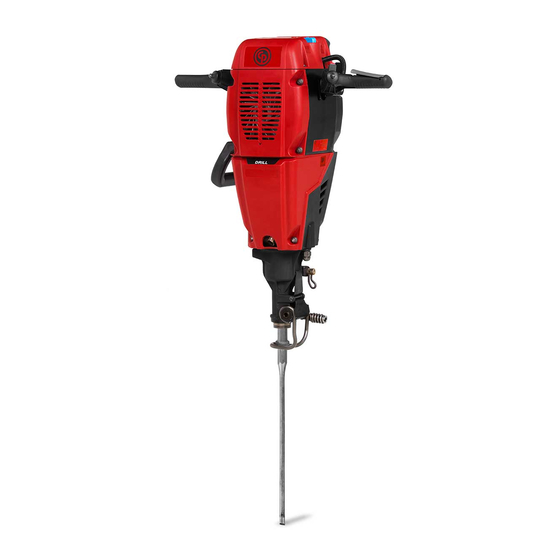

- Page 1 Safety and operating instructions Red Hawk www.cp.com...
- Page 2 Safety and operating instructions CP Red Hawk 2006-08 No. 9800 0658 93 © Copyright STOCKHOLM • SWEDEN 9800 0658 93...
-
Page 3: Table Of Contents
Contents Safety and operating instructions Contents SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Safety symbols used. - Page 4 Safety and operating instructions Red Hawk Introduction Thank you for choosing Chicago Pneumatic as a supplier for tools and services. Chicago Pneumatic is a global company offering a wide range of pneumatic and hydraulic tools that include breakers, rock drills, chipping hammers, clay-diggers, picks and busters, scabblers, pumps and a whole lot more.
-
Page 5: Safety Instructions
Red Hawk Safety and operating instructions SAFETY INSTRUCTIONS Warning Unintended start of the machine may cause injury. To reduce the risk of serious injury or death to Keep your hands away from the start and stop yourself or others, read these safety instructions device until you are about to start work. -
Page 6: Fume And Exhaust Hazard
Safety and operating instructions Red Hawk Warning Warning Changing the inserted tool while the machine is Breaking and working with certain materials can running may cause serious injury. cause sparks, which may ignite explosive gases which can cause explosions. Explosions may cause Before changing the working tool, always stop ... -
Page 7: Explosion And Fire Hazard, Continued
Red Hawk Safety and operating instructions Explosion and fire hazard, Electrical/Concealed object continued hazards Warning Warning The machine is not electrically insulated. If the Fuel is highly flammable, and it's vapors can machine comes in contact with electricity, serious explode if ignited, which can cause serious injury injuries or death may result. -
Page 8: Noise Hazard
Safety and operating instructions Red Hawk Noise hazard Warning Some dust or other airborne material created Warning during use of the machine may contain chemicals known to the State of California to cause cancer High sound levels may cause permanent hearing and birth defects or other reproductive harm. -
Page 9: Vibration Hazard
Any machine modification not approved by resume operating the machine and seek medical Chicago Pneumatic may result in serious injuries to attention. Continued use of the machine after the yourself or others. -
Page 10: Additional Safety Instructions
could be damaged. For major service to the machine, contact Check the working tools for wear or damage your nearest authorized Chicago Pneumatic at regular intervals. Do not use worn out or workshop. damaged working tools. When cleaning mechanical parts with solvent, ... -
Page 11: Operating Instructions
INSTRUCTIONS S Venturi T Stop-button U Fuel filter Design and function Preparations before Red Hawk is a hammering machine. It is intended to be used for breaking asphalt and concrete. starting Main parts Tool shank Warning An incorrrect dimension of the working tool's shank can result in that the working tool may being dropped or ejected. -
Page 12: Starting And Stopping
Fuel Cold start Close the choke (turn the choke control counter clockwise). Red Hawk uses a mixture of gasoline and two-stroke oil, 1 part oil to 50 parts gasoline (2%). Push the throttle lever down and pull the Two-stroke oil starter handle. -
Page 13: Stopping The Engine
Red Hawk Safety and operating instructions When the machine starts, slowly turn the Stopping the engine choke clockwise towards position (RUN) during a 2–3 minutes warm-up period. Stop the engine by depressing the stop button. Drain the fuel tank before transporting the... -
Page 14: Air Filter
Safety and operating instructions Red Hawk Regular care Air filter In the event of continuous use, check and change the filter at least every shift. Unscrew the gas duct valve and take out the cleaning rod. Clean the duct and cleaning rod using the cleaning needle provided. -
Page 15: Maintenance
Red Hawk Safety and operating instructions Maintenance Lift off the cover, grasping the starter pulley as well. Let the cover rotate carefully against the starter pulley, to release the spring tension. Spark plug Remove the old starting cord. Fitting a new cord Lift the spark plug cover by the lower lip, and turn it up to one side. -
Page 16: Trouble Shooting
If the machine still does not work satisfactorily Carburettor following this procedure, please contact your nearest authorized Chicago Pneumatic workshop. Scrapping worn-out machines Worn-out machines must be dealt with and deposited in such a way that the maximum amount of material can be recycled and the environment is affected as little as possible. -
Page 17: Technical Data
We, Chicago Pneumatic, cannot be held liable for the consequences of using the declared values, instead of values reflecting the actual exposure, in an individual risk assessment in a work place situation over which we have no control. - Page 18 Safety and operating instructions Red Hawk 9800 0658 93...
- Page 19 Red Hawk Safety and operating instructions 9800 0658 93...
- Page 20 2006-08 9800 0658 93 © Copyright STOCKHOLM • SWEDEN...
