Page 1: Installation Guide
AT-FH708E Dual Speed Mini Hub Installation Guide PN 613-10758-00 Rev B... - Page 2 Copyright © 1998 Allied Telesyn International, Corp. All rights reserved. No part of this publication may be reproduced without prior written permission from Allied Telesyn International, Corp. Ethernet is a registered trademark of Xerox Corporation. All other product names, company names, logos or other designations mentioned herein are trademarks or registered trademarks of their respective owners.
-
Page 3: Fcc Compliance Statement
FCC Compliance Statement Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in residential installation. -
Page 5: Table Of Contents
Table of Contents FCC Compliance Statement ............................... iii Notice ....................................iii CE Mark Declaration of Conformance ............................iii Chapter 1 Product Description ..................................1 Package Contents ..................................2 Front Panel ....................................2 LEDs .......................................3 Rear Panel ......................................4 DIP Switches ....................................4 Chapter 2 Installation ....................................5 Installing the Mini Hub ................................5 Uplink Connection ................................5 Application ....................................6... - Page 6 Table of Contents Appendix B Technical Support Fax Order ..............................17 Incident Summary ..................................17 Appendix C AT-FH708E Hub Installation Guide Feedback ........................19 Appendix D Where To Find Us ..................................21...
-
Page 7: Chapter 1 Product Description

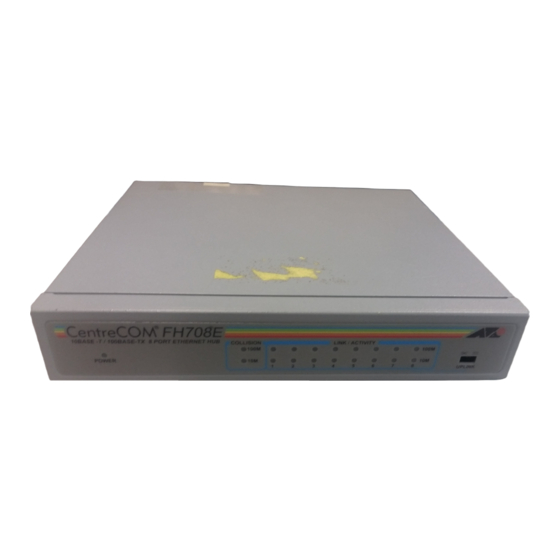

Chapter 1 Product Description The AT-FH708E Mini Hub is an 8-port 10/100Mbps dual speed hub that offers a cost-effective solution to today’s growing need of network speed integration. With eight 10/100Mbps plug-and-play dual speed ports equipped in its compact body, it is possible to achieve the coexistence of 10Mbps and 100Mbps devices in a single network now and step to 100Mbps network in the future. -
Page 8: Package Contents
100M/10M Link/Activity LEDs 10BASE-T / 100BASE-TX 8 PORT ETHERNET HUB COLLISION LINK / ACTIVITY 100M 100M POWER UPLINK POWER LED 100M/10M Collision LEDs Uplink Switch Figure 2 AT-FH708E Mini Hub Front Panel... -
Page 9: Leds
AT-FH708E Hub Installation Guide LEDs Table 1 lists and describes the LEDs. Table 1 LEDs Color Description Power Green ON indicates that the unit is receiving power Collision for 10/100M Yellow ON indicates data collisions Link/Activity for 10/100M Green ON indicates that a link is established... -
Page 10: Rear Panel
Rear Panel Rear Panel The rear panel has one power connector, which accepts 5V 2.5A power input, and DIP switches for manual speed setting and eight RJ45 ports. DIP Switches for Port 7 and Port 8 Port 8 Port 7 2.5A 1 2 3 4 Auto... -
Page 11: Chapter 2 Installation
Chapter 2 Installation Installing the Mini Hub 1. Place the Hub on a smooth and horizontal surface. 2. Establish network connection by plugging one end of the Category 5 UTP/STP cable RJ45 connector into the hub port, the other end to the Ethernet/Fast Ethernet adapter installed in the workstation computers. -
Page 12: Application
Mini Hub 10BASE-T/100 BASE-TX PORT STATUS UTILIZATION TERMINAL PORT RS-232 100M LINK / ACTIVITY COLLISION Set to UPLINK 5 meters max. 100 Meters 100 Meters 100Mbps 10Mbps 100Mbps 100Mbps Workstation Workstation Workstation Workstation Figure 4 AT-FH708E Mini Hubs Connected to Workstations... -
Page 13: Technical Specifications
AT-FH708E Hub Installation Guide Technical Specifications Standard IEEE802.3 (10Base-T) & IEEE802.3u (100Base-TX) Class I and II Repeater 10/100BaseTX Port 8 Auto-negotiate ports Manual Speed Selectable Port (two ports are user-configurable) Port #8 and Port #7 Uplink port Port #8 Cabling Category 5 UTP/STP for 100 Mbps;... -
Page 15: Chapter 3 Troubleshooting
Chapter 3 Troubleshooting This chapter describes the procedures to test and troubleshoot the hub. Connectivity Testing In the following procedure, you will test each port for a valid connection and to confirm the correct operation of the network. 1. Start with Ports 1 and 2. Connect these two ports of a single hub to two nodes or workstations and turn on the hub’s power supply. -
Page 16: Problem Solving
Problem Solving Problem Solving Is the unit receiving Check the POWER LED on the front of the hub. This green LED should be lit. power? If the power LED is not on: 1. Check the back of the unit. Make sure the power cord is attached securely. - Page 17 AT-FH708E Hub Installation Guide 4. Problem 4: There is data loss between the hub and one of the attached network nodes. Solution 4: — Make sure that the cable length between the hub and the connected network device is no greater than 100 meters.
-
Page 19: Appendix A Hub Specifications
Appendix A Hub Specifications Physical Characteristics Chassis Dimensions: 6.0 in. (153 mm) (L) x 6.6 in. (169 mm) (W) x 1.8 in. (3 mm) (H) Weight: 2 lbs. 12 oz (1.25 kg.) Operating temperatures: 0° to 40° C (32 F to 104 Storage temperatures: -20°... -
Page 20: Cabling Specifications
Cabling Specifications Cabling Specifications Category 5 UTP/STP for 100 Mbps; Category 3, 4, or 5 UTP for 10 Mbps Maximum of 100 meters between hub and network node Electrical Specifications Power: External power supply with 100 to 120 VAC or 200 to 240 VAC, 50/60 Hz input. UTP (RJ45) Connector Figure 5 shows an RJ45 connector. -
Page 21: 100Base-Tx Cable
AT-FH708E Hub Installation Guide 100Base-TX Cable There are various grades of voice-quality and data-quality cables available. These can appear to be similar externally, although their high- speed data transmission characteristics are radically different. The identification problem is made worse by some suppliers selling voice-quality cables as data-quality cables. -
Page 23: Technical Support Fax Order
Appendix B Technical Support Fax Order Name__________________________________________________________________________________ Company ______________________________________________________________________________ Address _______________________________________________________________________________ City ___________________________ State/Province____________________________________________ Zip/Postal Code _____________________ Country____________________________________________ Phone __________________________________ Fax____________________________________________ Incident Summary Model number of Allied Telesyn product I am using ___________________________________________ Network software products I am using ______________________________________________________ _______________________________________________________________________________________ Brief summary of problem ________________________________________________________________ _______________________________________________________________________________________... -
Page 25: At-Fh708E Hub Installation Guide Feedback
Appendix C AT-FH708E Hub Installation Guide Feedback Please tell us what additional information you would like to see discussed in the guide. If there are topics you would like information on that were not covered in the guide, please photocopy this page, answer the questions and fax or mail this form back to Allied Telesyn International, Corp. -
Page 27: Appendix D Where To Find Us
Appendix D Where To Find Us For Technical Support or Service Location Phone Americas 1 (800) 428-4835 1 (918) 628-3222 United States, Canada, Mexico, Central America, South America Asia (+65) 3815-613 (+65) 3833-830 Singapore, Taiwan, Thailand, Malaysia, Indonesia, Korea, Philippines, China, India Australia (+61) 2-9438-5111...
