THRUSTMASTER

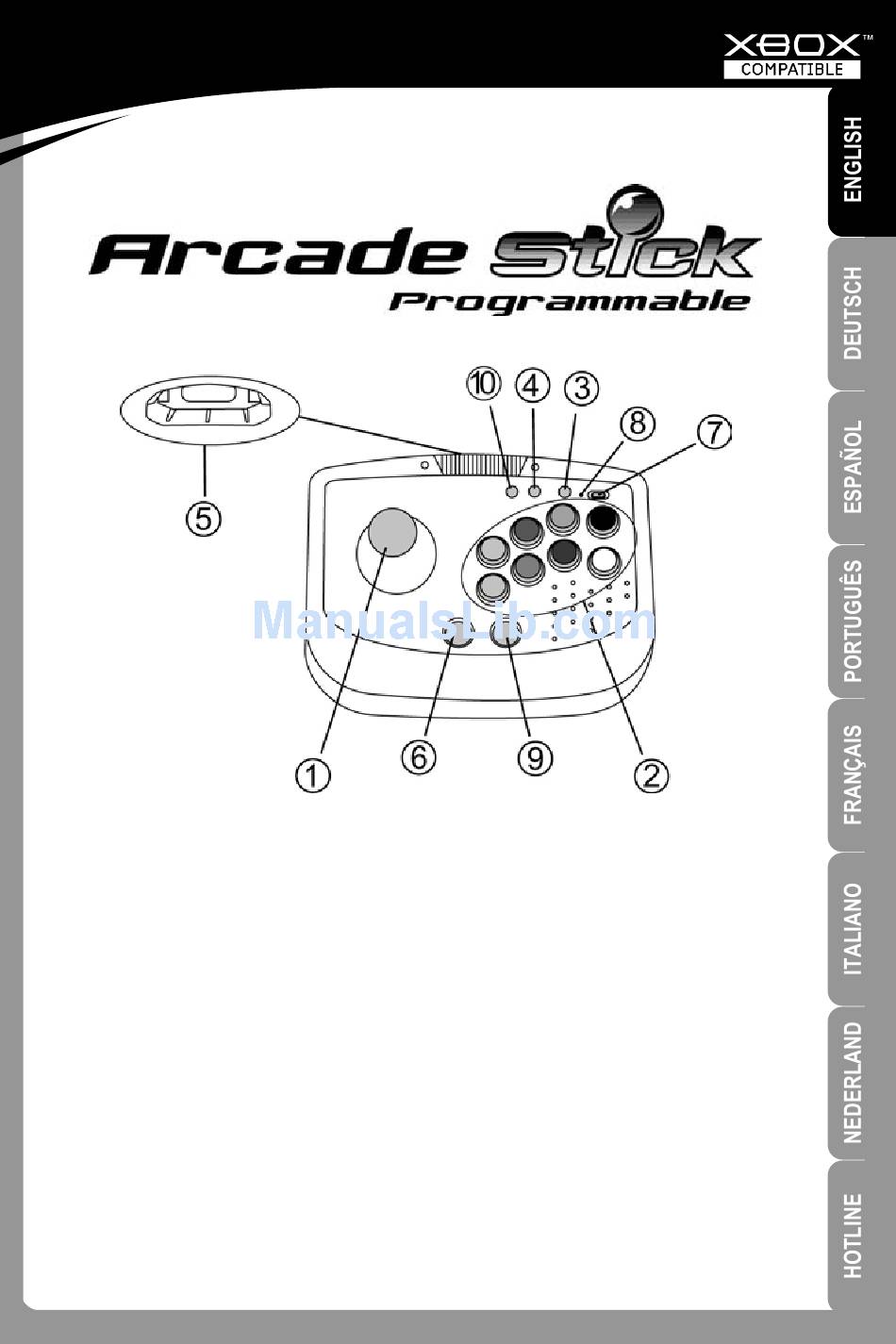

TECHNICAL FEATURES
1.
8-way stick
2.
8 analog action buttons:
X, Y, A, B, Black, White, T1 = right trigger, T2 = left trigger
3.
START button
4.
BACK button
5.
Slot for memory unit or other accessory
6.
TURBO button
7.
PROGRAM button
8.
LED
9.
COMBO button
10. CLEAR button
IMPORTANT! Before using this product, read the Xbox™ video game system instruction
manual for health, safety and other information.
®
USER MANUAL
1/6

Advertisement

loading

Related Manuals for Thrustmaster Arcade Stick

Summary of Contents for Thrustmaster Arcade Stick

  • Page 1 THRUSTMASTER ® USER MANUAL TECHNICAL FEATURES 8-way stick 8 analog action buttons: X, Y, A, B, Black, White, T1 = right trigger, T2 = left trigger START button BACK button Slot for memory unit or other accessory TURBO button PROGRAM button COMBO button 10.

  • Page 2: Turbo Function

    Connect the Arcade Stick to any controller port of the Xbox™ console. You can even use your Arcade Stick with games that do not usually support this type of device. To do so, switch on your Xbox™ console and press and hold the BACK button (4) on your Arcade Stick while plugging it in.

  • Page 3: Combo Function

    Press the button/direction that you wish to program with the same function as the button/direction selected in step 2 above: the LED turns green, and then switches off. The button/direction pressed in step 3 now has the same function as the button/direction selected in step 2.

  • Page 4: Clear Function

    Press the action button (2) onto which you wish to apply the combo that you have just programmed. *You cannot program any actions while the LED is flashing. **If you do not enter an action within 5 seconds the red LED will flash and the entire procedure will be cancelled. You can program up to 8 different combos (1 per analog action button (2)).
  • Page 5 - The symbol represents a pause between 2 actions in the sequence. To program this combo onto the Arcade Stick’s A button: Press the PROGRAM button (7). Steps 1 and 2: beginning of the combo Press the COMBO button (9).
  • Page 6 © Guillemot Corporation 2002. All rights reserved. Thrustmaster® is a registered trademark of Guillemot Corporation S.A. This product is officially licensed by Microsoft Corporation. Microsoft®, Xbox™ and the Xbox™ logo are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries and are used under license from Microsoft.
