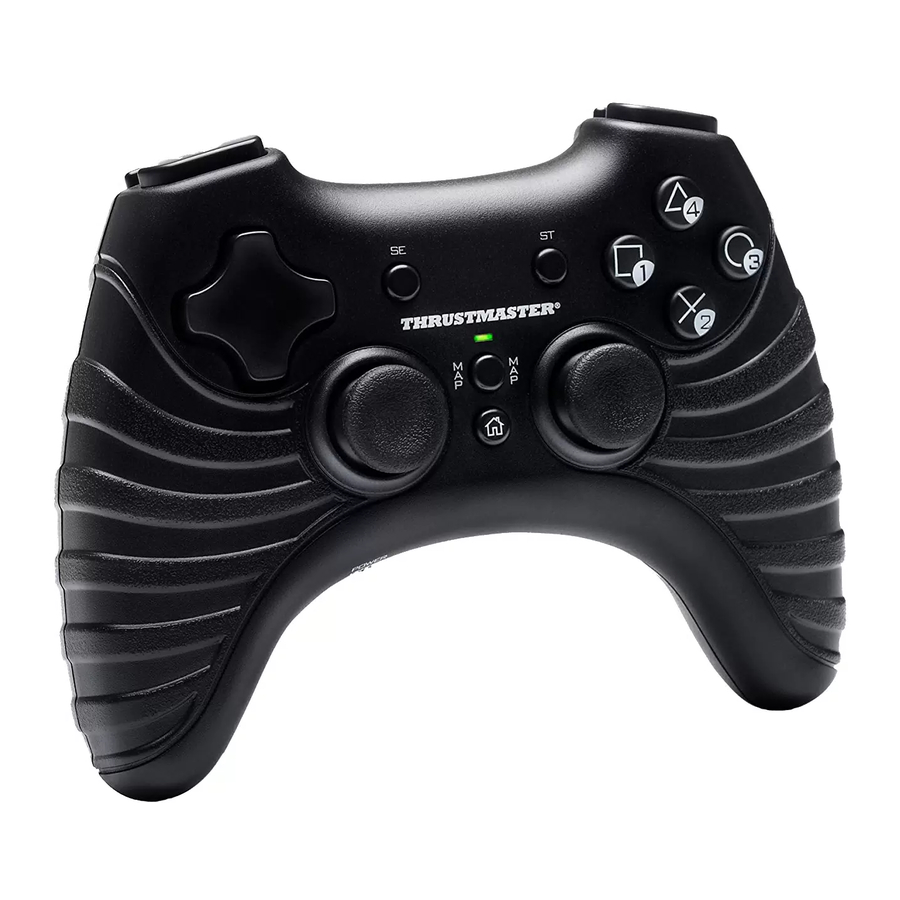

Thrustmaster T-Wireless 3-in-1 - Game Controller Manual

TECHNICAL FEATURES

1. 2 vibration motors (for PlayStation® 2)
2. 8 action buttons
3. SELECT and START buttons
4. 2 analog mini-sticks / 2 digital action buttons
5. D-Pad
6. MAPPING button (for programming)
7. HOME button for PlayStation® 3 and Analog/Digital for PlayStation® 1 and 2
8. Gamepad CONNECT button
9. PS2 Gameport connector on Wireless receiver
10. USB PC and PS3 connector on Wireless receiver
11. Gamepad LED
12. Receiver CONNECT button (with LED)
13. POWER and MOTORS switches
14. Battery compartment

INSTALLING BATTERIES

Insert 3 1.5V type LR03 / AAA batteries in the battery compartment located at the back of the gamepad (14).

OVERVIEW

• POWER switch (13):
  • OFF position = the gamepad is off (and doesn't use up batteries).
  • ON position = the gamepad is on.
• MOTORS switch (13):
  • OFF position = vibration mode is disabled (uses less battery power).
  • ON position = vibration mode is enabled (uses more battery power).
• CONNECT buttons (8 and 12)
  The connection between the gamepad and the receiver is established automatically.
  These 2 buttons allow you to establish a connection in case of failure or when using more than one TWireless gamepad at the same time.
  • Both LEDs are on = signal between the gamepad and the receiver.
  • Both LEDs flash quickly = no signal between the gamepad and the receiver.
  • Both LEDs are off = the gamepad is in standby mode or switched off.
  • Both LEDs flash slowly = change batteries.
• STANDBY MODE:
  • The gamepad switches off automatically after 5 minutes of inactivity.
  • To reactivate it, press the START button.

PLAYSTATION® 2

INSTALLATION ON PLAYSTATION® 2

1. Connect the receiver's PS2 Gameport connector (9) to port number 1 on your console.
2. Switch on your console.
3. Switch on your gamepad using the POWER ON switch (13).
4. Start up your game.

You are now ready to play!

ATTENTION: NEVER CONNECT THE USB CABLE (10) TO YOUR PLAYSTATION® 2 (to avoid the risk of damaging your gamepad or your console)

PLAYSTATION® 3

INSTALLATION ON PLAYSTATION® 3

1. Connect the receiver's USB connector (10) to USB port number 1 on your console.
2. Switch on your console.
3. Switch on your gamepad using the POWER ON switch (13).
4. Start up your game.

You are now ready to play!

USING THE "HOME" BUTTON (7)

Your gamepad's HOME button allows you to exit your game, access menus and directly switch off your PlayStation®3 system.

IMPORTANT NOTES FOR PLAYSTATION® 3

• On PlayStation® 3, the T-Wireless gamepad is only compatible with PlayStation® 3 games (and will not function with PlayStation® 2 games).
• Your T-Wireless gamepad does not include a motion sensor.
• In "1 Player" mode: If your official gamepad is turned on, you must switch it to "gamepad port 2" in order for your T-Wireless gamepad to be functional.

PC

INSTALLATION ON PC

1. Insert the installation CD-ROM into your CD-ROM drive. Follow the on-screen instructions to install the Force Feedback drivers. Once the installation is complete, click Finish and restart your computer.
2. Once your computer has restarted, connect the receiver's USB connector (10) to one of your computer's USB ports. Windows® will automatically detect the new device.
3. Switch on your gamepad using the POWER ON switch (13).
4. Click Start/Settings/Control Panel and double-click Game Controllers (or Gaming Options, depending on your operating system). The Game Controllers dialog box displays the gamepad's name along with OK status.
5. In the Control Panel, click Properties to configure your gamepad:

• Test device: Allows you to test and visualize the buttons, the D-Pad and the mini-sticks.
• Test forces: Allows you to test 8 vibration effects and configure the vibration effect settings.

You are now ready to play!

ADVANCED FUNCTIONS

PROGRAMMING BUTTONS / MINI-STICKS / D-PAD

All progressive buttons (on PS2 and PS3) or digital buttons (on PC), directions of the mini-sticks and of the D-Pad can be switched using the MAPPING button (6).

• Examples of possible applications:
  • Switching the functions of buttons
  • Switching the 2 mini-sticks
    (in this case, you must map the 4 directions of the first mini-stick to the 4 directions of the second)
  • Switching the D-Pad with a mini-stick
    (in this case, you must map the 4 directions of the D-Pad to the 4 directions of the mini-stick in question).
• Programming/switching procedure:

The two functions are now switched.

• To return to "default" programming (to erase all of your programming):

Your programming is now erased.

Please note that your programming also disappears each time the gamepad is disconnected, or when the gamepad or console restarts.

USING MORE THAN ONE T-WIRELESS GAMEPAD AT THE SAME TIME

(In multiplayer mode)

You can use up to 4 T-Wireless gamepads at the same time (in multiplayer mode).

To do so, channel detection must absolutely be carried out manually, as described below.

• Procedure:
  • For 2 seconds, simultaneously press and hold the 2 CONNECT buttons on the gamepad and the receiver you wish to use (8 and 12).
  • Repeat this procedure for other players.

Once a connection has been established, the LEDs stop flashing and stay lit.

TROUBLESHOOTING AND WARNINGS

• My gamepad doesn't function properly or doesn't seem to be properly calibrated:
  • In the event of malfunction during use due to electrostatic emission, please exit the game, switch off your gamepad and unplug the receiver from your console or PC. Resume normal game play by plugging the receiver back in, then switch on the gamepad and launch the game again.
  • Never move the mini-sticks when connecting your gamepad (to avoid any calibration problems).
• I can't configure my gamepad:
  • In your game's "Options/Controller/Gamepad" menu: select the most appropriate configuration.
  • Please refer to you game's user manual or online help for more information.
  • You can also use your gamepad's "programming" function to resolve this type of problem.
• On PC, the vibrations don't stop:
  • Decrease the intensity of force effects in your game's controller options or adjust the forces in the gamepad's control panel.

When you're done using your gamepad, we recommend that you always set your gamepad's POWER switch (13) to the OFF position (to extend battery life).

TECHNICAL SUPPORT

If you encounter a problem with your product, please go to http://ts.thrustmaster.com and click Technical Support. From there you will be able to access various utilities (Frequently Asked Questions (FAQ), the latest versions of drivers and software) that may help to resolve your problem. If the problem persists, you can contact the Thrustmaster products technical support service ("Technical Support"):

By email:
In order to take advantage of technical support by email, you must first register online. The information you provide will help the agents to resolve your problem more quickly. Click Registration on the left-hand side of the Technical Support page and follow the on-screen instructions. If you have already registered, fill in the Username and Password fields and then click Login.

By telephone (if you do not have Internet access):

Hours of operation and telephone numbers are subject to change. Please visit http://ts.thrustmaster.com for the most up-todate Technical Support contact information.

www.thrustmaster.com
