Light Management
Stand: Feb-10 325 274 43

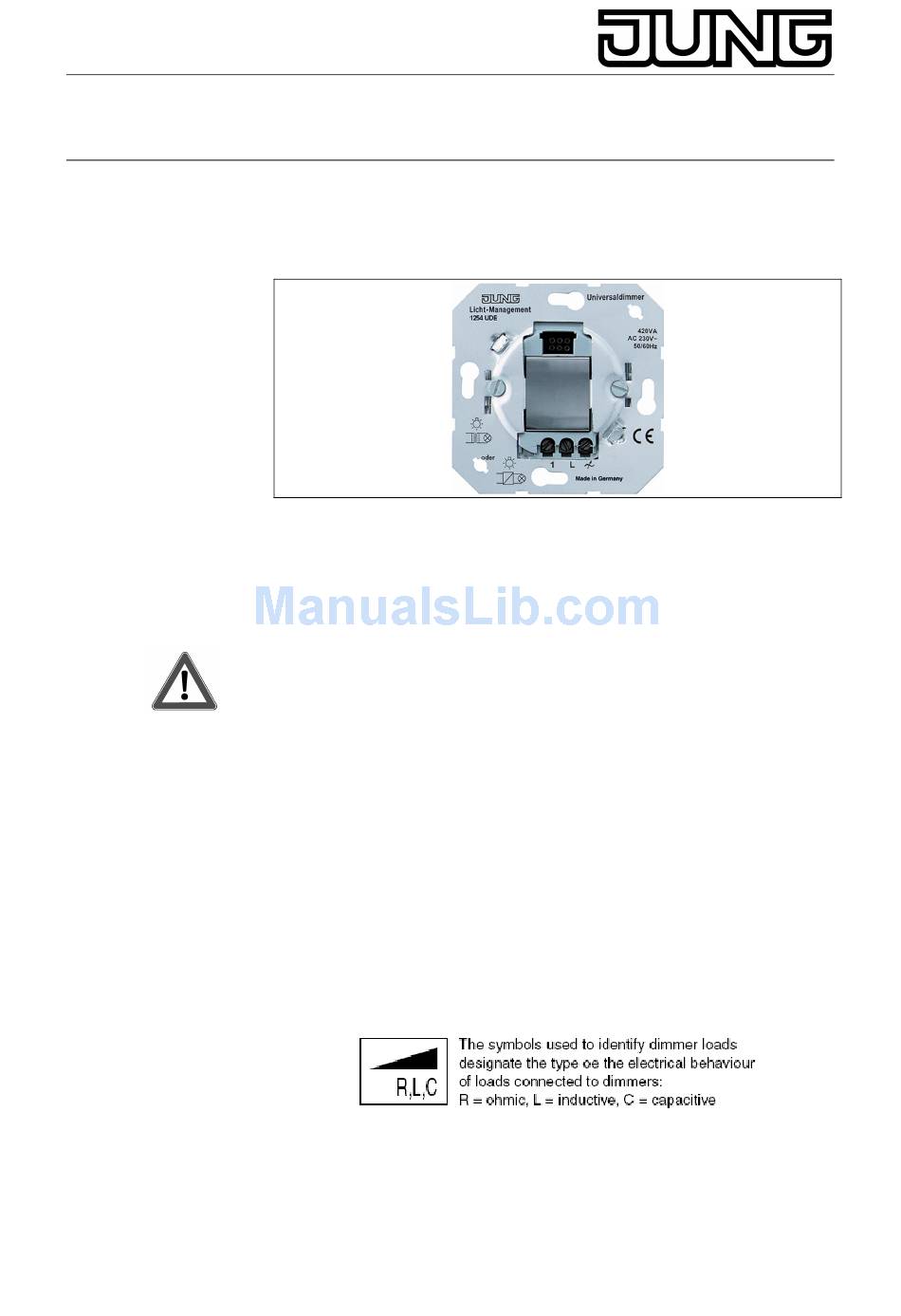

Operating Instructions
Universal dimmer
1. Warning
Attention:
Electrical equipment must be installed and fitted only by qualified
electricians and in observance of the applicable accident prevention
regulations.
Not suitable for disconnecting.
When the universal dimmer is off the load is not electrically isolated
from the mains.
When using conventional transformers, protect the primary side of
each transformer by a fuse as indicated by the manufacturer.
Do not connect any electronic lamps, e.g. switchable or dimmable
compact fluorescent lamps or LED lamps. Device can be damaged.
Only use safety transformers as per EN 61558-2-6.
Non-observance of the installation instructions may cause fire or
other hazards.
2. Function
Universal dimmer for switching and dimming extensive light sources such
as:
•
230 V incandescent lamps.
•
230 V halogen lamps.
•
LV halogen lamps in conjunction with TRONIC transformers
•
LV halogen lamps in conjunction with conventional transformers.
Switching and dimming commands are given when the covers of the
dimmer, of the extension insert or of the radio transmitter are actuated .
The universal dimmer works on the basis of the twoarea principle, i. e.
there is one touch area each for the 'brighter' and 'darker' dimming
directions. The lights are turned on by a lamp-saving soft start. This
Operating Instructions paper describes the functionality in combination
with the manual attachment.
Universal dimmer
Ref.-no.: 1254 UDE
Advertisement
Table of Contents
Related Manuals for Jung Universal dimmer
Summary of Contents for Jung Universal dimmer
- Page 1 Switching and dimming commands are given when the covers of the dimmer, of the extension insert or of the radio transmitter are actuated . The universal dimmer works on the basis of the twoarea principle, i. e. there is one touch area each for the ‘brighter’ and ‘darker’ dimming directions.
- Page 2 The storing process is indicated by a soft start. 3. Installation Instructions Fit universal dimmer insert (1) into a box as per DIN 49073 (Fig. A). The connecting terminals of the insert must be at the bottom. Use the universal dimmer insert only in combination with an attachment. Plug attachment (2) onto the insert (1) together with frame (3).
- Page 3 Phase cut-on operation (inductive load): Disconnection with automatic re-starting after elimination of the short- circuit within 100 seconds. After this, permanent disconnection until th universal dimmer is re-started manually. Overtemperature Protection Switching off in case of an excessively high ambient temperature. After cooling down, the device must be switched back on.
- Page 4 Power boost units can be connected to the universal dimmer to increase the load rating when the dimmer capacity is exhausted. Select a boost unit suited to the universal dimmer and to the load. Further details can be found in the operating instructions of the respective boost unit.
-
Page 5: Specifications
Control from an extension unit is possible only if the attachment on the main unit is in place. “2-wire” extension insert: The same functionality with an short lift key as on the universal dimmer. Mechanical button (normally open): Short push: ON/OFF. - Page 6 Our products are under guarantee within the scope of the statutory provisions. Please return the unit postage paid to our central service department giving a brief description of the fault: ALBRECHT JUNG GMBH & CO. KG Service-Center Kupferstr. 17-19 D-44532 Lünen Service-Line: +(49) 23 55 .
