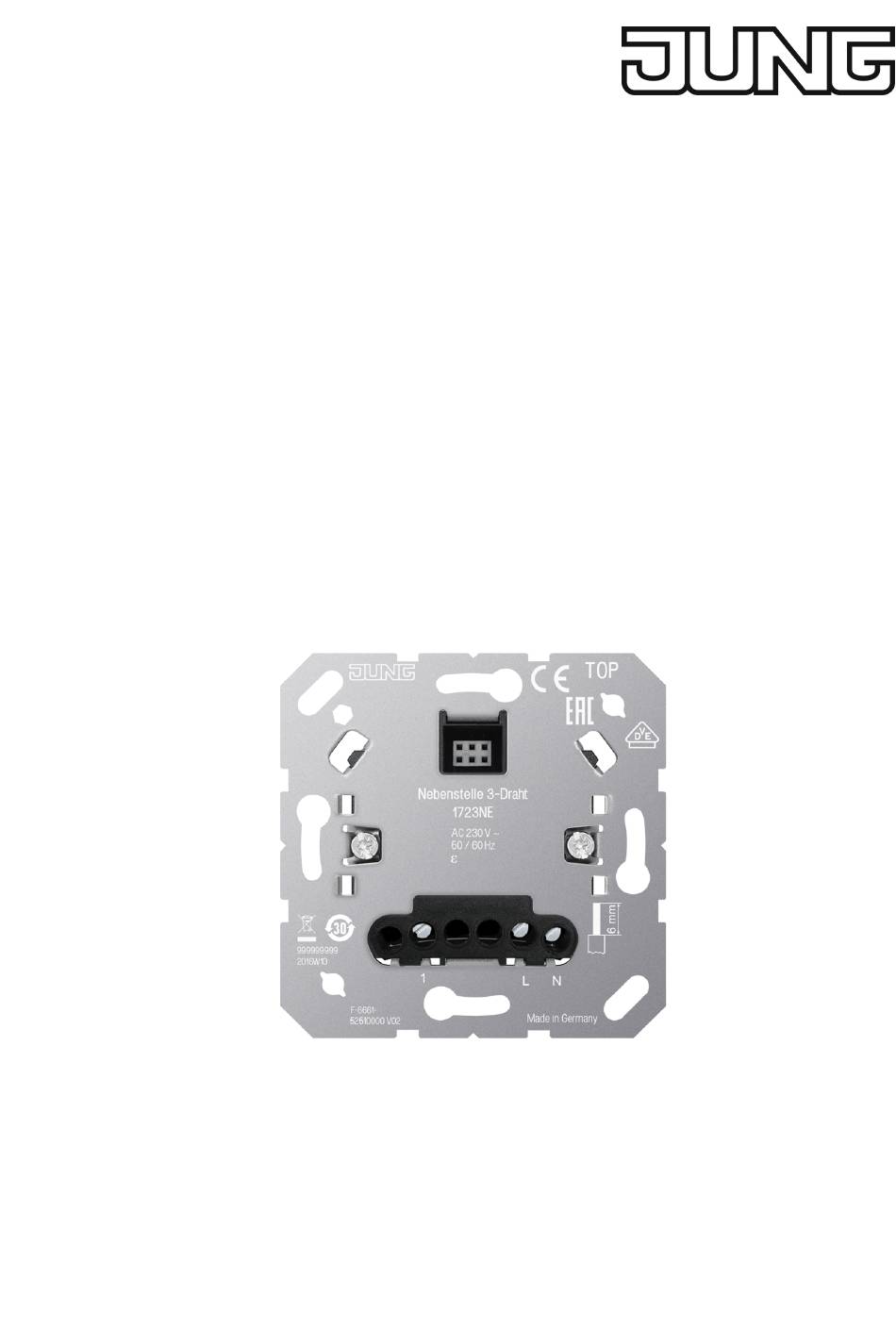

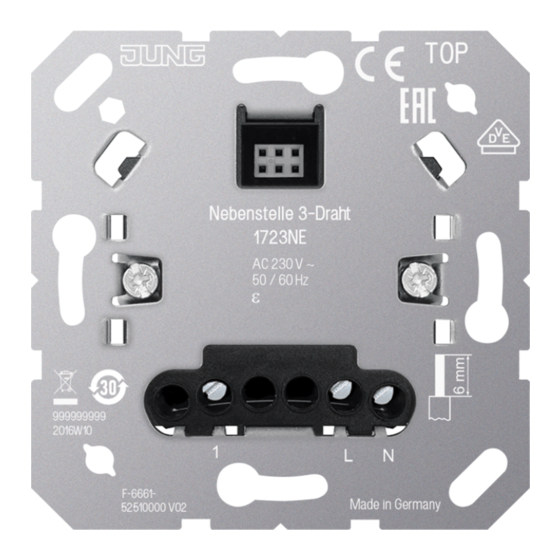

- Page 1 Operating instructions Satellite insert 3-wire, power supply Art. no. 1723NE ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de 25.08.2022 82599423 J0082599423 www.jung.de...
-
Page 2: Table Of Contents
Satellite insert 3-wire, power supply Table of Contents Safety instructions ...................... 3 Intended use ........................ 3 Operation .......................... 3 Information for electrically skilled persons ................ 4 Technical data ........................ 6 Troubleshooting ........................ 6 Warranty.......................... 6 82599423 2 / 6 25.08.2022 J0082599423... -
Page 3: Safety Instructions
Extension unit operation via LB management or eNet covers of inserts with ex- tension input – Voltage supply of wirelessly connected operating covers from the systems JUNG HOME, eNet and KNX RF and JUNG HOME motion detectors – Extension for extending the detection field of motion and presence detectors –... -
Page 4: Information For Electrically Skilled Persons
Satellite insert 3-wire, power supply Adjusting the brightness (only dimming insert) ￭ Long press on the operating cover at the top or bottom. Saving the switch-on brightness (only dimming insert) ￭ Adjust the brightness. ￭ Press operating cover over entire surface for longer than 4 seconds. Example 2: A motion or presence detector is fitted on a switch insert on the main device Switching the light... - Page 5 Satellite insert 3-wire, power supply Up to ten 3-wire extensions (2) can be connected to a main device (1) (see figure 1). Image 2: Connection diagram for multiple main devices to a 3-wire extension for the central control Up to five identical or different main devices (1) can be controlled together by a 3-wire extension (2) (see figure 2).
-
Page 6: Technical Data
Route power and extension unit cables in separate cables. Decrease current load on the power cable. Warranty The warranty is provided in accordance with statutory requirements via the specialist trade. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de...
