Tronic dimmer
Tronic dimmer
Art.-No.: 243 EX
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
The load is not electrically isolated from the mains even when the device is switched off.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components
(1) Dimmer
(2) Frame
(3) Central plate
(4) Adjusting knob
(5) Screw terminals
3 Function
Intended use
-
Switching and dimming incandescent lamps, HV halogen lamps and Tronic transformers
with halogen lamps
-
Suitable for mixed operation up to the specified output (see section Technical data)
-
Installation in appliance box to DIN 49073
i No operation with inductive transformers.
32542423
J:0082542423

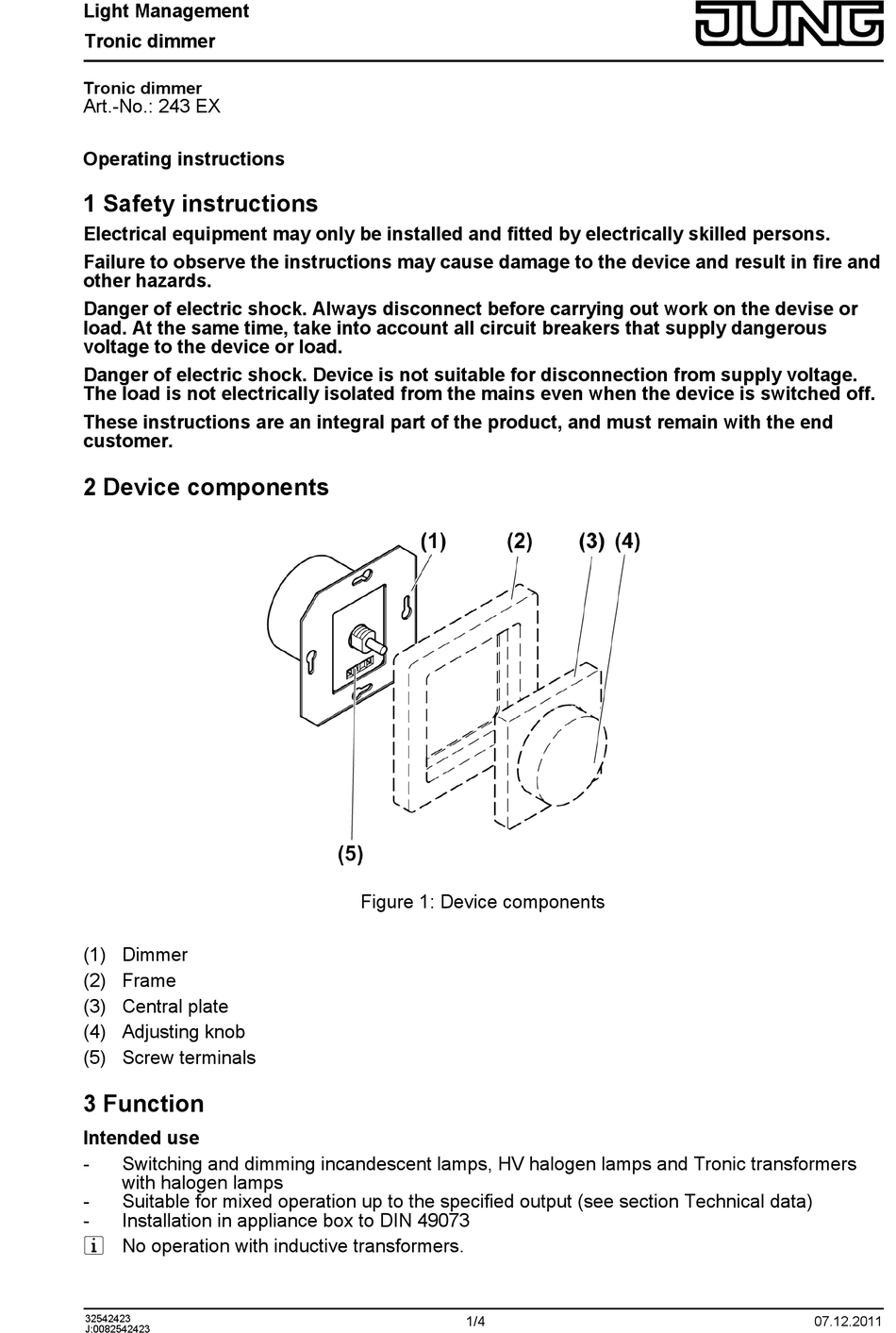

Figure 1: Device components
1/4
07.12.2011
