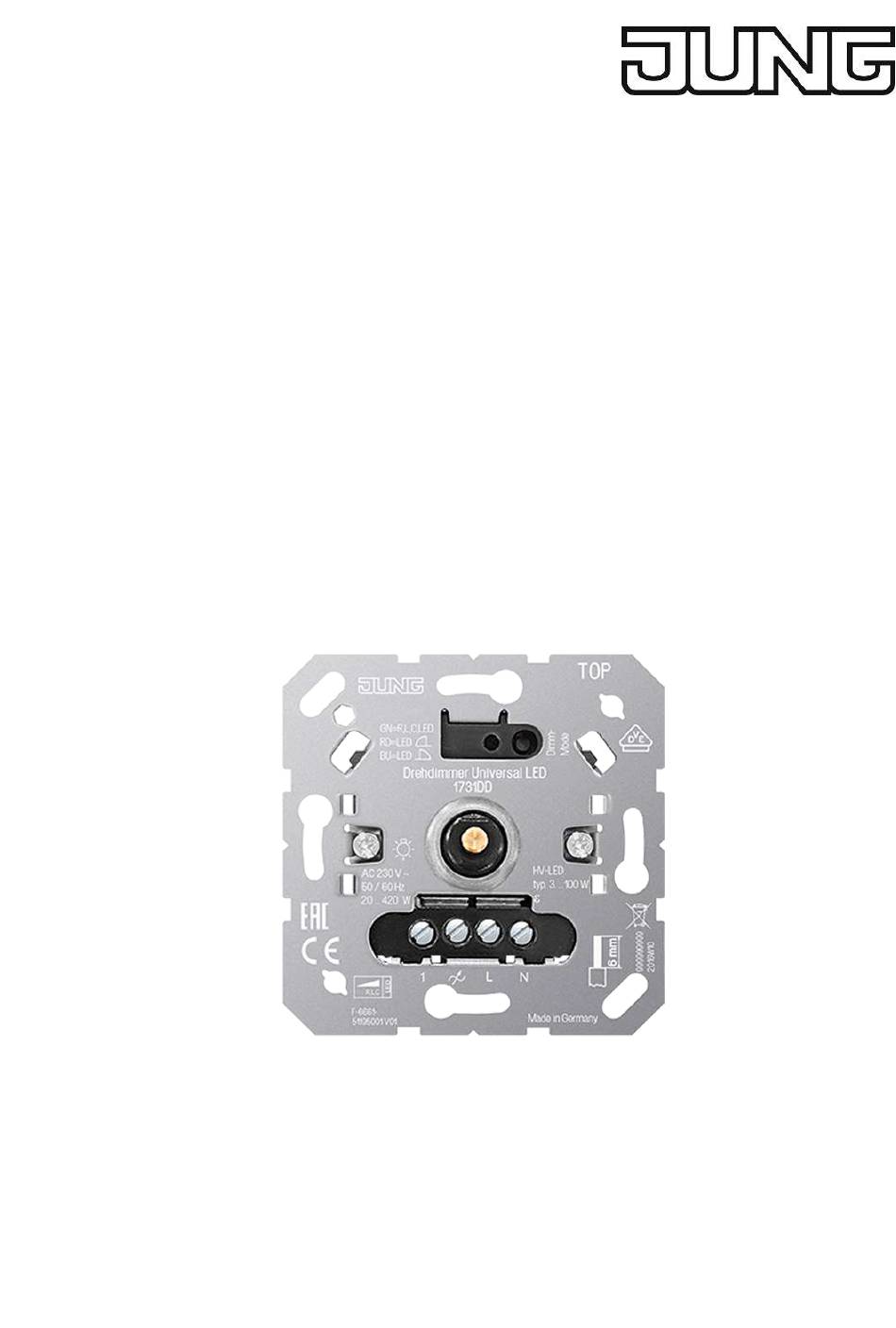

- Page 1 Operating instructions Universal rotary dimmer LED Art. no. 1731DD ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de 23.08.2022 82598643 J0082598643 www.jung.de...
-
Page 2: Table Of Contents
Universal rotary dimmer LED Table of Contents Safety instructions ...................... 3 Intended use ........................ 3 Product characteristics ...................... 3 Operation .......................... 4 Information for electrically skilled persons ................ 5 Mounting and electrical connection................ 5 Commissioning ...................... 7 Technical data ........................ 9 Troubleshooting ...................... 10 Accessories ........................ 11 Warranty.......................... 12 82598643 2 / 12 23.08.2022... -
Page 3: Safety Instructions
Universal rotary dimmer LED Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. Danger of electric shock. Device is not suitable for disconnection from supply voltage because mains potential even is applied on the load when the device is switched off. -
Page 4: Operation
Universal rotary dimmer LED Power extension possible by means of power boosters. Operation Switching light or adjusting brightness Operation on the main device or a rotary extension is identical. Image 1: Switching light or adjusting brightness ￭ Press the setting knob briefly: Light switches on or off (see figure 1). ￭... -
Page 5: Information For Electrically Skilled Persons
Universal rotary dimmer LED Deleting the switch-on brightness ￭ Press the setting knob briefly: Light switches on at the saved switch-on bright- ness. ￭ Press the setting knob for longer than 4 seconds. The switch-on brightness is deleted. Switching on takes place at the last brightness value set. - Page 6 Universal rotary dimmer LED Mounting and electrical connection Image 3: Connection diagram with optional extensions Button Dimm-Mode Display LED of the dimming principle Rotary axle Rotary extension, 3-wire extension 2-wire extension Push-button, NO contact Connect 600 Watt LED lamps or compact fluorescent lamps at most per 16 ampere circuit breaker.
-
Page 7: Commissioning
Universal rotary dimmer LED Image 4: Clampable conductor cross-section The light can be switched by briefly pressing the Dimm-Mode button (1). Reset the overheating protection / short-circuit protection If the electronic overheating or short-circuit protection has been activated, separate the dimmer from the grid. Commissioning Operating mode: Universal, R,L,C,LED (factory setting) –... - Page 8 Universal rotary dimmer LED ￭ Press the button Dimm-Mode (1) for longer than 1 second and keep it pressed. LED (2) flashes. Light switches on at the lowest brightness and slowly be- comes brighter. When changing the operating mode to universal, the calibration to the load is first performed.
-
Page 9: Technical Data
Universal rotary dimmer LED Technical data Rated voltage AC 230 V ~ Mains frequency 50 / 60 Hz Standby power approx. 0.35 W Power loss approx. 4 W Ambient temperature -5 ... +45 °C Connected load at 25°C (see figure ) Operating mode {: max. -
Page 10: Troubleshooting
Universal rotary dimmer LED 2-wire, push-button unlimited Total line length Power cable max. 100 m Extension max. 100 m Troubleshooting Connected LED lamps or compact fluorescent lamps switch off in the lowest dimming position or flicker Cause: The set minimum brightness is too low. Increase minimum brightness. -
Page 11: Accessories
Universal rotary dimmer LED Exchange HV-LED lamps for another type. The dimmer switches the load off briefly and then on again. Cause: Short-circuit protection has tripped but now there is no longer a fault. The dimmer has switched off and the load cannot be switched on again Cause 1: Overheating protection has tripped. -
Page 12: Warranty
Universal rotary dimmer LED Warranty The warranty is provided in accordance with statutory requirements via the specialist trade. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de www.jung.de 82598643 12 / 12 23.08.2022...
