Light Management
Rotary dimmer
Rotary dimmer with 2-way push switch
Art. No. 225 NV DE
Rotary dimmer with 2-way push switch
Art. No. 823 NV DW
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Always disconnect before carrying out work on the devise or load. At the same time, take
into account all circuit breakers that supply dangerous voltage to the device or load.
The device is not suitable for disconnection from supply voltage.
For operation with inductive transformers, each transformer must be fused on the
primary side. Only safety transformers according to EN 61558-2-6 may be used.
These instructions are an integral part of the product, and must remain with the end
customer.

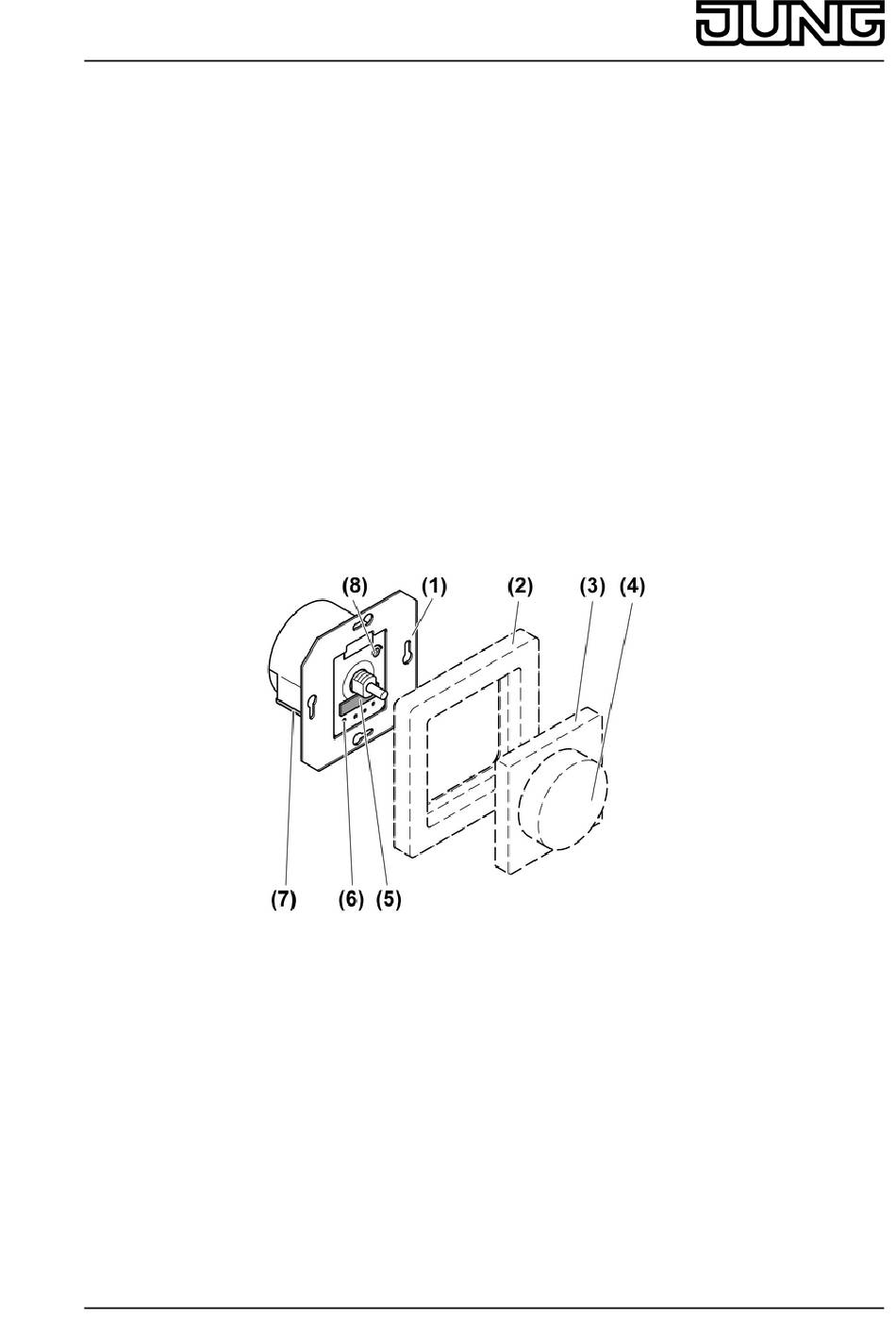

2 Device components
(1) Dimmer
(2) Frame
(3) Central plate
(4) Adjusting knob
(5) Fuse holder
(6) Measuring points for voltage test
(7) Release lever for plug terminal
(8) Basic brightness setter
32534523
J:0082534523
Figure 1: Device components
1/5
30.10.2013
Advertisement
Table of Contents
Related Manuals for Jung 225 NV DE
Summary of Contents for Jung 225 NV DE
- Page 1 Light Management Rotary dimmer Rotary dimmer with 2-way push switch Art. No. 225 NV DE Rotary dimmer with 2-way push switch Art. No. 823 NV DW Operating instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons.
- Page 2 Light Management Rotary dimmer 3 Function Intended purpose Switching and dimming incandescent lamps, HV halogen lamps and LV dimmable inductive transformers with halogen lamps. Suitable for mixed operation up to the specified output. Installation in appliance box to DIN 49073. i No operation with Tronic transformers.
- Page 3 Light Management Rotary dimmer Connecting and mounting the dimmer Figure 2: Connection diagram (1) Dimmer (7) Pull the connecting cable out of the push terminal. (9) Control output A Remove approx. 15 mm of insulation from the connecting cables. Connect the dimmer (1) according to the connection diagram (figure 2). Fit dimmer in appliance box, connection terminals must be at the bottom.
- Page 4 Ambient temperature +5 ... +25 °C Connected load at 25 °C i Power specifications including transformer power dissipation. Incandescent lamps Art. No. 225 NV DE 20 ... 500 W Art. No. 823 NV DW 20 ... 375 W HV halogen lamps Art. No. 225 NV DE 20 ...
- Page 5 We provide a warranty as provided for by law. Please send the device with a description of the defect to our central customer service office. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle Telefon: +49.23 55.8 06-0 Telefax: +49.23 55.8 06-2 04...
