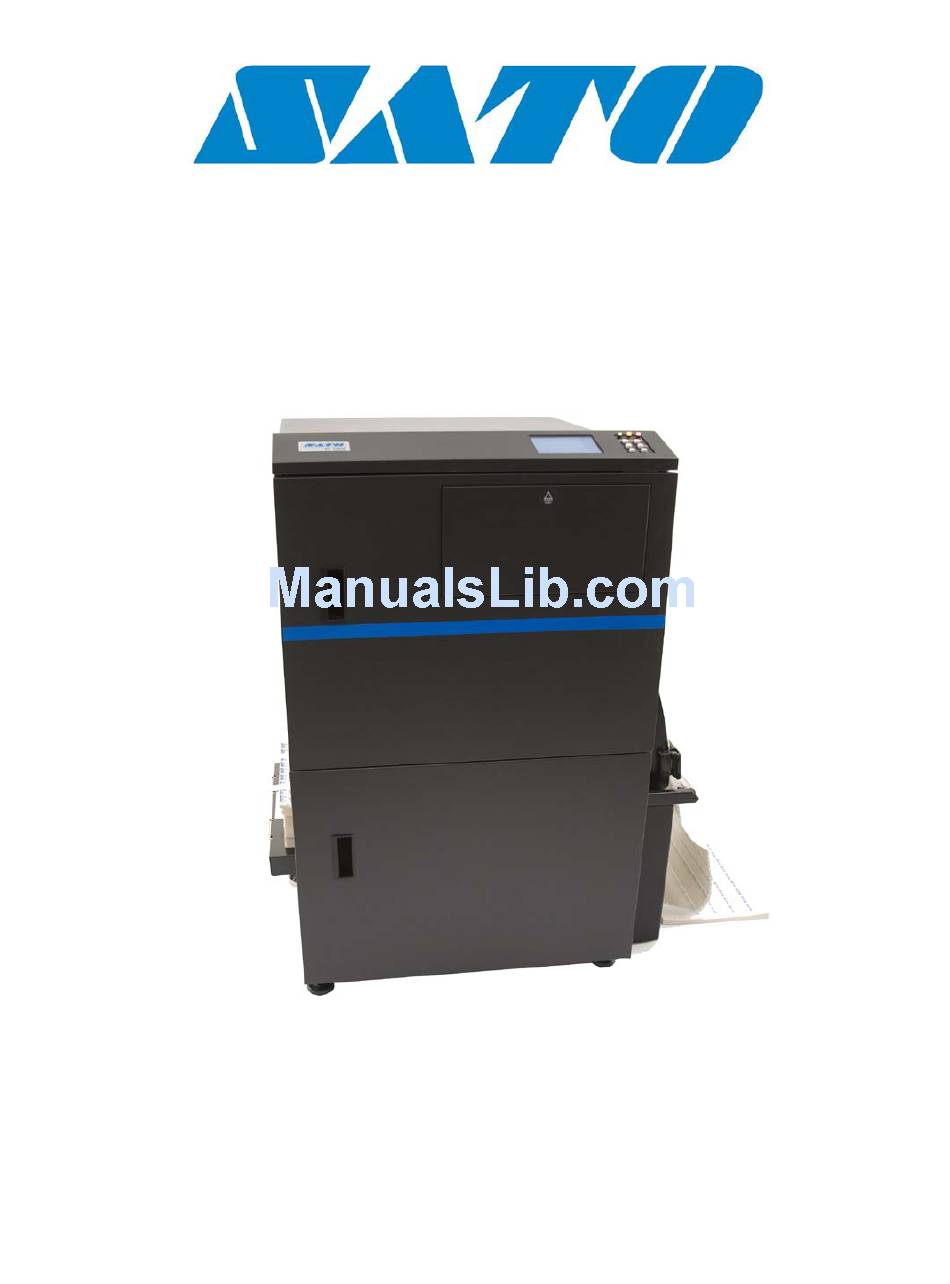

LP 100R Laser Printer
Installation Guide
Part No. 9855148

Advertisement

Table of Contents
loading

Related Manuals for SATO LP 100R

Summary of Contents for SATO LP 100R

  • Page 1 LP 100R Laser Printer Installation Guide Part No. 9855148...
  • Page 2 Initial release Rev 1 April, 2014 USB Support, Company Info Copyright © 2009 SATO America, Inc. ALL RIGHTS RESERVED No part of this work may be reproduced or copied in any form without the express written consent of: SATO America, Inc.
  • Page 3 All rights are reserved for devices, circuits, techniques, software, and names appearing in this publication. SATO America, Inc. ("SATO"), also reserves the right to make changes to this publication and to the equipment described herein without notice. Considerable effort has been made to ensure that this publication is free of inaccuracies and omissions.

  • Page 4: Liability Disclaimer

    SATO America, Inc., has prepared this manual for use by SATO employees and customers. The information contained herein is the property of SATO and must not be reproduced without prior written approval from SATO. MSDS sheets are available by request.

  • Page 5: Regulatory Notices

    INSTALLATION GUIDE Regulatory Notices Laser Safety This product employs a Class 3B laser diode having maximum power of 35 mW and wavelength of 770-800 nm. This product is certified as a Class 1 laser product. Since the laser beam is concealed by protective housings, the product does not emit hazardous laser radiation as long as the product is operated according to the instructions in this manual.

  • Page 6: Fcc Regulations

    INSTALLATION GUIDE FCC Regulations This equipment generates and uses radio frequency and, if not installed in accordance with the instruction manual, may cause interference to radio and television reception. The equipment has been tested and found to comply within the limits for a Class A computing device in accordance with specifications in subpart J of Part 15 of the Federal Communication Commission (FCC) Rules, which are designed to provide reasonable protection against such interference in a commercial installation.
  • Page 7 If this equipment does cause interference to radio or television reception (which as specified can be determined by turning the printer off and on), SATO encourages the user to try to correct the interference by changing one of the following: Equipment orientation •...

  • Page 8: Cdrh Regulations

    INSTALLATION GUIDE DHHS This printer is certified as a Class 1 Laser Product under the United States Department of Health and Human Services (DHHS) Radiation Standard according to the Radiation Control for Health and Safety Act of 1968. This means that the printer does not produce hazardous laser radiation. Since radiation emitted inside the printer is wholly confined within protected housings and external covers, the laser beam cannot escape from the equipment during any phase of user operation.
  • Page 9 INSTALLATION GUIDE General Notes, Warnings, and Cautions Note: The LP 100R printer uses an electrophotographic printing system, which requires more precautions in observing paper specifications than those required for conventional impact line printers. In an electrophotographic printing system, improper toner transfer and missing characters are evident if the paper absorbs moisture and ripples in the vicinity of the perforation.
  • Page 10 Preface Purpose of This Guide To present installation instructions for the LP 100R printer. This guide provides all installation instructions, from initial unpacking through electromechanical setup, that are required to prepare the printer for paper loading and operation using the instructions provided in the LP 100R Operator's Guide (Document Number 9855063).

  • Page 11: Table Of Contents

    INSTALLATION GUIDE TABLE OF CONTENTS CHAPTER 1. PRELIMINARY INSTRUCTIONS ........1 Operating Location Requirements ........1 Unboxing and Unpacking Instructions ........1 Before Moving the Printer to the Operating Location.... 1 Door Opening Minimum Width Requirements....... 1 CHAPTER 2. UNPACKING INSTRUCTIONS .......... 2 Removing the Carton ............
  • Page 12 INSTALLATION GUIDE TABLE OF CONTENTS, continued Installation of the Suction Brake Unit ........12 Installation of Web Guide/Connector Panel ......13 CHAPTER 5. ELECTRO MECHANICAL SETUP PROCEDURE... 15 Mounting the Paper Stopper (Stacker)........ 15 Preparation of the Developer Unit........16 Controller Installation, Meto-Logic ........
  • Page 13 Appendix D LP 100R Swing Guide Installation (Optional) Appendix E LP 100R Burster Unit Installation (Optional) Appendix F LP 100R IPDS USB Key Installation (Optional) Appendix G LP 100R PC Cartridge Installation Appendix H LP 100R Printer Equipment Installation Checklist...
  • Page 14 INSTALLATION GUIDE This page is intentionally blank.

  • Page 15: Chapter 1. Preliminary Instructions

    3.1. Door Opening Minimum Width Requirements When moving an “out of box” LP 100R printer through a door opening, ensure that door openings are no smaller than the required minimum width of 35” (889 mm). Measure all door openings through which the printer must pass to reach its operating location.

  • Page 16: Chapter 2. Unpacking Instructions

    INSTALLATION GUIDE CHAPTER 2. Unpacking Instructions 2.1 Removing the Carton 1. Remove the straps from the carton as shown in Figure 2-1. 2. Remove the nails from the carton. Strap Nail Figure 2-1 After unpacking, keep all packing materials out of reach of children.
  • Page 17 INSTALLATION GUIDE 3. Lift the outer carton as shown in Figure 2-2 until the carton is clear of the printer. 4. Remove the ramp on the side of the printer. 5. Remove the four cushions under the printer and remove the plastic bag surrounding the printer. Use caution when handling the ramp.

  • Page 18: Removal Of Packing Material And Accessories Boxes

    INSTALLATION GUIDE Removal of Packing Material and Accessories Boxes 1. Remove the two accessories boxes from the stacker tray. 2. Raise the stacker table upward. 3. Insert the ramp into the pallet on the front of the printer as shown in Figure 2-3. Make sure that the ramp cannot separate from the pallet.
  • Page 19 INSTALLATION GUIDE Utilizing four or more people, carefully move the printer down the ramp to the floor as shown in Figure 2-5. Figure 2-5 Remove the tape holding the right side of the printer. Remove the packing material from underneath the tractor assembly as shown in Figure 2-6. Packing Material Tractor Assembly Figure 2-6...
  • Page 20 INSTALLATION GUIDE 9. Open the fuser lamp assembly (2) screws. 10. Remove the shipping cushion on the fuser glass as shown in Figure 2-7. 11. Remove the tape holding the Fuser Toner Filter and Exit Rollers (Figure 2-7). 12. Remove any remaining tape and packing material from the outside of the printer. Tape, Cushion Fusing Toner Filter...
  • Page 21 INSTALLATION GUIDE 13. Open the front door. 14. Remove all visible tape as shown in Figure 2-8 below. 15. Remove the Toner Collecting Bottle and then remove the tape from the lower charger unit. 16. Re-install the Toner Collecting Bottle. Tape Toner Collecting Bottle Tape...
  • Page 22 INSTALLATION GUIDE 17. Remove the Lower Right Side Cover. 18. Remove the Controller and remove packing material around the controller. 19. Remove the Controller cover and confirm that all boards are securely seated. 20. Replace the Cover. 21. Unwrap the Printer Power Cord, Controller Power Cord, and the AC adapter, all located in the lower printer compartment.

  • Page 23: Chapter 3. Moving The Printer To The Operating Location

    INSTALLATION GUIDE CHAPTER 3. Moving the Printer to the Operating Location General Cautions 1. Use care not to damage the finish of the printer covers, especially while moving the printer through door openings. 2. Do not tilt the printer more than 0.5 degree. 3.

  • Page 24: Chapter 4. Unpacking And Inventory Of Accessories Boxes

    INSTALLATION GUIDE CHAPTER 4. Unpacking and Inventory of Accessories Boxes Accessories Box No. 1 1. Unpack and inventory the contents of accessory Box 1. Toner Bottle & Paper Stopper Developer Powder (2) Packs Accessories Note: Developer pack contains two (2) packages of developer powder each. Two packages of developer powder are used during initial printer prep.

  • Page 25: Accessories Box No. 2

    INSTALLATION GUIDE Accessories Box No. 2 1. Unpack and inventory the contents of accessories Box 2. Cloth, Brush, and Cleaning Pen Suction Brake Unit Accessories Box No. 2 Accessories Box No. 3 1. Unpack and inventory the contents of Box No. 3 Universal Web Guide, Qty 1 Conveyor Roller, 1-3/8”...

  • Page 26: Installation Of The Suction Brake Unit

    INSTALLATION GUIDE Installation of the Suction Brake Unit 1. Remove the Suction Brake, three mounting screws and two connector cover mounting screws from accessories Box 2. 2. Mount the Suction Brake Unit onto the four mounting holes as shown in Figure 4-1. Figure 4-1 3.

  • Page 27: Installation Of Web Guide/Connector Panel

    INSTALLATION GUIDE Installation of Web Guide/Connector Panel 1. Remove the filler plate (2 screws) from lower side cover beneath the suction brake. See figure below. 2. Remove the lower right side cover from the printer. Filler Plate Mounting Screws Lower Side Cover Connector Panel 3.
  • Page 28 INSTALLATION GUIDE Installation of Web Guide/Connector Panel, continued 10. Position the Box Assembly under the suction brake of the printer locating the edge 5 ¾” from the edge of the front printer cover. See Figure below. 11. Place the roller shaft (Item 2) in the grooves of the Web Guide Assembly (Item 1) and adjust the spring plungers so that the roller shaft does not pull out of the grooves during printer operation.

  • Page 29: Chapter 5. Electromechanical Setup Procedure

    INSTALLATION GUIDE CHAPTER 5. Electromechanical Setup Procedure Note: Parts of this chapter may have already been completed during printer prep. Mounting the Paper Stopper (Stacker) Remove the front of the Paper Stopper Guide Rail Screw shown in Figure 5-1. Paper Stopper Guide Rail Guide Rail Screw Figure 5-1 Install the Paper Stopper in the Paper...

  • Page 30: Preparation Of The Developer Unit

    INSTALLATION GUIDE Preparation of the Developer Unit Open the front door and slide open the EP Drawer (Figure 5-3.) Figure 5-3 Remove any pieces of tape and packing material from the EP Drawer (Figure 5-4). Figure 5-4...
  • Page 31 INSTALLATION GUIDE Preparation of the Developer Unit, continued Remove the Main Charge Unit as shown in Figure 5-5. Figure 5-5 Remove the OPC Cartridge form the EP Drawer as shown in Figure 5-6 Figure 5-6 WARNING Do not touch the organic photoconductor (OPC) drum. If the OPC Drum is exposed as-is, and the cartridge is kept in a bright light, it will not function properly.
  • Page 32 INSTALLATION GUIDE Preparation of the Developer Unit, continued Remove the Developer Unit from the EP Drawer as shown in Figure 5-7. Figure 5-7 Remove the two screws securing the lid of the Developer Unit and remove the lid as shown in Figure 5-8.
  • Page 33 INSTALLATION GUIDE Preparation of the Developer Unit, continued Remove one of the developer powder boxes from accessories Box 2. One at a time cut the corner of each packet and add the developer powder to the developer unit as shown in Figure 5-9 and 5-10. Evenly pour the contents of two packages of developer powder into the developer unit while rotating the developer drive gear in the direction of the arrow as shown in Figure 5-10.
  • Page 34 INSTALLATION GUIDE 5.2 Preparation of the Developer Unit, continued 12. Install the OPC Cartridge in the EP Drawer as shown in Figure 5-12. Figure 5-12 13. Install the Main Charger Unit on the OPC Cartridge as show in Figure 5-13. 14.

  • Page 35: Controller Installation, Meto-Logic

    INSTALLATION GUIDE Controller Installation, Meto-Logic CAUTION The printer power cord must not be connected until after the controller has been installed. Open lower Front Door. Locate power strip above main power supply cabinet (see Figure 5-17). Position the Controller in the lower cabinet as shown in Figure 5-15. Connect the monitor AC power cord from the connector panel harness to the Unswitched AC receptacle of the Printer.
  • Page 36 INSTALLATION GUIDE Controller Installation, Meto-Logic, continued 5. Attach the AC power cord supplied from the AC output receptacle of the power strip (Figure 5-17) to the input AC receptacle of the Meto-Logic controller. 6. Attach the AC power cord supplied from the AC input receptacle of the power strip to the Switched AC receptacle of the Printer as shown in Figure 5-17.
  • Page 37 INSTALLATION GUIDE Controller Installation, Meto-Logic, continued Attach the Blue TDU cable from the connector panel harness to the controller's TDU port as shown in Figure 5-16. Make sure the connector is securely seated. 10. Confirm that the controller voltage selector switch is set to the 230V position. 11.

  • Page 38: Storage Of Test Print Samples

    INSTALLATION GUIDE Storage of Test Print Samples 1. Test print samples printed during installation should be stored within the printer for future reference. 2. New print samples should be replaced in the printer each time a printer setting or a customer configuration has been altered.
  • Page 39 INSTALLATION GUIDE 5.4 Storage of Test Print Samples, continued Error Log:...
  • Page 40 INSTALLATION GUIDE 5.4 Storage of Test Print Samples, continued Character Fill:...

  • Page 41: Power Cord Connection

    INSTALLATION GUIDE Power Cord Connection Note: If the printer is being installed in a country location other that the U.S. or Canada, it may be necessary to change the power cord. Consult Appendix B for further information. 1. Check that the printer circuit breaker is in the OFF position (Figure 5-18). Figure 5-18 2.
  • Page 42 230V position. Plug the printer power cord into the wall outlet (Figure 5-20). LP 100R AC Power Figure 5-20 Note: For wall outlet specification, refer to Appendix C, "LP 100R Printer Equipment Specifications."...

  • Page 43: Main Power-On

    INSTALLATION GUIDE Main Power-On WARNING Before connecting the Printer power cord, confirm that the Controller power supply voltage selector switch is set to the 230V position. Place the printer circuit breaker in the ON position, (Figure 5-21). Figure 5-21 5.7 Controller Power-On Turn the Printer's main Power switch On (see Figure 5-19).

  • Page 44: 5.8 Entering Maintenance Mode

    INSTALLATION GUIDE 5.8 Entering Maintenance Mode 5.8.1 Turning the Controller's Power Off Before entering Maintenance mode you must first turn off power to the controller. This is necessary when performing maintenance functions that may require sudden power off and on conditions. Turning power off to the controller allows you to work freely without damaging the controller: 1.
  • Page 45 If forms had been loaded previously, and no errors are present, the Maintenance Mode display will appear without an error message (Figure 5-25). Figure 5-24 IDLE 11.0" x 15.0" 600 dpi LP 100R S/N: 10000000 ISD-202VER1.5.19 Figure 5-25...

  • Page 46: Atdc Adjustment

    INSTALLATION GUIDE ATDC Adjustment • When replacing the developer unit or replacing the developer starter, it is necessary to adjust the calibration of the ATDC sensor before using the printer. Note: The developer unit comes supplied with four (4) packages of developer starter. Two (2) packages are used for the initial charge, and the remaining two (2) packages are to be replaced at the 400K interval.

  • Page 47: Toner Bottle Installation

    INSTALLATION GUIDE 5.10 Toner Bottle Installation 1. Tap a new Toner Bottle against a desk or other hard surface four or five times as shown in Figure 5-28. Then turn the Toner Bottle upside down and tap it in the same way again. Figure 5-28 Shake the Toner Bottle vigorously while rotating the bottle at least five times, Figure 5-29.
  • Page 48 INSTALLATION GUIDE 5.10 Toner Bottle Installation, continued With the “UP” marking on top, insert the Toner Bottle into position as shown in Figure 5-31. Check that the black line on the Bottle is aligned with the marking on the Toner Bottle. Figure 5-31 While supporting the Toner Bottle with your hand, gently pull the toner seal off of the Bottle as shown in Figure 5-32.

  • Page 49: Power Off

    INSTALLATION GUIDE 5.11 Power Off Place the Printer Power Switch (Refer to Figure 5-19) into the off position.

  • Page 50: Final Mechanical Check

    INSTALLATION GUIDE 5.12 Final Mechanical Check After completing the installation, check the following mechanical functions. Check the opening and closing of the Front Cover, Toner Bottle access cover and the ■ left Side Cover. Check the Stacker Assembly for smooth operation. ■...
  • Page 51 If the installer is familiar with the procedures required to load paper and print test and status pages, he or she should perform them now and then proceed to the LP 100R Operator's Guide, document number 9855063, Chapter 3: Printer Operation for specific user configuration instructions.
  • Page 52 INSTALLATION GUIDE This page is intentionally blank.
  • Page 53 A P P E N D I X A LP 100R PRINTER OPERATING LOCATION REQUIREMENTS Operating Location Requirements Before proceeding with the printer installation, check the following location requirements. 1.1.1 General Site Requirements To ensure the utmost safety and prevent possible malfunctions of the printer, install it in a location that...
  • Page 54 A P P E N D I X A 1.1.3 Clearance Requirements 1.1.3.1 Printer Size Figure A-1 illustrates a front and top view of the printer that provides its overall dimensions as well as the height and total clearance required when the front and left side covers are fully opened. Figure A-1 also provides proper media loading distance 13"...

  • Page 55: Maintenance Area

    Figure A-2 illustrates a printer top view showing the minimum clearance required to maintain and repair the LP 100R printer. Taking into consideration the width and depth dimensions of the printer, a space approximately 9’ (2.74 M) X 9’ (2.74 M) is required.
  • Page 56 A P P E N D I X A 1.1.3.3 Printer Clearance Requirements (Installed) Figure A-3 illustrates a printer top view showing the minimum clearance required when a printer is moved to a wall. A minimum of 6” (inches) is required for proper printer ventilation. Wall 6”...
  • Page 57 A P P E N D I X A 1.1.4 Operating Environment Requirements 1.1.4.1 Temperature 50° F to 95° F (10° C to 35° C) with a temperature variation not exceeding 18° F (10° C). 1.1.4.2 Humidity 35% to 80% RH with a maximum fluctuation of 20% per hour. 1.1.5 Power Source and Grounding Requirements 1.1.5.1...
  • Page 58 INSTALLATION GUIDE This page is intentionally blank.
  • Page 59 A P P E N D I X EUROPEAN POWER CONSIDERATIONS POWER CORD INSTRUCTIONS (EUROPE) DANGER THIS APPARATUS IS SHIPPED WITH THE POWER SUPPLY CORD AND THE PLUG WHICH IS CERTIFIED FOR USA AND CANADA. IF IT IS USED IN EUROPEAN COUNTRIES, THE POWER SUPPLY CORD AND PLUG SHOULD BE CHANGED BY THE LAW AS FOLLOWING.
  • Page 60 A P P E N D I X 1.1.2 CONFIGURE THE PLUG 1. If the power supply cord is not provided with an attachment plug cap, configure a new plug to the power supply cord in accordance with following procedures. 2.
  • Page 61 A P P E N D I X C LP 100R PRINTER EQUIPMENT SPECIFICATIONS Item Description 1. Printing Method Dry Electro Photographic ■ Laser Diode Exposure ■ 2. Printing Speed 3,300 LPM (6LPI) ■ 3. Printing Resolution 240/300/400/480/600 DPI (Changeable) ■...
  • Page 62 A P P E N D I X C LP 100R PRINTER EQUIPMENT SPECIFICATIONS, continued Item Description 12. Power Source Universal (AC 200 to 240 VAC) ■ (50 or 60 Hz) 13. Heat Dissipation (BTU) Operating: 8560 BTU/hr (2508 Wh) ■...
  • Page 63 A P P E N D I X D LP 100R SWING GUIDE INSTALLATION SWING GUIDE INSTALLATION PROCEDURE Packing list Swing guide assembly Paper guide Swing guide drive motor Screw (4x8 mm) assembly Paper guide plate assembly Cover (sensor) Magnet assembly Screw (3×5 mm)
  • Page 64 A P P E N D I X D SWING GUIDE INSTALLATION, CONTINUED 2. Remove the blind plate from the printer frame for the swing guide drive motor assembly located above the PWB-F/SC board by removing the two screws. Note: The removed blind plate is no longer necessary.
  • Page 65 A P P E N D I X D SWING GUIDE INSTALLATION, CONTINUED 7. Separate the two swing guide frame plates by removing the two thumb screws, and divide the swing guide assembly. 8. Install the inner swing guide assembly and mounting brackets (four screws) to the upper frame as shown in Figure D-5.
  • Page 66 A P P E N D I X D SWING GUIDE INSTALLATION, CONTINUED 11. Swing the front plate upward and secure up against GUIDE FILM the bottom frame of the printer against the stationary magnet. 12. Insert the guide film into the hole in the upper part of the swing guide (front side).(Figure D-8) Figure D-8 13.
  • Page 67 A P P E N D I X E LP 100R BURSTER UNIT INSTALLATION Packing list: Burster unit Fixing screws (4×8 mm) Paper guide Label Harness assembly Caution: Before starting the installation, turn OFF the main POWER switch. 1. Open the front door, and open the toner bottle.
  • Page 68 A P P E N D I X E BURSTER UNIT INSTALLATION, CONTINUED 4. Remove the exit guide A by removing the four screws. (Figure E-3) Figure E-3 5. Remove the exit guide B by removing the two screws. (Figure E-4) Note: The exit guide A and B are no longer necessary together with the screws when the burster unit is installed.
  • Page 69 A P P E N D I X F LP 100R IPDS USB KEY INSTALLATION 1. To enable the IPDS Emulation, the Sentinel Key shown below must be installed into the USB port of the Meto-Logic controller.
  • Page 70 INSTALLATION GUIDE This page is intentionally blank.
  • Page 71 A P P E N D I X G LP 100R PC CARTRIDGE INSTALLATION Packing list PC drum PC cleaning unit Cleaner blade Note1: Before starting the installation, turn the printer OFF. 1. Install the new PC drum to the stops in the cleaning unit as shown in Figure G-1.
  • Page 72 A P P E N D I X G LP 100 R PC CARTRIDGE INSTALLATION, CONTINUED 3. Re-install the Main Charger Unit as shown in Figure G-3. 4. Slide the EP Drawer closed. Figure G-3...
  • Page 73 LP 100R PRINTER EQUIPMENT INSTALLATION CHECKLIST In order to permit the SATO Printer Product Support Group to maintain an adequate Customer Database for those Customers using the LP 100R Printer, it is imperative that the attached Equipment Checklist be completed, removed from Appendix H, and returned to the SATO Product Support Group after installation has been completed.
  • Page 75 APPENDIX H LP 100R PRINTER EQUIPMENT INSTALLATION CHECKLIST CUSTOMER DATA Company Name: Company Address: Contact Name: Location of closest Airport: Distance from Airport to Customer site: SALES DATA Sales Representative Name: EQUIPMENT DATA Date Received: Did the printer shipping container or any additional containers sustain any damage in-transit?
  • Page 76 Cleaning Pen (1) Accessory Box No.3 Universal Web Guide (1) Conveyor Roller(1) Installation Procedure Were the following items received with the Controller? Controller Power Cord Power Cord Adapter LP 100R Installation Guide LP 100R Operations Manual Page 2 of 3...
  • Page 77 Please attach the following to this checklist: 1.The Printer Status Page 2.Samples of each document printed on the LP 100R Printer 3. A system block diagram for the installed printer (See typical system example below). A simple block diagram will Return Checklist with attachments to: SATO Labeling Solutions America, Inc.
  • Page 78 This page is intentionally blank.
  • Page 79 APPENDIX H This page is intentionally blank.
  • Page 80 Published by: SATO America, Inc. LP 100R Installation Guide Publication ID # 9855148 March 2009 RELATED PUBLICATIONS LP 100R Maintenance Guide 9855143 LP 100R Operator’s Guide 9855063 LP 100R Unboxing Instructions...
