Summary of Contents for SATO LM408-LM412e
-

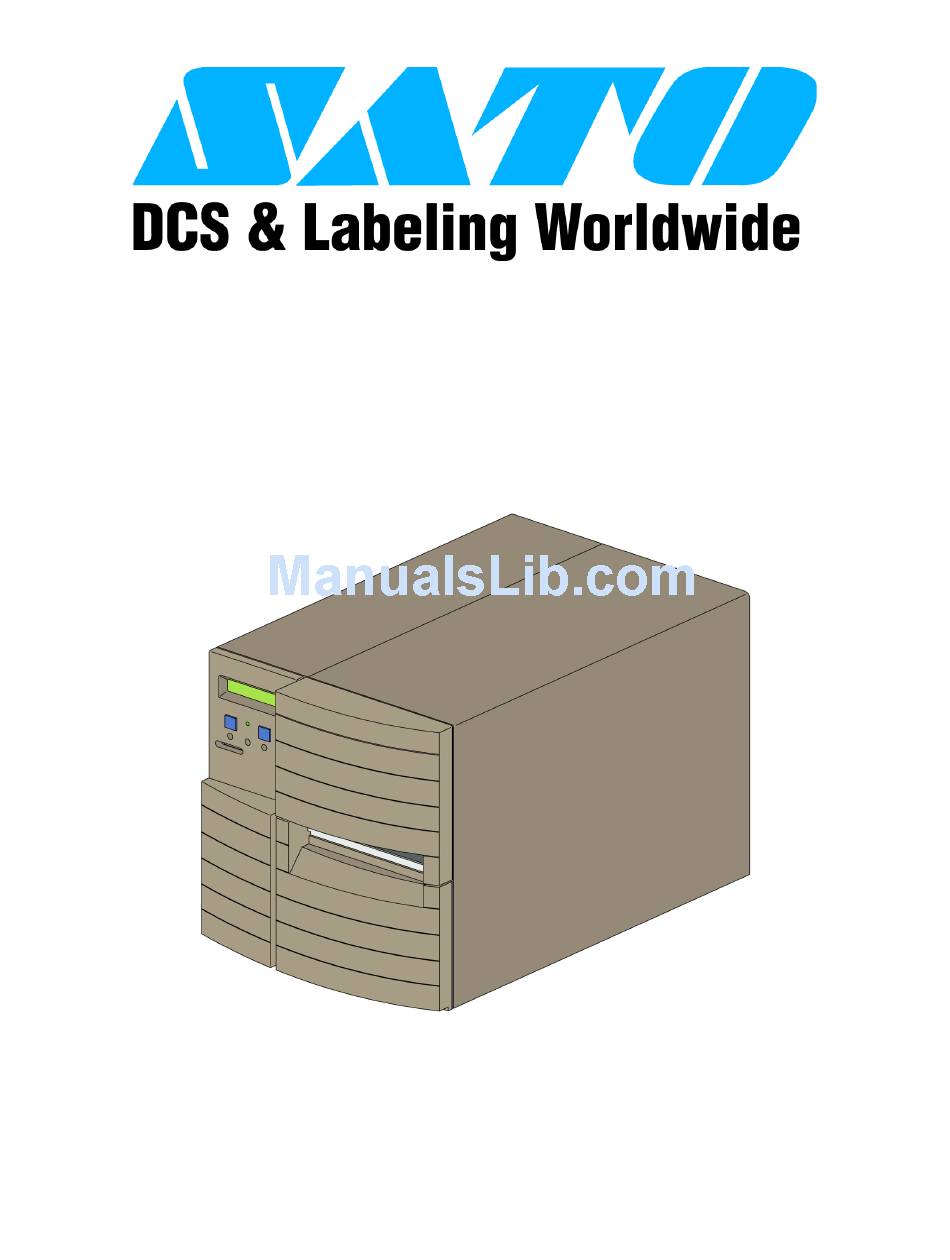

Page 1: Parts List
LM408-412e PRINTER PARTS LIST PN: 9001157D... - Page 2 SATO America, Inc. 10350A Nations Ford Road Charlotte, NC 28273 Main Phone: (704) 644.1650 Technical Support: (704) 644.1660 Technical Support Fax: (704) 644.1661 E-Mail: satosales@satoamerica.com techsupport@satoamerica.com www.satoamerica.com PN: 9001157D...
-
Page 3: Cover Assembly
COVER ASSEMBLY Figure PL1a, Frame & Housing Covers (1) Figure PL1b, Frame & Housing Covers (2) 1/15 LM408-412e Parts List PN: 9001157D... - Page 4 Figure PL1c, Frame & Housing Covers (3) FRAME & HOUSING COVERS (1-3) ITEM PART NUMBER PART DESCRIPTION PR3770550 BASE FRAME PT6680100 CASE LEG PR3770350 CENTER FRAME MD4401022 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER PZ0771050 REAR COVER MD4300622 PAN HEAD SCREW W/SPRING WASHER &...
- Page 5 FRAME & HOUSING COVERS (1-3) ITEM PART NUMBER PART DESCRIPTION P00165010 BASE JOINT BRACKET FOR PRINT ASSEMBLY MD4300622 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER PE1770200 ROLLER BRACKET PE3770100 ROLLER, 3.1 x 8 x 16 PB0751400 TENSION ROLLER POST PA3741800 TENSION ROLLER BRACKET PB0740900...
-
Page 6: Circuit Board Assemblies
CIRCUIT BOARD ASSEMBLIES Figure PL2a, Circuit Board Assemblies (1) Figure PL2b, Circuit Board Assemblies (2) 4/15 LM408-412e Parts List PN: 9001157D... - Page 7 CIRCUIT BOARD ASSEMBLIES (1 & 2) ITEM PART NUMBER PART DESCRIPTION R08667000 MAIN CIRCUIT BOARD, LM408e with S/N 7E032269 and below, and LM412e with S/N 7J034465 and below R11474001 MAIN CIRCUIT BOARD, LM408e with S/N 7E032270 and above, and LM412e with S/N 7J034466 and above PC9730100 SPRING, LOCK...
- Page 8 DRIVE TRAIN & PRINT ASSEMBLY Figure PL3a, Drive Train & Print Assembly 6/15 LM408-412e Parts List PN: 9001157D...
- Page 9 DRIVE TRAIN & PRINT ASSEMBLY ITEM PART NUMBER PART DESCRIPTION P00162000 ENGINE FRAME MD4300622 PAN HEAD SCREW W/ SPRING WASHER & WIDE FLAT WASHER PE5680000 GUIDE SHAFT MH9300822 PAN HEAD SCREW, P-TIGHT PE1770300 GUIDE BLOCK MH0301022 PAN HEAD SCREW. P-TIGHT PD1770100 STAY, RIGHT ANGLE BRACE MD4401022...
- Page 10 Figure PL3b, Drive Train & Print Assembly (2) DRIVE TRAIN & PRINT ASSEMBLY (2) ITEM PART NUMBER PART DESCRIPTION PA1772000 SIDE PLATE MD4401022 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER PB0770600 HEAD PRESSURE SHAFT PE1740100 HEAD PRESSURE CAM PE1740201 HEAD PRESSURE PIN PC1770200...
- Page 11 Figure PL3c, Drive Train & Print Assembly (3) DRIVE TRAIN & PRINT ASSEMBLY (3) ITEM PART NUMBER PART DESCRIPTION PA2770200 MOTOR BRACKET MD4401022 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER PL1770100 MOTOR PULLEY, 20, LM408e, S/N 7E032269 and below, and 7E032270 and above MJ1400524 W-POINT ALLEN SCREW K00113100...
-
Page 12: Print Head Assembly
PRINT HEAD ASSEMBLY Figure PL4, Print Head Assembly (1) PRINT HEAD ASSEMBLY (1) ITEM PART NUMBER PART DESCRIPTION PA1772000 HEAD FRAME PA1771900 RIBBON ADJUSTMENT PLATE MD4300622 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER MD4300622 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER PA1770601 ADJUSTMENT PLATE B PB2770300... - Page 13 PRINT HEAD ASSEMBLY (1) ITEM PART NUMBER PART DESCRIPTION RH1775201 PRINT HEAD WIRING HARNESS PV9740300 CUSHION BRACKET G00251000 PRINT HEAD, LM412e (305 dpi) P04911000 PRINT HEAD BRACKET, LM408e S/N 7E032269 and below with GH000741A only P04911100 PRINT HEAD BRACKET, LM408e S/N 7E032270 and above, LM412e S/N 7J034465 and below, and 7J034466 and above R02501000 ALIGNMENT PLATE...
-
Page 14: Ribbon Spindle Assembly
RIBBON SPINDLE ASSEMBLY Figure PL5a, Ribbon Spindle Assemblies (1) 12/15 LM408-412e Parts List PN: 9001157D... - Page 15 Figure PL5b, Ribbon Spindle Assemblies (2) RIBBON SPINDLE ASSEMBLIES (1 & 2) ITEM PART NUMBER PART DESCRIPTION PE4730100 RIBBON BOSS PE2720100 COLLAR, 10 x 12 x 10 P00626000 RIBBON BOSS SPRING MH0300522 PAN HEAD SCREW, P-TIGHT PT2301020 WASHER, OIL DRY, METAL PA0680400 DISC PC1730100...
- Page 16 RIBBON SPINDLE ASSEMBLIES (1 & 2) ITEM PART NUMBER PART DESCRIPTION PA0680300 RIBBON FRICTION WASHER PC0740200 BACK SPRING PA0730100 GUIDE PLATE A PA0730200 HOLD PLATE PE1681100 GUIDE PLATE B PE7720100 DISK PLATE A PA1770500 RIBBON SENSOR BRACKET MD4300622 PAN HEAD SCREW W/SPRING WASHER & WIDE FLAT WASHER MA0300622 PAN HEAD SCREW RH1740400...
-
Page 17: Accessories And Options
ACCESSORIES & OPTIONS Figure PL6, Accessories & Options ACCESSORIES & OPTIONS ITEM PART NUMBER PART DESCRIPTION WWCL45031 ENHANCED SERIAL INTERFACE BOARD WWCL45060 IEEE1284 PARALLEL INTERFACE BOARD 11S000358 LAN INTERFACE BOARD, ETHERNET WCL405800 802.11G WIRELESS INTERFACE BOARD WCL404060 ENHANCED USB INTERFACE BOARD 15/15 LM408-412e Parts List PN: 9001157D...
