- Page 1 51004PL_Ed2 PLUS 1-10 Instruction Manual 11-20 Bedienungsanleitung 21-31 Gebruiksaanwijzing 32-41 Instruktionsanvisning 42-51 brugervejledning 52-61 Ohjekirja 62-72 Instrukcja obsługi L430N BLK and L430N WHI 73-84 Инструкция по эксплуатации...

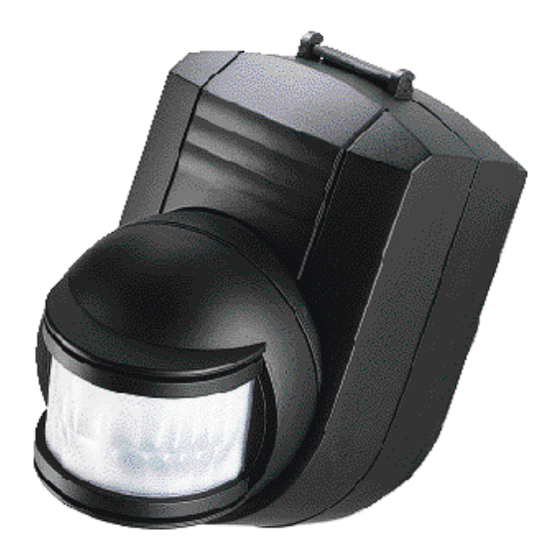

- Page 2 Chime. L430N BLK and L430N WHI The PIR is compatible with the Friedland Libra Plus Chime system, (Chimes and Instruction Manual Pushes) and Spectra Plus switching receiver.
-
Page 3: Device Range
KIT CONTENTS Device range PIR Detector The quoted range of the system is measured Instruction Manual in ideal conditions. Any barrier (e.g. walls/ Fixing pack containing: ceilings aluminium reinforced UPVC windows 2 slot-in PIR window masking curtains and metallic parts of house structures etc) ●... - Page 4 Installing the PIR The recommended mounting height for ● the detector is 2.5m. At this height, the NOTE: Before fixing the PIR unit to the detector will have a range of approximately mounting surface, it is advisable to check 12m. Mounting the detector higher will that the system works correctly (i.e.
- Page 5 Configure the detector for walk testing Note: The PIR can be configured to work according to the selected Day or Night with either a Chime or a Switching operating mode as follows: Receiver in Day or Night mode. It cannot 1) Set the TIME control fully anti-clockwise work with both.
- Page 6 Please refer to your instruction manual supplied Adjust the position of the detector head to with the Switching Receiver or Chime for the obtain approximately the desired detection procedure to do this. At the appropriate point area as required. Angling the PIR head you will have to trigger the PIR by walking in downwards will reduce the range and produce front of it so that it detects your movement.
- Page 7 Setting the PIR for Automatic DAY Operating Instructions Operation with a Libra Plus Chime: Setting the PIR for Automatic Having completed the ‘walk test’ procedure, NIGHT Operation with a Spectra Plus you can set the unit for automatic operation as Switching Receiver: follows: Having completed the ‘walk test’...
-
Page 8: Troubleshooting
PIR low battery indication: Testing: The system may be tested by placing the PIR The PP3 battery should operate the PIR Detector into Walk Test, (see “PIR Walk Test”). for approximately 12 months depending on the number of activations each day and the effect of low temperatures. - Page 9 PIR does not activate Switching Receiver and lights at all… Check that the battery in the PIR is not exhausted. ● Check that the power to the Receiver is switched ON. ● Check the bulb and replace if defective. Ensure that the light bulb is correctly fitted. ●...
-
Page 10: Maintenance
Maintenance Disposal & Recycling The product may be cleaned with a soft At the end of their useful life the damp cloth and then wiped dry. Do not packaging and product should be use abrasive, solvent based or aerosol disposed of via a suitable Recycling cleaners as this may damage and/or Centre. - Page 11 If an item develops a fault, the product must be returned to the point of sale with proof of purchase, a full description of the fault and all relevant batteries (disconnected). Friedland is a trademark of Novar ED&S. Friedland, Novar Electrical Devices and Systems,...
