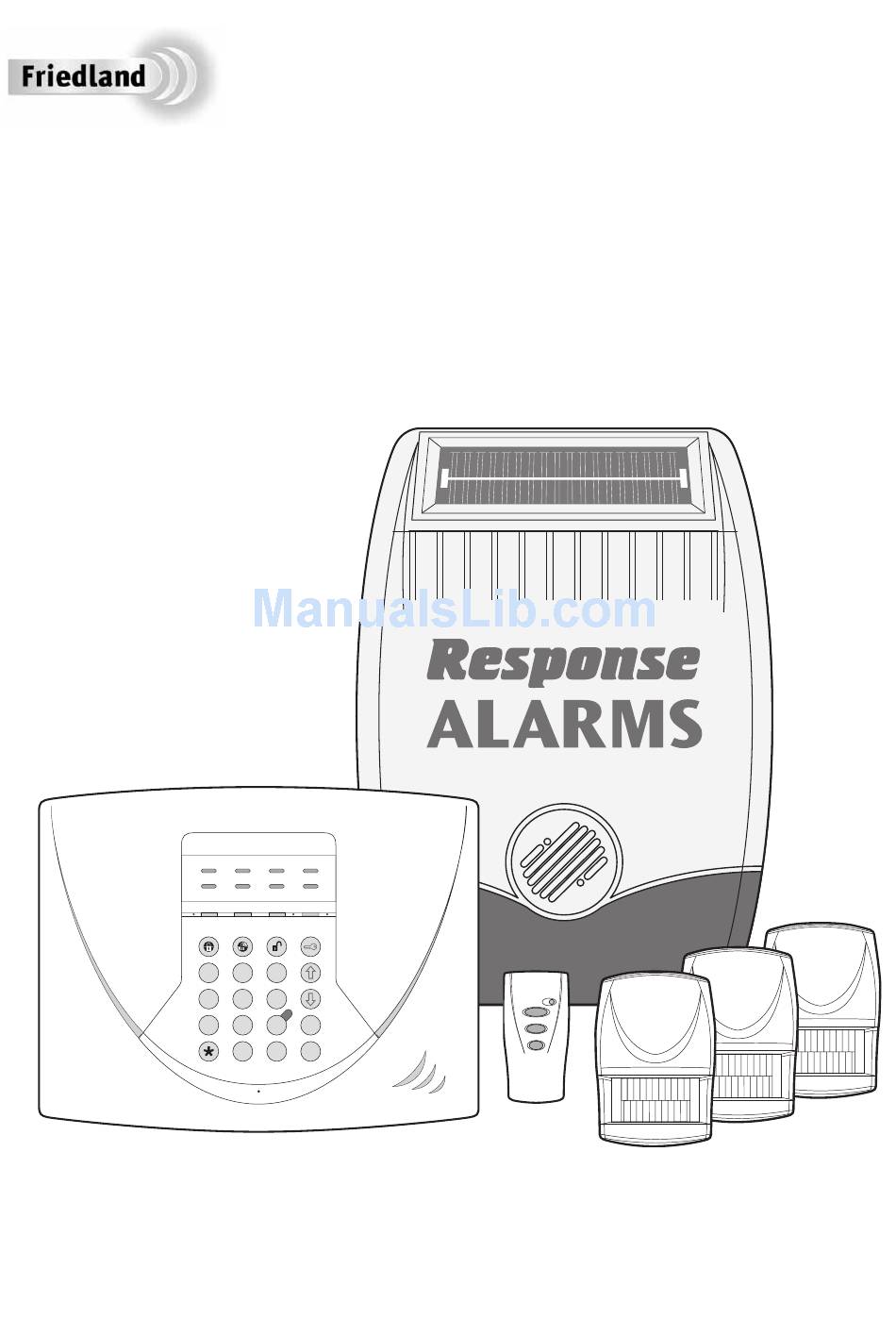

- Page 1 SA3 PLUS with Telephone Dialler ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5 ZONE 6 FIRE TAMPER POWER PART ARM LOW BATT. ENTER Installation & Operating Manual...
-
Page 2: System Security
FOREWORD SYSTEM SECURITY This Wirefree Alarm System has been designed to meet with the requirements of BS6799 Class 1 for This system has been designed to both detect Wireless Alarms. All components are designed and intruders and act as a strong deterrent to would-be manufactured to provide a high standard of security intruders when installed correctly. -
Page 3: Table Of Contents
CONTENTS KIT CONTENTS TESTING THE SYSTEM Initial Testing INTRODUCTION AND OVERVIEW Testing An Installed System System Arming Detector Test Entry/Exit Delay Hard-Wired Siren Test Zones Siren Test Zone Lockout Control Panel LED Test Voice Dialler Solar Siren Service Mode Tamper Protection Voice Dialler Test Jamming Detection Battery Monitoring... -
Page 4: Kit Contents
KIT CONTENTS The Alarm System should contain the following components. 1 x External Solar Siren 1 x 6 Zone LED Control Panel with Telephone Dialler 3 x PIR Movement Detectors 1 x Remote Control Also included: Power Supply Adaptor Telephone Connection Lead Installation &... -
Page 5: Introduction And Overview
INTRODUCTION AND OVERVIEW SYSTEM ARMING The system has a full ‘Arm’ and a ‘Part-Arm’ mode. Delay Armed zones will not become fully armed until Full ARM will arm all zones while the ‘Part-Arm’ after the Entry/Exit delay period has expired. When a mode will only arm the zones that are enabled for detector on a Delay Armed zone is triggered, an alarm ‘Part-Arm’. -
Page 6: Tamper Protection
TAMPER PROTECTION Control Panel) to the same ON/OFF combination (the House Code) selected by the user/installer. The All system devices (except any Remote Control Units) Control Panel is then programmed to operate only incorporate Tamper protection features to protect with devices set to this House Code. All detectors against unauthorised attempts to interfere with the and Remote Control Unit(s) must be configured with device. -
Page 7: Planning And Extending Your Wirefree
PLANNING AND EXTENDING YOUR WIREFREE ALARM SYSTEM The following example below shows a typical property optimum security. Use this as a guide for your installation incorporating the suggested positions for the External in conjunction with the recommendations contained in Siren, Control Panel, PIR and Magnetic Detectors for this manual for planning your intruder alarm system. -
Page 8: Remote Control
REMOTE CONTROL UNIT The Remote Control Unit(s) are used to Arm, Part-Arm 3. Ensure that the Jumper Link located immediately and Disarm the system. below the House Code DIP switches is fitted in position for use with this alarm system. 4. -
Page 9: Control Panel
CONTROL PANEL Zone LEDs ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5 ZONE 6 FIRE TAMPER POWER PART ARM LOW BATT. Status LEDs Keypad ENTER Outside View of Control Panel POSITIONING THE CONTROL PANEL When choosing a suitable location for the Control 5. - Page 10 External Tamper Switch Jumper Upper Keyhole Link P51 Fixing Hole Upper Keyhole Fixing Hole -ve Terminal (Black Lead) +ve Terminal (Red Lead) +ve Terminal (Blue Lead) -ve Terminal (Blue Lead) Power Supply Cable Access Hole Lower Fixing Hole Reset Jumper Link P1 Power Supply Jack Socket...
-
Page 11: Configuring The Control Panel
Connect the BT plug on the other end of the lead b) Press to save the new setting and return ENTER to an appropriate telephone outlet. to programming mode. If the cable supplied is not long enough to reach a c) Press to return to programming mode suitable phone point then it will need extending... -
Page 12: Passive Infra-Red (Pir) Movement Detectors
The Control Panel alarm will sound and all Zone/ expected life in excess of 1 year. When the battery Fire/Tamper LEDs will flash. level drops, with the PIR in normal operation mode and the battery cover fitted, the LED behind the 4. -
Page 13: Installing And Configuring The Pir Movement Detectors
4. Where possible, mount the detector in the corner of 3. Using the rear cover as a template, mark the the room so that the logical path of an intruder would positions of the fixing holes on the wall. cut across the fan detection pattern. PIR detectors 4. -
Page 14: Testing The Pir Movement Detectors
To select the required pulse count set DIP 5 of TESTING THE PIR MOVEMENT SW3 as follows: DETECTORS ON 1 pulse detection Ensure that the system is in Test mode, (see page 18). OFF 2 pulse detection Ensure that the PIR is configured in Walk Test mode, (i.e. -
Page 15: Positioning The Magnetic Contact Detectors
When the protected door or window is closed the radio range of the device. If required, it may be Detector Contact Switch is held closed by the necessary to space the magnet and detector away Magnetic field from the Magnet. Opening the from the metal surface using a plastic or wooden protected door or window will remove the magnetic... -
Page 16: Testing The Magnetic Contact Detectors
parallel gap between the Magnet and Detector 7. Configure the alarm zone which the detector will is less than 10mm and that the arrow on the operate on with DIP switches 9-11 as follows: Magnet is pointing towards and aligned with the DIP 9 DIP 10 DIP 11... -
Page 17: External Solar Siren
5. Replace the battery cover on the Detector. 6. Press on the Control Panel to exit Walk Test mode. EXTERNAL SOLAR SIREN The Siren and Solar Panel are all encapsulated within a tough polycarbonate housing. This housing provides full protection against adverse weather conditions. An LED/Strobe unit is built into the siren to act as a visible deterrent/indication that the system is active. -
Page 18: Installing And Configuring The Solar Siren
INSTALLING AND CONFIGURING THE SOLAR SIREN 7. Undo the 3 screws holding the DIP Switch Cover 1. Remove the fixing screw from the bottom edge of in place and remove the cover. the Siren housing and carefully hinge off the front cover. -
Page 19: Power-Up Of The Solar Siren
11. The Solar Siren will acknowledge Disarm signals IMPORTANT: Ensure that the rear tamper switch from the Remote Control and Service Mode is closed when you fit the siren cover to the back- signals from the Control Panel by beeping. It is plate (i.e. -
Page 20: External Connections
EXTERNAL TESTING THE SYSTEM CONNECTIONS INITIAL TESTING As the system is initially installed it is recommended The Control Unit incorporates a terminal block for that each device is tested in turn as it is installed, (refer connection of an external Hard-wired Siren or to testing instructions for particular device). -
Page 21: Hard-Wired Siren Test
HARD-WIRED SIREN TEST VOICE DIALLER TEST Press Press The internal relay driving the hardwired siren will be Zone LED 6 will illuminate. switched ON for a period of approximately 5 seconds. The voice dialler will call each activate number in the Zone LED 2 will be illuminated during the test. -
Page 22: Programming
3. Switch OFF the mains supply to the plug-in PSU Enter a new 4 digit User Access code. As each digit Adapter and remove the plug from the DC power is entered an illuminated zone LEDs will be turned socket in the Control Panel. OFF. -
Page 23: Instant/Delay Zones
INSTANT/DELAY ZONES The zone LED corresponding to the current setting will illuminate. Default setting: zone 1: Delay, zones 2-6: Instant no alarm Press 1 minute 2 minutes The zone LEDs corresponding to the zones currently 3 minutes set to Delay will be illuminated. LEDs for zones set to 5 minutes Instant will be OFF. -
Page 24: Zone Lockout
ZONE LOCKOUT The zone 1 LED will illuminate to indicate the current Jamming Detector status. This feature, if enabled, prevents a single zone from LED ON Jamming Detection enabled triggering an alarm condition more than three times LED OFF Jamming Detection disabled before the system is disarmed. -
Page 25: Phone Numbers
Intruder Press to return to programming mode without - provides standard intruder monitoring with normal saving. ARM and PART-ARM functions. TELEPHONE NUMBERS 24 Hour Intruder - used to provide 24 hour monitoring of areas Default setting: not programmed (all numbers). requiring continuous security protection even while Press to program phone number 1... -
Page 26: Record Alarm Message
RECORD ALARM MESSAGE LED ON Telephone number enabled LED OFF Telephone number disabled Default setting: not programmed To change the active status of a phone number press the Press button corresponding to the phone number. The LED will The zone 1 LED will illuminate. toggle between states each time the button is pressed. -
Page 27: Operating Instructions
Press the key corresponding to the required dial At the end of the programmed alarm duration the Siren method, the corresponding zone LED will illuminate as and Control Panel alarms will stop and the system will the setting is changed. automatically re-Arm itself, (subject to the conditions of the Zone Lockout feature). -
Page 28: Personal Attack (Pa) Alarm
The Control Panel will acknowledge the signal by Note: The Tamper protection facility on the Siren beeping. operates independently of the Control Panel. If the Tamper on the Siren is activated this will not be The Siren will also acknowledge the Disarm signal indicated at the Control Panel. -
Page 29: Siren Operating Mode
SIREN OPERATING MODE Note: Before removing the battery cover on any device to replace the battery ensure that the system is put into The siren can be switched back into operating mode Test mode to avoid initiating a Full Alarm condition. using either the Remote Control, Control Panel as follows: The low battery indication for each system component... -
Page 30: Maintenance
MAINTENANCE Your Alarm System requires very little maintenance. Note: Before removing the Solar Siren from the wall, However, a few simple tasks will ensure its continued either to replace the batteries or for any other reason, reliability and operation. ensure that the Solar Siren is first switched into Service Mode to prevent the tamper protection switch IMPORTANT: Should you, for any reason, have to activating the Siren, (see page 17). -
Page 31: Alarm Record
ALARM RECORD Complete the following information during installation for future reference when adding to your system and to assist Trouble Shooting Zone Settings. Zone Settings Zone Instant / Zone Detector Type(s) Location(s) Operating Part-Arm Delay Mode You may make a note of your User Access Codes and Installer Access Code below. User Access Code System House Code Use the above diagram to... -
Page 32: Trouble Shooting
TROUBLE SHOOTING Symptom Recommendation Symptom Recommendation Control Unit not working – Power LED OFF. Detection Zone triggered (LED flashing) but no alarm is sounding. 1. Mains power failure - check if other electrical circuits are operable. 1. Entry/Exit delay still running and not yet expired. 2. - Page 33 TROUBLE SHOOTING - continued Symptom Recommendation Symptom Recommendation LED on Remote Control not illuminating, or is Magnetic Contact Detector not working. dim when unit is operated. 1. Ensure batteries are connected with correct 1. Ensure battery is connected with correct polarity. polarity.
- Page 34 TROUBLE SHOOTING - continued Symptom Recommendation Symptom Recommendation Voice Dialler Not Operating. 1. Check that phone line is operating normally by connecting a normal telephone to the socket that the Control Panel is plugged into and checking for a dialling tone. 2.
-
Page 35: Extending Your Alarm System
If an item develops a fault, the product must be returned to the point of sale with: 1. Proof of purchase. 2. A full description of the fault. 3. All relevant batteries (disconnected). Friedland is a trade mark of Novar ED&S. -
Page 36: Component Specification
Contacts or Personal Attack buttons (Lines open 9.00am to 5.00pm, Personal Attack (PA) Battery Life >1 year Monday to Friday). Jamming Detection Low Battery Indicator Response Electronics Ltd. 0359 Roman House, Lysons Avenue, Ash Vale, Surrey GU12 5QF Distributors for Friedland Wireless Alarm Products.
