Congratulations on your purchase of SAWO Steam Generator.
Please read the manual carefully before using the steam generator.
KA TS O
TÄ RK EÄ
OH JEI
ST A
T LIS ÄO
HJ EE T
LÄ GG
MÄ RK
VIK TIG
E TIL L
A
TIL LÄ GG
DE
SA NV ISN
BE AC HT
ING AR
EN SIE
NA
ZU SÄ TZ
DIE
WI CH TIG
LIC HE
N
AN WE
EN
ISU NG
BE DIE
EN IN
NU NG
DE R
SA NL EIT
RE AD
TH E MA
UN G
AD DIT
ION AL
NU AL
INS TR
FO R
IMP OR
UC TIO
TA NT
NS
ST R
23 0V
1N ~
kW

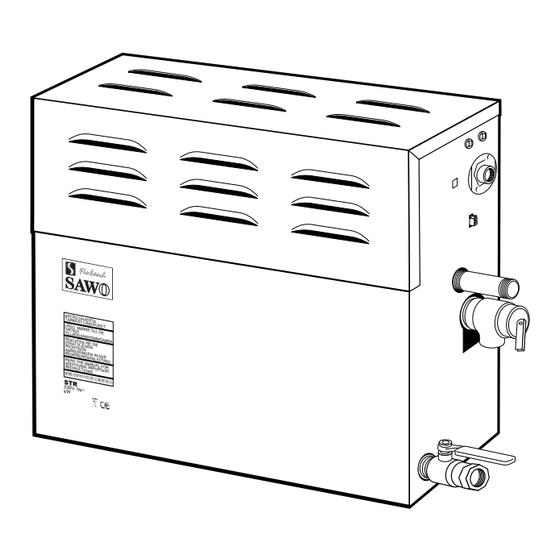

RESIDENTIAL
STEAMBATH
GENERATOR
SYSTEMS
MANUAL
STR90-1
STR120-3
STR90-3
STR150-3
!
W A R N I N G
1.
Children under the age of 16 should not use the Steambath.
2.
Check with a physician before use of the Steambath if you are pregnant, have a coronary condition, are in
poor health, are being treated for any other medical condition, or are using medication or drugs.
3.
Exit Steam Room immediately if you feel faint, dizzy, sleepy, or otherwise uncomfortable.
4.
Do not use the Steambath if you have recently consumed alcohol.
5.
Condensation and moisture may cause the the Steambath floor and other surfaces to become slippery and
dangerous. Installation of non-skid floor materials or the use of proper footwear is recommended at all times.
IMPORTANT! Read the manual provided for use and safety information.
SAWO
SAWO, Inc. SAWO Building Mactan Export Processing Zone 2 Cebu, Philippines 6015
www.sawo.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sawo STR45-1
Summary of Contents for Sawo STR45-1
- Page 1 Installation of non-skid floor materials or the use of proper footwear is recommended at all times. IMPORTANT! Read the manual provided for use and safety information. GENERATOR SAWO SYSTEMS SAWO, Inc. SAWO Building Mactan Export Processing Zone 2 Cebu, Philippines 6015 www.sawo.com...
- Page 2 Read these instructions before installation or service. Although this steambath generator • MODELS: has been fully qualified for shipment by SAWO, the following must be reviewed for proper, safe and enjoyable steam bathing. TABLE OF CONTENTS •...
-
Page 3: Locating The Steam Generator
NOTE: Running the steam line down and then up will create a steam trap blocking the SAWO controls can be located inside the steam room or on the outside of the steam room. flow of steam. - Page 4 -----\ Power Wiring - See page 8 "Field Power Wiring" diagrams. Check power voltage. Use 220-240V to connect a single phase SAWO residential steambath generator. Use 380-430V to connect a 3 phase SAWO residential steambath generator. Water Inlet Use minimum 90ºC / 600V rated insulated copper conductors only, sized in accordance with National Electrical Code and local electrical code for the Amps in Ampere Chart.
-
Page 5: Wiring Diagrams
Field Power Wiring Wiring Diagrams L E G E N D Diagrams Models STR45-1, STR-60-1, STR75-1 and STR90-1 FIELD WIRING FACTORY Ground Lug WIRING POWER Ground INPUT TRANSFORMER BLACK WHITE SINGLE PHASE DARK STR45-1, STR60-1, BLACK BLUE STR75-1, STR90-1 Contactor... - Page 6 Check local requirements. The unit will refill automatically when water may occur. In the event of a power failure, the the control is activated again. In areas of very hard water, a SAWO automatic drain Automatic drain valve will open and discharge hot water.
- Page 7 Because of variables in construction, these sizing instructions and specifications should be use in the SAWO steamhead. considered as guidelines only. SAWO will review the model selected provided we receive complete information, including working drawings, specifications, and pertinent electrical and construction CAUTION Use aroma oils with caution.
- Page 8 The weight is 32 kg per unit. Models STR45-1, STR45-3, STR60-1, STR60-3, STR75-1, STR75-3, STR90-1 and STR90-3 are compatible with SAWO Controls and include a matching steam head. The weight is 21 kg per unit. cover removed Ground Lug Power Block...
- Page 9 The Remote Temperature Probe is for use with SAWO Control only. Do not damage the probe cable. use any other controls. Do not use any other temperature probe with the SAWO control. Noncompatible products may result in an inoperative control and a hazardous condition.
-
Page 10: Installation Instructions
Step 1 of silicone. Determine the desired installation location of the control. Do not apply silicone The SAWO control is designed to be installed inside or 25 mm 25 mm to any other parts of outside the steam room as a matter of personal preference. - Page 11 Connection of SAWO Control and Temperature Sensor to PCB. Display Keys On/Off Key • ON/OFF Key is used to turn the steam generator on/off. • Press On/Off key to turn steam generator on. Press a second time to turn steam generator off.
- Page 12 Subject to change without notice.
