Code
Problem
Check that the drain valve is not blocked.
E6
Water level too high and
Clean the level probes. If no problem can be
operation not permitted.
found, contact the retailer.
E7
Water level too low and
Check that water supply is open and there is
operation not permitted.
enough pressure. Check solenoid valve.
Clean level probes. If no problem can be
found, contact the retailer.
E8
Illogical combination of
Clean level probes. If no problem can be
water level measurements.
found, contact the retailer.
E9
Fill failure
Check that water supply is open and there is
enough pressure. Check solenoid valve.
Clean level probes. If no problem can be
found, contact the retailer.
E10
Drain failure
Check that the drain valve is connected and
not blocked. Clean the level probes. If
problem can be found, contact the retailer.
E11
Communication failure.
Check the RJ12 cable. If the area where
cable is located has many other cables, it
can cause EMC problems.
If no problem can be found, contact
the retailer.
E12
Temperature is greater than
Contact qualified electrician or maintenance
the maximum temperature.
personnel before using the steam generator
again.
E13
No master steam generator
Dip switch setting is incorrect. Check dip
connected
switch settings. If no problem can be found,
contact the retailer.
www.sawo.com
info@sawo.com
Solution
no
Subject to change without notice.

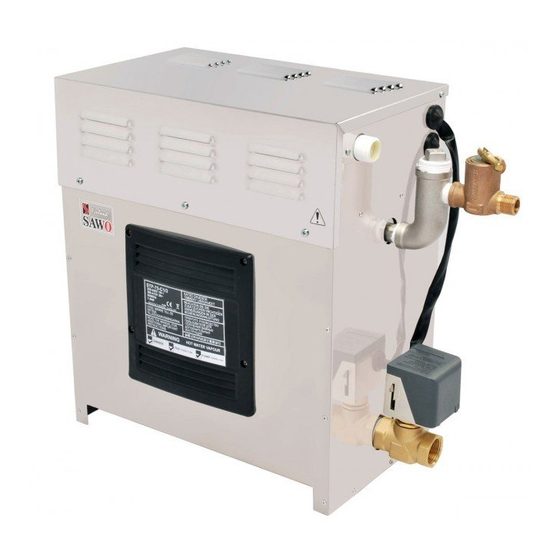

Models
STP-30-1/2
STP-45-1/2
STP-45-3
STP-35-1/2
STP-50-1/2
STP-60-3
STP-40-1/2
STP-60-C1/3

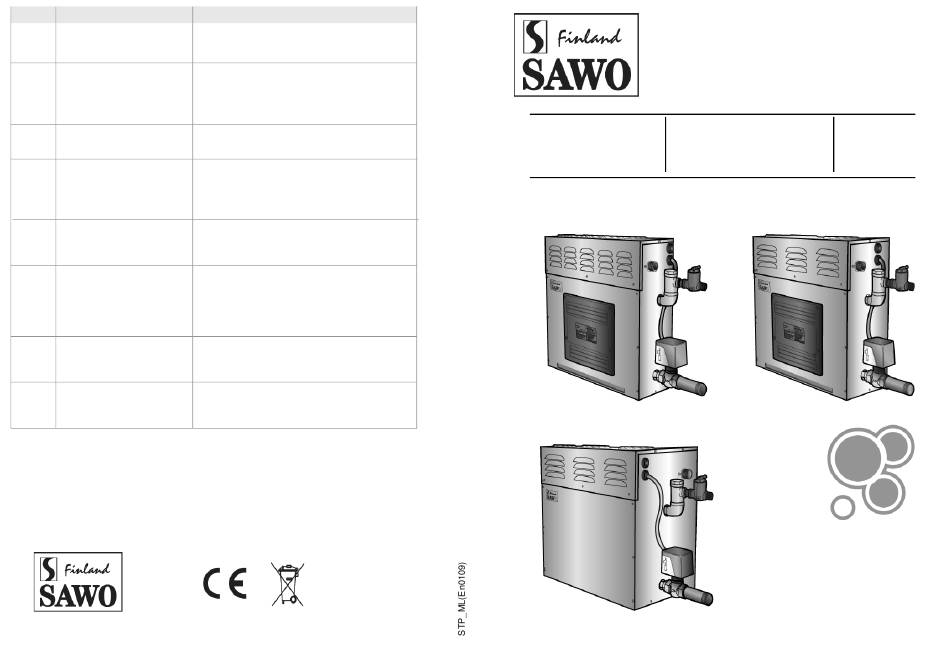

Congratulations on your purchase of a SAWO Steam Generator.
Please read the manual carefully before using the steam generator.
3.0 kW
4.5 kW
3.5 kW
5.0 kW
4.0 kW
9.0 kW
12.0 kW
15.0 kW
MANUAL
STP-75-3
STP-90-3
STP-75-3-C1/3
STP-90-C1/3
STP-120-3
STP-150-3
4.5 kW
6.0 kW
7.5 kW
STEAM
GENERATOR
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sawo STP-30-1/2
Summary of Contents for Sawo STP-30-1/2
- Page 1 Check solenoid valve. Clean level probes. If no problem can be found, contact the retailer. Congratulations on your purchase of a SAWO Steam Generator. Please read the manual carefully before using the steam generator. Drain failure Check that the drain valve is connected and not blocked.
-
Page 2: Table Of Contents
SAWO Steam Generator SAWO Steam Generator TABLE OF CONTENTS TABLE OF CONTENTS Before Installation Steam Room Guidelines Steam Generator Parts Instructions of Use On/Off Mode Standby Mode Auto Drain Mode Temperature / Timer Key Lock Changing the Values Optional Features... -
Page 3: Steam Room Guidelines
Solenoid Valve Power switch Water Level Probe Transformer The voltage of the light output is 230VAC. Sawo Steam Outlet recommends to use less than 50V for the steam room lightning. Use appropriate transformer for lower voltages. Sawo is not responsible of... -
Page 4: Instructions Of Use
Instructions of Use Standby Mode There are four different operation modes in the unit: Off, On, Standby and Drain. The user can easily switch between different modes, making the steam bathing more convenient During the standby-mode the water in the steam generator tank is kept hot. This minimizes with less energy consumption. -
Page 5: Key Lock
Key Lock Lock and unlock the key pad by pressing the up and down buttons at the Before switching scent pump on make sure there is enough aroma in the Scent Pump same time for more than 5 seconds. A high beep will confirm the aroma container. -
Page 6: Maintenance
Don’t damage plastic coating on pins. If coating is damaged, replace level probe. Tighten level probe by hands and use adustable wrench only for final tightening. SAWO Decalcifying Solution can be used for decalcification. Follow these guidelines to 3. Tank cleaning perform preventative maintenance of the steam generator. -
Page 7: Steam Generator
Side view Steam Outlet Steam Generator showing element access panel The steam must move in a continuous flow to the steam room. Do not istall valves on Water Inlet the steam line. Use insulated, rated 120ºC or higher, brass pipe or copper tubing for Power steam line to connect to the steam head as permitted by codes. -
Page 8: Power Wiring
3.0 kW | 3.5 kW | 4.0 kW | 4.5 kW | 5.0 kW A 90ºC / 600V (HO7RN-F) rated insulated copper wire is required for SAWO steam generators. Check size of wires in Ampere Chart in accordance with the National Electrical Code and local TRANSFORMER electrical code. -
Page 9: Installing The Temperature Sensor
SENSOR The temperature sensor comes along with the SAWO steam generator. It is recom- mended to use only Sawo temperature sensor with Sawo generator as it may other- wise not function correctly.Temperature sensor wiring should not be routed near CONVERTABLE 9.0 kW... -
Page 10: Installing Control Unit
Installing Control Unit Pull the temperature sensor through SAWO Steam Control sets the temperature of your steam room. Mount the steam control the steam room wall. Do not apply unit on an accessible area outside the steam room. It is recommended not to place the staples or other material that may steam control near to showers or similar wet places. -
Page 11: Connection Of Sawo
Terminal Connection of Connection of SAWO Control to the PCB. Demand Button (optional) Terminal Block Before installation make sure that the generator is disconnected from the mains by switching off the circuit breaker Before installation make sure that the mains is disconnected from the generator by turning off the circuit breaker. -
Page 12: Dip Switches In The Steam Generator
Steam Generator Series Connection DIP Switches in the Steam Generator Steam Generator Master Slave 1 Slave 2 Slave 3 Slave 4 Control Steam Generator Steam Generator Steam Generator = ON = OFF Standby time Session Time Standby time can be set according to Session time can be set according to user DIP SW DIP SW...
