be charged sales tax. If ordering via fax, include a Visa
or MasterCard ® number and expiration date for payment.
Mail parts orders Hobby Services
and payments by 3002 N Apollo Drive, Suite 1
personal check to: Champaign IL 61822
Be certain to specify the order number exactly as listed
in the Replacement Parts List. Payment by credit card
or personal check only; no C.O.D.
If additional assistance is required for any reason
contact Product Support:
by e-mail at
productsupport@top-fl ite.com
——————————————————————— CONTENTS ———————————————————————
15
13
14
34 35 33
32
®

REPLACEMENT PARTS LIST

TOPA1920.........Wing Kit
TOPA1921.........Fuselage Kit
TOPA1922.........Rudder
TOPA1923.........Horizontal Stabilizer Set
TOPA1924.........Canopy
TOPA1925.........Tail Cover
TOPA1926.........Gear Door Set
TOPA1927.........Spinner
TOPA1928.........Decals
TOPA1929.........Cockpit Kit
or by telephone at
TOPA1930.........Cannon Set
(217) 398-8970
TOPA1931.........Cowl
TOPA1819.........Tail Wheel Assembly
TOPA1932.........Antenna
22
3
25
1 26
2
7 8
10
6
28
9
11
29
31
30
19
17
18
5
4
20
23
24 21
36
27
16
37
12
6

COMMON ABBREVIATIONS

Stab = Horizontal Stabilizer
Fin = Vertical Stabilizer
LE = Leading Edge
TE = Trailing Edge
" = Inches
MM = millimeters
SHCS = Socket Head Cap Screw
To convert inches to millimeters, multiply inches by 25.5
(25.4mm = 1")

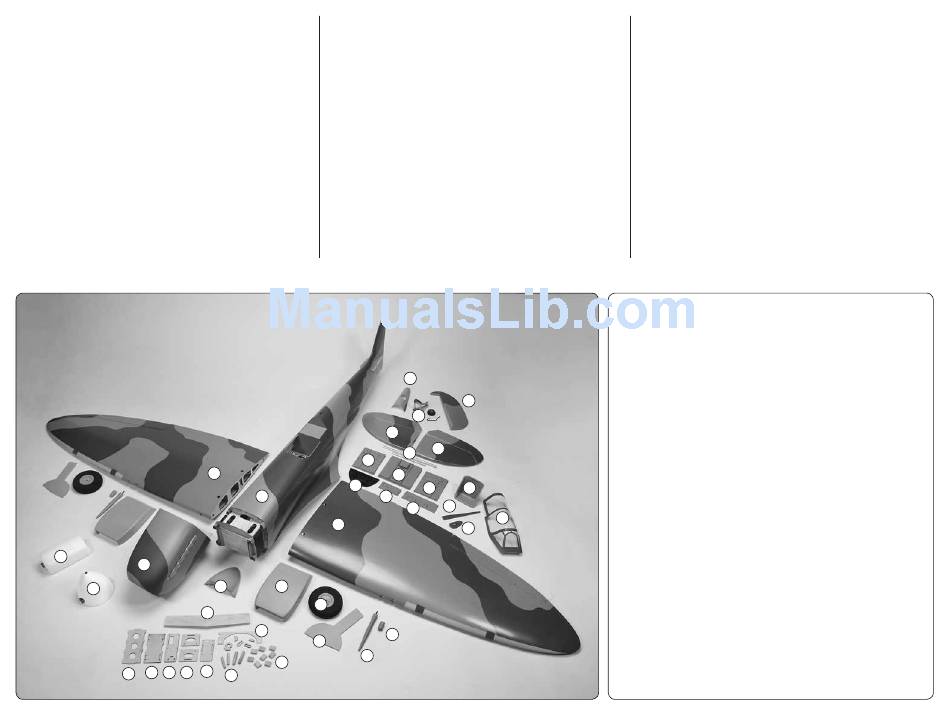

1. Fuselage 20. Stabilizer Joiner Tubes
2. Left Wing Panel 21. Seat
3. Right Wing Panel 22. Right Cockpit Side
4. Left Stabilizer Panel 23. Floor
5. Right Stabilizer Panel 24. Left Cockpit Side
6. Wing Joiner 25. Instrument Panel
7. Air Intake 26. Control Column
8. Radiator 27. Rudder Pedal
9. Landing Gear Cover 28. Rudder Pedal Spacer
10. Wheel 29. Servo Mounting Blocks
11. Cannon 30. Wing Alignment Dowels
12. Cannon Muzzle Cover 31. Receiver Tray
13. Cowl 32. Receiver Battery Tray
14. Spinner 33. Receiver Battery Tray Ends
15. Fuel Tank 34. Ignition Module Tray
16. Canopy 35. Retract Servo Tray
17. Rudder 36. Antenna
18. Tail Wheel Assembly 37. Antenna Base
19. Tail Wheel Cover
