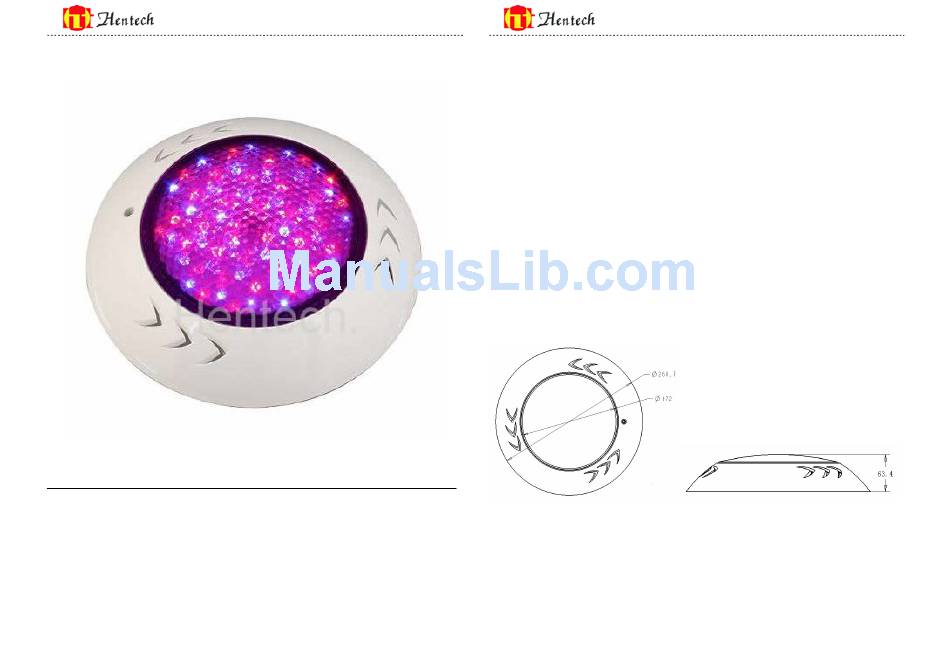

Instruction Manual for HT023C LED Underwater Light

Manufacturer: Hentech Technology Development Co., LTD

Add: Xinmin Industrial Zone, Longzhou Road, Lunjiao Town, Shunde District,

Foshan City, Guangdong Province, China 528308

Telephone: +86-757-27332335/27332338/27332339

Fax: +86-757-27332330

Website: http://www.hentech.ca

IMPORTANT: This manual includes essential information on the safety measures to be

implemented for installation and start-up. Therefore, the installer, as well as the user,

must read these instructions before beginning installation and start-up.

Technical Specification

Standard input voltage: 12V AC/DC (Range: 12~18VAC or DC)

Standard input watt:

RGB / White

5.5W / 6.3W (99 Normal LED)

Use life: 60,000 hours

16 programs with Synchronization capability

Dimensions:

Need help?

Do you have a question about the HT023C and is the answer not in the manual?

Page 1 Instruction Manual for HT023C LED Underwater Light IMPORTANT: This manual includes essential information on the safety measures to be implemented for installation and start-up. Therefore, the installer, as well as the user, must read these instructions before beginning installation and start-up.
Page 2 Packing Contents 8. Evening sea: slow animation red/blue The following items are included inside the box: 9. Evening rivers: slow animation red/green Lamp Assembly x 1 10. Riviera: slow animation green/blue Stainless steel screws x 4 11. White: neutral white Roll plug x 4 12.
Page 3 Tips: The lamp can be installed in most of PAR56 niches if you take off the bracket and the outer ring. Refer to the below picture. Maintenance & Replacement There is no maintenance required for this lamp ¨ it is designed to be used only once, meaning that replacement is necessary if it becomes defective (repairing is impossible).
Page 4 ? To achieve synchronization, confirm all lamps are installed correctly on the same switch, after they are powered off for more than 20 seconds, switch on and switch off continuously three times, and then finally turn them on again. They will all go to program 5. Now you can select a program for them by switch off and on within 8 seconds.
