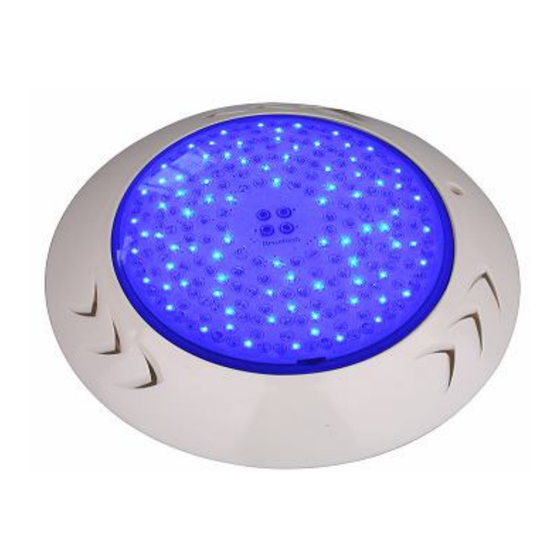

Instruction Manual for Resin Filled LED Underwater Light
Model No.: HT001C-P-T, HT011C-P, HT002C-P-T
HT003C-P-T, HT013C-P
Manufacturer: Hentech Technology Development Co., LTD
Add: Xinmin Industrial Zone, Longzhou Road, Lunjiao Town, Shunde District,
Foshan City, Guangdong Province, China 528308
Telephone: +86-757-27332335/27332335/27332339
Fax: +86-757-27332330
Website: http://www.hentech.ca
IMPORTANT: This manual includes essential information on the safety measures to be
implemented for installation and start-up. Therefore, the installer, as well as the user,
must read these instructions before beginning installation and start-up.
Technical Specification
Standard input voltage: 12V AC/DC (Range: 12~18VAC or DC)
Standard input watt:
Normal LED
RGB / White
18W/21W
23W/26W
30W/33W
Use life: 60,000 hours
16 programs with Synchronization capability
Dimensions
Models HT001C/HT011C
High Power LED
RGB / White
33W/36W
20W/22W
29W/33W
Advertisement
Related Manuals for hentech HT001C-P-T
Summary of Contents for hentech HT001C-P-T
- Page 1 Instruction Manual for Resin Filled LED Underwater Light IMPORTANT: This manual includes essential information on the safety measures to be Model No.: HT001C-P-T, HT011C-P, HT002C-P-T implemented for installation and start-up. Therefore, the installer, as well as the user, HT003C-P-T, HT013C-P must read these instructions before beginning installation and start-up.
- Page 2 Models HT003C/HT013C Instruction & Use This is a high technology electronic controlled light based on LED¡s in three colors: red, green and blue. These three base colors together can produce many other colors to create the perfect atmosphere in the pool. Any of the 16 pre-programmed effects can be selected with the on/off switch of your pool lights.
- Page 3 Wind the cable behind the lamp, and then fasten the lamp on the bracket. I. Models HT001C-P-T, HT011C-P, HT002C-P-T¨ Various types of installation...
- Page 4 II. Models HT003C-P-T, HT013C-P ¨ Various types of installation...
-
Page 5: Cable Connection
Cable Connection The part with * is not included and needs to buy separately. The part with ** is not included. The part with ▲ is only for stainless steel models HT001C/HT011C/HT002C. - Page 6 Tips: The LED bulb is fitting to PAR56 niches and can be used to replace the PAR56. Refer to Maintenance & Replacement the below picture. There is no maintenance required for this lamp ¨ it is designed to be used only once, meaning that replacement is necessary if it becomes defective (repairing is impossible).
- Page 7 Warranty The manufacturer warrants this resin filled LED underwater lights against defects in materials and workmanship for a period of three years from the date of purchase. This warranty does not cover the fixture becoming damaged due to misuse, accidental damaged, improper handling and/or installation and specifically excludes liability for direct, incidental or consequential damages.
