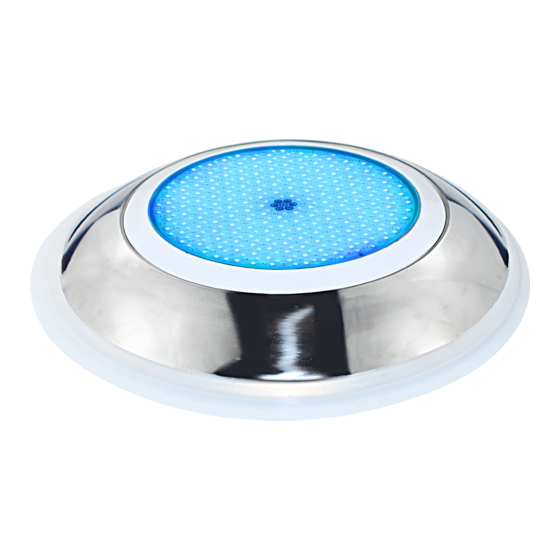

Resin filled led underwater light
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
Instruction Manual for Resin Filled LED Underwater Light
Model No.: HT001C-P-T, HT002C-P-T
HT003C-P-T, HT005C-P-T, HT006C-P-T
Manufacturer: Hentech Technology Development Co., LTD
Add: No. 58 Tianren Industrial Estate, Liandu Village, Leliu Town, Shunde District,
Foshan City, Guangdong, China 528322
Telephone: +86-757-22609165/22609168/22609169
Fax: +86-757-22609170
Website: http://www.hentech.cn/en
IMPORTANT: This manual includes essential information on the safety measures to be
implemented for installation and start-up. Therefore, the installer, as well as the user,
must read these instructions before beginning installation and start-up.
Technical Specification
Standard input voltage: 12V AC/DC (Range: 12~18VAC or DC)
Standard input watt:
Normal LED (RGB / White)
18W/21W
23W/26W
30W/33W
High Power LED (RGB / White)
20W/22W
Use life: 60,000 hours
16 programs with Synchronization capability
Dimensions
Model HT001C
33W/36W
40W/45W
55W/60W
29W/33W

Advertisement

loading
Need help?

Need help?

Do you have a question about the HT005C-P-T and is the answer not in the manual?

Questions and answers

Related Manuals for hentech HT005C-P-T

Summary of Contents for hentech HT005C-P-T

  • Page 1 29W/33W Use life: 60,000 hours 16 programs with Synchronization capability Dimensions Model HT001C Manufacturer: Hentech Technology Development Co., LTD Add: No. 58 Tianren Industrial Estate, Liandu Village, Leliu Town, Shunde District, Foshan City, Guangdong, China 528322 Telephone: +86-757-22609165/22609168/22609169 Fax: +86-757-22609170...
  • Page 2 Model HT003C Model HT006C Model HT002C Packing Contents The following items are included inside the box: Models HT003C/HT013C Models HT001C/HT011C Models HT002C Lamp Assembly x 1 Lamp Assembly x 1 Lamp Assembly x 1 Stainless steel screws x 4 Rubber ring x 1 Rubber ring x 1 Roll plug x 4 Stainless steel screws x 3...
  • Page 3 • This lamp is designed to be fixed in new pools and/or pools with existing surface mounted • The lamp is supplied with cable of 2m, 4m, 6m, 10m, 16m or 20m according to the need of the lamps that need replacement. user, making it possible to install multiple lamps connected to a single junction box.
  • Page 4 II. Models HT003C-P-T, HT013C-P – Various types of installation...

  • Page 5: Cable Connection

    Cable Connection...
  • Page 6 Tips: The LED bulb is fitting to PAR56 niches and can be used to replace the PAR56. Refer to the below picture. III. Connect the cable from the lamp to the power source The below drawing shows how to connect the cable from the lamp to the power source. Note: Don’t use electronic transformers which may damage the light.
  • Page 7 Maintenance & Replacement Safety Warnings There is no maintenance required for this lamp – it is designed to be used only once, meaning The persons who are in charge of installation should have the required qualifications for this type that replacement is necessary if it becomes defective (repairing is impossible). Before any of work.
