6. Measure the distance between the inside of the rails at the front of the rack. Adjust the distance to 17-1/4" and tighten the flat-

head screws to the rail flanges securely.

Left Rail

Right Rail

17-1/4"

Front Rack Supports

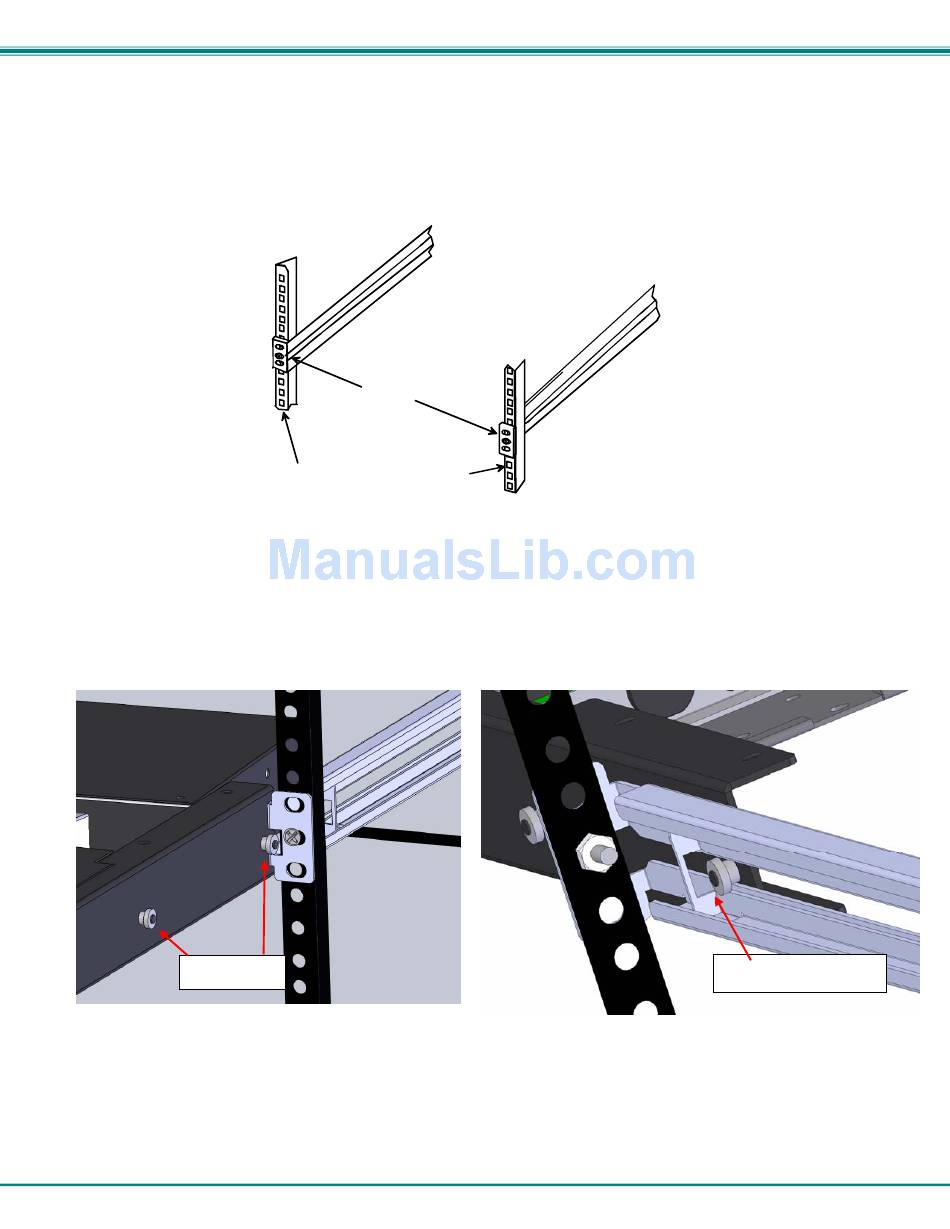

Figure 4- Check spacing of the rails

7. Lineup the rail guides on the RACKMUX drawer with the slots in the front of the left and right rails and slide the drawer into the

rack. The rail guides should be positioned such that the wide lip of the guide is on the backside of the rail. Slide the drawer in

completely.

Wide lip of rail guide

Rail guides

View of rail guide from the front of the rack support

View of rail guide from the backside of the rail
