BolyGuard MG982K-10M User Manual

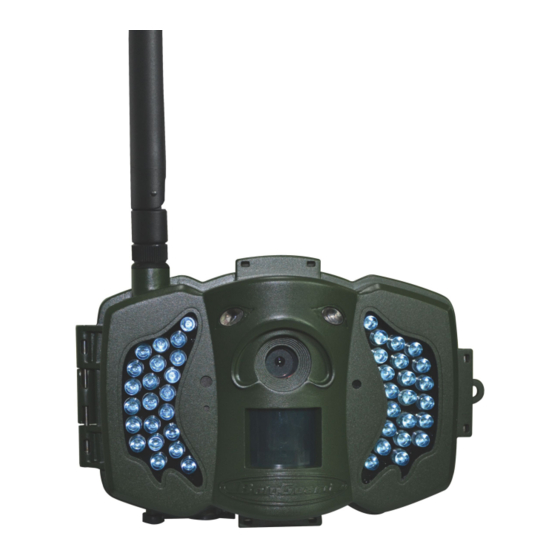

Infrared mobile digital scouting camera
Hide thumbs Also See for MG982K-10M:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Infrared Mobile Digital Scouting Camera
User's Manual
MG982K-10M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MG982K-10M and is the answer not in the manual?

Questions and answers

Related Manuals for BolyGuard MG982K-10M

Summary of Contents for BolyGuard MG982K-10M

  • Page 1 Infrared Mobile Digital Scouting Camera User’s Manual MG982K-10M...

  • Page 2: Table Of Contents

    Content 1 Instruction ......................1.1 General Description ..................1.2 Application ....................1.3 Camera Overview ..................1.4 Shooting Information Display ..............1.5 Two way communication ................2 Cautions ....................... 3 Quick Start Guide ....................3.1 Power Supply ....................3.2 Insert SD card and SIM card ..............

  • Page 3: Instruction

    MG982K-10M nstruction 1 Instruction 1.1 General Description This camera, a digital scouting camera with MMS function, is a digital infrared surveillance camera, triggered by any movement of human or animal monitored by a high sensitive Passive Infrared (PIR) motion sensor, and then automatically captures high quality pictures (up to 10M pixels) or records video clips (720P HD).
  • Page 4 MG982K-10M nstruction Take a few moments to familiarize with the camera controls and displays. It is helpful to bookmark this section and refer to it when reading through the rest of the manual. Figure 1 Diagram of camera functional indicators...
  • Page 5 MG982K-10M nstruction Figure 2 Inner panel view Figure 3 Diagram of camera interfaces Page...

  • Page 6: Shooting Information Display

    MG982K-10M nstruction 1.4 Shooting Information Display When the camera is turned on (the power switch is slid to TEST position), the current settings will be displayed on screen. Figure 4 Shooting information display is the correct SIM card status and the available space of SD card should be a none zero value.

  • Page 7: Cautions

    MG982K-10M 2 Cautions 2 Cautions Ø The working voltage of the camera is 6V. The camera is supplied by 8 or 4 AA batteries. Please install batteries according to shown polarity. Ø Must insert the SD card before power on camera.

  • Page 8: Quick Start Guide

    MG982K-10M Introductions 3 Quick 3 Quick Start Guide 3.1 Power Supply Hunting mode or outdoor use: Use 8 or 4 AA batteries. High-density and high-performance alkaline or lithium batteries are recommended. Security mode or indoor use: Use 6V/2A high quality power adapter.
  • Page 9 MG982K-10M 3 Quick Introductions When you first use, we suggest you to use default settings(step1). Then select your country and carriers(step2) according to your SIM card and input your receive phone number in “administrator number” and receive email address in”Receive Email 1”(step3)

  • Page 10: Manually Send A Mms Or Gprs Photo

    MG982K-10M Introductions 3 Quick 3.4 Manually send a MMS or GPRS photo After you generate a setting file in your SD card, please slip the power switch to SETUP position. After the camera acquiring the signal and the SIM card icon...

  • Page 11: Advanced Operations

    MG982K-10M Advanced Operations 4 Advanced Operations This chapter explains the advanced operations for customizing the camera settings. 4.1 Work Mode Setup mode : to program camera, or to playback the photos or video clips. Hunting mode : when animal or...

  • Page 12: Setting Items

    MG982K-10M Advanced Operations page. Press “ ” to save the settings. 4.2.1 Setting Items Setting Description Items There are three camera modes: Photo £¬ Video Camera Pic+Video . You can enter the main menu to set the Mode camera mode. If you choose...
  • Page 13 MG982K-10M Advanced Operations , then the Time Lapse can’t be set to Choose sensitivity of the PIR. The higher sensitivity indicates that the camera is more easily triggered by motion and takes more pictures or records more videos. It is recommended to use high...
  • Page 14 MG982K-10M Advanced Operations function. Send “Manual” Mode Choose “Manual” in SETUP mode. Please ensure a SIM card is inserted properly; please note, only photos can be sent in SETUP mode. Video information can’t be sent in SETUP mode. “Daily ”...
  • Page 15 MG982K-10M Advanced Operations Control enable communication function. It means if you choose SMS Ctrl , this camera can receive and SMS Ctrl respond your SMS command. Also you can retrieve live pictures any time. But the power consumption will be a little bigger than normal hunting status.

  • Page 16: Default Set

    MG982K-10M Advanced Operations 4.2.2 Default Set Setting Default Options Description Items Camera Mode Photo Video, Pic+Video Security Mode Two way communication Photo Size 10MP Video Size 1280x720 640x480 Photo Burst 1 Photo 2 -6 Photos Video Length 10 sec 20-180 sec...

  • Page 17: Use The Remote Control

    MG982K-10M Advanced Operations SMS Ctrl Two way communication in hunting mode Game Call Set the time and frequency of audio playback Study Code Enter RCH(wireless control), Zone1-Zone7 Language English Beep Sound Camera Posit A to Z Position Format SD Enter...

  • Page 18: Load Or Remove A Wireless Sensor

    MG982K-10M Advanced Operations emergency. Press button B can open or close the laser (you can easily mount the camera with the help of the laser pointer.). Button A: Arm the camera; Button D: Disarm the camera Button C: Emergency call button Button B: Laser pointer;...
  • Page 19 MG982K-10M Advanced Operations Page...
  • Page 20 MG982K-10M Advanced Operations Secondly, Power on or trigger the wireless sensor to study code. Page...

  • Page 21: Change The Settings Via Android App Or Sms

    MG982K-10M Advanced Operations 3. When you want to remove the wireless sensor, please enter the study code menu, press “ ” or “ ” button to cancel the “ ”. Please note that the wireless sensors just can be used in Security Mode .

  • Page 22: User Level

    MG982K-10M Advanced Operations specified website is written in the last page of the manual. 4.5.1 User level There are two user levels: administrator and normal users. Each user has a different authorization level: Functions User Level administrator phone Only administrator’s...

  • Page 23: Get On Spot Photo

    MG982K-10M Advanced Operations Here the “ ” is the original administrator’ s password. 0000 Please change the password ASPS. Note:there is a “#”at the end of the commend. If successful, reply SMS: Dear administrator, your number is 13800138000 If failed, reply SMS: Please check the password.

  • Page 24: Sms Command List

    MG982K-10M Advanced Operations 4.5.5 SMS command list If you can’t use the android APP to easy operation, below list all the SMS commands for you. You can control your camera via SMS. A. Set GSM Parameter Function SMS Command Set administrator...
  • Page 25 MG982K-10M Advanced Operations Disarm Check camera Settings Format TF Card #P#0000# (It’s suggest that the admin phone administrator’s number to change the administrators password Password at the beginning ) Help C. Set Menu Parameter No Function SMS Command Change Camera...
  • Page 26 MG982K-10M Advanced Operations Position function #e#ooff# to off the camera position function Page...

  • Page 27: Trouble Shooting

    MG982K-10M 5 Trouble shooting Trouble shooting There is something in front of the camera lens. Is the camera broken? Figure 6 IR-cut filter A: The camera is not broken. It’s an IR-cut filter. When the camera is powered on, the IR-cut will be reset and cover the lens.

  • Page 28: Appendix I: Pir Detection Zone

    A ppendix I: PIR Detection Zone MG982K-10M Appendix I: PIR Detection Zone Figure 7 shows the detection range in different detection angle. When the detection angle is 35°, the detection range is 50ft (15m). When the detection angle is 52°, the detection range is 30ft (9m).
  • Page 29 A ppendix I: PIR Detection Zone MG982K-10M Figure 8 Detection angle vs. FOV angle This camera has a new design of PIR and the new PIR is patented. The new patented PIR’s detection range is ultra-long. Figure 9 shows the compared detection zone between normal PIR and the new patented PIR.

  • Page 30: Appendix Ii: Error Code

    MG982K-10M ¢ò Appendix : Error Code Appendix II: Error Code Code Meaning Description Possible cause: 1: The user forget to input the receiving cellphone number; Non-existent 2: The user forget to input the receiving Email 3915 address address; Suggestion: 1: Check the MMS settings, input all the necessary parameters;...
  • Page 31 MG982K-10M ¢ò Appendix : Error Code Possible cause: 1: The GSM network is not good or not well covered with the GPRS network 2: The instability in signal transmission lead to some MMS setting parameters is missing, when the GSM base station do the data analysis.

  • Page 32: Appendix ¢Ó : Technical Specifications

    MG982K-10M Appendix ¢ó : Technical Specifications Appendix : Technical Specifications ¢ó 5MP Color CMOS, 10MP Image Sensor Interpolation Lens F/NO=3.0 FOV (Field of View)=52° PIR detection range 30M/100F Display Screen 3’’ LCD Memory Card From 8 MB to 32 GB 10MP = 3648 2736 ×...

  • Page 33: Appendix ¢Ô : Parts List

    MG982K-10M Appendix ¢ô : Parts List Appendix : Parts List ¢ô Part Name Quantity Digital Camera Wireless Remote Control USB Cable Belt User’s Manual Antenna Website Information: Down load the camera easy set up software from here: (version 1.3) Page...
