BolyGuard MG982K-10M User Manual

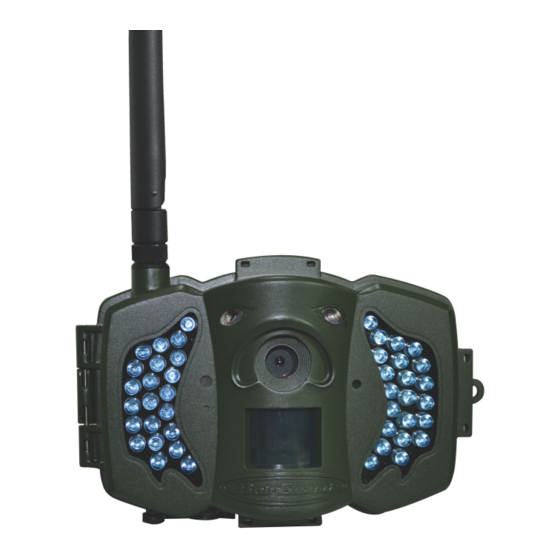

Infrared mobile digital scouting camera
Hide thumbs Also See for MG982K-10M:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Infrared Mobile Digital Scouting Camera
User's Manual
MG982K-10M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MG982K-10M and is the answer not in the manual?

Questions and answers

Related Manuals for BolyGuard MG982K-10M

Summary of Contents for BolyGuard MG982K-10M

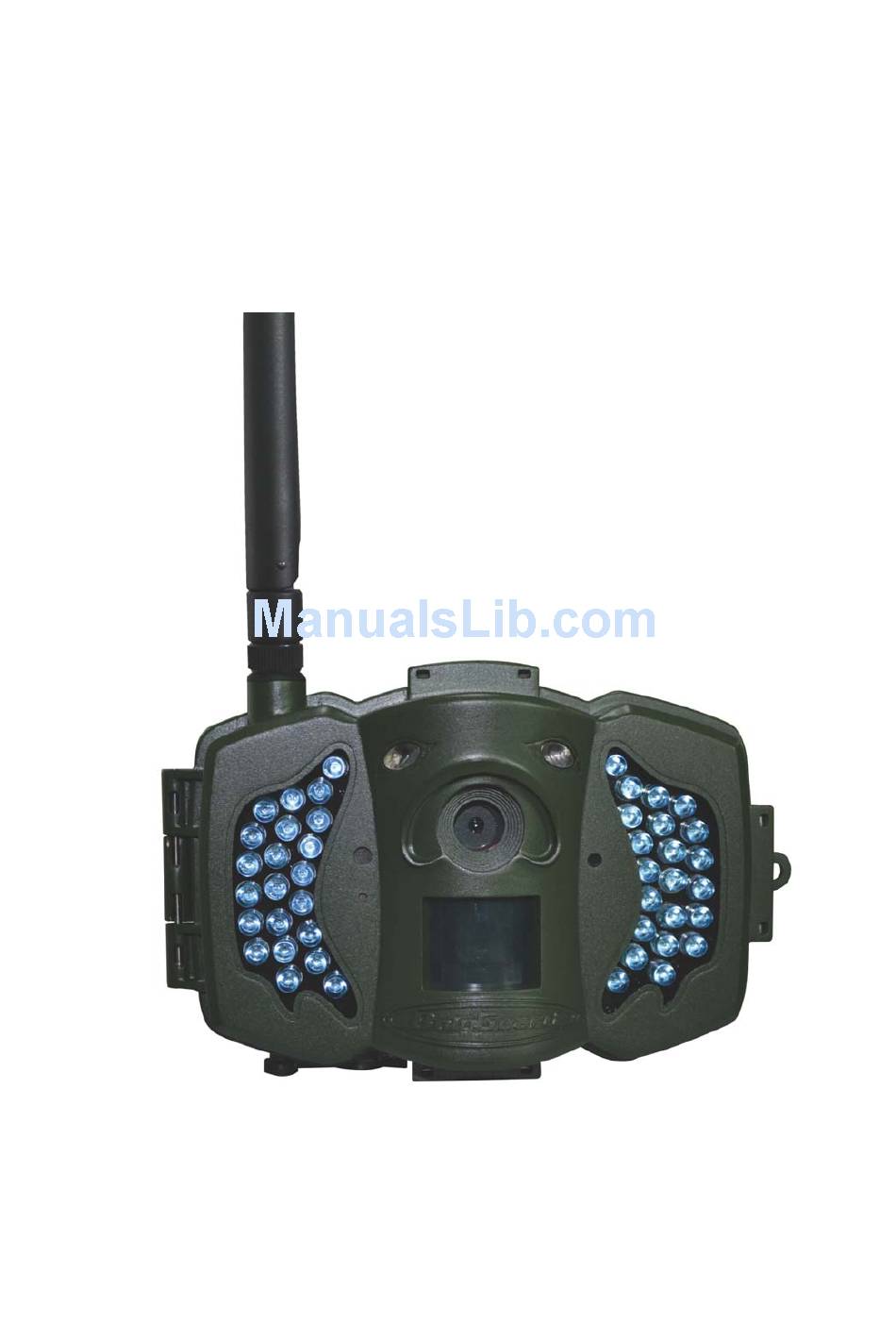

  • Page 1 Infrared Mobile Digital Scouting Camera User’s Manual MG982K-10M...

  • Page 2: Table Of Contents

    Content 1 Instruction ................... 1 General Description..............1 Application................. 1 Camera Overview............... 1 Shooting Information Display...........4 Two Way Communication ............4 2 Cautions....................5 3 Quick Start Guide ................6 Power Supply ................6 Insert SD card and SIM card .............6 Do the Camera Settings .............6 Manually Send a MMS or GPRS Photo ........

  • Page 3: Instruction

    MG982K-10M 1 Instruction 1 Instruction 1.1 General Description This camera, a digital scouting camera with MMS function, is a digital infrared surveillance camera, triggered by any movement of human or animal monitored by a high sensitive Passive Infrared (PIR) motion sensor, and then automatically captures high quality pictures (up to 10M pixels) or records video clips (720P HD).
  • Page 4 MG982K-10M 1 Instruction Figure 1 Diagram of camera functional indicators Page 2...
  • Page 5 MG982K-10M 1 Instruction Figure 2 Inner panel view Figure 3 Diagram of camera interfaces Page 3...

  • Page 6: Shooting Information Display

    MG982K-10M 1 Instruction 1.4 Shooting Information Display When the camera is turned on (the power switch is slid to TEST position), the current settings will be displayed on screen. Figure 4 Shooting information display is the correct SIM card status and the available space of SD card should be a none zero value.

  • Page 7: Cautions

    MG982K-10M 2 Cautions 2 Cautions ¬ The working voltage of the camera is 6V. The camera is supplied by the power adapter or 8 AA batteries. ¬ Please install batteries according to shown polarity. ¬ Please insert the SD card before power on camera. The camera has no internal memory for saving images or videos.

  • Page 8: Quick Start Guide

    MG982K-10M 3 Quick Start Guide 3 Quick Start Guide 3.1 Power Supply Hunting mode or outdoor use: use 8 or 4 AA batteries. High-density and high-performance alkaline or lithium batteries are recommended. Security mode or indoor use: use 6V/2A high quality power adapter.

  • Page 9: Manually Send A Mms Or Gprs Photo

    MG982K-10M 3 Quick Start Guide 2) Set the camera parameters For first time use, we suggest you to use default settings (step1). Then select your country and carriers (step2) according to your SIM card and input your receive phone number in “administrator number”...

  • Page 10: Enter Work Mode

    MG982K-10M 3 Quick Start Guide and the SIM card icon appears, target an object and press “SHOT” to take a photo manually. Then press “OK” to playback the photos, press “▲” and “▼” to switch to previous or next photo. Press “MENU” and you can see a send Phone [MMS] interface, press “OK”...

  • Page 11: Advanced Operations

    MG982K-10M 4 Advanced Operations 4 Advanced Operations This chapter explains the advanced operations for customizing the camera settings. 4.1 Work Mode Setup mode: to program camera or to playback the photos or video clips. Hunting mode: when animal or human...

  • Page 12: Setting Items

    MG982K-10M 4 Advanced Operations 4.2.1 Setting Items Setting Items Description There are three camera modes: Photo，Video or Pic+Video. You can enter the main menu to set the Camera Mode camera mode. If you choose Pic+Video mode, the camera takes a picture and a video.
  • Page 13 MG982K-10M 4 Advanced Operations Choose sensitivity of the PIR. The higher sensitivity indicates that the camera is more easily triggered by motion and takes more pictures or records more videos. It is recommended to use high sensitivity in room or environment with little...
  • Page 14 MG982K-10M 4 Advanced Operations function it. There are 4 MMS modes: “Manual” works in SETUP mode，“Daily” and “Instant” work in ON mode. “OFF” means to close the communicate function. 1. “Manual”: Choose “Manual” in SETUP mode. Please ensure a SIM card is inserted properly; please note only photos can be sent in SETUP mode.
  • Page 15 MG982K-10M 4 Advanced Operations MMS. If you choose “Instant”, you need to set how many MMS you want to send for economic consideration. 4. “Off”: to disable MMS function. SMS Control can enable two way communication function. It means if you choose SMS Control as ON, this camera can receive and respond your SMS command.

  • Page 16: Default Set

    MG982K-10M 4 Advanced Operations 4.2.2 Default Set Setting Items Default Options Description Camera Mode Photo Video, Pic+Video Security Mode Two way communication Photo Size 10MP Video Size 1280x720 640x480 Photo Burst 1 Photo 2-6 Photos Video Length 10 Sec. 20-180 Sec.

  • Page 17: Use The Remote Control

    MG982K-10M 4 Advanced Operations Game Call Set the time and frequency of audio playback Study Code Enter RCH(wireless control), Zone1-Zone7 Language English Suomi, Deutsch, č Norsk, eština Svenskt, Dansk Italiano, Pусский (Version 1) (Version 2) Beep Sound Camera Posit A to Z Position...

  • Page 18: Load Or Remove A Wireless Sensor

    MG982K-10M 4 Advanced Operations Button A: Arm the camera; Button D: Disarm the camera Button C: Emergency call button Button B: Laser pointer Setup status Study Code Menu Study Code Menu Method to add remote control(s) to the camera: Enter the Setup status, press Menu and enter the Study Code submenu.
  • Page 19 MG982K-10M 4 Advanced Operations Page 17...
  • Page 20 MG982K-10M 4 Advanced Operations 2. Power on or trigger the wireless sensor to study code. Page 18...

  • Page 21: Change The Settings Via Android App Or Sms

    MG982K-10M 4 Advanced Operations When you want to remove the wireless sensor, please enter the study code menu, press “◄” or “►” button to cancel the “√.” Please note that the wireless sensors just can be used in Security Mode. In Hunting Mode, the wireless sensors will not function.

  • Page 22: Set Administrator Phone Number

    MG982K-10M 4 Advanced Operations Functions User Level Set administrator Only phone number administrator’s password Set administrator’s password administrator Set camera parameters administrator Set normal user administrator Receive emergency calling administrator, normal user Send SMS for on spot picture administrator, normal user...

  • Page 23: Use Android App

    MG982K-10M 4 Advanced Operations Edit SMS #T# send to your camera’s SIM card. If successful, the camera will take an on-spot picture and send to your mobile phone. If failed, reply SMS: Photo error: xx, Settings error: xx, MMS error: xx or Time out! 4.5.4 Use Android APP...
  • Page 24 MG982K-10M 4 Advanced Operations A. Set GSM Parameter Function SMS Command Set Administrator #mg982k#0000#13800138000# Number Set Normal Users #n#13800138001#13800138002#13800138003 Phone Number Set MMS #m#http://mmsc.cingular.com#66.209.11.32#80 Parameters 80#wap.cingular# account#password# (The example parameters are for the carrier of AT&T) Set Email #s#bmctest123@sina.com#bmc123#25#cmnet Parameters #smtp.sina.com#name#password#...
  • Page 25 MG982K-10M 4 Advanced Operations Size Change Video #e#v10# or #E#v30# (the number after V is Length seconds) Change Date #e#t# (adjustment the time) Time Change Time #e#l1h# (1 hour) or #e#l5m# (5 min) Lapse Change PIR #e#po# (Off) or #e#ph# (High) or #e#pn#...

  • Page 26: Trouble Shooting

    MG982K-10M 5 Trouble shooting Trouble Shooting 1 There is something in front of the camera lens. Is the camera broken? Figure 5 IR-cut filter A: The camera is not broken. It’s an IR-cut filter. When the camera is powered on, the IR-cut will be reset and cover the lens. Only when the camera is powered off, the IR-cut will be at a random place.

  • Page 27: Appendix I: Pir Detection Zone

    Appendix I: PIR Detection Zone MG982K-10M Appendix I: PIR Detection Zone Figure 6 shows Bolymedia’s 4 kinds of detection range at different detection angles. This camera is super long range with 60 degree. Figure 6 PIR Detection Zone The PIR detection angle (α) is just smaller than the field of view (FOV) angle (β).
  • Page 28 Appendix I: PIR Detection Zone MG982K-10M Figure 7 Detection angle vs. FOV angle This camera has a new design of PIR and the new PIR is patented. The new patented PIR’s detection range can reach to 100ft (in good environments). Figure 8 shows the compared detection zone between normal PIR and the new patented PIR.

  • Page 29: Appendix Ii: Error Code

    MG982K-10M Ⅱ Appendix : Error Code Appendix II: Error Code Code Meaning Description Possible cause: 1. The user forgets to input the receiving cellphone number. Non-existent 2. The user forgets to input the receiving 3915 address E-mail address. Suggestion: 1. Check the MMS settings, input all the necessary parameters.
  • Page 30 MG982K-10M Ⅱ Appendix : Error Code Possible cause: 1. The GSM network is not good or not well covered with the GPRS network. 2. The instability in signal transmission leads to some MMS setting parameters missing when the GSM base station do the data analysis.

  • Page 31: Appendix Ⅲ: Technical Specifications

    MG982K-10M Appendix Ⅲ: Technical Specifications Appendix Ⅲ: Technical Specifications 5MP Color CMOS, Image Sensor 10MP Interpolation F/NO=3.1； Lens FOV (Field of View)=52° PIR Detection Range 30m/100ft Display Screen 3’’ LCD Memory Card From 8 MB to 32 GB 10MP = 3648×2736 Picture Resolution 5MP = 2560×1920...

  • Page 32: Appendix Ⅳ: Parts List

    MG982K-10M Appendix Ⅳ: Parts List Appendix Ⅳ: Parts List Part Name Quantity Digital Camera Wireless Remote Control USB Cable Belt User’s Manual Antenna Warranty Card Website Information: Down load the APP software from here: (Version 1.3) page 30...
