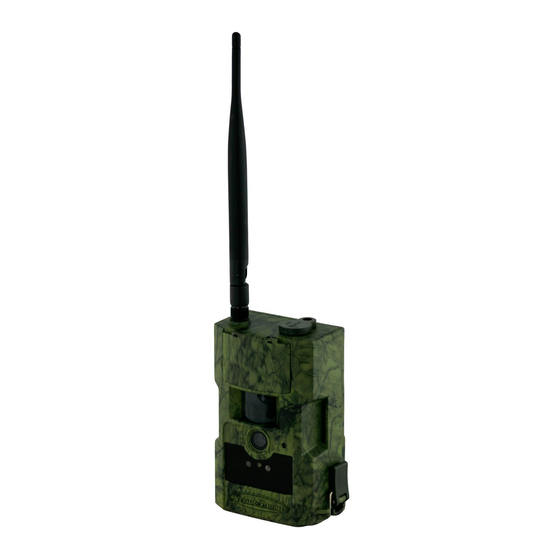

- Page 1 Infrared Mobile Digital Scouting Camera User’s Manual MG882K-8M...
-
Page 3: Table Of Contents
Content 1 Instruction................1 General Description ............1 Camera Body Interfaces ..........1 Remote Control ..............2 1.3.1 Navigating ..............3 1.3.2 Characters ..............3 Shooting Information Display........3 MMS/GPRS function .............4 Supported Format ............5 2 Cautions ..................6 3 Quick Start Guide..............7 Power Supply..............7 3.2 Insert the SD card and the SIM card ......8 3.3 Power On and Enter into the ON Mode......8 3.4 Enter into the TEST Mode ..........9... -
Page 5: Instruction
MG882K-8M 1 Instruction 1 Instruction 1.1 General Description This camera, a digital scouting camera with black IR and MMS function, is a digital infrared surveillance camera, triggered by any movement of human or animal monitored by a high sensitive Passive... -
Page 6: Remote Control
MG882K-8M 1 Instruction Fig. 1 Diagram of camera functional indicators Menu Menu 1.3 Remote Control Cancel Cancel The remote control is the input device for the camera and is primarily used for customer settings and password input. This is an infrared type wireless... -
Page 7: Navigating
MG882K-8M 1 Instruction 1.3.1 Navigating Press UP or DOWN to select or highlight the menu item. Press LEFT or RIGHT to select the option of each item and press OK to make a selection. Fig. 3 Key description of the remote control 1.3.2 Characters... -
Page 8: Mms/Gprs Function
MG882K-8M 1 Instruction Fig. 4 Shooting information display 1.5 MMS/GPRS function This camera can send pictures instantly to your mobile device via GSM/GPRS network. You’ll be alerted just when a picture or video has been taken. The camera sends MMS message through GPRS network, so before using this function, you need to open GPRS service from your service provider. -
Page 9: Supported Format
MG882K-8M 1 Instruction 1.6 Supported Format Item Format Photo Video File format FAT32 Here are some important notices. The file system format is not a concern of the camera unless you have problems with reading the SD card with other devices. If this happens, please format the SD card in the camera or in a computer and then reinsert the card into your camera. -
Page 10: Cautions
MG882K-8M 2 Cautions 2 Cautions ★ The working voltage of the camera is 6V. The camera is supplied by four or eight AA batteries. ★ Please install batteries according to shown polarity. ★ Please unlock the write-protect before inserting the SD card. -
Page 11: Quick Start Guide
MG882K-8M 3 Quick Start Guide 3 Quick Start Guide 3.1 Power Supply To supply power for the camera, 4 or 8 size AA batteries are needed. Open the bottom cover. Confirm that the power switch is in the OFF position and pull out the battery pack by pulling the silver handle. Load the fully charged batteries into the pack according to the polarities signs shown below. -
Page 12: Insert The Sd Card And The Sim Card
MG882K-8M 3 Quick Start Guide 3.2 Insert the SD card and the SIM card Open the bottom cover. Insert an SD card into the card slot with unmarked side upwards. Please note that the SD card is on the “write”... -
Page 13: Enter Into The Test Mode
MG882K-8M 3 Quick Start Guide In ON mode, it is unnecessary to use the remote control. The camera will take pictures or videos automatically according to the default settings or previous custom settings. The camera has the sound recording function, so the sound will be embedded in the video clip while capturing a video. -
Page 14: Send Mms Manually
MG882K-8M 3 Quick Start Guide video clips in the SD card, it is suggested to format the SD card. 3.4.4 Send MMS Manually When the MMS Mode is set as “Manual” you can send the selected image to preset address in TEST mode. -
Page 15: Advanced Operations
MG882K-8M 4 Advanced Operations 4 Advanced Operations The camera has three basic operation modes: OFF mode: power switch is in OFF position. ON mode: power switch is in ON position. TEST mode: power switch is in TEST position. Fig.6 Operation mode This chapter explains the advanced operations for customizing the camera settings. - Page 16 MG882K-8M 4 Advanced Operations Choose duration of recording video. Video Length Choose if the sound recorder will be used. Video Sound Choose how long the camera will stop functioning after each triggering. The camera’s PIR will be PIR Interval disabled during this interval.
- Page 17 MG882K-8M 4 Advanced Operations record any triggers set off by movement. This function can be set to Off and will function to the interval settings. The camera sends MMS message through GPRS network, so before using this function, you need to open GPRS service from your service provider.
- Page 18 MG882K-8M 4 Advanced Operations information can’t be sent in TEST mode. 2) “Daily Report”: The camera will report the summarized information at the preset time (if the preset time is, eg.20:00PM) on how many pictures it had taken per day. So, you will get a summarized text message with the last picture taken until 20:00PM.
-
Page 19: Default Setting
MG882K-8M 4 Advanced Operations photos. If it is on Video mode, the Camera will send only SMS instead of MMS. 4) “OFF”: to disable MMS function. Choose send the image to your Phone or E-mail. 1> Phone: [MMS]: send the image to cell phone via WAP. -
Page 20: Mms Settings
MG882K-8M 4 Advanced Operations Video Size 640x480 320x240 Set Clock Enter Adjust Clock Photo Burst 1 Photo 2 Photos, 3 Photos Video Length 10 sec 5–60 secs Video Sound PIR Interval 5 sec 0–55 sec, 1-60 min PIR Sensitivity Normal... -
Page 21: Gprs Settings
MG882K-8M 4 Advanced Operations b) Press OK to Enter into submenu. c) There are four inputs for key in URL, APN, IP and Port, press ﹟ to switch between each inputs. Press number buttons to key in the digits, letters or punctuations. Press UP(Cancel) to delete. -
Page 22: Format Sd Card
MG882K-8M 4 Advanced Operations APN：Internet APN, for example: cmnet Account and Password : (some telecom operators need to set account and password to launch GPRS). E-mail user：sending e-mail address, for example: abc@163.com E-mail password：sending e-mail password, for example: 1111; 4.1.4 Format SD Card... - Page 23 MG882K-8M 4 Advanced Operations Through the suffix you can distinguish whether the file is an image (with suffix .jpg) or a video (with suffix .avi). Page 19...
-
Page 24: Trouble Shooting
MG882K-8M 5 Trouble Shooting 5 Trouble Shooting 1 There is something in front of the camera lens. Is the camera broken? Fig. 7 IR-cut filter A: The camera is not broken. It’s an IR-cut filter. When the camera is powered on, the IR-cut will be reset and cover the lens. Only when the camera is powered off, the IR-cut will be at a random place. -
Page 25: Appendix I: Pir Detection Zone
MG882K-8M Appendix I: PIR Detection Zone Appendix I: PIR Detection Zone The figure 8 shows the detection range in different detection angle. When the detection angle is 35°, the detection range is 50 ft(15m). When the detection angle is 52°, the detection range is 30 ft (9m). - Page 26 PIR Detection Zone Fig. 9 Detection angle VS F.O.V angle MG882K-8M has a new design of PIR which is patented. The new patented PIR’s detection range can reach to 72 ft (22m). Figure 10 shows the compared detection zone between normal PIR and the new patented PIR.
-
Page 27: Appendix : Technical Specifications
MG882K-8M Ⅱ Appendix : Technical Specifications AppendixⅡ: Technical Specifications Image Sensor 5MP Color CMOS, 8MP Interpolation Lens F/NO=3.0 FOV (Field of View)=52° PIR Detection Range 22M/73F Display Screen 1.5” LCD Memory Card From 8 MB to 32 GB Picture Resolution 8MP = 3264 ×2448;... -
Page 28: Appendix Ⅲ: Parts List
MG882K-8M Appendix Ⅲ: Parts List Appendix Ⅲ: Parts List Part Name Quantity Digital Camera Wireless Remote Control USB Cable Belt User’s Manual Enhanced Antenna Warranty Card Page 24...
